Product Overview
Description
Solar Junction Box
Main Characteristics:
1.The shell has strong anti-aging and ultraviolet resistance
2.Meet the requirements for use under harsh outdoor
environmental conditions
3.The installation of the welding strip is fast, and all connection methods adopt double
reinforced connection
4.Equipping diodes of different specifications will change the maximum operating current
of the junction box
Related Parameters
| Parameters | ||
| Electrical | Rated Current | 20A |
| Rated Voltage | 1000VCD(TUV) | |
| Contact Resistance | ≤0.5mΩ | |
| Security Level | Class Ⅱ | |
| Application Level | A | |
| Mechanical Properities | Temperature | -40℃ to + 85℃ |
| Cable Range | 4MM²/12AWG | |
| Degree of Protection | IP67 | |
| Waterproofing Structure | Potting Sealant | |
| Connection Method | Soldering | |
| Material Properities | Insulation Material | PPO,Black |
| Contact Material | Copper, Nickel Plated | |
| Flame Resistance | UL94-V0 | |

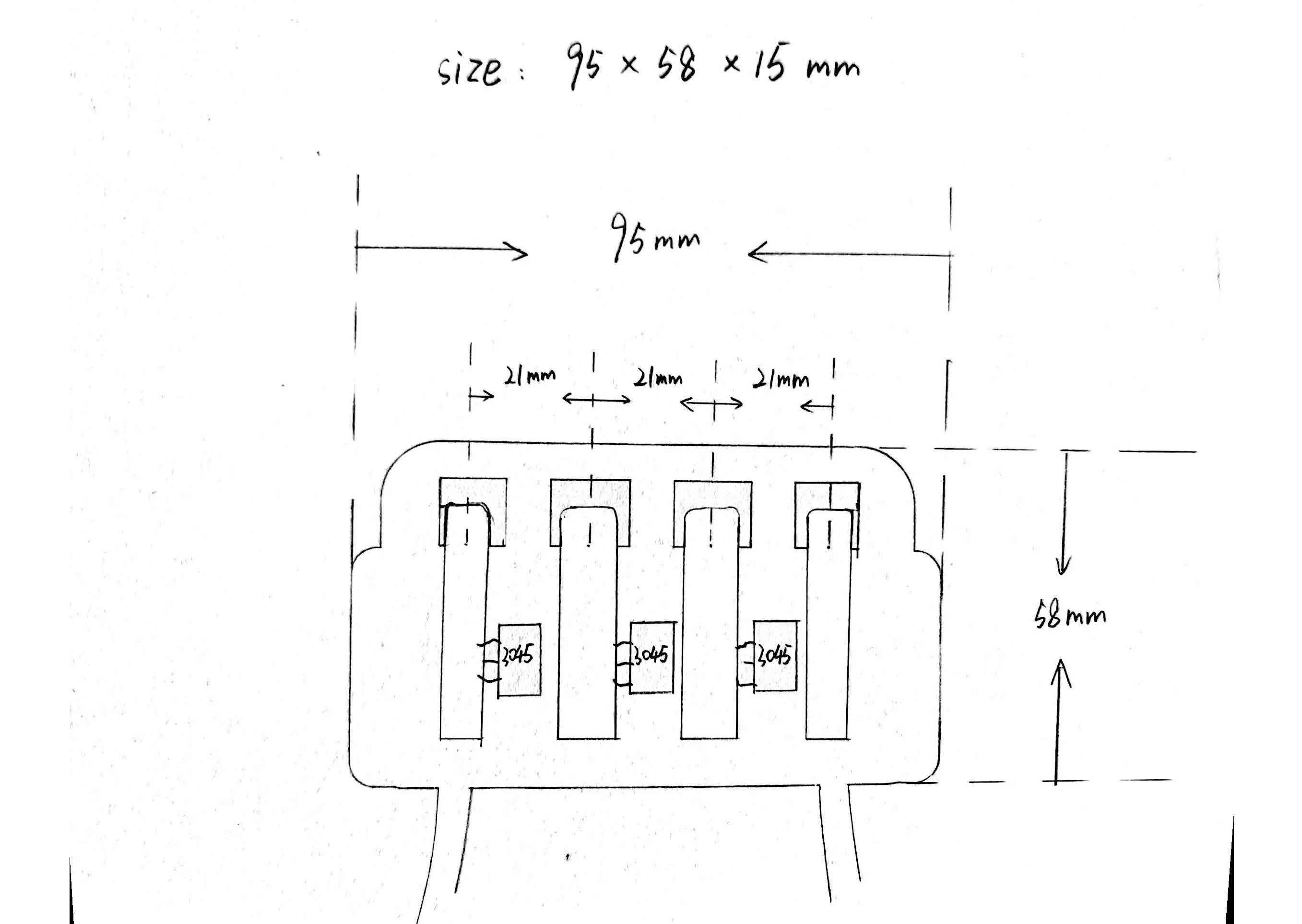

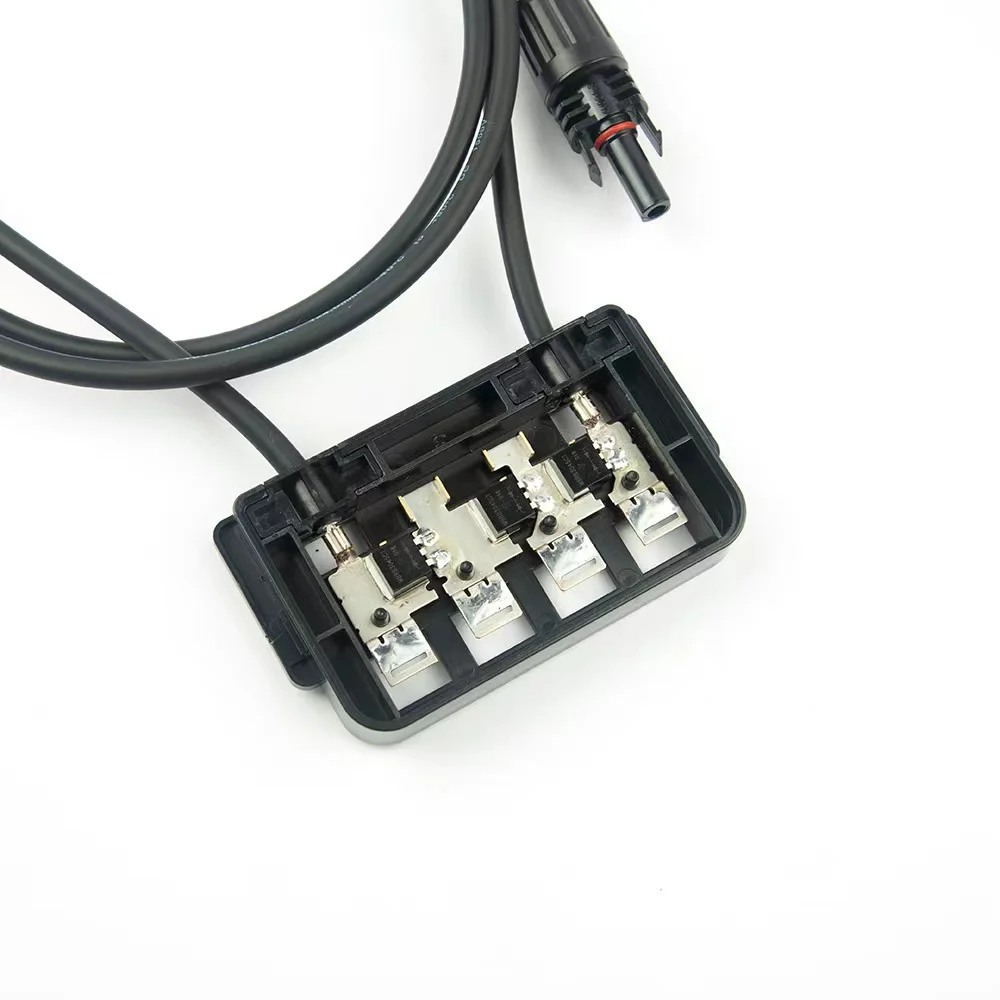

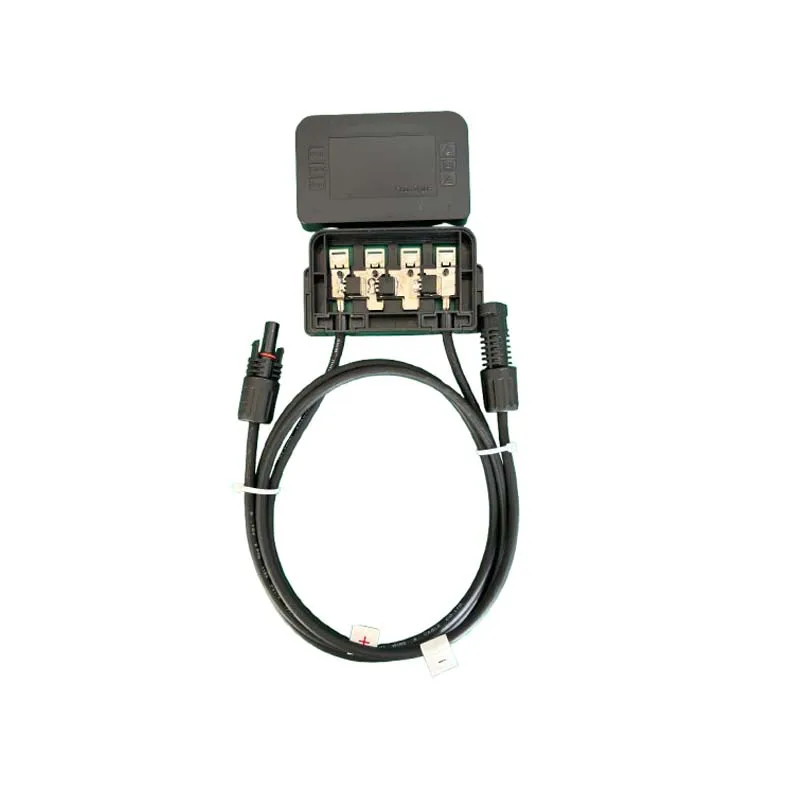

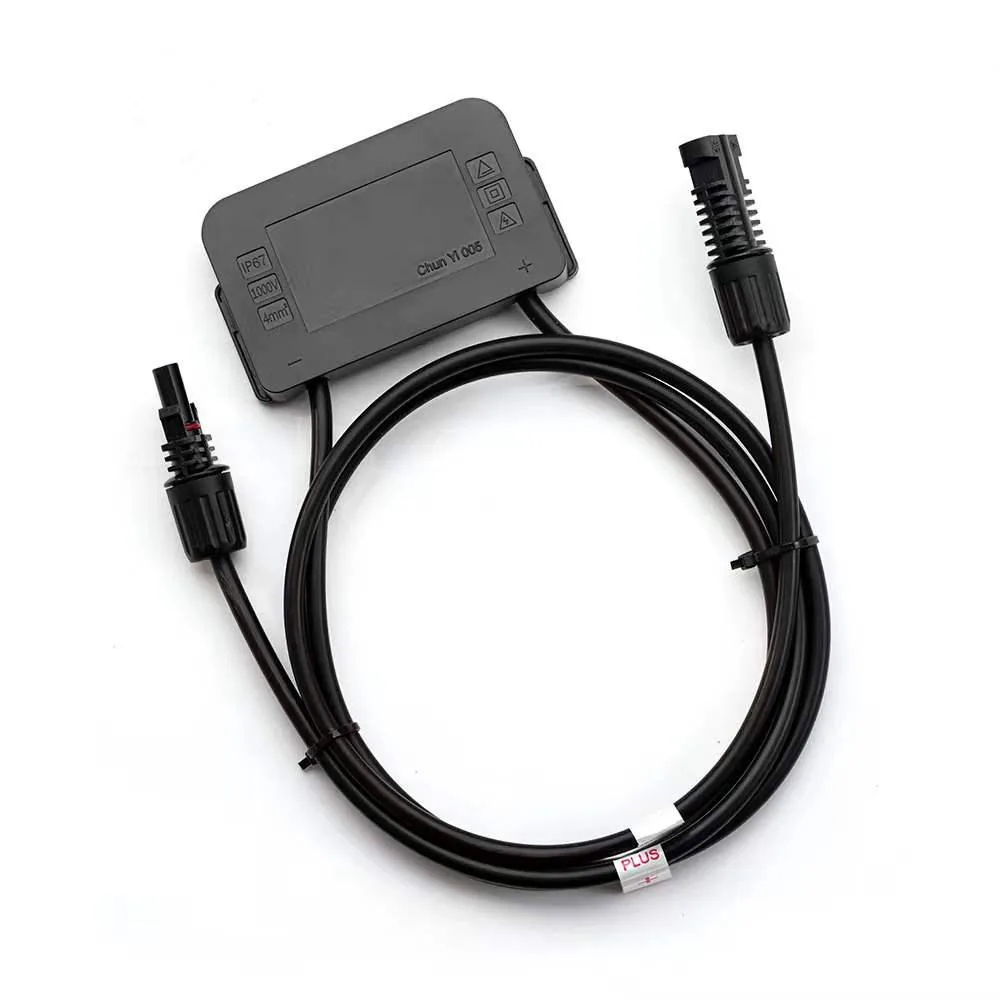

Detailed Images
