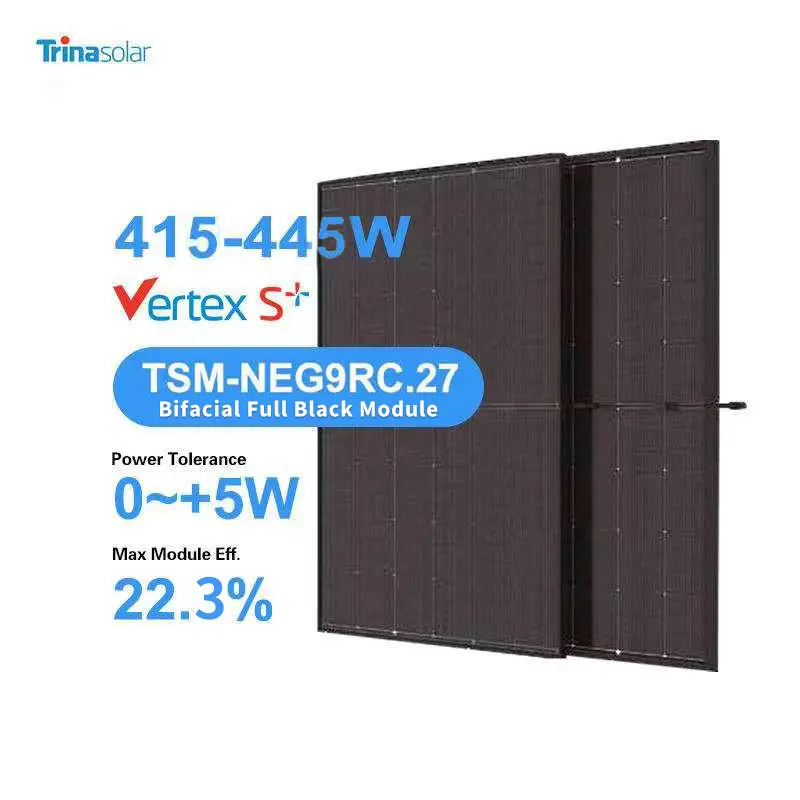

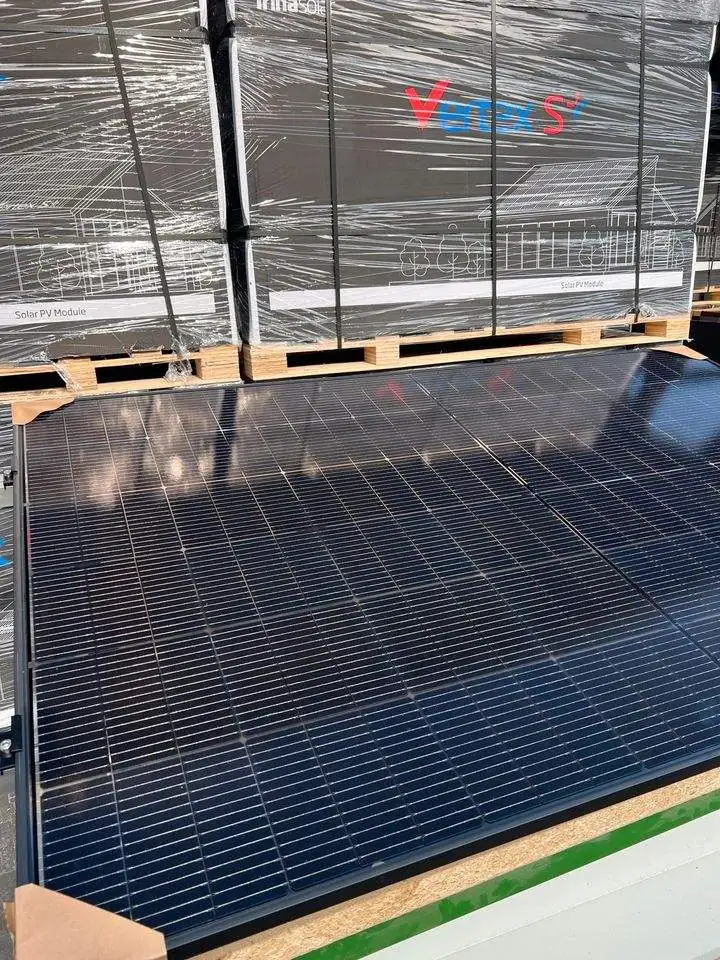

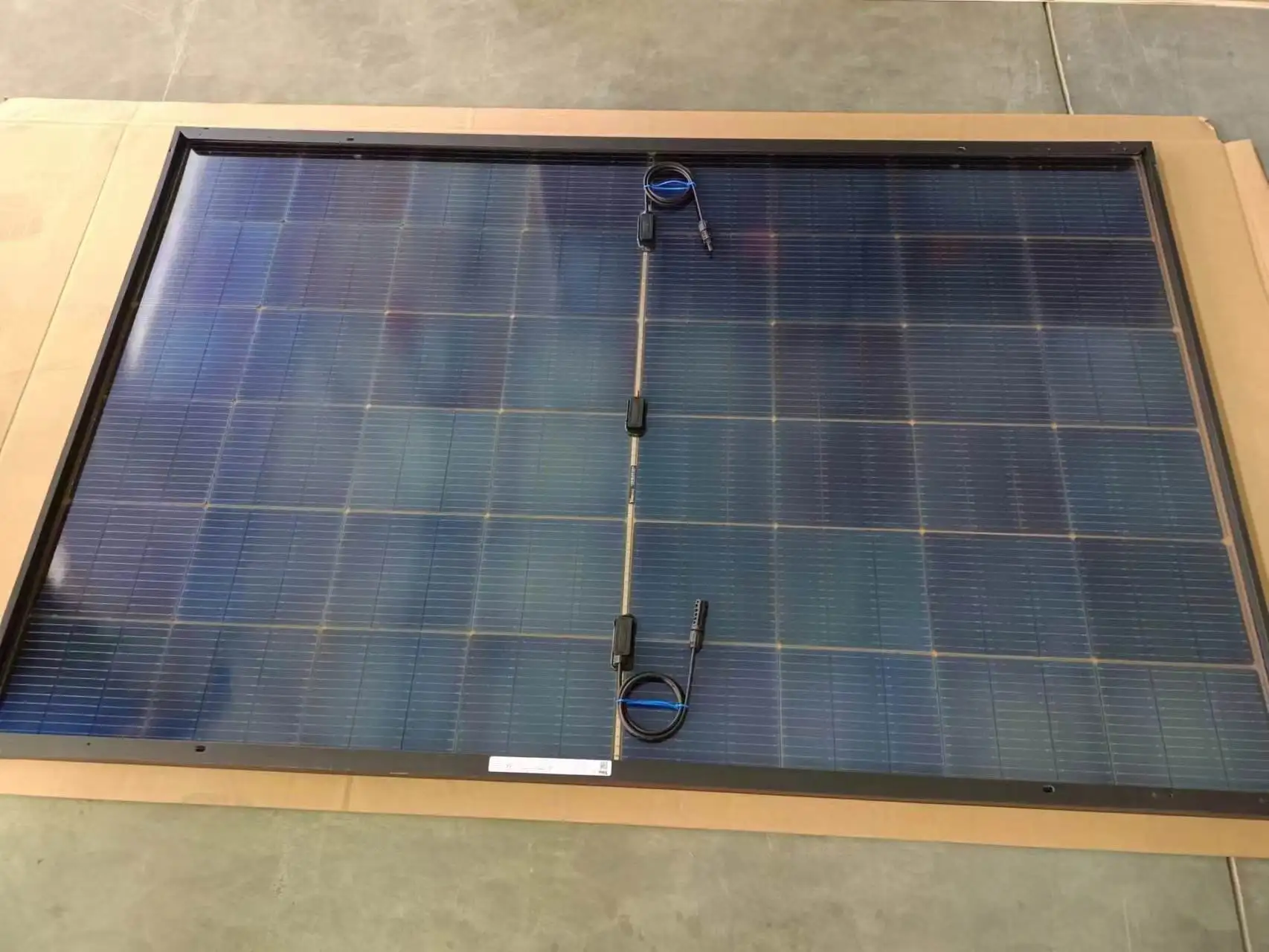

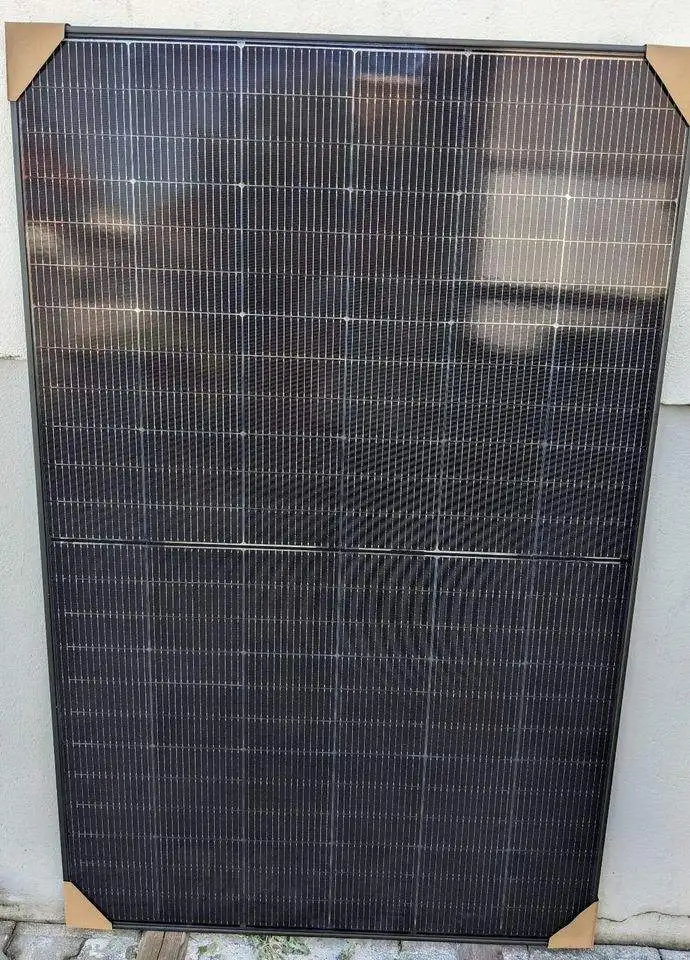

  • Trina Solar Panel Panels Vertex S S 425W Tsm Ne 425 Tsm 445 Pv Modul 400W Bifacial tsm 425 neg9.27 Solarpanel TSM NEG9RC.27
Trina Solar Panel Panels Vertex S S 425W Tsm Ne 425 Tsm 445 Pv Modul 400W Bifacial tsm 425 neg9.27 Solarpanel TSM NEG9RC.27
Trina Solar Panel Panels Vertex S+ S 425W Tsm-Ne 425 Tsm 445 Pv Modul 400W Bifacial tsm-425 neg9.27 Solarpanel TSM-NEG9RC.27
Trina Solar Panel Panels Vertex S+ S 425W Tsm-Ne 425 Tsm 445 Pv Modul 400W Bifacial tsm-425 neg9.27 Solarpanel TSM-NEG9RC.27
Trina Solar Panel Panels Vertex S+ S 425W Tsm-Ne 425 Tsm 445 Pv Modul 400W Bifacial tsm-425 neg9.27 Solarpanel TSM-NEG9RC.27
Trina Solar Panel Panels Vertex S+ S 425W Tsm-Ne 425 Tsm 445 Pv Modul 400W Bifacial tsm-425 neg9.27 Solarpanel TSM-NEG9RC.27
Trina Solar Panel Panels Vertex S+ S 425W Tsm-Ne 425 Tsm 445 Pv Modul 400W Bifacial tsm-425 neg9.27 Solarpanel TSM-NEG9RC.27
Trina Solar Panel Panels Vertex S+ S 425W Tsm-Ne 425 Tsm 445 Pv Modul 400W Bifacial tsm-425 neg9.27 Solarpanel TSM-NEG9RC.27

Trina Solar Panel Panels Vertex S S 425W Tsm Ne 425 Tsm 445 Pv Modul 400W Bifacial tsm 425 neg9.27 Solarpanel TSM NEG9RC.27

Share on (1601112596223):


Price:$0.10 - $0.12

Quantity:


Product Overview

Description



Product Description






ELECTRICAL DATA (STC)
Power Tolerance- PMAX (W)
415
420
425
430
435
440
445
Power Tolerance- PMAX (W)
0 ~ +5
Maximum Power Voltage-VMPP (V)
42.1
42.5
42.9
43.2
43.6
44.0
44.0
Maximum Power Current-IMPP (A)
9.86
9.89
9.92
9.96
9.99
10.01
10.05
Open Circuit Voltage-VOC (V)
50.1
50.5
50.9
51.4
51.8
52.2
52.6
Short Circuit Current-ISC (A)
10.50
10.53
10.56
10.59
10.64
10.67
10.71
Module Efficiency(%)
20.8
21.0
21.3
21.5
21.8
22.0
22.3


ELECTRICAL DATA (NOCT)
Power Tolerance- PMAX (W)
436
441
446
452
457
462
467
Maximum Power Voltage-VMPP (V)
42.1
42.5
42.9
43.2
43.6
44.0
44.3
Maximum Power Current-IMPP (A)
10.35
10.38
10.42
10.46
10.49
10.51
10.55
Open Circuit Voltage-VOC (V)
50.1
50.5
50.9
51.4
51.8
52.2
52.6
Short Circuit Current-ISC (A)
11.03
11.06
11.09
11.12
11.17
11.20
11.25


MECHANICAL DATA
Solar Cells
Monocrystalline
No. of cells
144 cells
Module Dimensions
1762×1134×30 mm (69.37×44.65×1.18 inches)
Weight
21.0 kg (48.1 lb)
Glass
1.6 mm ,High Transmission, AR Coated Heat Strengthened Glass
Encapsulant material
EVA/POE
Backsheet
White
Frame
30mm(1.18 inches) Anodized Aluminium Alloy,Black
Junction Box
IP68 rated
Cable
Photovoltaic Technology Cable 4.0mm2 (0.006 inches2)，
Portrait: 350/280 mm(13.78/11.02 inches)
Length can be customized
Connector
MC4 EVO2 / TS4*
PACKAGING CONFIGUREATION
Module per pallet
36pcs/pallet
Module per 40'HQ container
936 pieces


TEMPERATURE RATINGS
NOCT(Nominal Operating Cell Temperature)
43°C (±2°C)
Temperature Coeffcient of PMAX
- 0.34%/°C
Temperature Coeffcient of VOC
- 0.25%/°C
Temperature Coeffcient of ISC
0.04%/°C
MAXIMUMRATINGS
Operational Temperature
-40~+85ºC
Maximum System Voltage
1500VDC (IEC)
Max Series Fuse Rating
25A


Strict QC System


PV CELL.
>Low hot spot effect
>No light-induced degradation
>High conversion efficiency with high reliability
>Uniform cell performance with stable process control
>Excellent power generation performance under low irradiation
BACKSHEET.
>Good electrical insulation and breakdown.
>Excellent UV resistance and aging resistance.
>Made-to-order backsheet with width up to 1300mm.
>Double-side fluorocarbon strcture(PVF//PET//PVF) with the integration of Tedlar(DuPont).


JUNCTION BOX
>IP68 protection level.
>Unique split junction box design to minimize the loss caused by occlusion.
>Combination of series circuit and parallel circuit, reduced internal power loss.
EVA
>Excellent light transmittance and transparency.
>Excellent long term adhesion to glass,mental and polymer backsheet.
>Excellent durability ,such as weather resistance ,high-temperature,high-humidity and UV light resistance.
GLASS
>Precise edge processing and cutting.
>Minimal optical distortion and non-existent roller marks.
>Physically tempered ultrathin glass presents the ideal combination of durability and flexibility.
>Higher light transmittance ensures higher module power output.

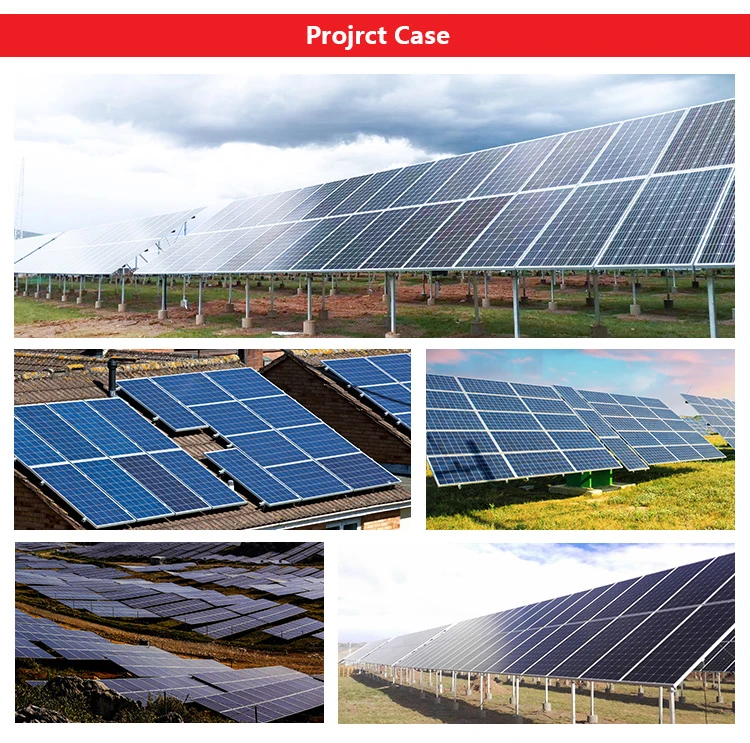

Project Cases

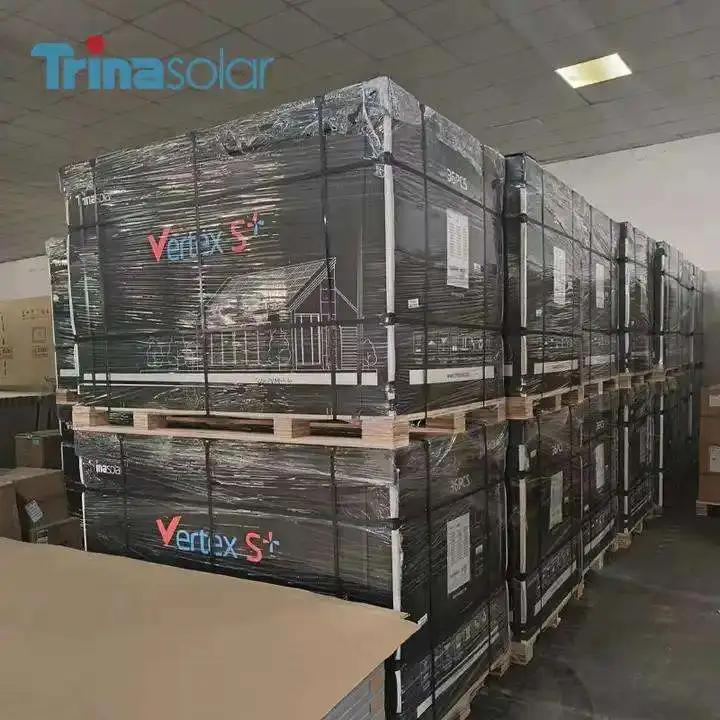

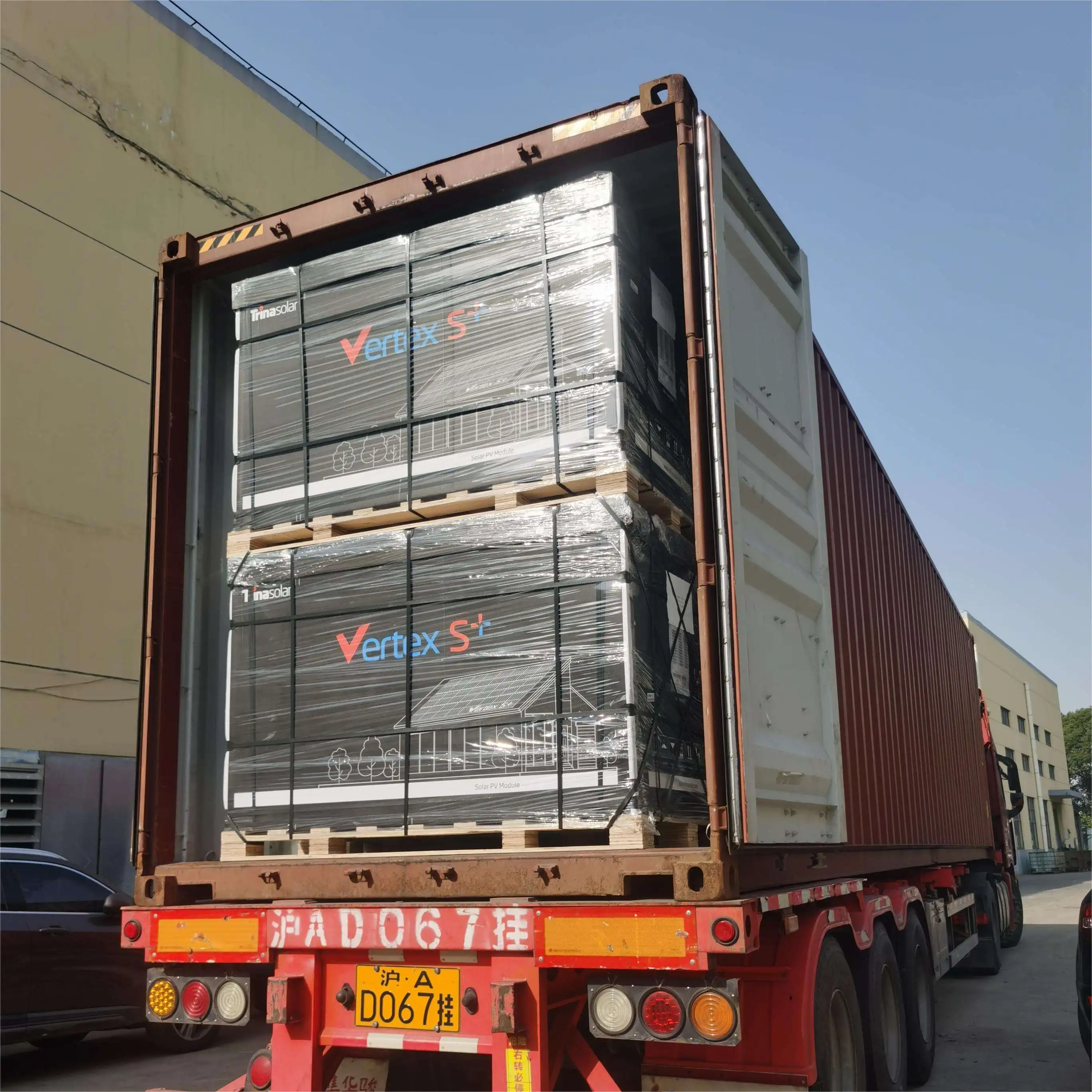

Packing & Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than one pallet, we accept any customized packing as per your requests.


Payment Terms & Delivery Time





Payment Terms



TT
EXW



30% T/T in advance



70% negotiable
FOB/FCA
CNF CFR
CIF
DDU/DAP
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West union
Amount lower than 5000usd
Other payment
To be negotiable
Delivery Time
7~30 days after receiving the payment


Factory








Certifications




FAQ


Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ROHS,ISO,TUV?
A: Yes,our products are approved by CE,ROHS,ISO,TUV
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2. All of the productions are inspected carefully by QC before delivery.
Q: What is your Min.order?
A: There's no minimum quantity
Q: Our advantages
A: 1. Ready To Ship 2. Sample Available
3. One-Stop Service 4. Online customization
5. Many years' experiences of manufacturing since 2007 and services available in 24 hours
