High performance oxygen generating air separation plant for producing high purity oxygen and nitrogen
- Category: >>>
- Supplier: Handan Dyon Air Separation Plant Co. Ltd.
Share on (1601112623143):
Product Overview
Description
Product Overview
20-350Nm3/h skid-mounted air cooled oxygen plant
The raw material of this series oxygen plant is air, the product is high purity oxygen, not only can be used as industrial oxygen also can be used for medical oxygen. Oxygen plant in the process of work without any emissions, and the only consumables is electricity.
Oxygen plant(generator) is mainly composed of seven parts:screw air compressor, Pre-cooler, purification system,

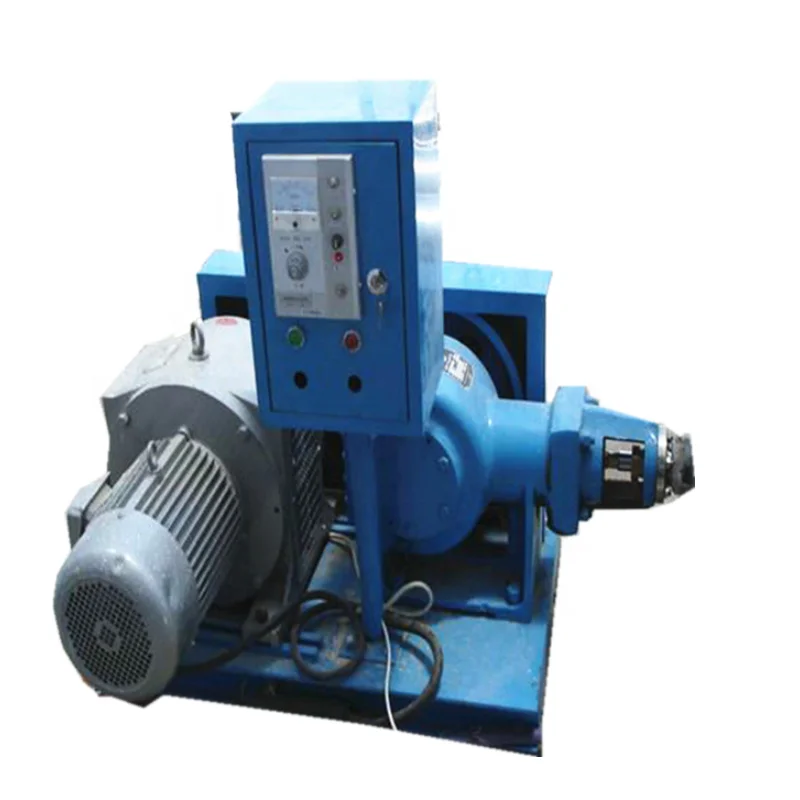

Turbine expander, Rectification column, liquid pump, oxygen filling station.
Oxygen plant(generator) is mainly composed of seven parts:screw air compressor, Pre-cooler, purification system,
Turbine expander, Rectification column, liquid pump, oxygen filling station.
FEATURES AT A GLANCE
SKID-MOUNTED AIR- COOLED
HIGH PURITY OXYGEN
SCREW COMPRESSOR
TURBINE EXPANDER
SIMPLE CONTROL
EASY INSTALLATION
EASY MAINTENANCE

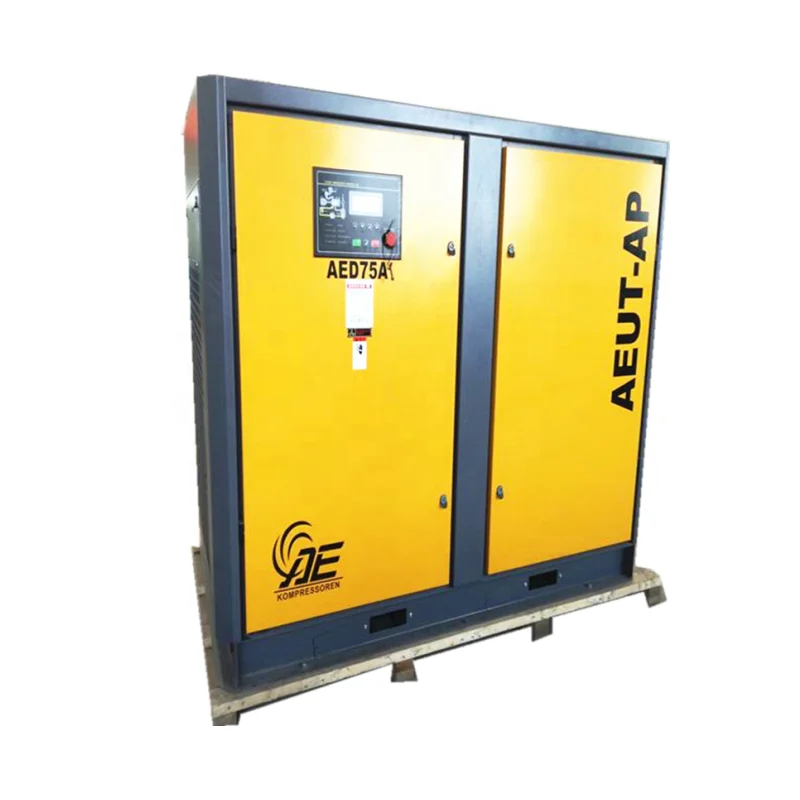

Air compressor

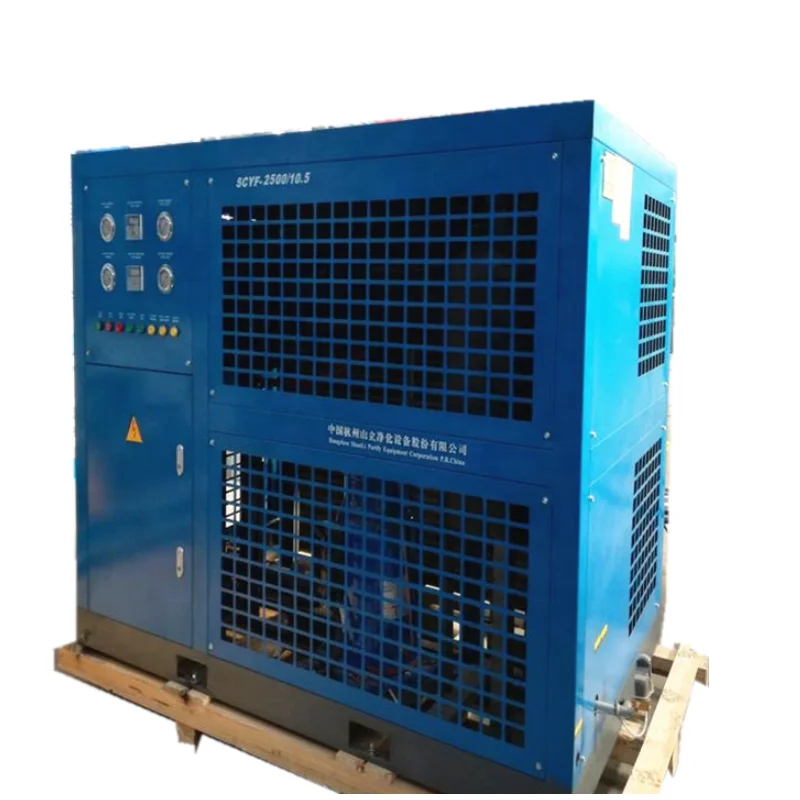

Pre-cooler

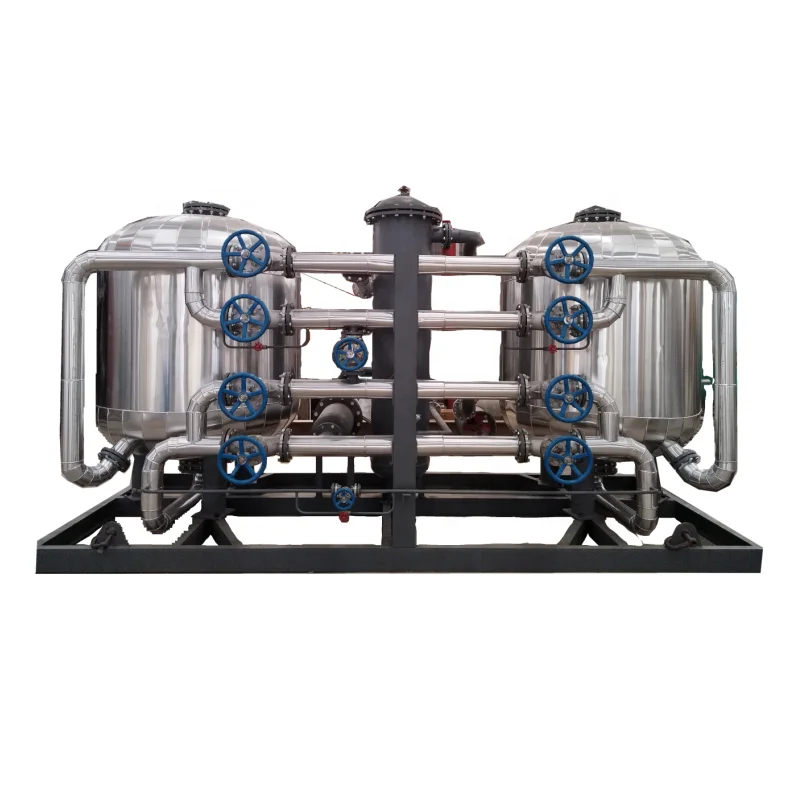

Purifier
PRODUCT SPECIFICATIONS
Model | Oxygen output and purity | Nitrogen output and Purity | Unit Power consumpiton | Occupied area |
KZO-20 | 20Nm3/h, ≥99.6% | -- | 1.4KWH/NM3 O2 | ～100M2 |
KZO-30 | 30Nm3/h, ≥99.6% | -- | 1.4KWH/NM3 O2 | ～100M2 |
KZON-30/30 | 30Nm3/h, ≥99.6% | 30Nm3/h, ≥99.999% | 1.4KWH/NM3 O2 | ～100M2 |
KZO-40 | 40Nm3/h, ≥99.6% | -- | 1.4KWH/NM3 O2 | ～150M2 |
KZON-40/40 | 40Nm3/h, ≥99.6% | 40Nm3/h, ≥99.999% | 1.4KWH/NM3 O2 | ～150M2 |
KZO-50 | 50Nm3/h, ≥99.6% | -- | 1.4KWH/NM3 O2 | ～150M2 |
KZON-50/50 | 50Nm3/h, ≥99.6% | 50Nm3/h, ≥99.999% | 1.4KWH/NM3 O2 | ～150M2 |
KZO-80 | 80Nm3/h, ≥99.6% | -- | 1.38KWH/NM3 O2 | ～150M2 |
KZON-80/80 | 80Nm3/h, ≥99.6% | 80Nm3/h, ≥99.999% | 1.38KWH/NM3 O2 | ～150M2 |
KZO-100 | 100Nm3/h, ≥99.6% | -- | 1.38KWH/NM3 O2 | ～210M2 |
KZON-100/100 | 100Nm3/h, ≥99.6% | 100Nm3/h, ≥99.999% | 1.38KWH/NM3 O2 | ～210M2 |
KZO-120 | 120Nm3/h, ≥99.6% | -- | 1.38KWH/NM3 O2 | ～210M2 |
KZON-120/120 | 120Nm3/h, ≥99.6% | 120Nm3/h, ≥99.999% | 1.38KWH/NM3 O2 | ～210M2 |
KZO-160 | 160Nm3/h, ≥99.6% | -- | 1.3KWH/NM3 O2 | ～250M2 |
KZO-160/160 | 160Nm3/h, ≥99.6% | 160Nm3/h, ≥99.999% | 1.3KWH/NM3 O2 | ～250M2 |
KZO-180 | 180Nm3/h, ≥99.6% | -- | 1.3KWH/NM3 O2 | ～250M2 |
KZO-200 | 200Nm3/h, ≥99.6% | -- | 1.3KWH/NM3 O2 | ～250M2 |
KZO-250 | 250Nm3/h, ≥99.6% | -- | 1.3KWH/NM3 O2 | ～280M2 |
KZO-300 | 300Nm3/h, ≥99.6% | -- | 1.3KWH/NM3 O2 | ～300M2 |
KZO-350 | 350Nm3/h, ≥99.6% | -- | 1.3KWH/NM3 O2 | ～300M2 |
PRODUCT CONFIGURATION

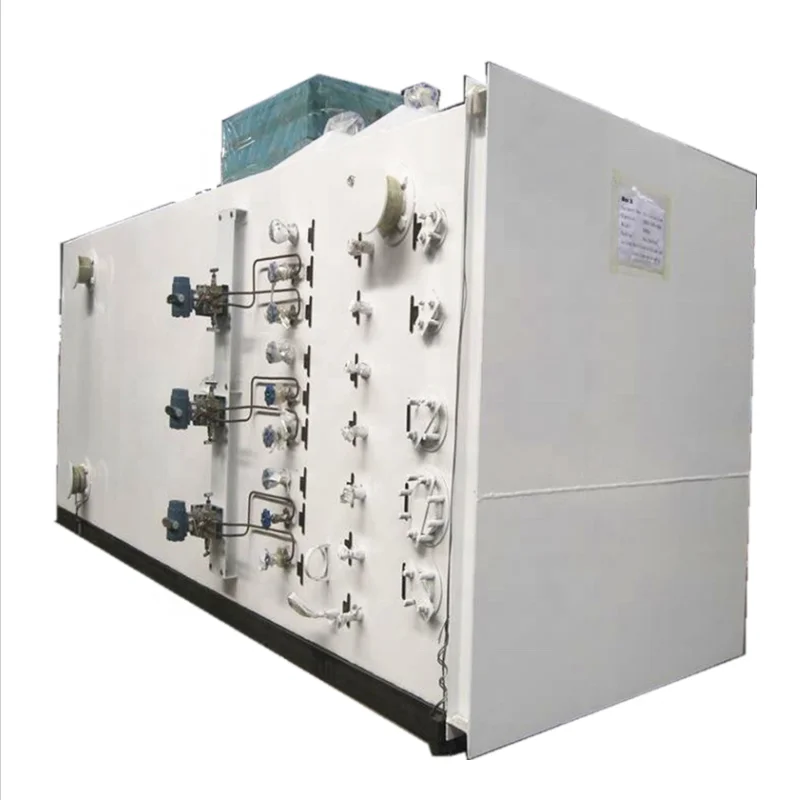

Rectification column
Turbine expander
Automatic control purifier
SALES AND SERVICE NETWORK
Successful Project
Project in Myanmar
Project in Russia
Project in Syria
SIMILAR PRODUCTS
FAQ
Q1.Are you manufacturer or trading company?
We are professional manufacturer.
Q2.What's your advantage?
Our engineers is engaged in the field of cryogenic and chemical products’ technical research and development and manufacturing for
many years. Our plant adopt advanced technology, have low consumption, high efficiency, easy operation etc. advantages, could
design according to User special requirement.
Q3.Have your engineers participated in any foreign projects?
Yes, Our engineers have abundant oversea experience, could supply best after-sales service for oversea customer.
Q4.How can I get the detailed proposal and quotation?
Please tell us your specific requirements and environmental data, so that we suggest the suitable product to you.
Such as:
1)Flow rate: ____ Nm3/h
2) O2 Purity: ____%
3) O2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Your Local altitude:___m
We are professional manufacturer.
Q2.What's your advantage?
Our engineers is engaged in the field of cryogenic and chemical products’ technical research and development and manufacturing for
many years. Our plant adopt advanced technology, have low consumption, high efficiency, easy operation etc. advantages, could
design according to User special requirement.
Q3.Have your engineers participated in any foreign projects?
Yes, Our engineers have abundant oversea experience, could supply best after-sales service for oversea customer.
Q4.How can I get the detailed proposal and quotation?
Please tell us your specific requirements and environmental data, so that we suggest the suitable product to you.
Such as:
1)Flow rate: ____ Nm3/h
2) O2 Purity: ____%
3) O2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Your Local altitude:___m
