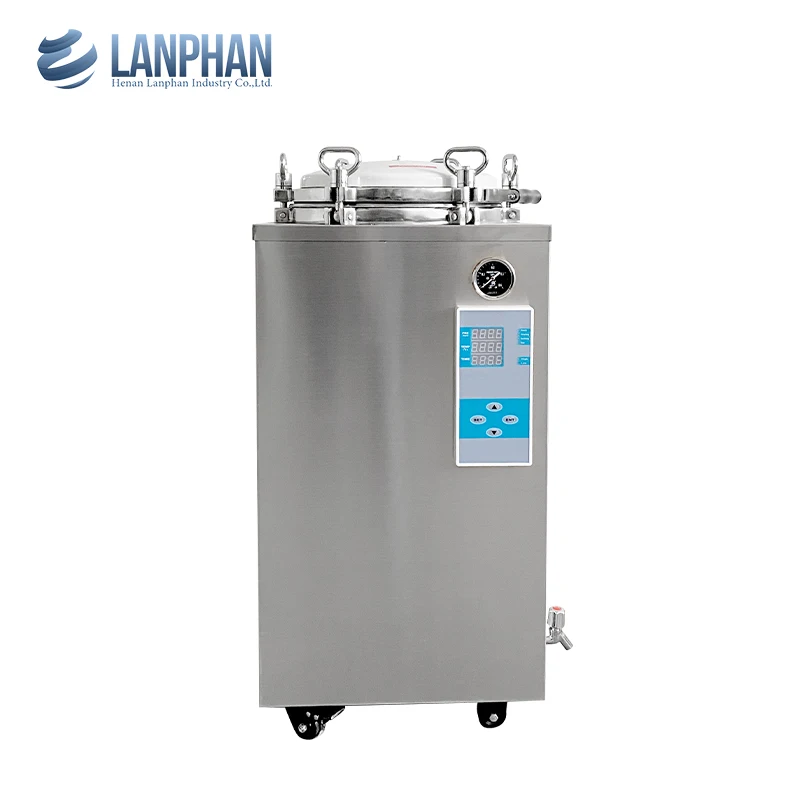

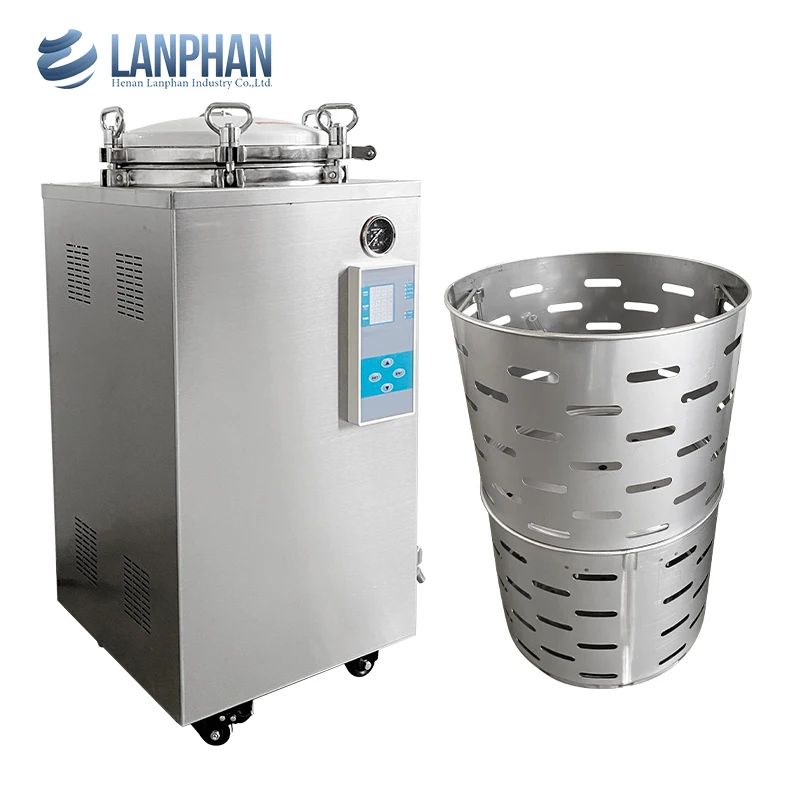

150L Glass Bottle High Temperature Sterilizer Autoclave US Stock Price

Model technical data

LS-35LD

(automatic)

LS-50LD

(automatic)

LS-75LD

(automatic)

LS-100LD

(automatic)

LS-120LD

(automatic)

LS-150LD

(automatic)

Chamber volume

35L

(φ318×450mm)

50L

(φ340×550mm)

75L

(φ400×600mm)

100L

(φ440×650mm)

120L

 (φ480×660mm)

150L

(φ510×740mm)

working pressure

0.22MPa

Working temperature

134℃

Max working pressure

0.23 Mpa

Heat average

≤±1℃

Timer

0~99min or 0~99hour59min

Adjustment of temperature

105~134℃

Power

2.5Kw/220V.50Hz

3Kw /220V.50Hz

4.5KW 220V.50Hz

    6KW/220V.50Hz

Overall dimension

470×450×840

(mm)

520×500×970

(mm)

550×530×990

(mm)

  580×560×1060

(mm)

630×610×1130

(mm)

660×640×1130

(mm)

Transport dimension

540×540×970

(mm)

580×580×1090

(mm)

610×610×1110

(mm)

  640×640×1170

(mm)

690×690×1240

(mm)

730×730×1240

(mm)

G.W/N.W

61Kg/ 46Kg

73Kg/56Kg

87Kg/67Kg

95Kg/73Kg

116Kg/ 101Kg

130Kg/111Kg
