Price:$173,000.00 - $183,000.00

Quantity:


Product Overview

Description



Products Description


Construction lifting machinery  has the following features:
1. Imported bearing, enameled cable and oil sealing etc. could be adopted for the driving system of the SC series hoists.
2. Steel structure is made of high quality material from domestic famous brand, rack and gear is made of special material which has been heat treated and surface hardened to ensure the soundness and endurance of the equipment.
3. The most advanced VFD not only can control the hoist speed from 0 to 100m/min, but also have current-limiter, which means that the other construction machines working onsite will not be affected too much when the hoist starts up, and decrease the harmful effects to the hoist structure due to frequent starts and stops.
4. The system also has over-voltage protection, over-low voltage protection, over-current, overload and stall-preventing functions.
5. Brand-name electric parts, e.g. Schneider,Siemens, Omron, Mitsubishi and LG etc. are applied to ensure the equipment works steadily.
6. An exclusive software developed by us has been applied to the system, makes the operation safer and more reliable.
7. Production process is complied with ISO9001 quality management system.
8. CE certified.



Low speed building hoist

Low speed building hoist is an upgraded version of the ordinary building hoist, rated speed 0-36 m/ min. The use of frequency
conversion control, stable starting and braking, can reduce mechanical wear, prolong the service life, ride comfort, but also to
achieve frequency conversion.


MODEL
Rated Load(kg)
Speed(m/min)
Cage Size(m)
SC100
1000
33
2.2*1.2*2.2
SC200
2000
33
3.0*1.5*2.2
SC300
3000
25
4.0*1.5*2.4
SC100/100
2*1000
33
2.2*1.2*2.2
SC200/200
2*2000
33
3.0*1.5*2.2
SC200/200
2*3000
25
4.0*1.5*2.4



Middle/High speed building hoist
The frequency conversion technology of independent intellectual property rights is adopted, and the rated speed can reach 60/90 m/min. Equipped with intelligent control system, it has the characteristics of stable performance and high efficiency, can realize the hand self-integrated operation, reduce labor intensity. Optional with German NORD drive, identity authentication, automatic selection, status display and other functions.


MODEL
Rated Load(kg)
Speed(m/min)
Cage Size(m)
SC100
1000
0-45/60
2.2*1.2*2.2
SC200
2000
0-45/60
3.0*1.5*2.2
SC300
3000
0-45/60
4.0*1.5*2.4
SC100/100
2*1000
0-45/60
4.0*1.5*2.4
SC200/200
2*2000
0-45/60
3.0*1.5*2.2
SC200/200
2*3000
0-45/60
4.0*1.5*2.4

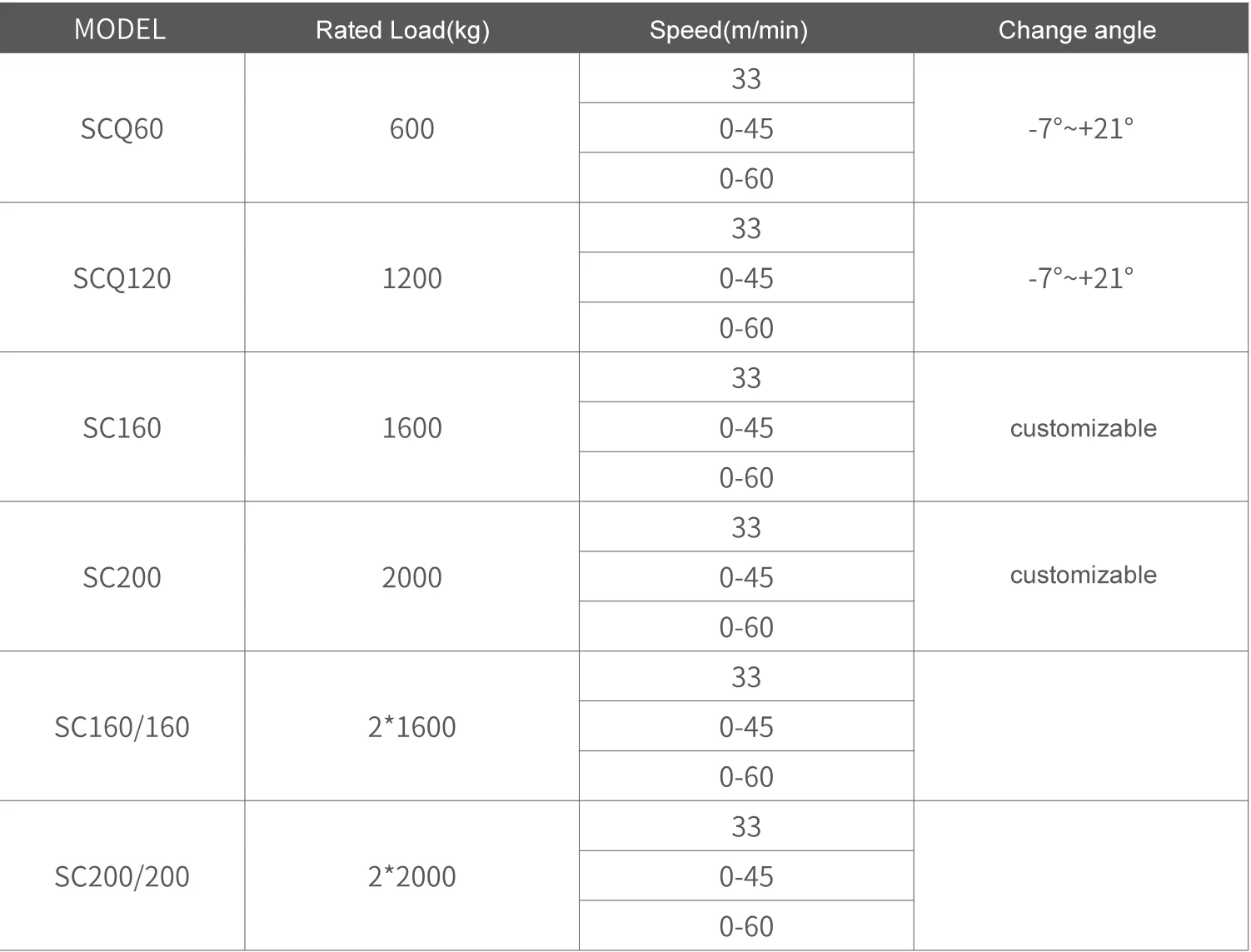

Curved and inclined building hoist
The frequency conversion technology of independent intellectual property rights is adopted, and the rated speed can reach 60/90 m/min. Equipped with intelligent control system, it has the characteristics of stable performance and high efficiency, can realize the hand self-integrated operation, reduce labor intensity. Optional with German NORD drive, identity authentication, automatic selection, status display and other functions.

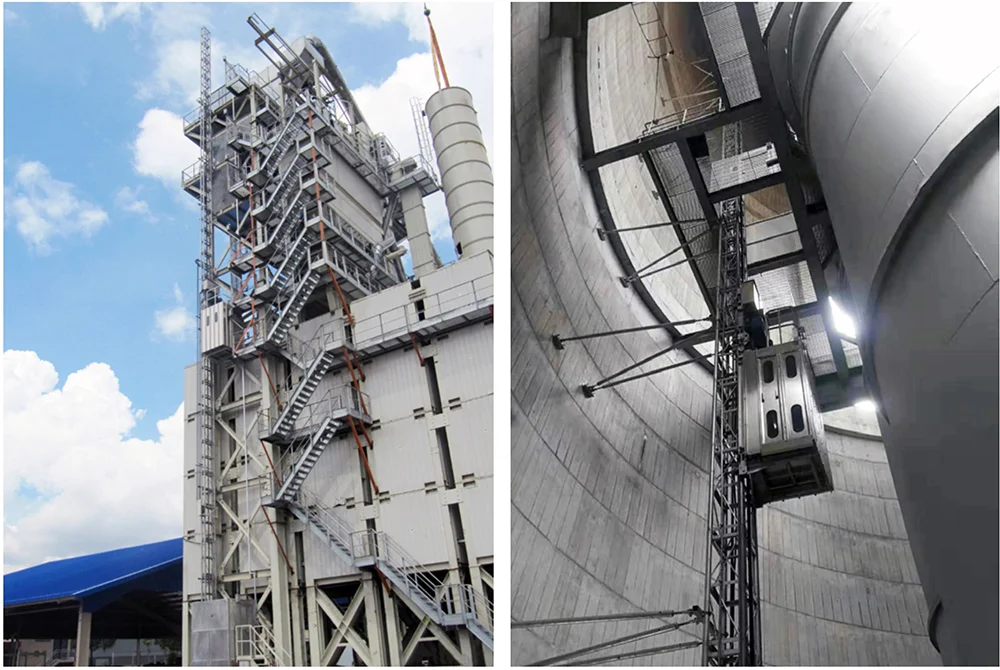

Industrial hoist
The equipment is widely used in bridge, power, port, tower, crane, cement, paper, petroleum, chemical and other fields, belongs to the fixed installation equipment, can meet 3-5 people or small materials. The car is madel of stainless steel, the structural parts are treated with hot-dip galvanizing, suitable for harsh environment, it has the characteristics of simple maintenance, reliable and durable.




Mast-climbing work platform
The platform is used for building exterior wall decoration, glass curtain wall construction, building exterior surface cleaning and other operations.
Heavy duty building hoist
The maximum load is 7000kg, which can also be customized, widely used in production lines, shopping malls, hospitals, parking lots and other places.
Multifunctional building hoist
It can be used as a multi-purpose machine. It is a three-in-one equipment to transport rebar, concrete and personnel.


OPtional

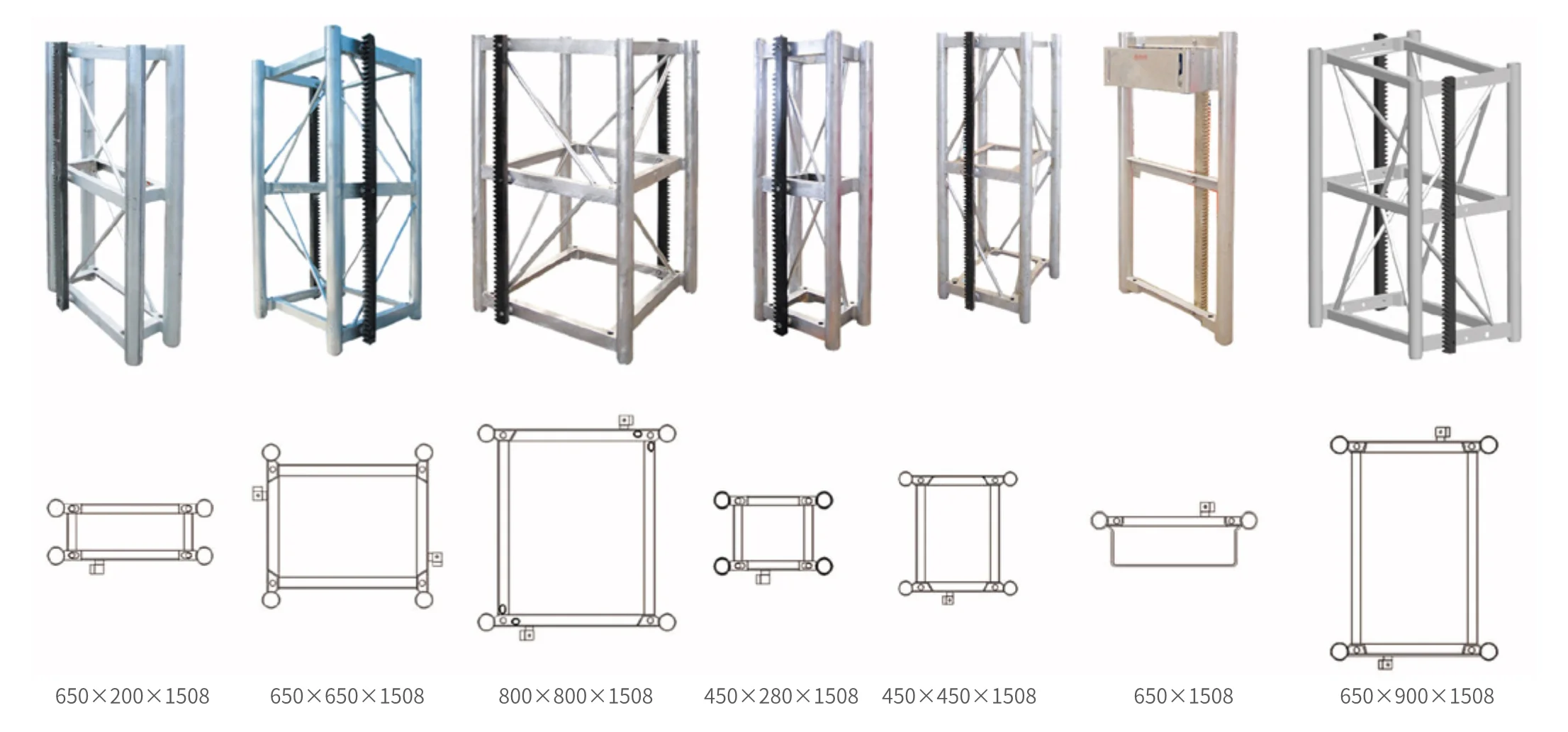

Mast Section




Tie-in

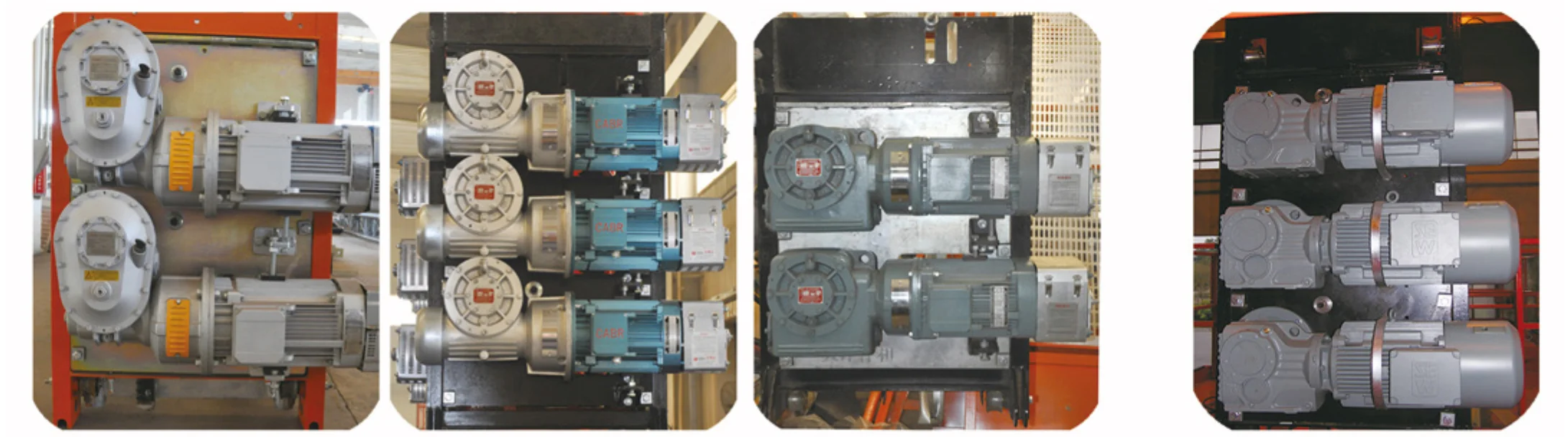

Driving system

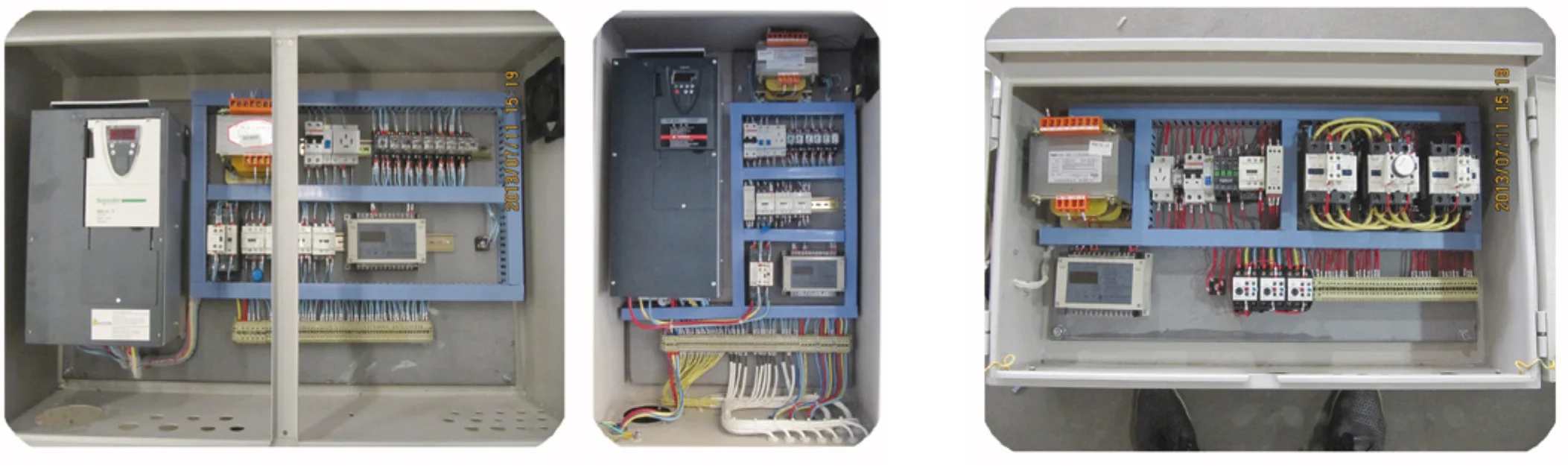

Electric control system




Frequency inverter Controlling System(VFD) Standard electric control system

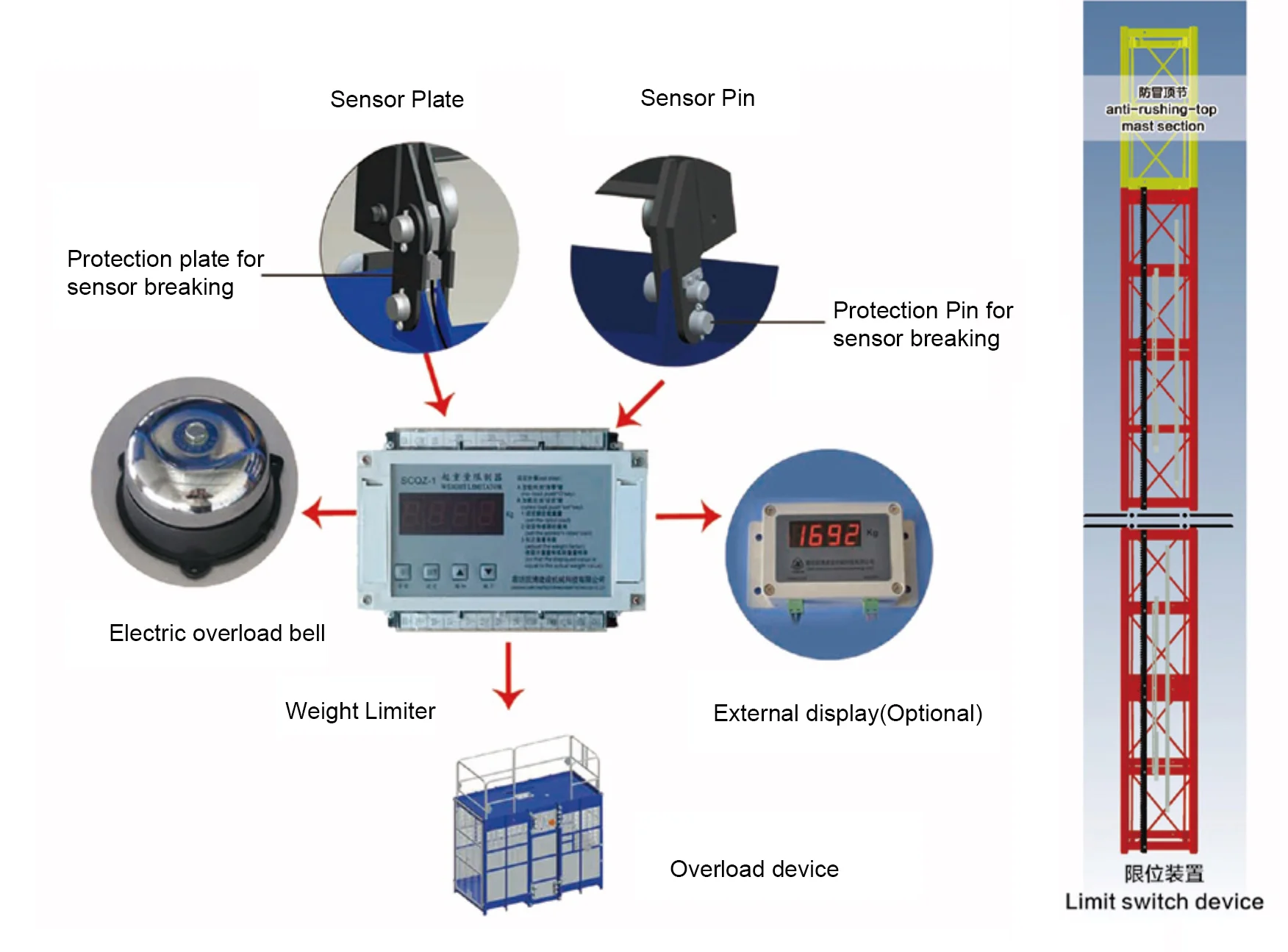

Safety Features

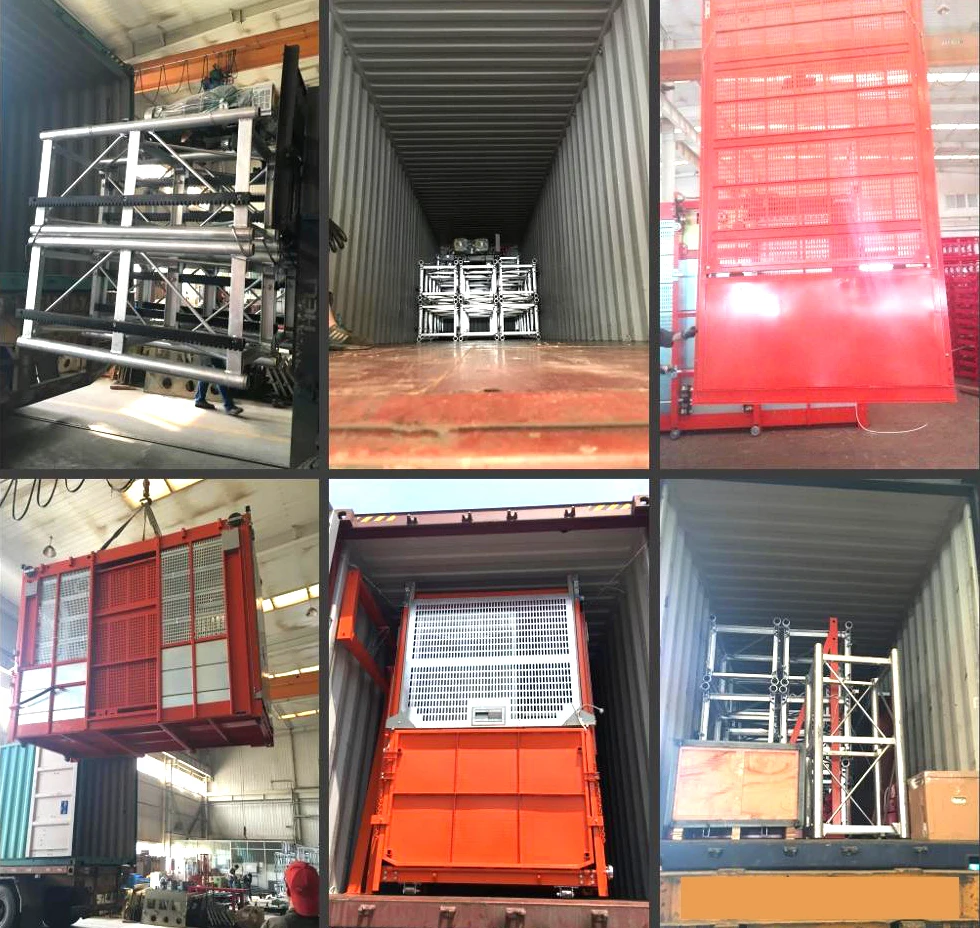

Packing & Delivery



Our Advantages
1.We are the administrative department of national standard. We have the qualification of drafting national standards,inspecting and certifying. So we are at leading position in technology.
2.Our core goal is to make excellent products, quantity is our destination.
3.We have a high-caliber after sales team.
4. We promise our technician can find out electrical problems within 10 minutes and solve them within another 10 minutes. And for mechanical problems, we can solve them within 3 hours.
