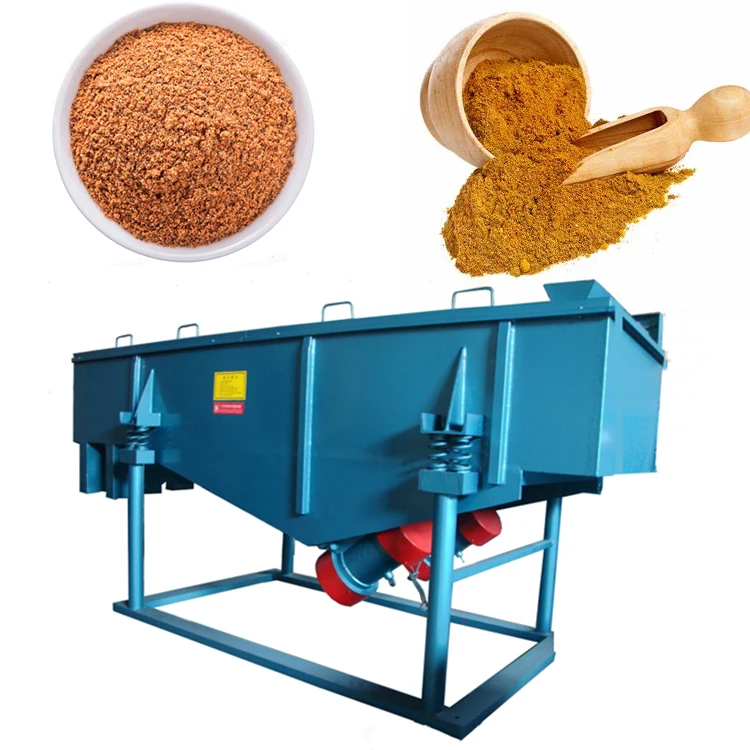

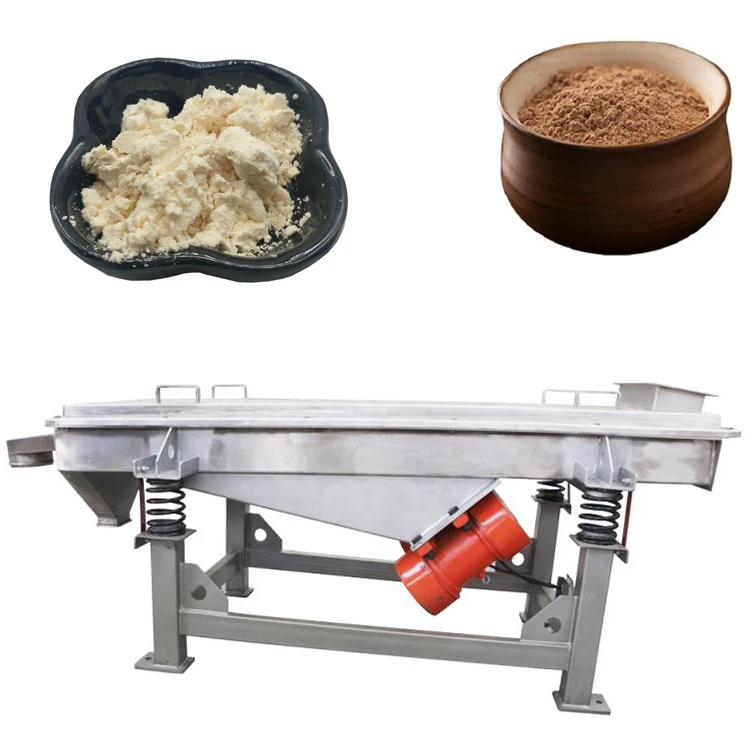

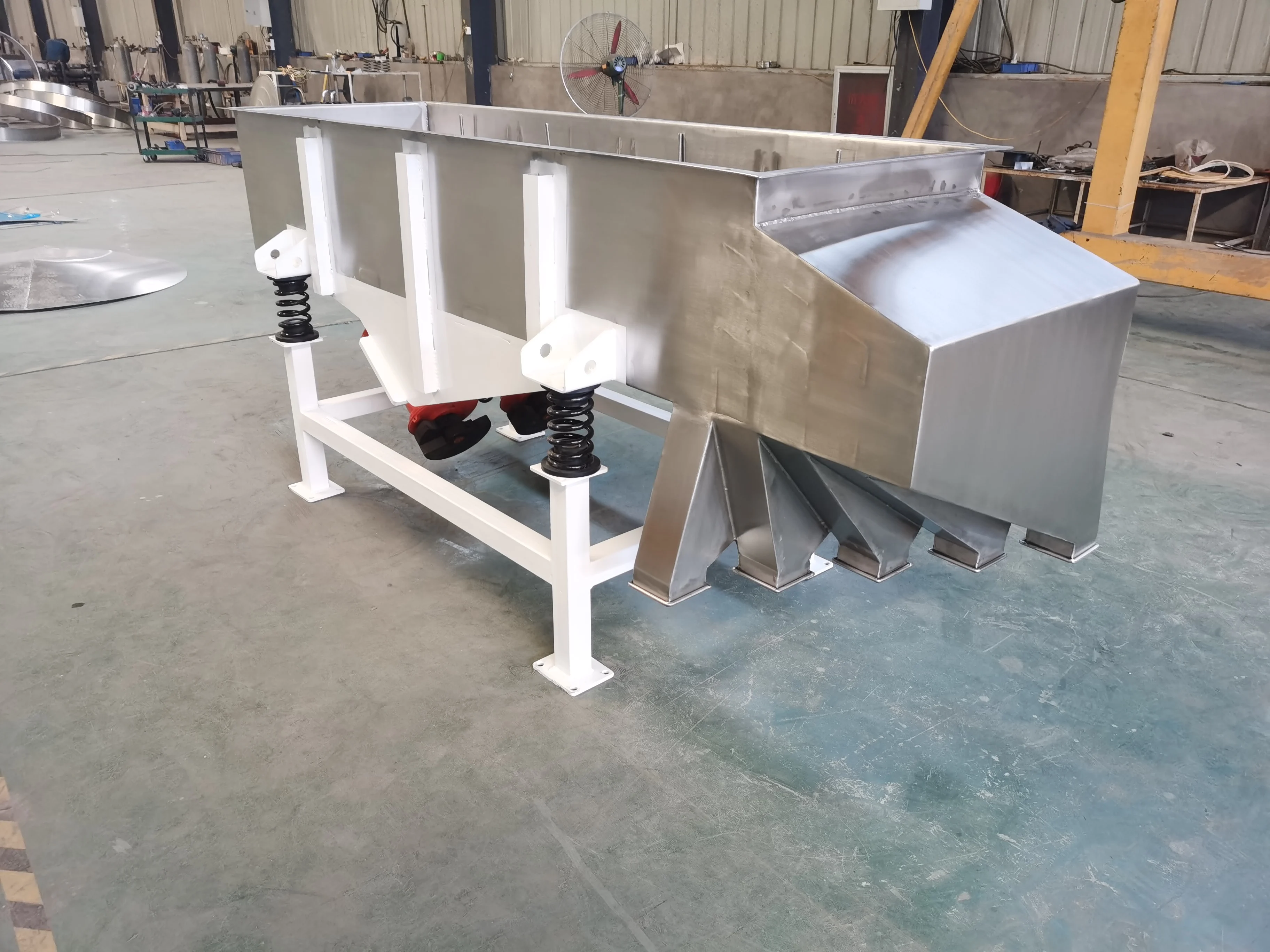

Linear Vibrating Screen Soil Sifter Machine rectangular linear vibrating electric soil sifter machine
- Category: >>>
- Supplier: Gongyi Hengyun Machinery Co. Ltd.
Share on (1601112677701):
Product Overview
Description
DESCRIPTION
Linear vibrating sifter vibration motor excitation as the source of vibration,so that the material was tossed in the sieve,while forward in a straight line material evenly into the screening machine feeder feed
port,multi-layer mesh specifications of sieve,sieve material,respectively,discharged from their exports.With low power consumption,high yield, simple structure,easy maintenance,fully enclosed structure,no dust,automatic nesting,more suitable for pipeline operations.
port,multi-layer mesh specifications of sieve,sieve material,respectively,discharged from their exports.With low power consumption,high yield, simple structure,easy maintenance,fully enclosed structure,no dust,automatic nesting,more suitable for pipeline operations.
APPLICATION
1. Low power consumption and noise. Long screen service life.
2.High precision of screening, large output and simple structure.
3. Full enclosed structure and automatic discharging. It is suitable for production line.
4. All parts of the machine are welded with rolled steel plates and profiles (some components are bolted). It is rigid, firm and reliable.
2.High precision of screening, large output and simple structure.
3. Full enclosed structure and automatic discharging. It is suitable for production line.
4. All parts of the machine are welded with rolled steel plates and profiles (some components are bolted). It is rigid, firm and reliable.
model | Screen Size (mm) | particle size | screen inclination(°) | amplitude(mm) | layer(s) | power(kw) |
HY520 | 500*2000 | 0.074~10 | 0°~10° | 3~8 | 1~7 | 2*(0.37~0.75) |
HY530 | 500*3000 | 0.074~10 | 0°~10° | 3~8 | 1~7 | 2*(0.55~1.1) |
HY1020 | 1000*2000 | 0.074~10 | 0°~10° | 3~8 | 1~7 | 2*(0.55~1.1) |
HY1030 | 1000*3000 | 0.074~10 | 0°~10° | 3~8 | 1~7 | 2*(1.1~1.5) |
HY1040 | 1000*4000 | 0.074~10 | 0°~10° | 3~8 | 1~7 | 2*(1.5~2.2) |
HY1230 | 1200*3000 | 0.074~10 | 0°~10° | 3~8 | 1~7 | 2*(1.5~3) |
HY1530 | 1500*3000 | 0.074~10 | 0°~10° | 3~8 | 1~7 | 2*(2.2~3) |
HY1540 | 1500*4000 | 0.074~10 | 0°~10° | 3~8 | 1~7 | 2*(2.2~4) |
SUITABLE FOR POWDER，LIQUID OR TINYGRANULAR PRODUCTS.

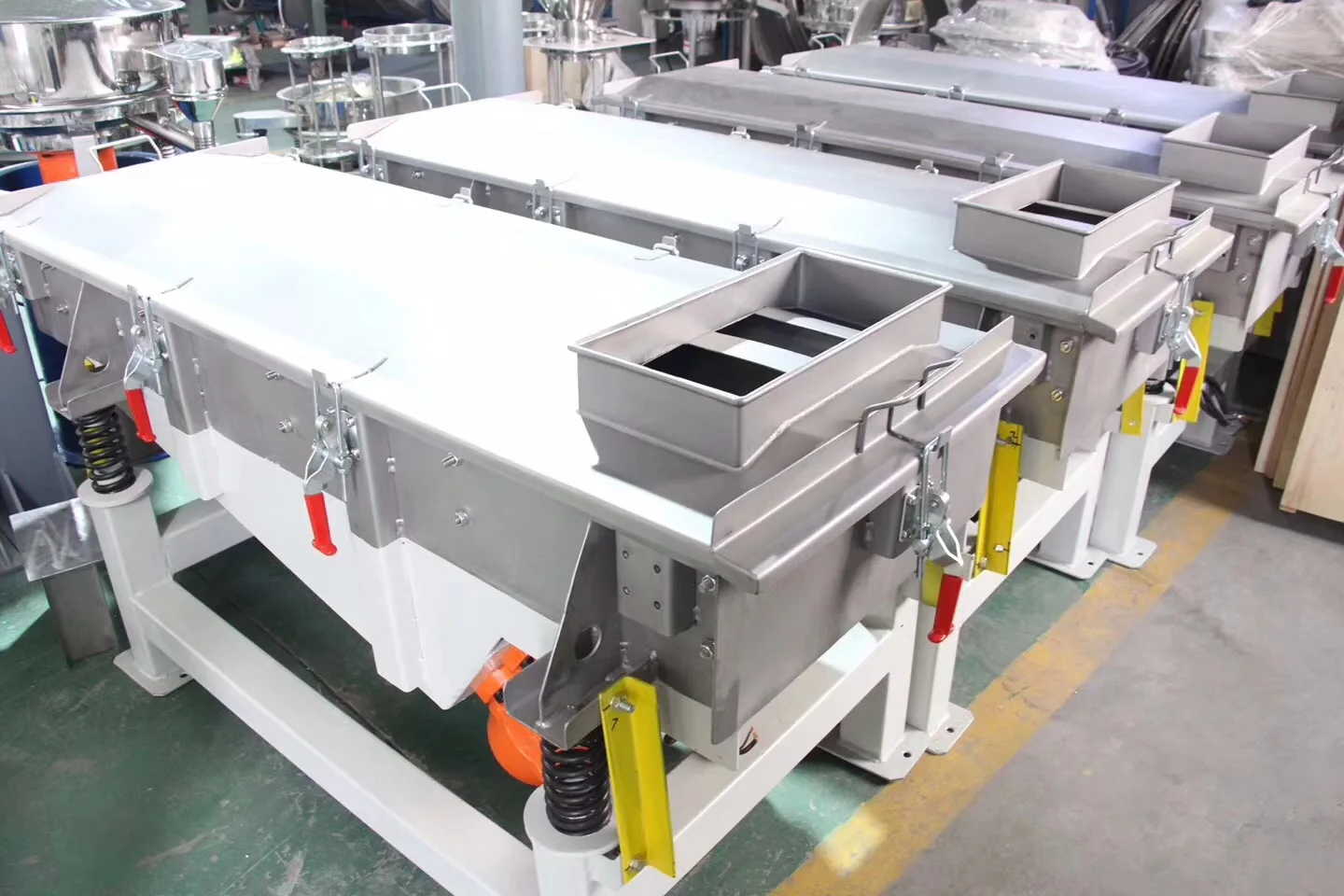

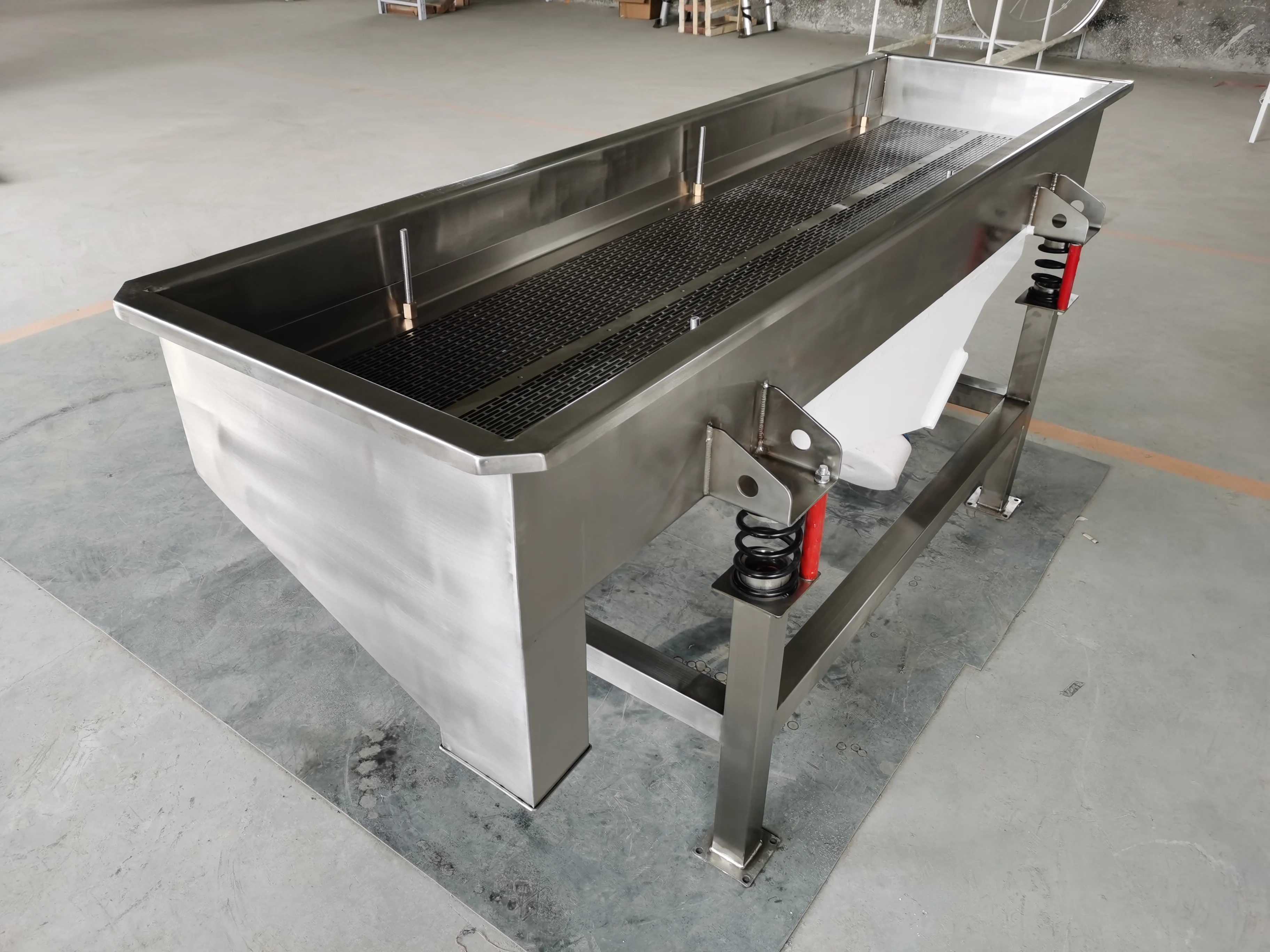

The stainless steel Linear vibrating sifter is simple and can be dismounted assemble and be dismounted and cleaned easily.
High precision fine powder screening machine
