ZNN D6F F0.2 6 Speed Viscometer
- Category: >>>
- Supplier: Qingdao Haitongda Special Instrument Co. Ltd.
Share on (1601112677786):
Product Overview
Description
HTD13145 6-Speed rotational automatic digital viscometer liquid for evaluating the petroleum properties of drilling fluids
Product Description

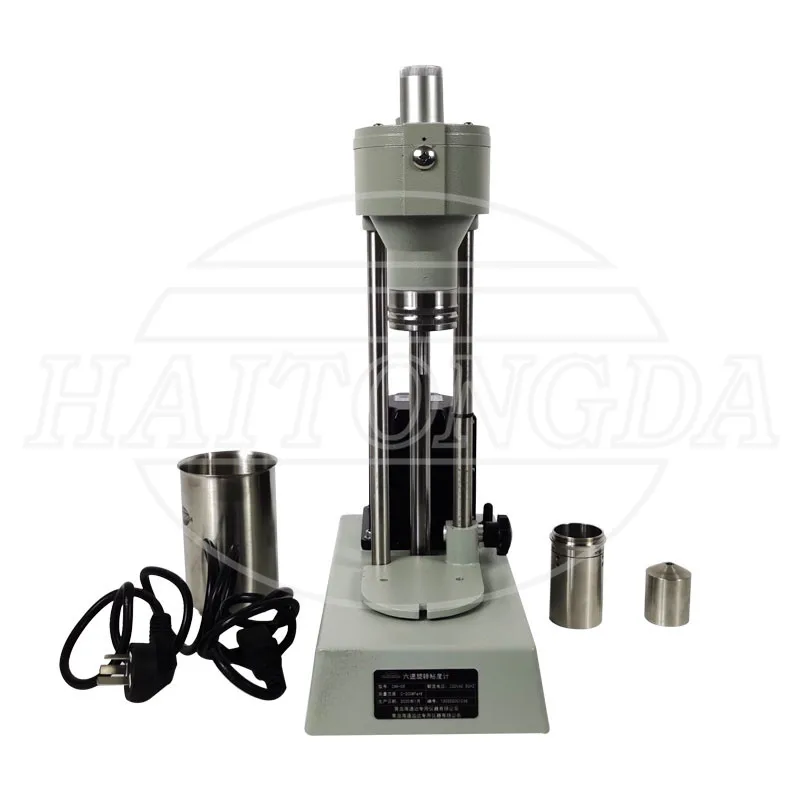

HTD13145 rotary viscometer is a direct reading viscosity measuring instrument, which is suitable for measuring various rheological parameters of liquid. It can accurately measure Newtonian fluid and non-Newtonian fluid. The instrument is composed of power part, speed changing part, measuring part and bracket part.
It is mainly used to show drilling fluid viscosity, plastic viscosity, yield value, static shear force, consistency coefficient and flow pattern index. Its probe consists of an inner cylinder and an outer cylinder rotating concentrically. During measurement, drilling fluid is in the annular space between two concentric cylinders, the outer cylinder rotates at a constant speed, and the rotation of the outer cylinder in drilling fluid generates a torque to the inner cylinder, and the torsion spring prevents the inner cylinder from rotating. At the same time, the dial connected with the inner cylinder indicates the rotating position of the inner cylinder.
Product Paramenters
Technical Specification | ||
Power supply | AC100V-240V；50Hz | |
Motor power | 120W | |
Speed range | HTD13145：3、6、100、200、300、600r/min HTD13185：0.9、1.8、3、6、30、60、90、100、180、200、300、600r/min | |
Measuring accuracy | 1-25 mPa·s±1 mPa·s（Newtonian fluid） 25 mPa·s以上 ±4% （Newtonian fluid） | |
Viscosity measuring range | Newtonian fluid： 0.5～30000mPa.s (F1 Measure component) 0.5～6000mPa.s (F0.2 Measure component) Non-Newtonian fluid：0～150 mPa.s (F1 Measure component) 0～30 mPa.s (F0.2 Measure component) Shear stress： 0～153.3Pa (F1 Measure component) 0～30.7Pa (F0.2 Measure component) | |
Net weight / Gross weight | 6.22kg/8.08kg | |
Overall dimensions | 300×290×440（mm） | |
Packing size | 570×435×275（mm） | |
Detailed Images

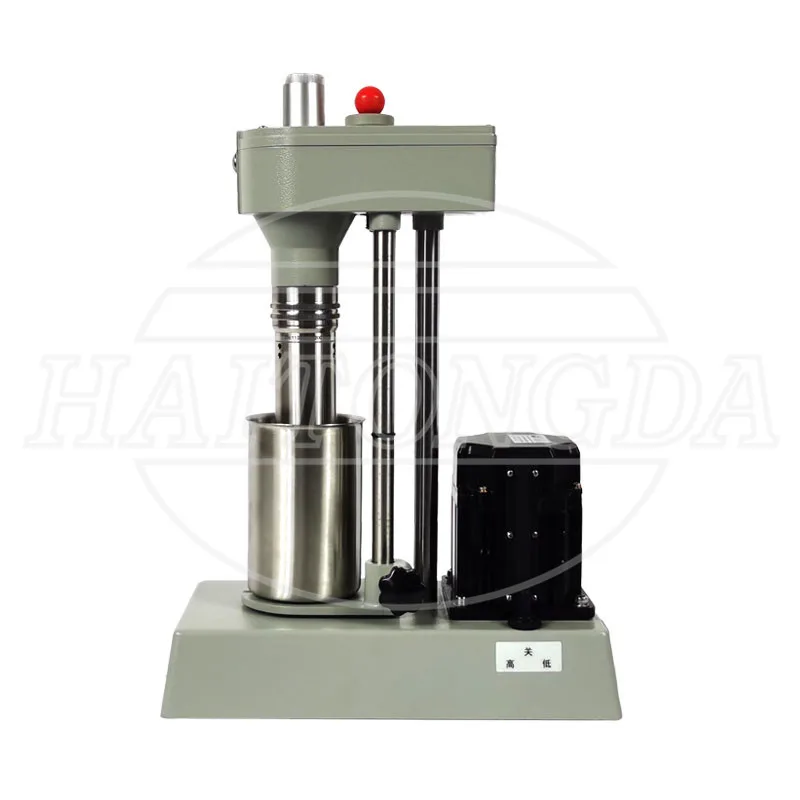

It is a direct reading viscosity measuring instrument driven by motor. Drilling fluid is in the annular space between two concentric cylinders. The drum rotates at a constant speed, and the rotation of the drum in drilling fluid generates torque to the inner cylinder, and the torsion spring prevents the inner cylinder from rotating, while the dial connected with the inner cylinder indicates the rotating position of the inner cylinder.
Model HTD13145/13185 rotational viscometers are coaxial cylinder rotational viscometer. In this viscometer, the test fluid is contained in the annular space (shear gap) between an outer cylinder and the bob (inner cylinder).
Viscosity measurements are made when the outer cylinder, rotating at a known velocity, causes a viscous drag exerted by the fluid. This drag creates a torque on the bob, which is transmitted to a precision spring where its deflection is measured. Compare measurements with test conditions and instrument constants. Model HTD13145/13185 rotational viscometers are used in research and production. These viscometers are used for evaluating the rheological properties of fluids.
Viscosity measured by a coaxial cylinder rotational viscometer. Model HTD13145/13185, is a measure of the shear stress caused by a given shear rate. This relationship is a linear function for Newtonian fluids (i.e., a plot of shear stress vs. shear stress vs. shear rate is a straight line).
The shear rate may be changed by changing the rotor speed and rotor-bob combination. Various torsion springs are available and are easily interchanged in order to broaden shear stress ranges and allow viscosity measurements in a variety of fluids.
The instrument is designed so that the viscosity in centipoise (or millipascal second) of a Newtonian fluid is indicated on the dial with the standard rotor, bob, and torsion spring operating at 300 rpm. Viscosities at other test speeds may be measured by using multipliers of the dial reading. A simple calculation that closely approximates the viscosity of a pseudo-plastic fluid, such as a drilling fluid.Related Products
