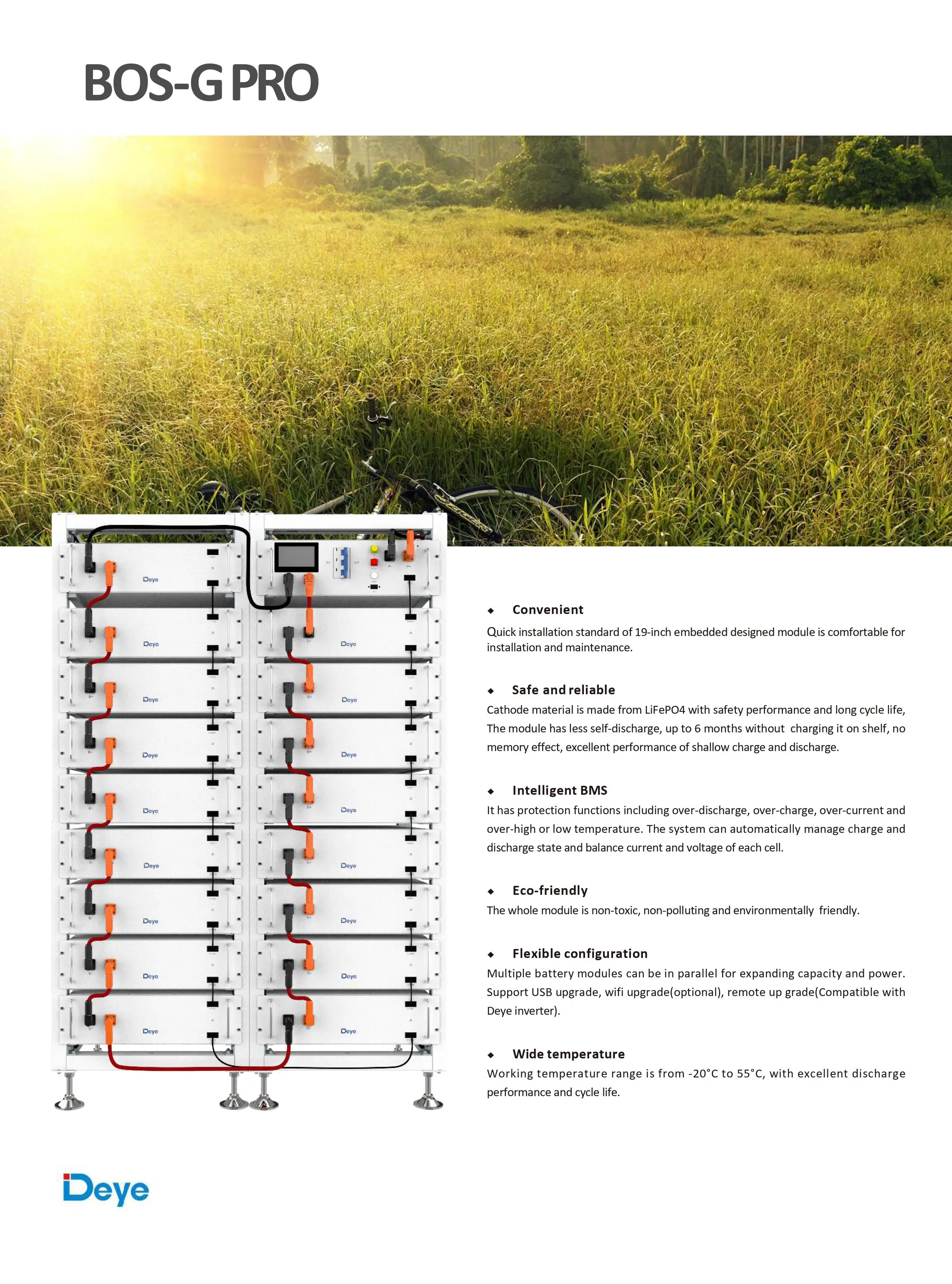

The BOS-G Pro is a convenient, safe, and eco-friendly battery module with intelligent BMS and flexible configuration options for
expanding capacity and power. Ideal for home and commercial energy storage.
expanding capacity and power. Ideal for home and commercial energy storage.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Model | BOS-G PRO | ||||||
Main Parameter | |||||||
Cell Chemistry | LiFePO4 | ||||||
Module Energy (kWh) | 5.12 | ||||||
Module Nominal Voltage (V) | 51.2 | ||||||
Module Capacity (Ah) | 100 | ||||||
Battery Module Number | BOS-G25 PRO | BOS-G40 PRO | BOS-G60 PRO | BOS-G85 PRO | |||
Battery Module Qty In Series (Optional) | 5（Min） | 8 | 12 | 17（Max） | |||
System Nominal Voltage (V) | 256 | 409.6 | 614.4 | 870.4 | |||
System Operating Voltage (V) | 220~292 | 352~467.2 | 528~700.8 | 748~992.8 | |||
System Energy (kWh) | 25.6 | 40.96 | 61.44 | 87.04 | |||
System Usable Energy (kWh) | 23.04 | 40.96 | 55.3 | 78.33 | |||
Working Temperature (°C) | Charge: 0~55/Discharge: -20~55 | ||||||
Status Indicator | Yellow: Battery High Voltage Power On Red: Battery System Alarm | ||||||
Communication Port | CAN2.0/ RS485 | ||||||
Humidity | 5%~85%RH | ||||||
Altitude | ≤3500m | ||||||
IP Rating of Enclosure | IP20 | ||||||
Dimension (W/D/H,mm) | 530*602*1629 | 530*602*2219 | 1060*602*1629 | ||||
Weight Approximate (kg) | 285 | 420 | 610 | 866 | |||
Installation Location | Rack Mounting | ||||||
Storage Temperature (°C) | 0~35 | ||||||
Recommend Depth of Discharge | 90% | ||||||
Cycle Life | 25±2°C,0.5C/0.5C, EOL70%≥6000 | ||||||
Warranty | 10 years | ||||||
Certification | CE/IEC62619 /VDE2510-50/ UN38.3 | ||||||
