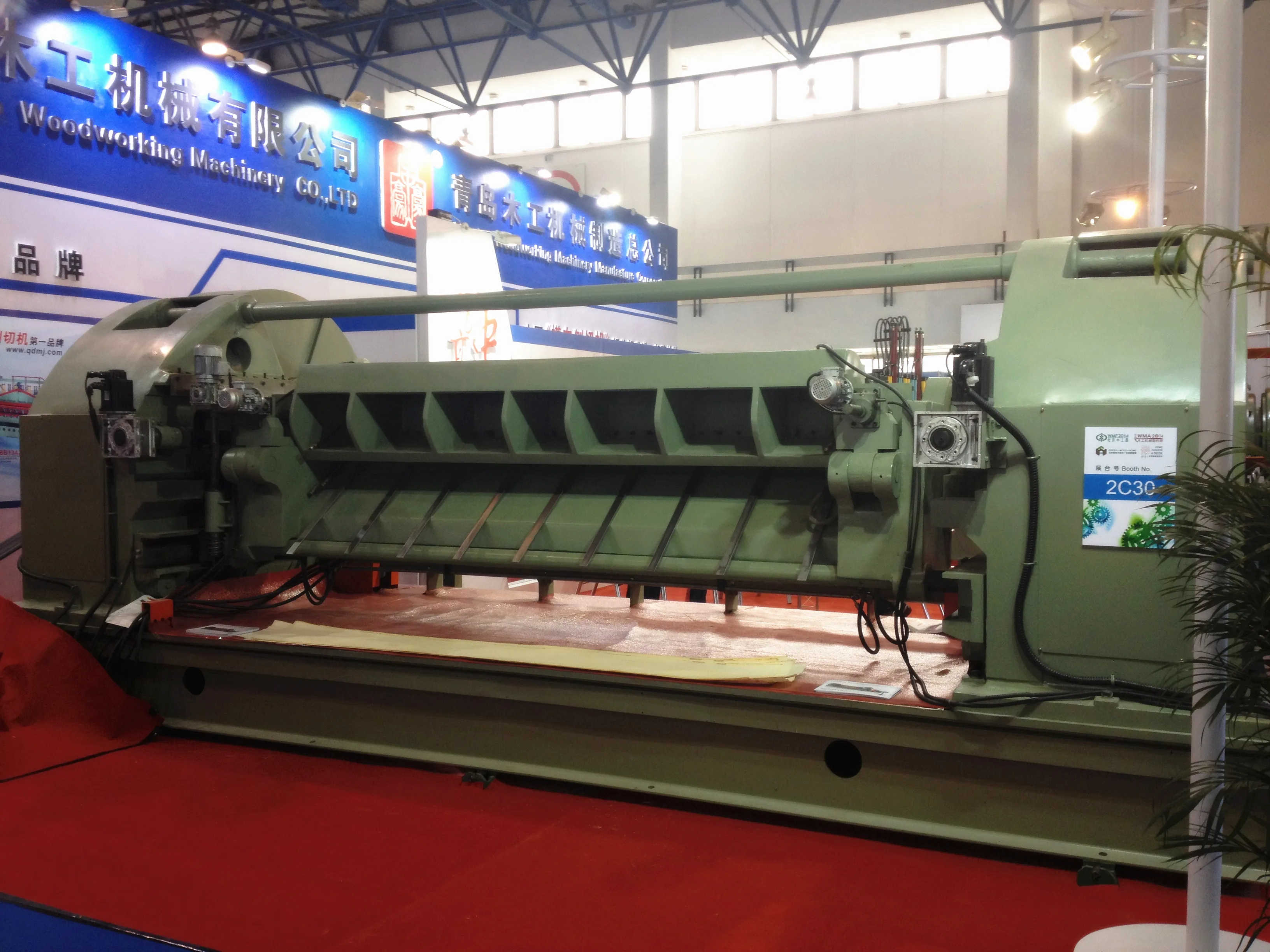

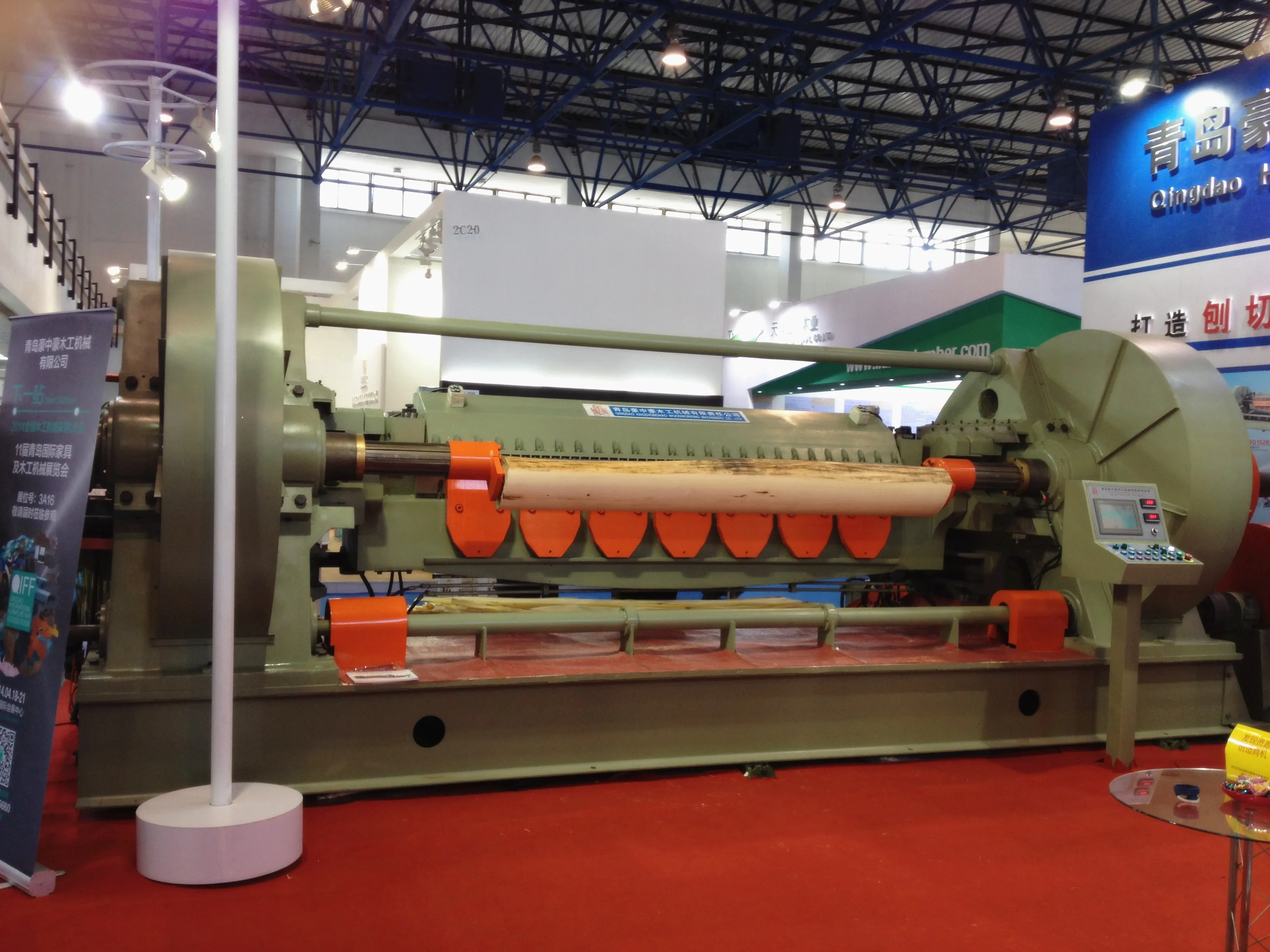

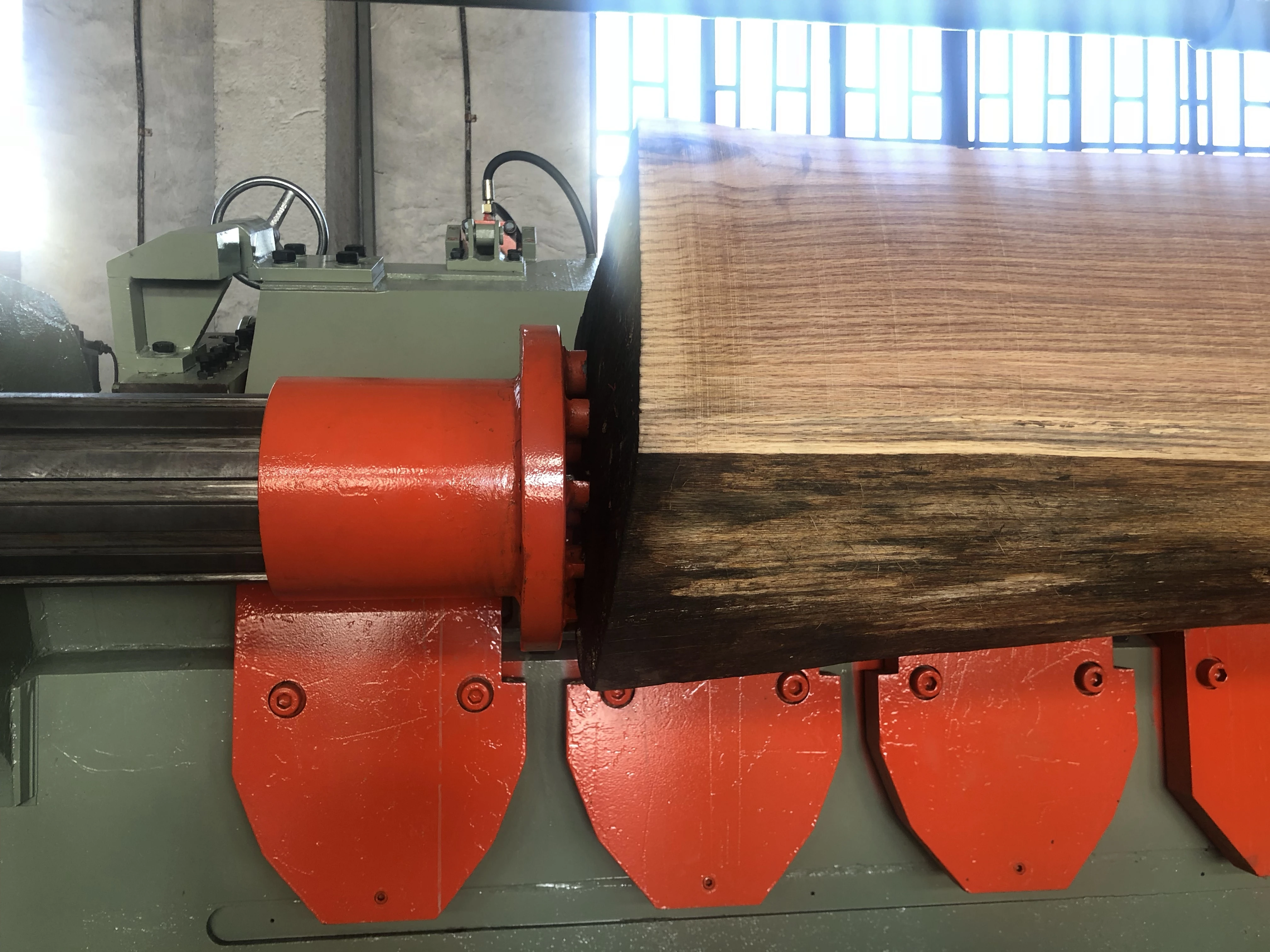

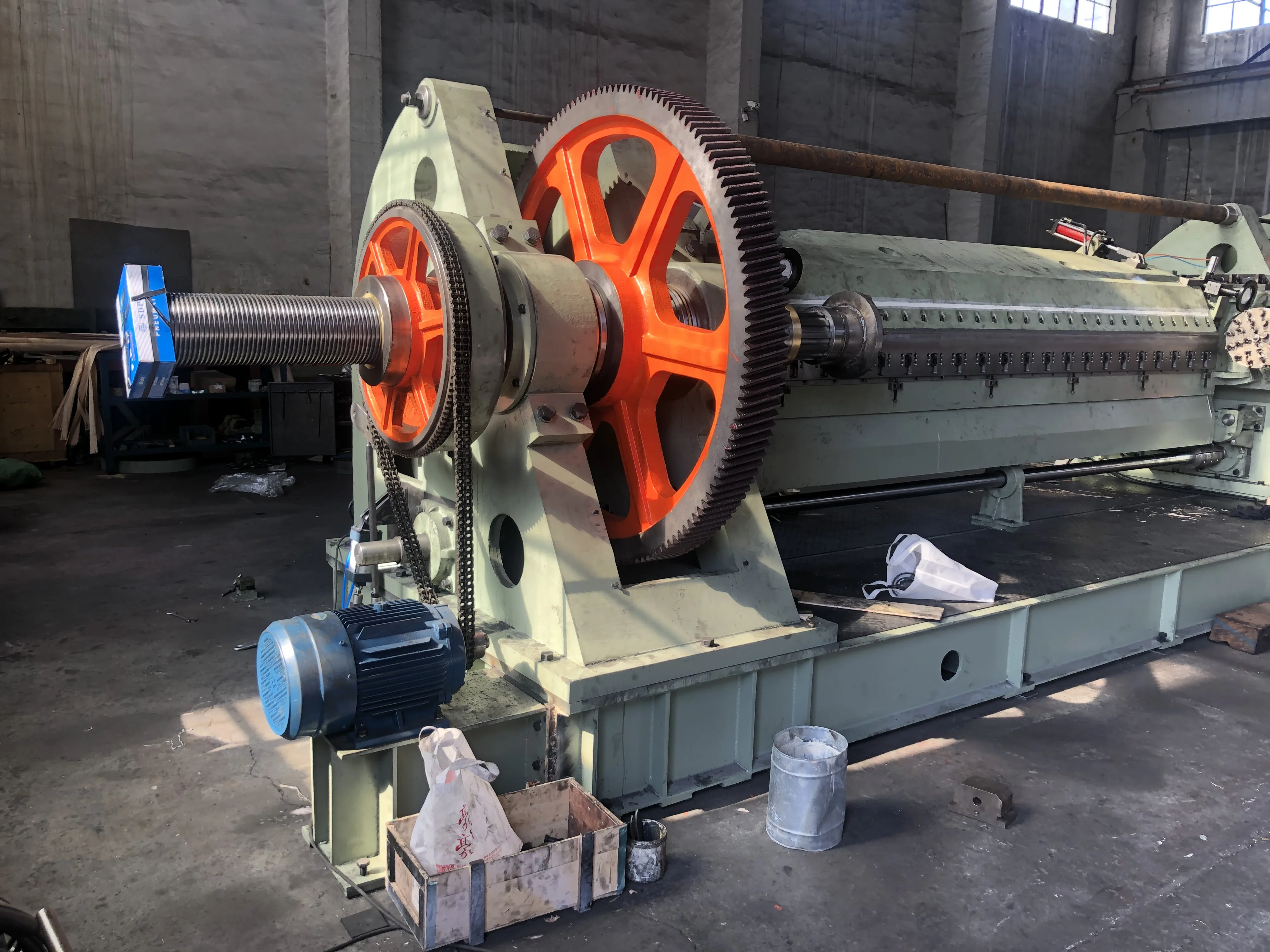

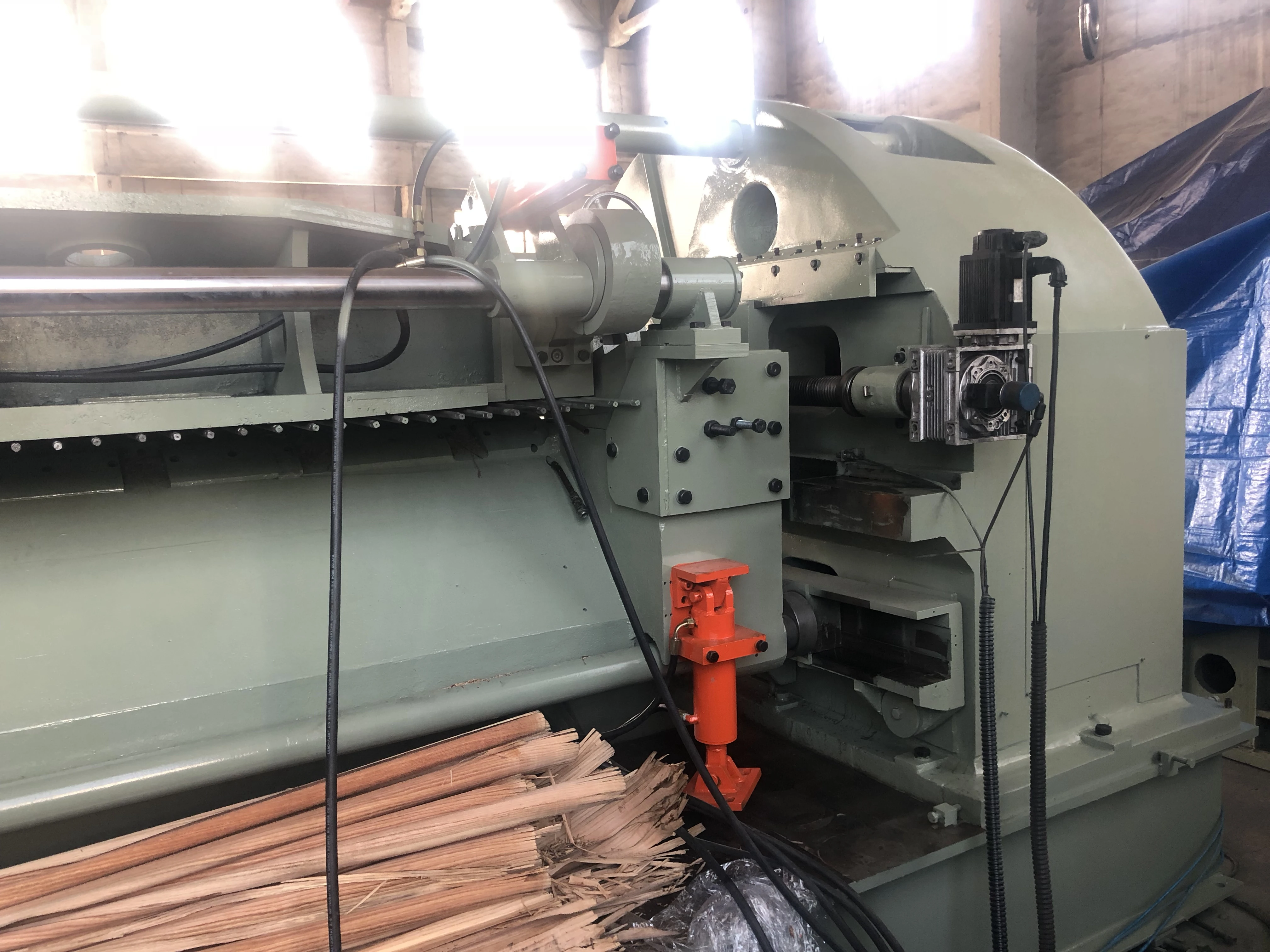

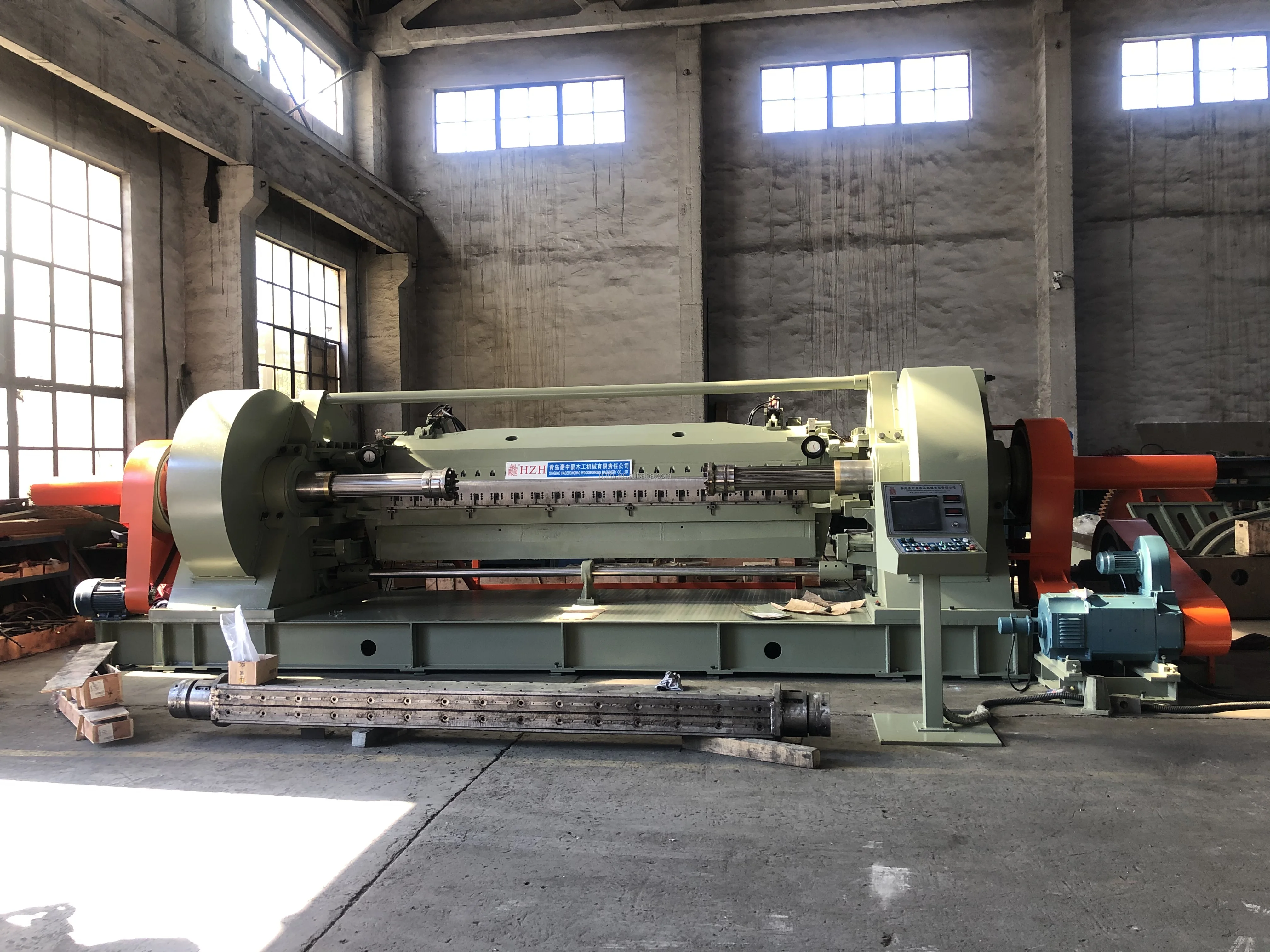

Heavy Machinery Peel Solid Wood Veneer Machinery Half Round Peeling Machine Slicer
- Category: >>>
- Supplier: Qingdao Haozhonghao Woodworking Machinery Co. Ltd.
Share on (1601112703182):
Product Overview
Description
Product Show
Specification
MODEL | BQ1536A | BQ1542A |
Cutting length of logs | 2200-3500mm | 2600-4000mm |
Blade size | 3650*200*22mm | 4250*200*22mm |
Max radius of logs | 750mm | 750mm |
Thickness of veneer | 0.2-2.5mm | 0.2-2.5mm |
Slicing speed | 0-90pcs/min | 0-90pcs/min |
Main motor power | 45kw DC motor | 55kw DC motor |
Wood clamping motor | 7.5kw*2 | 7.5kw*2 |
Knife feeding motor | 2kw*2 (sevor motor) | 2kw*2 (sevor motor) |
Blade angle adjusting notor | 1.1kw | 1.1kw |
Conveyor motor | 0.55kw | 0.55kw |
Oil pump motr | 2.2kw | 2.2kw |
Dimension | 9000*5000*2400mm | 9400*5000*2400mm |
Weight | 33000kg | 30000kg |
Function
This machine adopts technique overseas and is developed by our company independently. It slices solid wood with straight grain, runs stably and precisely, veneer thickness is uniform. It is mainly used in solid wood, plywood, MDF, flooring and furniture production.
1 Servo motor drives the feeding of precise screw, guarantee the quality and precision of veneer.
2 The heating system effectively avoid the stain of veneer.
3 Automatic hydraulic blade holding system improves working efficiency.
4 Blade angle adjusting system slicing all kinds of veneer easily.
5 All switch buttons are gathered in control cabinet, it is easy to control the machine.
2 The heating system effectively avoid the stain of veneer.
3 Automatic hydraulic blade holding system improves working efficiency.
4 Blade angle adjusting system slicing all kinds of veneer easily.
5 All switch buttons are gathered in control cabinet, it is easy to control the machine.
