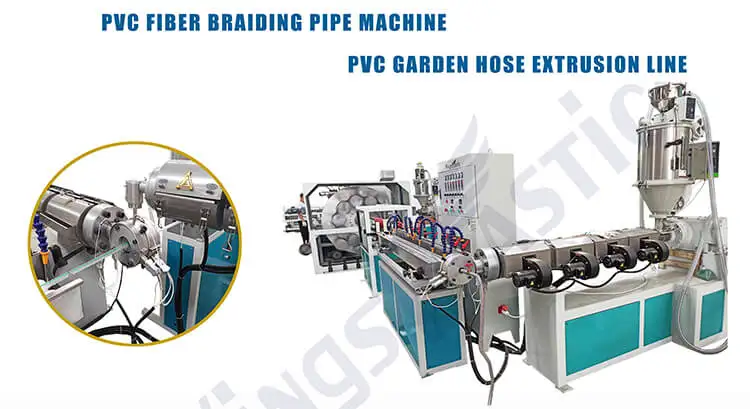

flexible fiber braided hose extrusion line PVC garden hose machine
Product Description
Description | Quantity |
SJ65/30 Single screw extruder | 2set |
Die head and Mould | 2set |
Single knitting machine/braider | 1set |
Spray Cooling Water tank | 2set |
Drying tank | 1set |
Haul-off unit | 1set |
Winder | 1set |

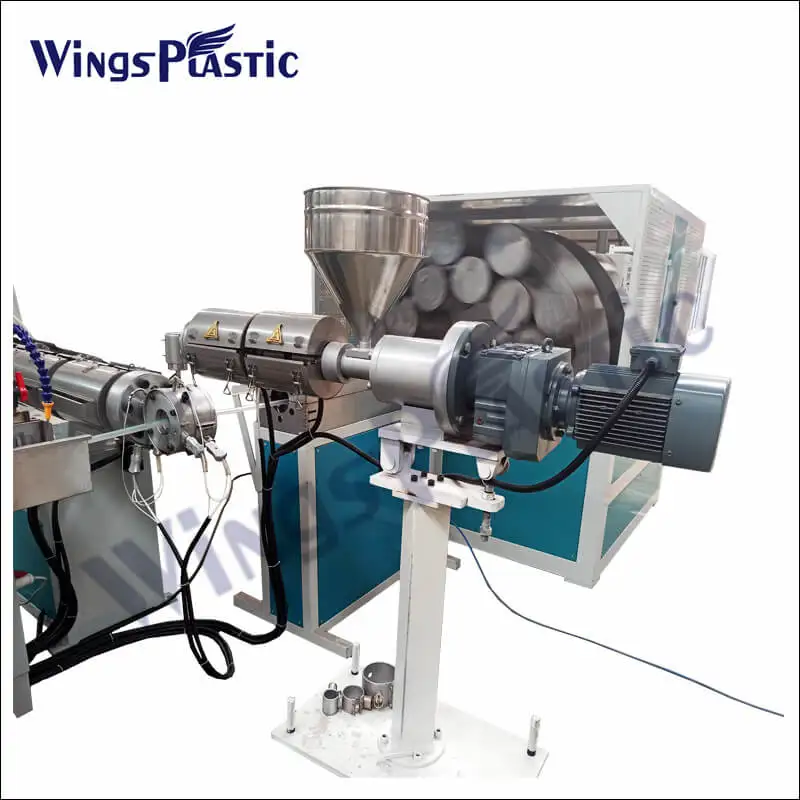

Single Screw Extruder (one inner layer pipe extruder, one coating layer pipe extruder )
The photo is 65/30 extruder. 15kw motor to meet 60kg/h capacity.
Inner Layer Pipe Extrusion Die head
The die head is made by 40Cr moulds materials.
Using mica heating way
Using mica heating way
Coating layer Pipe Extrusion Die head
The die head is made by 40Cr moulds materials.
Using mica heating way
Using mica heating way

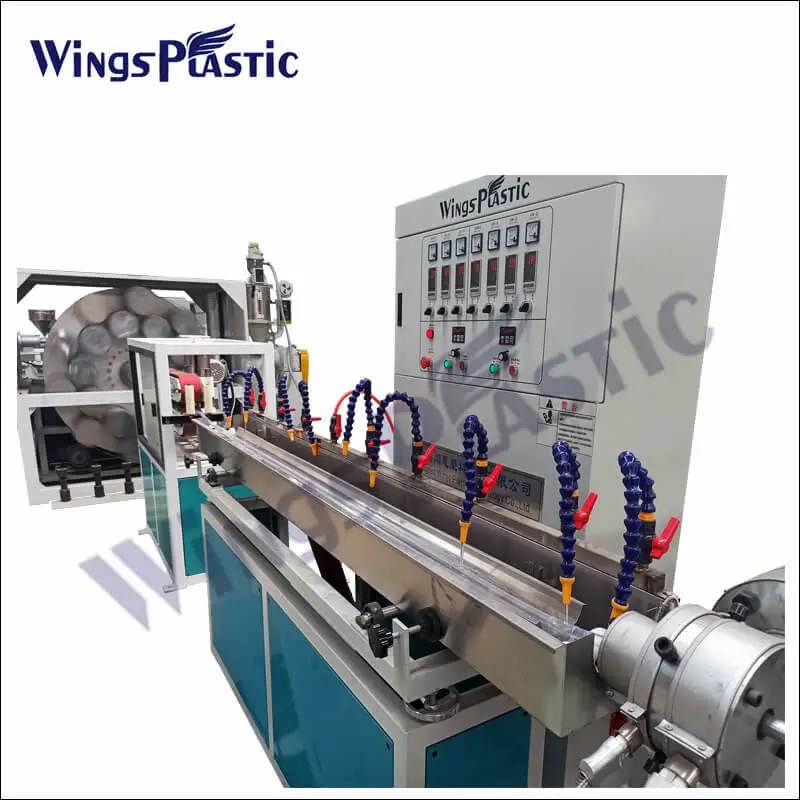

Pipe Water Tank(two sets)
It is adopted stainless steel materials,2500mm cooling length.
Haul-off unit (two sets)
It is rubber belt haul off, motor is 1.1kw.
Control way: inverter control
Control way: inverter control

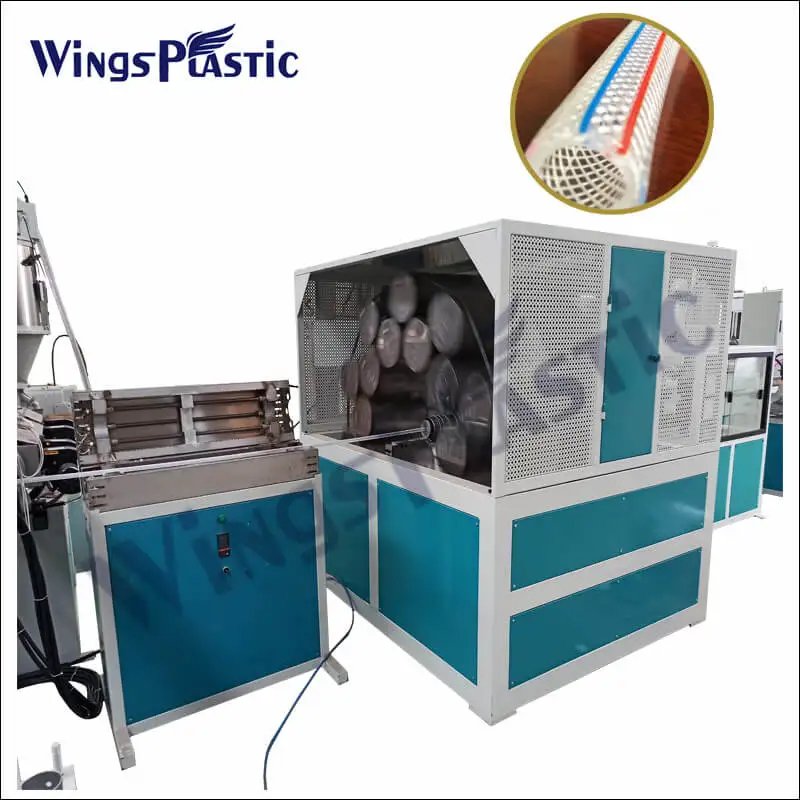

Braiding unit
It is working for fiber yarn braiding layer.
Motor:4.4kw
Control way: inverter
Motor:4.4kw
Control way: inverter
Heating oven
It is working for pipe drying before coating layer extrusion
Markline Extruder
It could extrusion a colorful markline/strip on pipe surface.
It is popular choosed.
It is popular choosed.

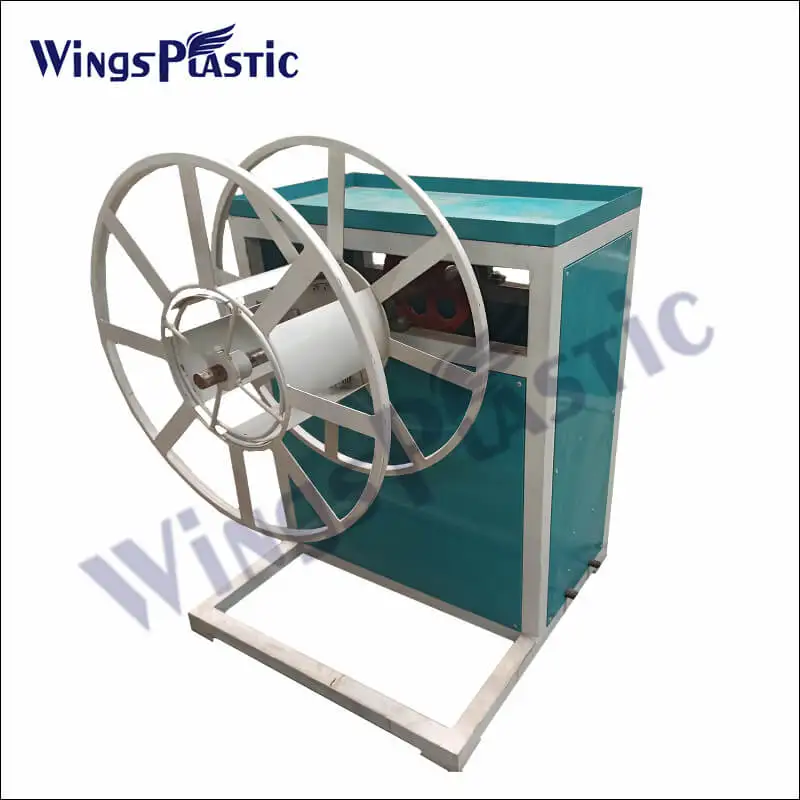

Winder Unit and other auxiliary machine
The winder is always manual winding as the pipe is forming by air blowing system.
Also, we have pipe sealing and packing machine as opational auxiliary machines
Also, we have pipe sealing and packing machine as opational auxiliary machines

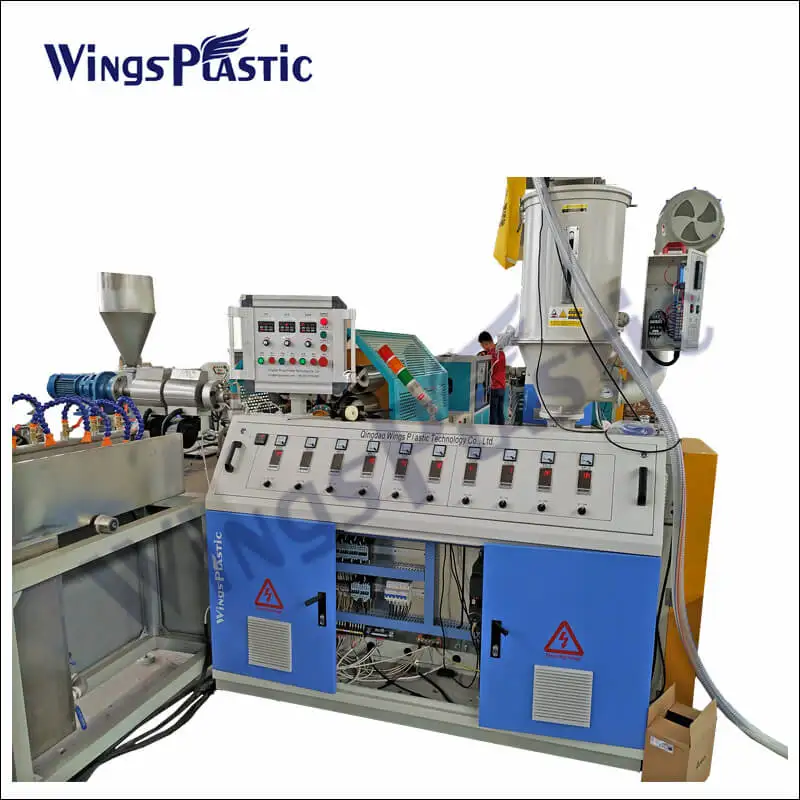

Electric contro unit
Switch and Button brand:CHNT/Schneider
Temperature Controller:Omron
Inverter:Siemens/ABB/Delta
Contactor:Siemens
Temperature Controller:Omron
Inverter:Siemens/ABB/Delta
Contactor:Siemens

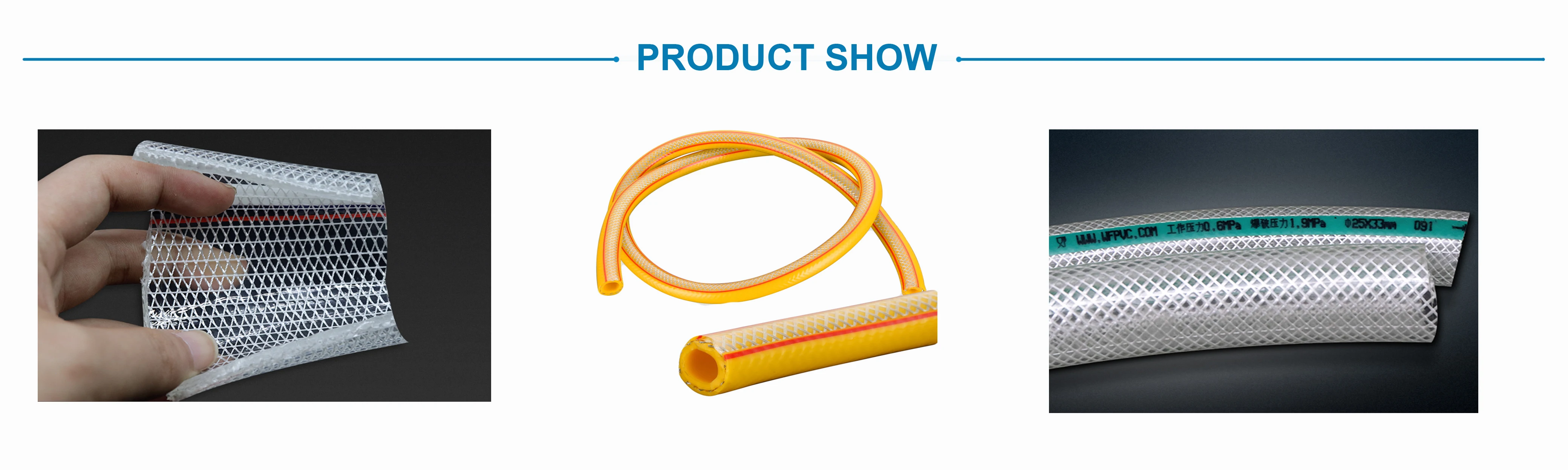

Final Product & Application
Company Introduction
Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE PP PVC PA single wall corrugated pipe machine, double-wall corrugated pipe production line, PVC hose production line, HDPE PP PVC Sheet, Coil Mat, Strap, Protector Machine
Equipment operation is stable, automatic production, saving labor, efficient extrusion
Equipment operation is stable, automatic production, saving labor, efficient extrusion
