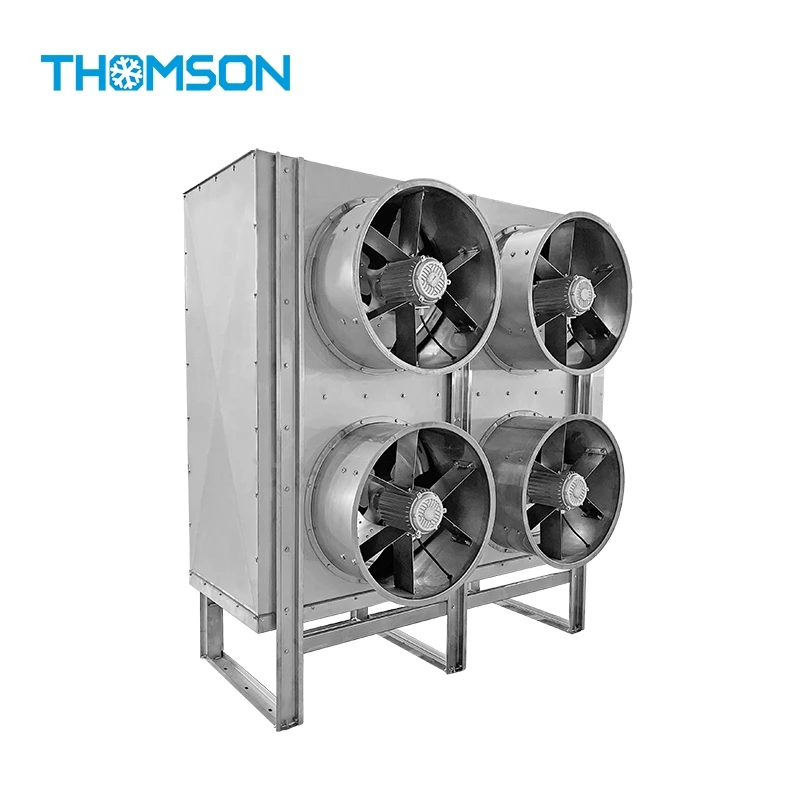

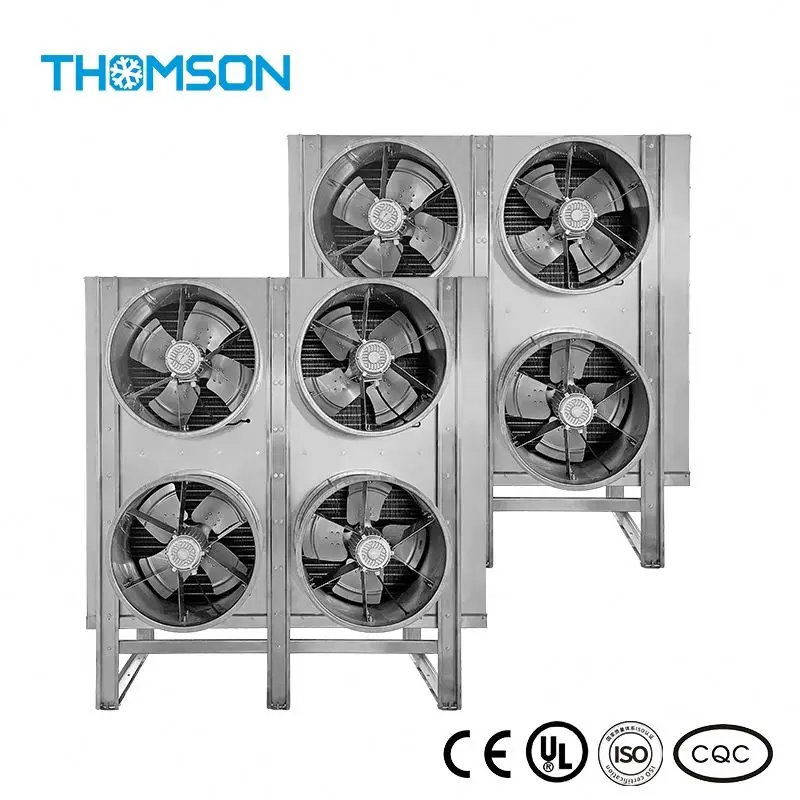

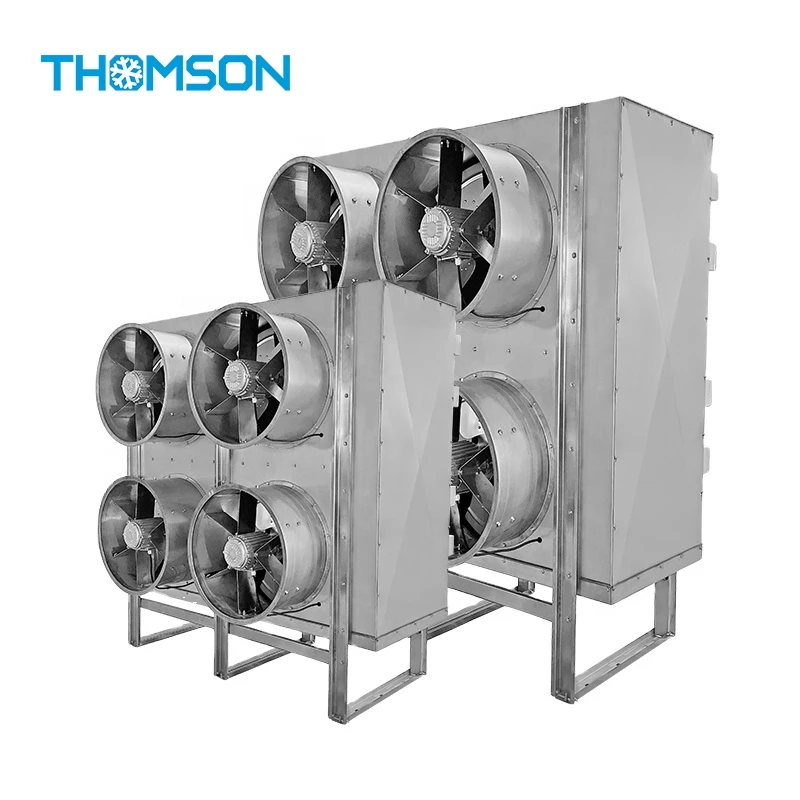

New Design Stainless Steel Evaporator AW Series Blast Chillers & Freezers For Quick Frozen Warehouse
- Category: >>>
- Supplier: Thomson Refrigeration Technology (Dalian) Co. Ltd.
Share on (1601112722128):
Product Overview
Description
Product Description
Models | AW634T6 | AW634T8 | AW636T6 | AW636T8 |
进风Ta -25℃ R22 蒸发Te -31℃ R404A | 36.0 35.2 | 43.4 42.8 | 55.0 54.4 | 65.4 65.0 |
进风Ta -34℃ R22 蒸发Te -40℃ R404A | 29.6 29.4 | 36.4 35.8 | 45.6 45.0 | 55.4 54.2 |
Tube length m | 576 | 768 | 864 | 1152 |
Surface m² | 152 | 204 | 228 | 306 |
Circuit Vol. dm3 | 79 | 105 | 118 | 158 |
Fan Mot. No. | 4 | 4 | 6 | 6 |
Air Flow m3/h | 53200 | 48400 | 79800 | 72600 |
Air Throw m | 31 | 29 | 32 | 30 |
Air Mot. Amper A | 12.8 | 12.8 | 19.2 | 19.2 |
Air Mot. Power W | 6400 | 6400 | 9600 | 9600 |
Electric Defrost A | 37.9 △ | 56.8 △ | 56.8 △ | 85.3 △ |
Electric Defrost W | 21600 | 32400 | 32400 | 48600 |
in Tube inch. | 2 X 7/8 | 2 X 1-1/8 | 2 X 1-1/8 | 2 X 1-3/8 |
out Tube inch. | 2 X 1-5/8 | 2 X 2-1/8 | 2 X 2-1/8 | 2 X2-1/8 |
Net Weight kg | 560 | 620 | 760 | 840 |
Drawing No. | 25 | 25 | 26 | 26 |
Drawing No. | 27 | 27 | 28 | 28 |
Model | Dimension mm | ||||
L | W | H | |||
AW634T6(Electric defrost) | 2370 | 845 | 2250 | ||
AW634T6(Water defrost) | 2370 | 845 | 2350 | ||
AW634T8(Electric defrost) | 2370 | 845 | 2250 | ||
AW634T8(Water defrost) | 2370 | 845 | 2350 | ||
AW636T6(Electric defrost) | 3370 | 845 | 2250 | ||
AW636T6(Water defrost) | 3370 | 845 | 2350 | ||
AW636T8(Electric defrost) | 3370 | 845 | 2250 | ||
AW636T8(Water defrost) | 3370 | 845 | 2350 | ||
Devel Oplment
Visiting Customer

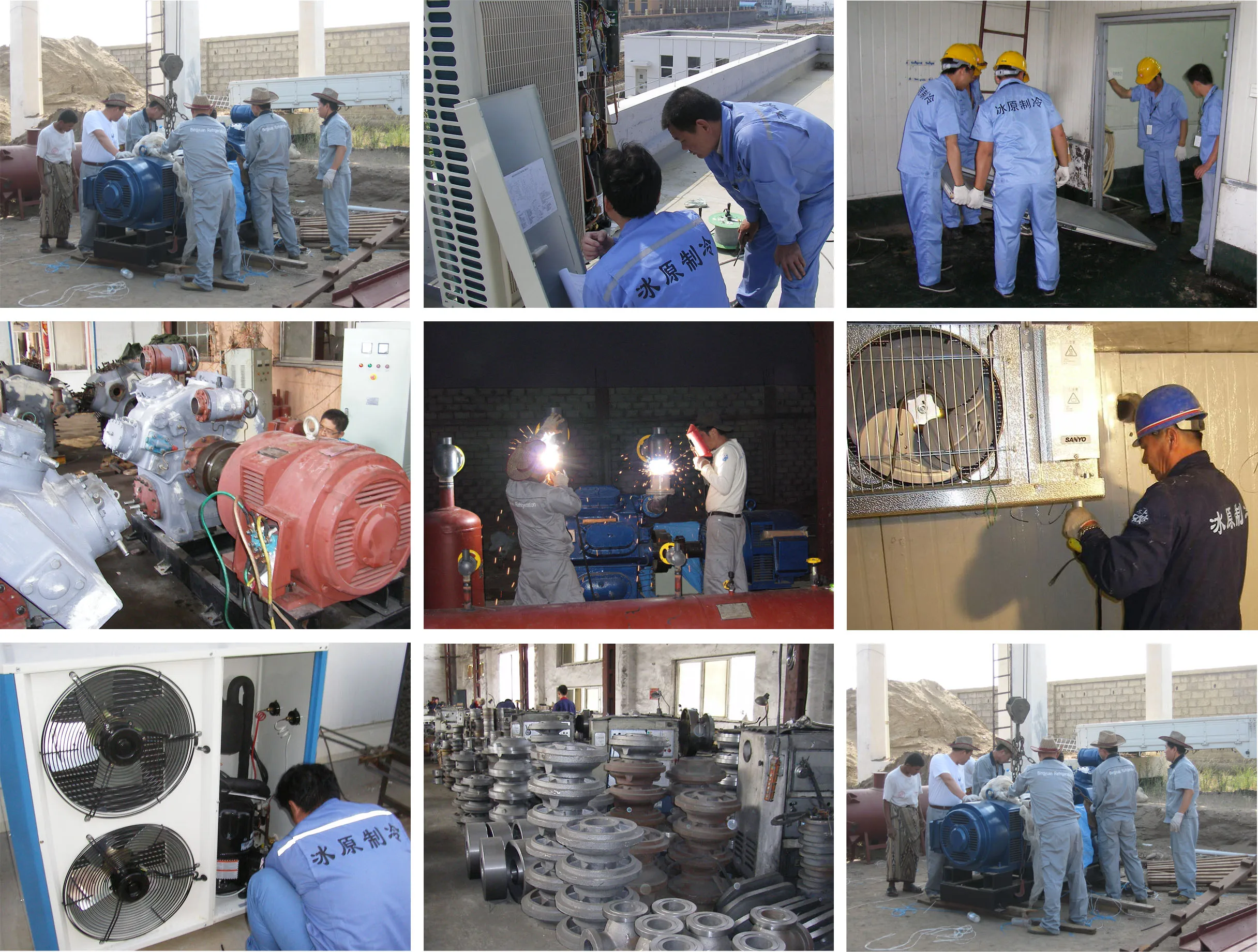

Our Services
