Automatic 4 head servo gear pump liquid filling line
- Category: >>>
- Supplier: Liaoning Fuyi Machinery Co. Ltd.
Share on (1601112724610):
Product Overview
Description
Product Description

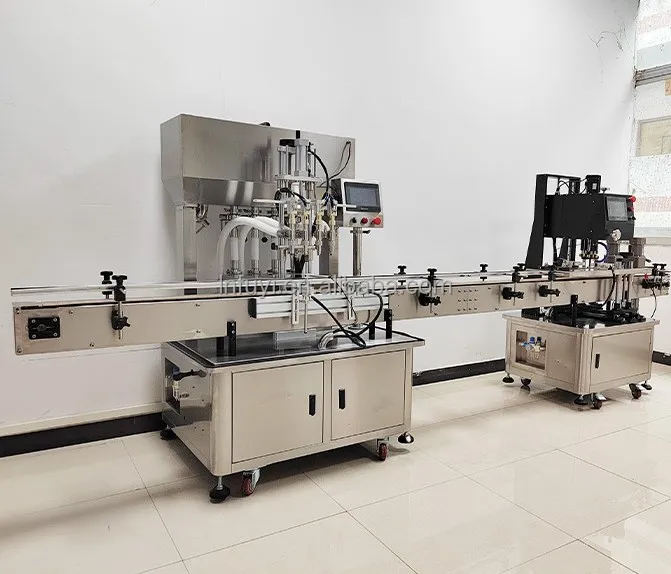

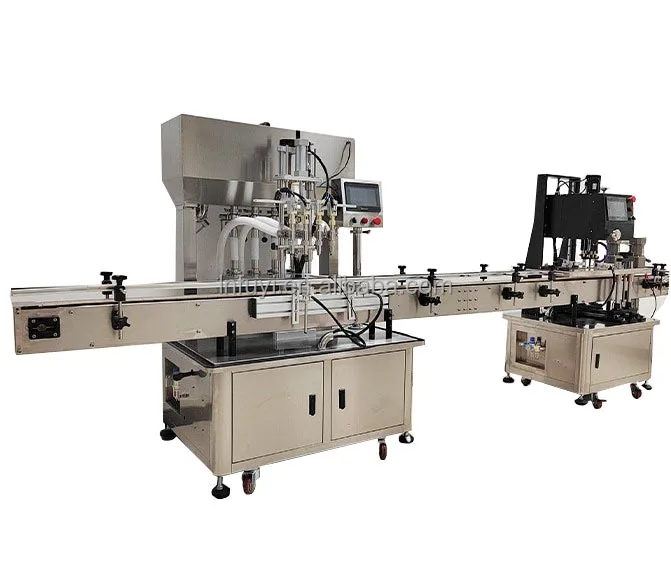

Automatic 4 head servo gear pump liquid filling line
Brief introduction：
1. This line equips with 4-head servo gear pump liquid filling machine , a capping machineand a labeling machine for round bottles-singe side labeled. ( other bottle sorting table and cap feeding machine can also be customized.)
2. Widely used in food, daily chemical and other industries; Such as alcohol, soy sauce, vinegar, milk, beverages, mineral water, or edible oil and chemical liquids. 3. Stainless steel gear pump is used for filling, which is convenient for cleaning and changing pipes.
Main Features :
1. Controllable touch screen control
2. Stainless steel gear pump filling (anti-corrosion)
3. Large servo type motor
4. Equip with bottle blocking device and bottle light sensor
5. Chain plate assembly line bottle walking
6. Separate discharge nozzle switch controllable
Technical parameters :
Model: | GT-4 servo motor gear pump filling machine |
Material: | Stainless steel 304 |
Filling range : | 5ml --unlimited The shortest interval time is 0.2s |
Voltage: | 220V /50HZ |
Power : | Whole machine: <2.5KW Servo motor power: 0.75KW |
Filling speed : | 30-40 bottle/min (take 1L as example) |
Filling accuracy: | ±0.5-1% (depends on filling materials) |
Conveyor belt size: | L:2000m , W: 114MM (with bottle blocking device) |
Suction liquid tube: | 1.5 Meter |
Air pressure: | 0.4-0.6 Mpa |
Filling nozzle : | 4 |
Suitable bottle: | Height: 30-350ml Mouth diameter: 15-100mm |
Hopper volume: | 100L |
Size: | 2000*950*1600mm |
Weight: | 150KG |

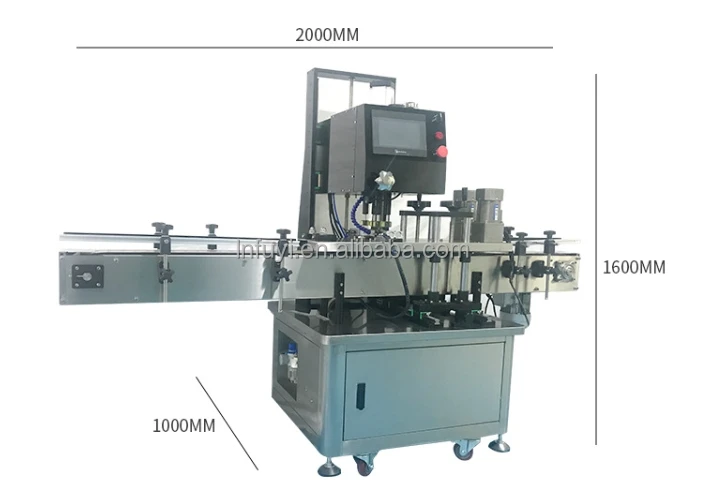

Model: | XGJ-02 servo type capping machine |
Materials: | Stainless steel + aluminum |
Capping speed: | 60-80pcs/min |
Quantity of screws: | heads: 1 |
Power supply： | 220V/50Hz 2KW |
Air compressor: | 0.5-0.7mpa |
Bottle height： | 30-200mm |
Bottle diameter: | 15-100mm |
Capping diameter: | 20-70mm ( customized) |
Machine weight: | 200KG |
Overall size: | 200*800*1600cm |
Notes：1. air compressor is required while machine working , please provide it by yourself.
2. Material feeding machine, cap feeding machine, labeling can be equipped too, please contact us if you need them.
Details Images

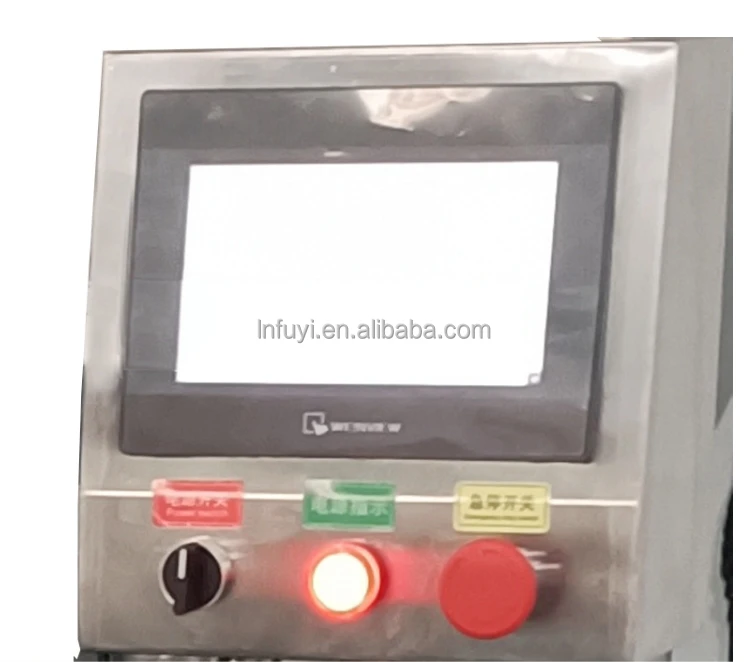

Intelligent control system
Actions and control parameters can be set and modified, making operation control convenient.
Actions and control parameters can be set and modified, making operation control convenient.

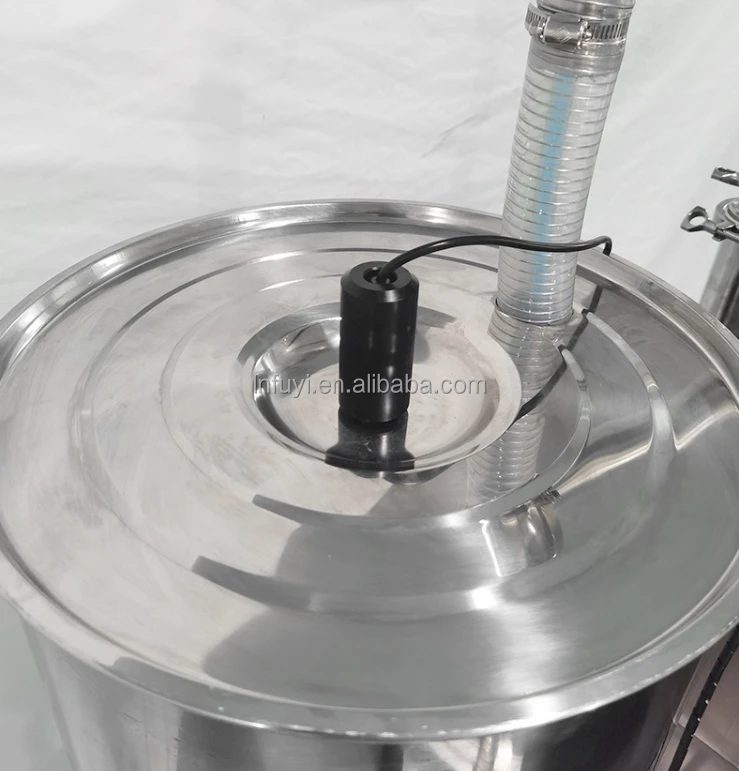

Automatic feeding induction device
Connect to automatic feeder, labor-saving.
Connect to automatic feeder, labor-saving.

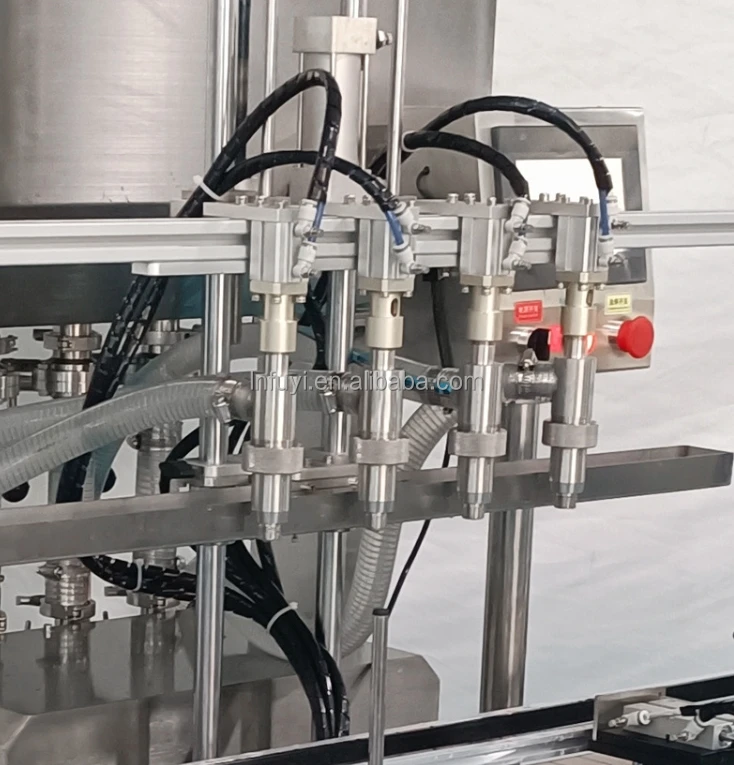

Anti-corrosive filling head
Intelligent control system
Actions and control parameters can be set and modified, making operation control convenient.
Adjusting mechanism
For product size, manually and flexibly adjust the width of the strap to fit the bottle body and lock the lid. Do not let the bottle body rotate. The height of the synchronous belt is approximately in the middle of the bottle
Capping mechanism
Automatic bottle feeding, electric eye positioning, automatic bottle holding, automatic capping
Notes: The filling line can be customized as per your requirement.
