Electronic 3v 6v 24v 12v Micro Small Peristaltic Pump Peristaltic Pump Head Mini Peristaltic Pump
- Category: >>>
- Supplier: Wuhan Yeson Technologies Co. Ltd.
Share on (1601112733963):
Product Overview
Description
Product Description

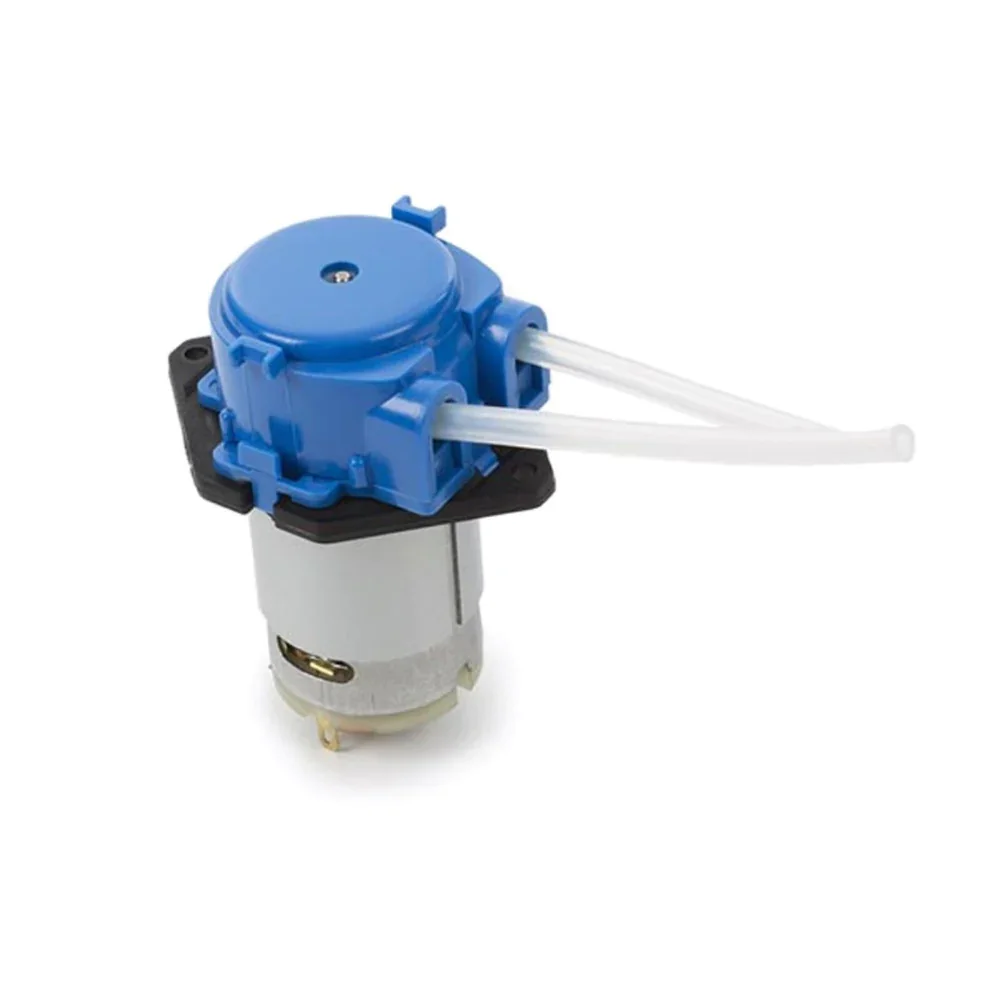

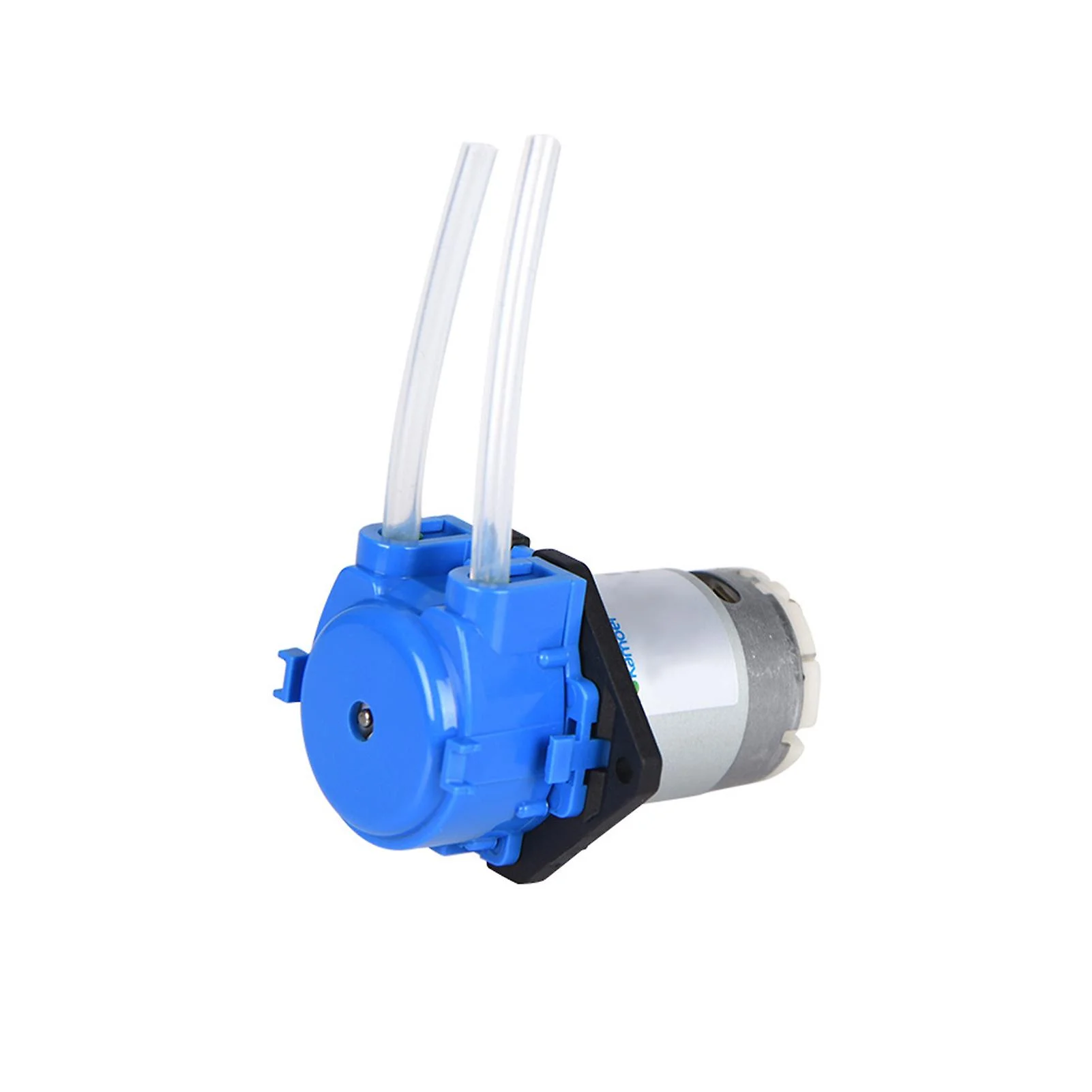

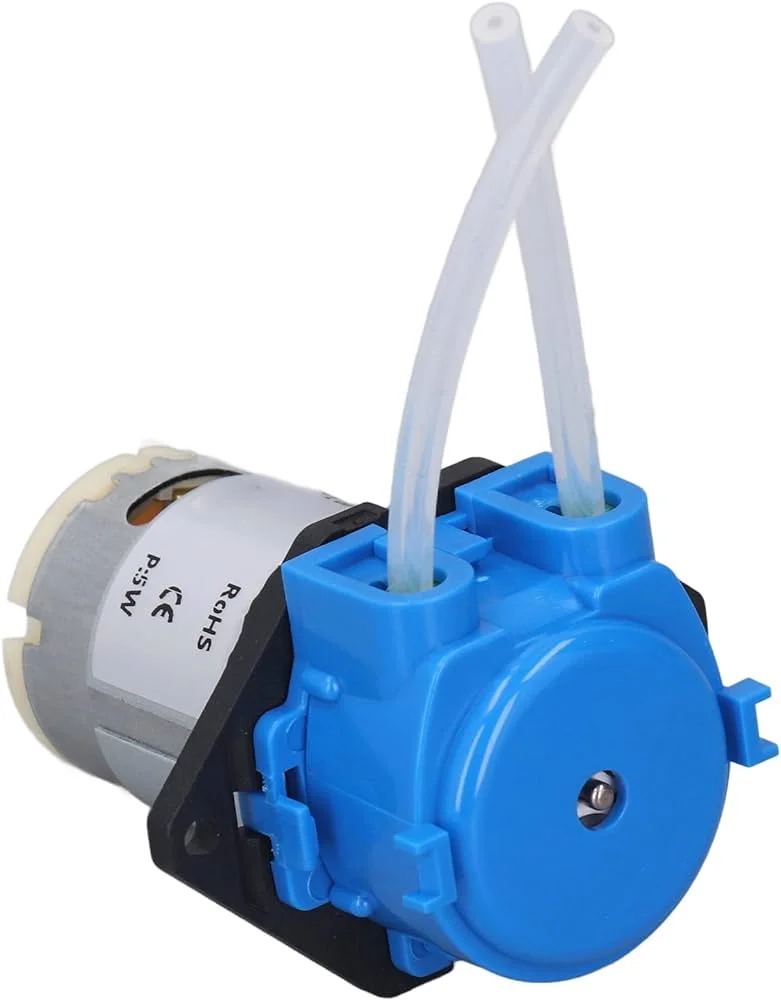

Micro Peristaltic Pumps
A peristaltic pump, also commonly known as a roller pump, is a type of positive displacement pump used for pumping a variety of fluids. The fluid is contained in a flexible tube fitted inside a circular pump casing. Most peristaltic pumps work through rotary motion, though linear peristaltic pumps have also been made. The rotor has a number of "wipers" or "rollers" attached to its external circumference, which compress the flexible tube as they rotate by. The part of the tube under compression is closed, forcing the fluid to move through the tube. Additionally, as the tube opens to its natural state after the rollers pass, more fluid is drawn into the tube. This process is called peristalsis and is used in many biological systems such as the gastrointestinal tract. Typically, there will be two or more rollers compressing the tube, trapping a body of fluid between them. The body of fluid is transported through the tube, toward the pump outlet. Peristaltic pumps may run continuously, or they may be indexed through partial revolutions to deliver smaller amounts of fluid.
Wuhan Yeson Technologies has been engaged in manufacturing miniature water/air/vacuum and peristaltic pumps for many years, we have any standard models with affordable price in stock and we can also custom as per your unique requirements. Please kindly reach out, we'll come back to you with satisfied solution.
Specification
SPECIFICATIONS | ||||||||
Rated Voltage | DC 3V | DC 5V | DC 6V | DC 12V | ||||
Rated Current | ≤ 800 mA | ≤ 400 mA | ≤ 250 mA | ≤ 200 mA | ||||
Rotation Speed | 15/30/50/60/100 rpm | |||||||
Tube specificatios | 2mm*3mm (ID*OD) or as requested | |||||||
Tube material | Silicone or BBT | |||||||
Power | ≤ 2 w | |||||||
Flow | 0.3-15 mLPM | |||||||
Pressure | ≥ -20 Kpa | |||||||
Noise Level | ≤ 65 dB (measured 30cm away) | |||||||
Lifespan | ≥ 30000 times (on 10s, off 5s) | |||||||
Working enviroments | Temperature 0-60℃, relative humidity<85%RH | |||||||
Range of application
Widely used in medical and health, scientific research, laboratory, environmental protection, instrumentation, chemical industry,beauty, small household appliances and other industries
Company introduction
Wuhan Yeson Technologies Co., Ltd. was established in Wuhan, China in 2019. We are a company specializing in R&D, manufacturing and sales of micro diaphragm pumps and peristaltic pumps. Our main products include micro liquid pumps, vacuum pumps, air pumps and peristaltic pumps. The factory area is about 1,000 square meters, with a total number of employees of more than 20. We now have 5 complete production lines, and the annual production capacity has now reached 3,000,000 pieces. Although the past three years have been very difficult, we have worked hand in hand with our customers to overcome difficulties and have accumulated rich experience while expanding our global market. Wuhan Yeson Technologies has a complete research and development, production and testing technology system. We can provide customized micro pumps based on our customers' unique needs. Our products are widely used in water flosser, ear cleaners, nasal washers, aromatherapy machines, disinfection guns, oxygen injectors, blood pressure monitors, coffee machines, automatic soap dispensers, vacuum sealing machines, beauty equipment and instruments, and healthcare, environmental analysis, water treatment, laboratory analysis and testing instruments and other fields. All products will undergo strict testing prior to shipment. We believe you will be attracted by our affordable price at first and then be convinced by our high quality and after-sales service. Looking forward to contributing to your projects with affordable prices and high quality micro pumps and expanding the market with you together.
Our factory
Packaging and logistics
FAQ
FAQ
1.What can we do for you?
We have been manufacturing various high-performance and affordable pumps with micro diaphragms. Likeminiature air pumps, miniature vacuum pumps, miniature water pumps, and miniature water and air pumps.
2.How to choose the most suitable pump?
Please tell me your detailed flow rate, voltage, application, etc., and then we canrecommend the most suitable pump for you.
3. How do we ensure quality?
We have a comprehensive quality control team and inspect products before shipment
4.How long is the delivery time?
Mass production usually takes 25 working days. For sample orders, we can arrange for quick
shipment within 3 working days.
shipment within 3 working days.
5. Which transportation method is available?
Provide DHL, FedEx, UPS, express delivery, and sea freight. For samples and packagesweighing less than 100 kilograms, we usually recommend express delivery. For heavy packages, we recommend air or seafreight. Butall of this depends on the needs of our customers.
6.What are your payment terms?
Alibaba Trade Assurance. Any trade dispute, Alibaba will provide you with guarantees and compensate
you for all losses. Mass production: 50% deposit and 50% remaining inspection report before delivery.
you for all losses. Mass production: 50% deposit and 50% remaining inspection report before delivery.
7.Can I print my logo on this product?
Of course, please contact us before we start production.
8. What is your warranty?
The warranty period is 1 year. We usually offer brand new defect free products. In addition, we can
replace defective products during the warranty period, and we provide lifelong free technical support and maintenance.
replace defective products during the warranty period, and we provide lifelong free technical support and maintenance.
