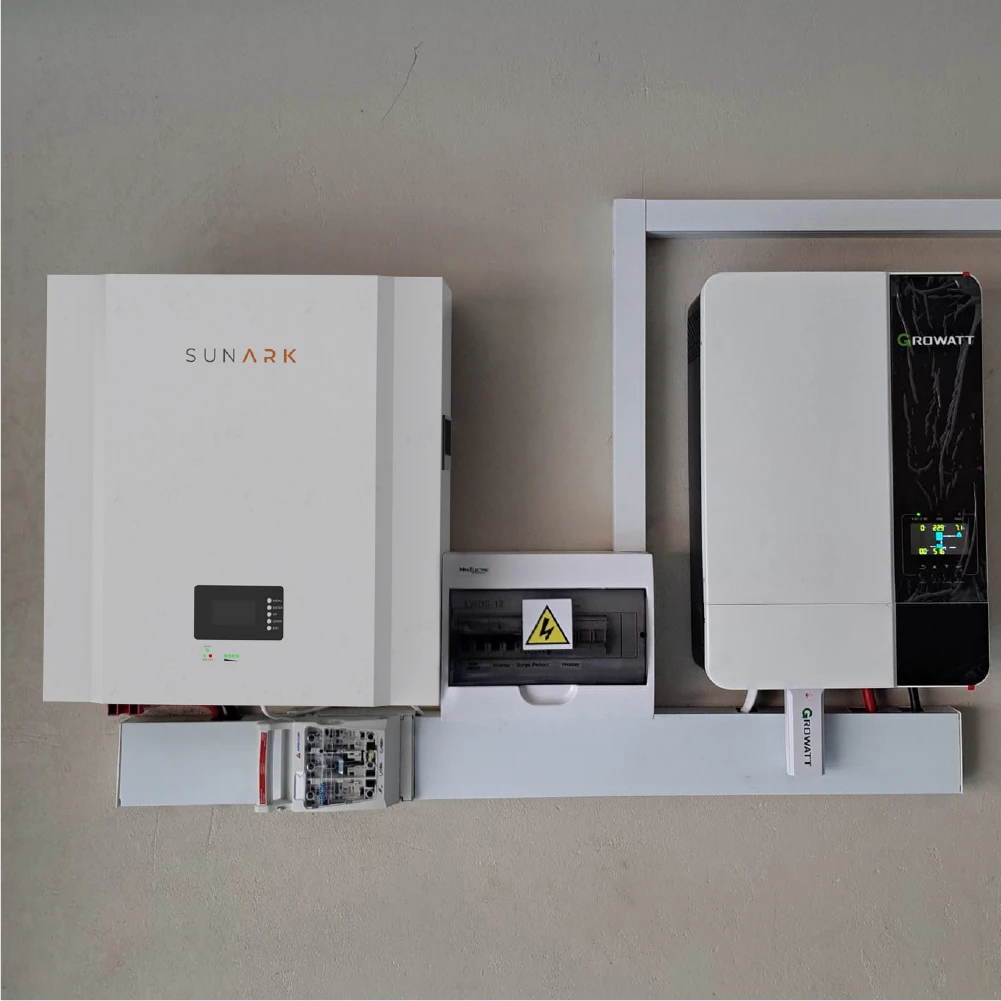

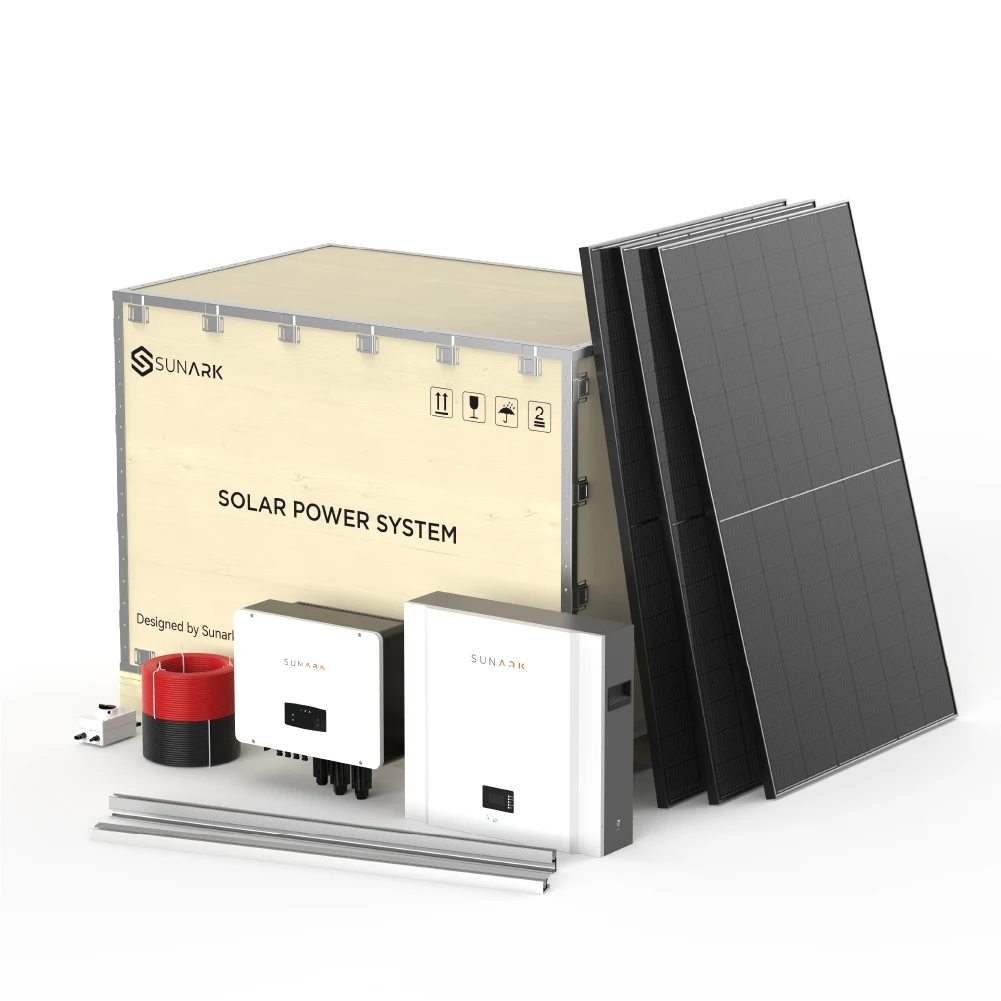

Sunark Lithium Phosphate Battery 51.2V 100Ah 200Ah 5Kwh 10Kwh Lifepo4 Powerwall Battery China Trade
- Category: >>>
- Supplier: SunArk Power Co. Ltd.
Share on (1601112803698):
Product Overview
Description
Product Description
Product Model | WallArk-3 | WallArk-3 PLUS | |
Product Specification | 51.2V 100Ah | 51.2V 200Ah | |
Nominal Voltage | 51.2V | ||
Nominal Capacity | 100Ah | 200Ah | |
Cell Type | (LFP) | ||
Standard Charge Voltage | 58.4V(adjustable) | ||
Max Charge Current | 100A | ||
Discharge Cut-Off Voltage | 40V(adjustable) | ||
Max Discharge Current | 100A | ||
Display | LCD(Optional) | ||
Parallel Function | Support 10 Units In Parallel | Support 15 Units In Parallel | |
Communication Interface | RS485、RS232、CAN(Optional) | ||
Cycle Life* | ≥6000 Cycles (80% DOD) | ||
Charge Temperature Range | 0~65°C | ||
Discharge Temperature Range | -20~65°C | ||
Dimensions | 600*400*213MM | 710*670*188MM | |
Weight | 46Kg | 85Kg | |
Installation Method | Wall Mounted | ||

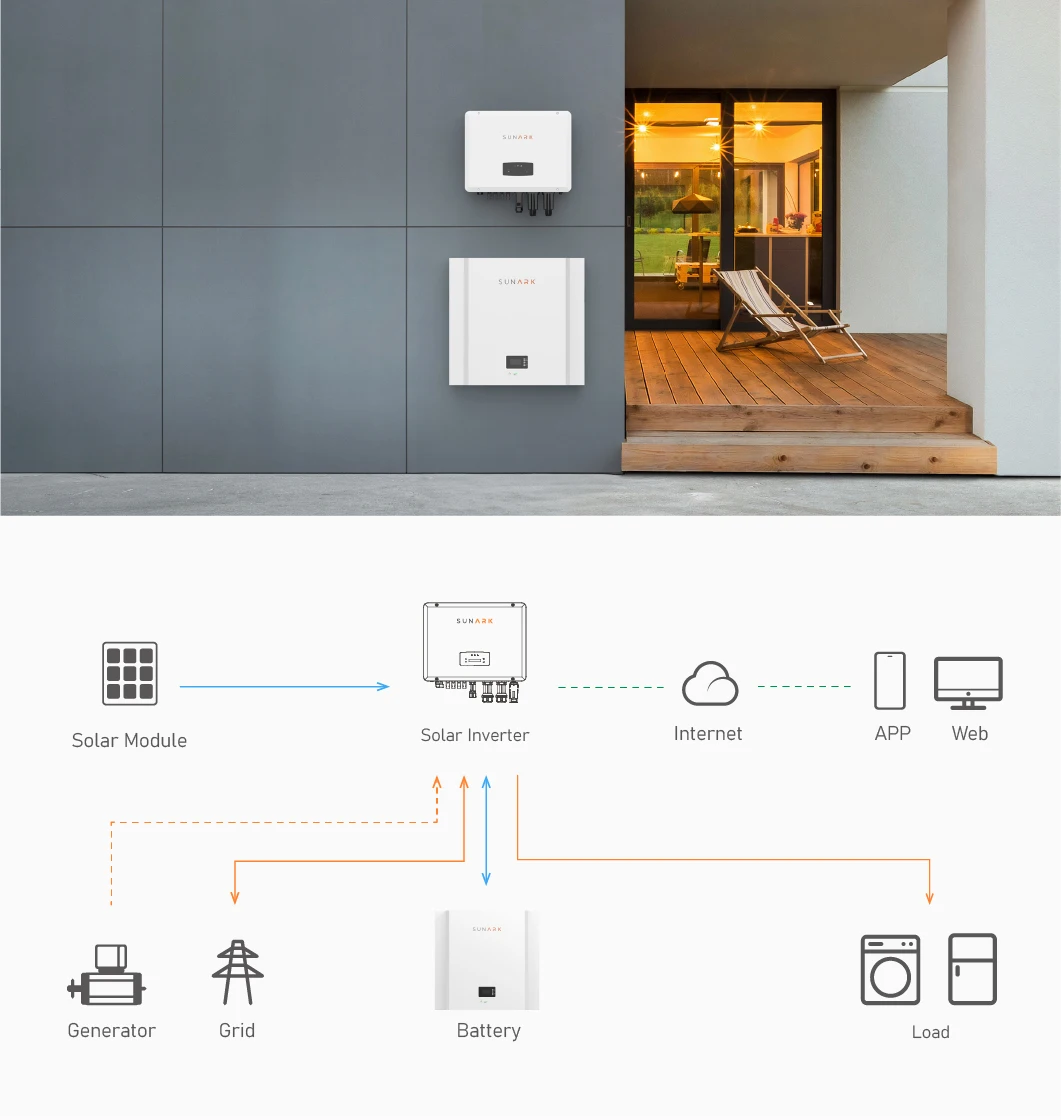

Applications
Products Series

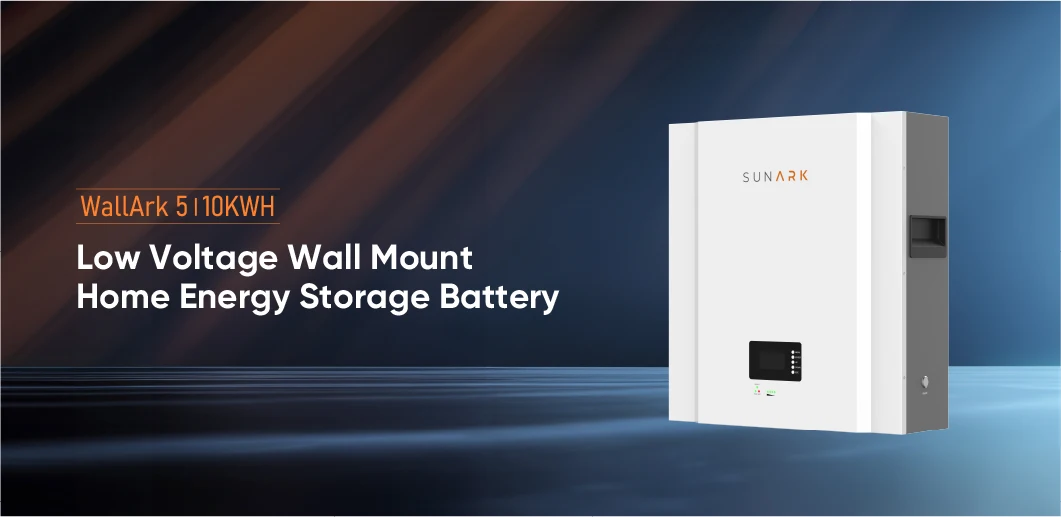

Wall Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh
Stackable Low Voltage & High Voltage PackVoltage: 51.2V/129.6-561.6V
Capacity: 5kWh~30kWh
Rack Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 50/100/150/200Ah
All In One Energy Storage System
Power: 3-12kW
Battery Capacity: 5-45kWh
Power: 3-12kW
Battery Capacity: 5-45kWh
Portable Power Station
Power: 200-3000W
Battery Capacity: 200-3000Wh
Battery Capacity: 200-3000Wh
Lead Acid Replacement Solution
Voltage: 12V/24V/48V
Battery Capacity: 5-400Ah
Battery Capacity: 5-400Ah
Rack Mount High Voltage Pack
Voltage: 614.6-1305.6V
Capacity: 72-320kWh
Capacity: 72-320kWh
CubeArk Series
Energy Storage Container
Power: 50-1200kW
Battery Capacity: 64kWh~2064kWh
Power: 50-1200kW
Battery Capacity: 64kWh~2064kWh
Compatiable Inverters
Type | Single Phase | 3 Phase | Split Phase | ||
Output Power | 3-16KW | 5-50KW | 5-8KW | ||
Output Voltage | 220/230/240V | 220/380V, 230/400 | 120/240V | ||
Battery Type | Lead Acid or Lithium Ion 40-60V | ||||

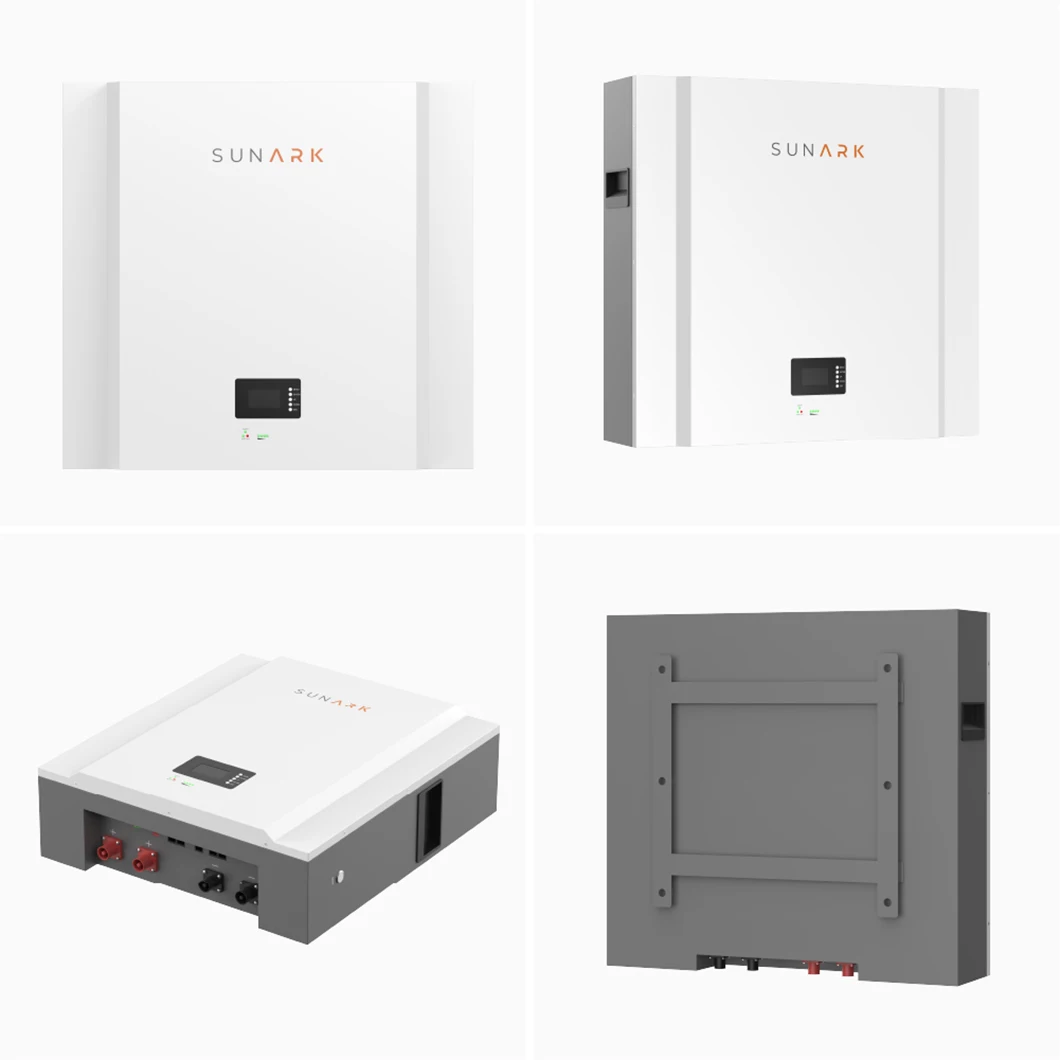

Details Images

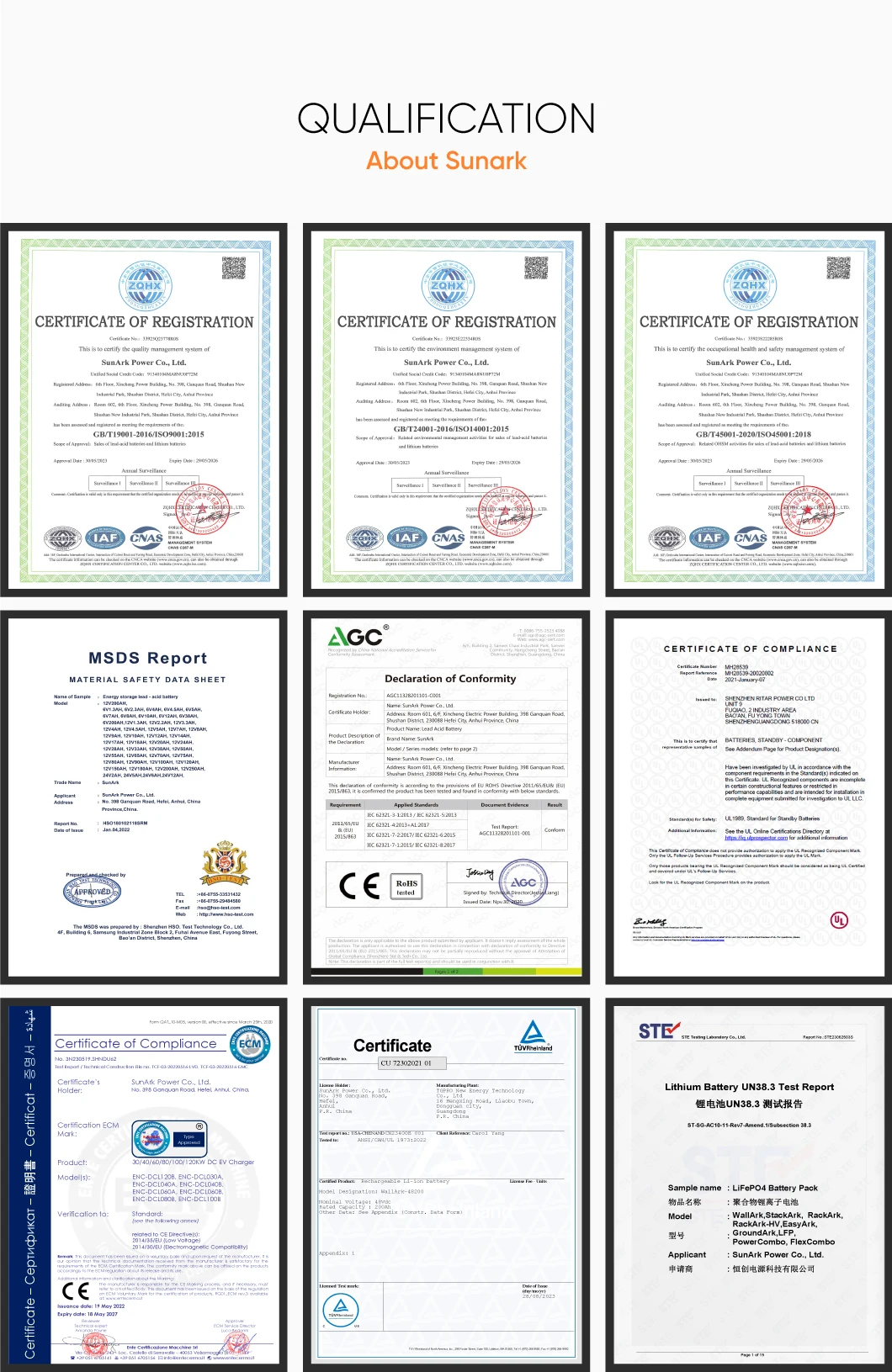

Quality Control
Company Profile

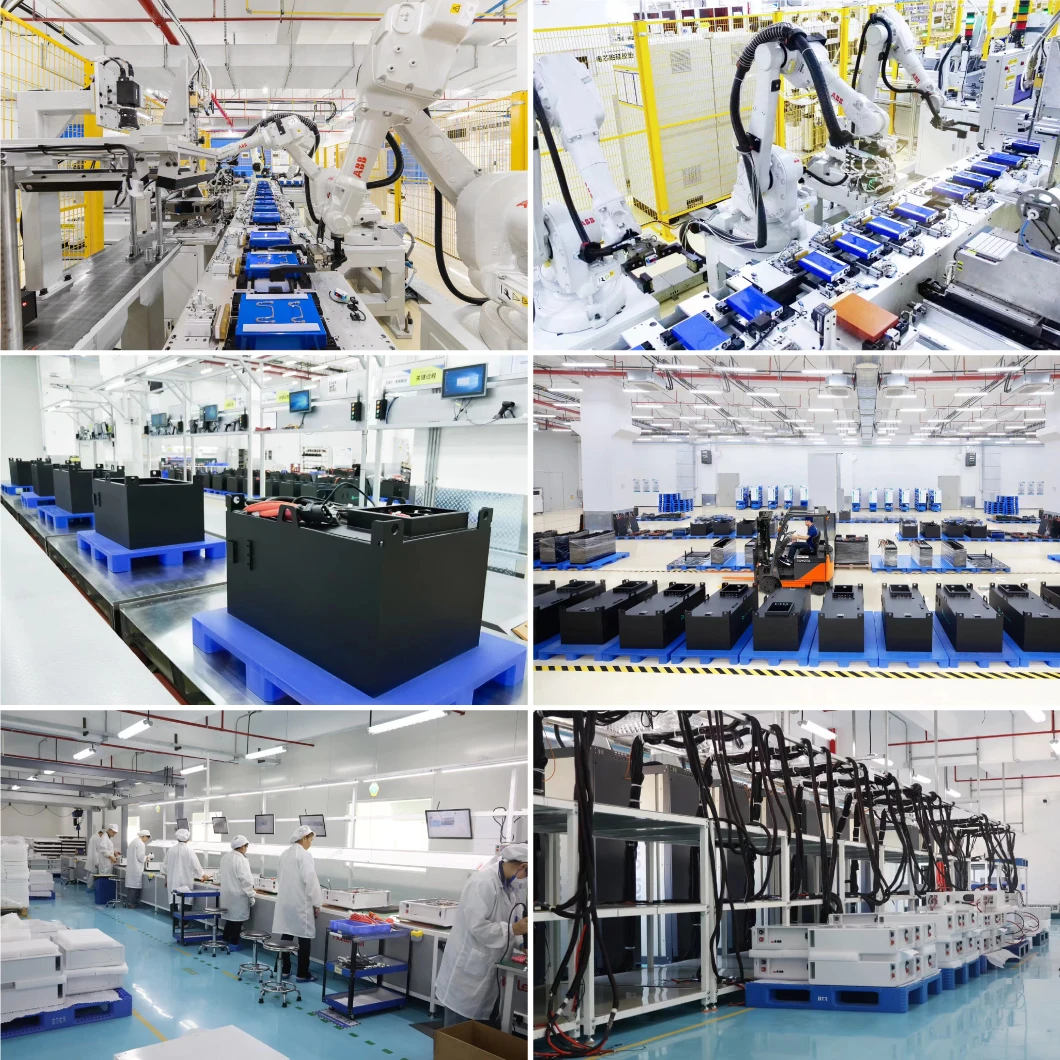

Our Factory
SunArk Power is a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. SunArk Power has 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. SunArk Power has been developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, SunArk Power FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. SunArk Power is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on.SunArk Power has core technology patents in new materials, new technologies and new structures of battery power supply, has led and participated in the formulation of a number of international, national and industrial standards.
