Product Overview

Description

 SPST/SPDT 85C KSD308 manual reset Snap action temperature controls



Specification

The KSD302/KSD308 series of 3/4’’ Bimetal temperature controls base on proven reliability in a compact,versatile,cost-effective design.The snap action of the bimetal disc provides high-speed contact separations resulting in excellent life cycle characteristics at electrical loads up to AC110V-400V/15A-70A



A variety of terminal and mounting configurations are available for maximum design flexibility.the quality,reliability,affordability,versatility and word-wide agency approvals of the KSD302/KSD308 series make it the thermostat of choice for a wide variety to temperature control applications.



Contact type

The KSD302/KSD308 disc thermostat is available in single throw(SPST) switch actions:

Automatic Reset-Can be built to either open or close its contacts on temperature rise.

Manual Reset-Available with contacts that open on temperature rise.the contacts can be reset by depressing the button after the control has cooled down.



Action Temperature Range

Bakelite Body:20℃---160℃

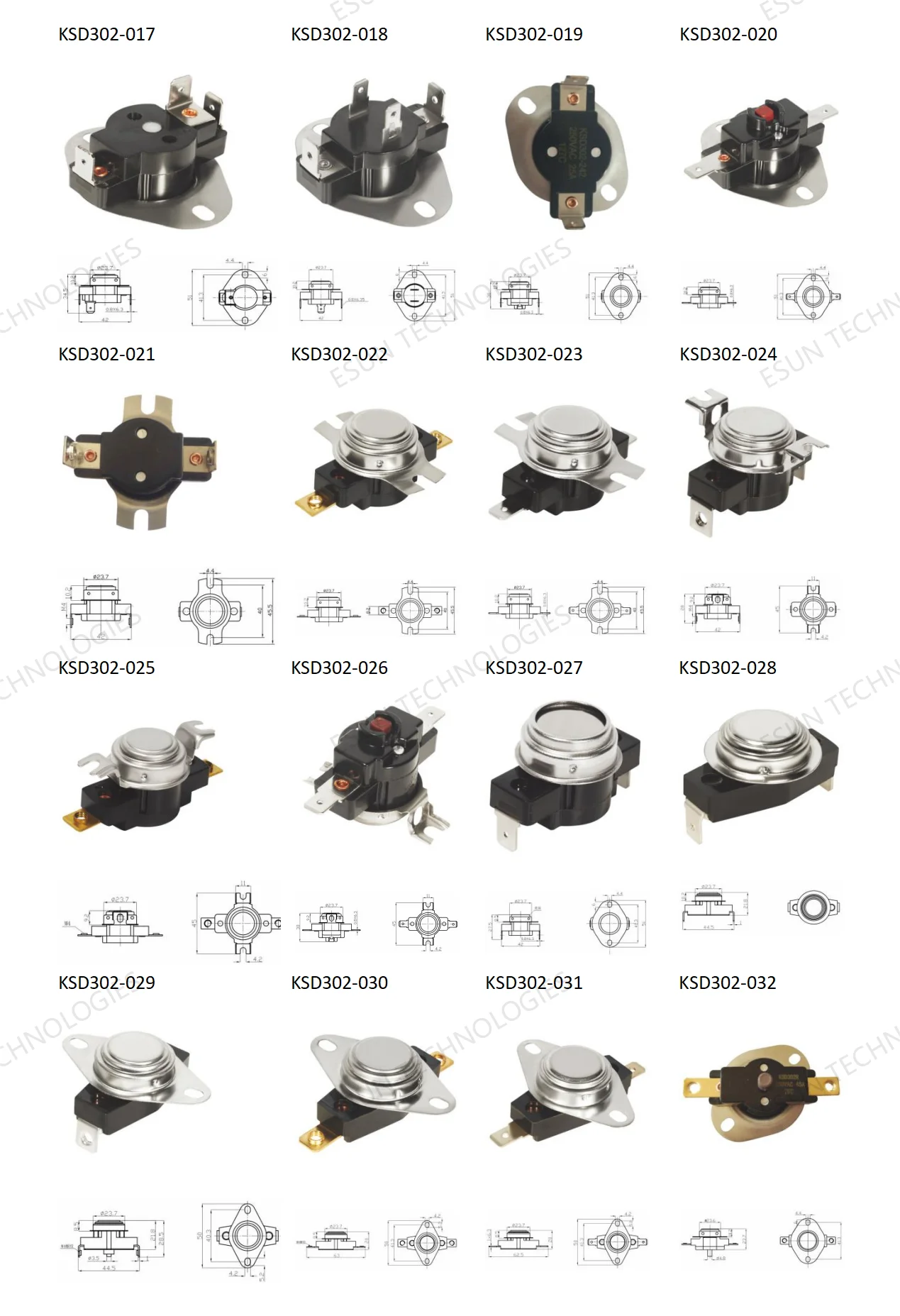

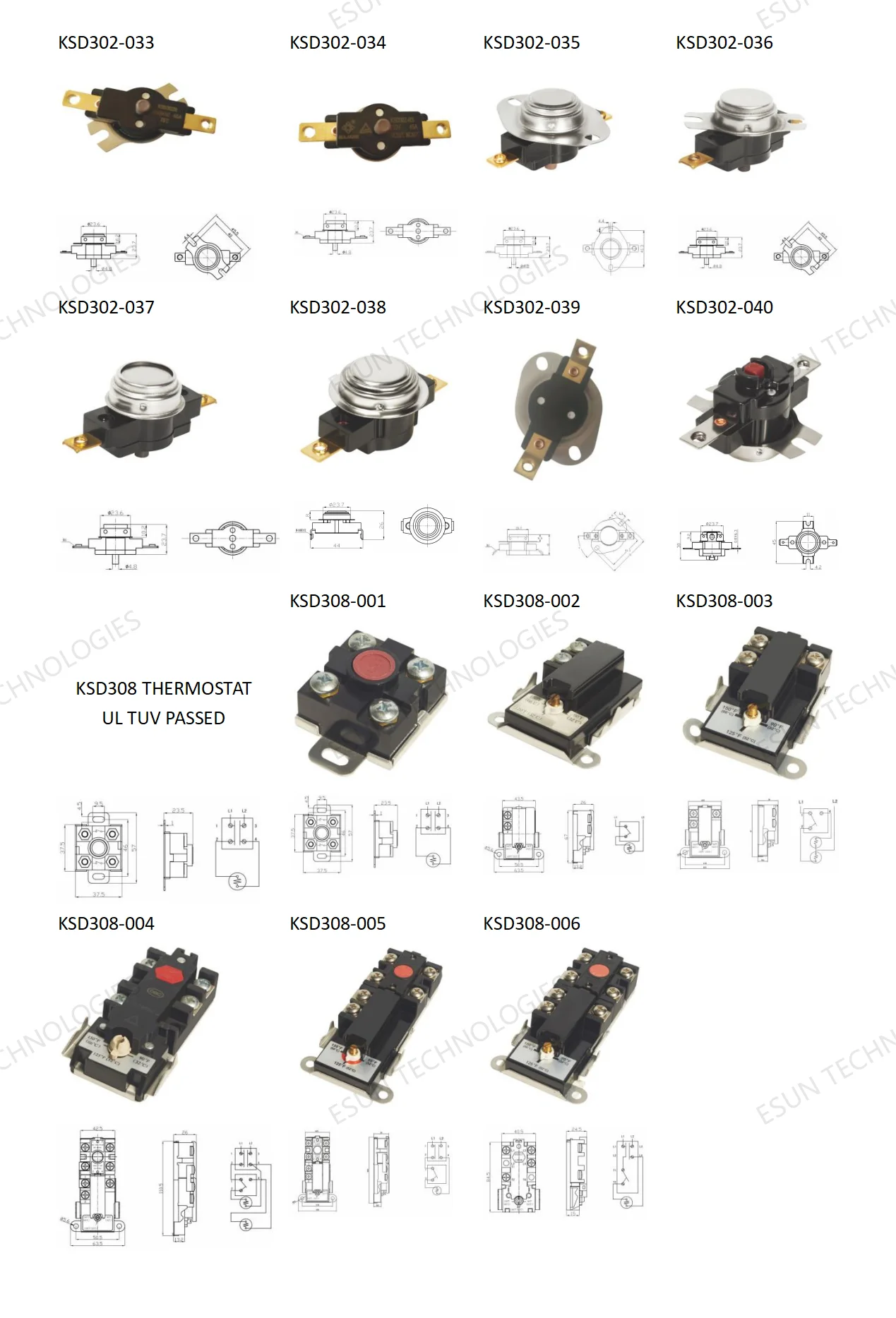

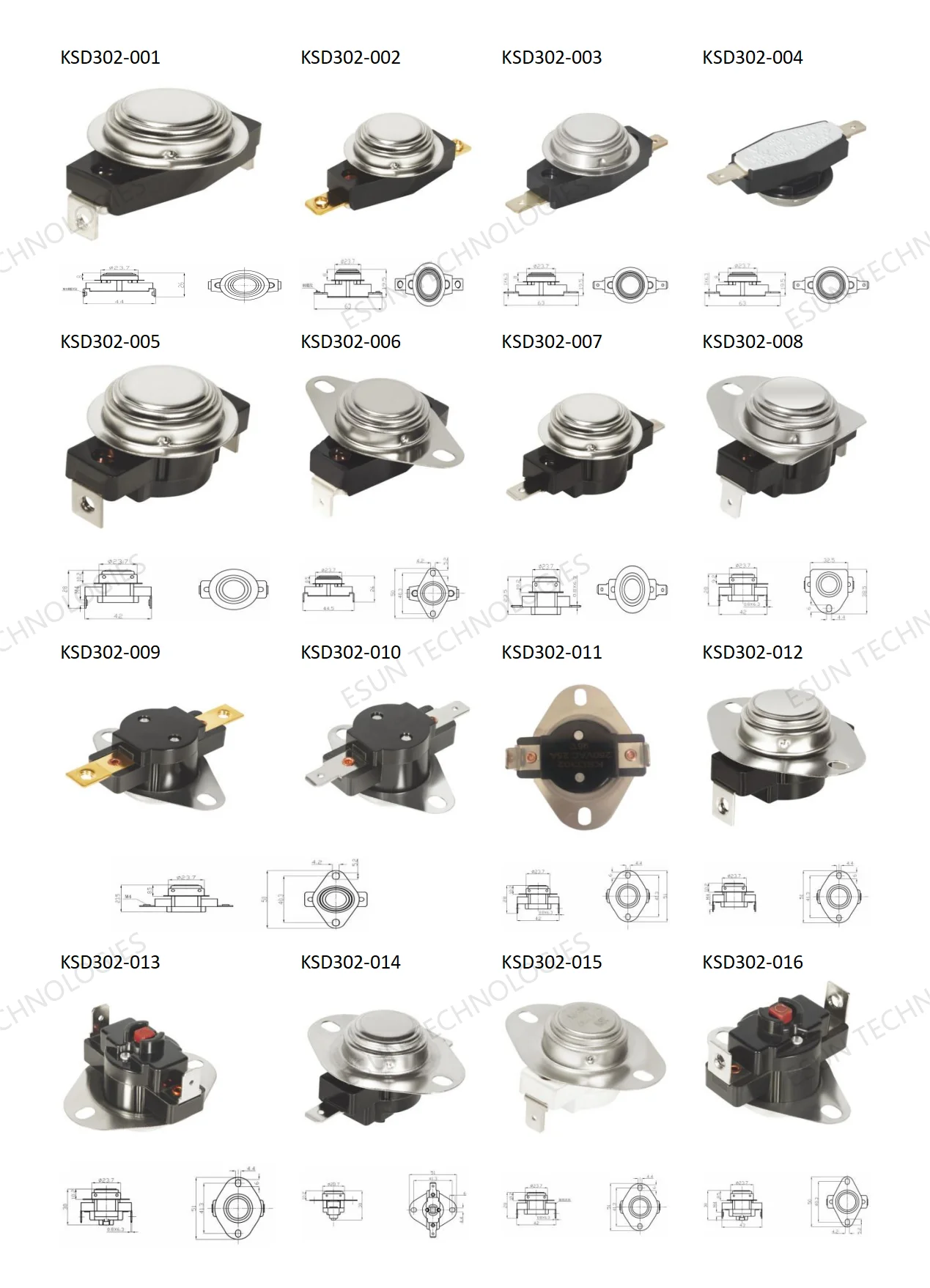

Products List





Factory Workshop









Certification:

Supervalu service:
1. We have rich experience of OEM&ODM, factory can manufacture according to your request.
2. custom-made label is accept.
3. samples for testing is accept.

FAQs

1. Why I choose you?
A: 13 year's manufacture experience and automation production line,all quality certification passed

2. What are your main products?
A:Bimetal thermostat(KSD301/KSD302/KSD306/KSD308)

B:Thermal protector(BW9700/KSD9700/17AM/ST-22/S01/S06 ect)

C:Temperature senor and fuse

3. Warranty:
A: 3 years

4. How do you ensure good product quality?(quality control)
A:  All products are thoroughly tested in-house with our vast array of calibration and special testing equipment (like Fluke PPC4 (Pneumatic Pressure controller/Calibrators)). Our testing process is conducted in accordance with a strict quality control system.

6. How fast can you deliver goods (Delivery time)?
A:  samples delivery time 2-5 days.Mass order 7-10days. Big amount (Over 20K)  10-15days.

7.What's your MOQ?
A: 100PCS for mass order

8. What express ways can you offer, can we use our own courier?
A: DHL,FedEx;UPS;TNT.Customer account is accept.
