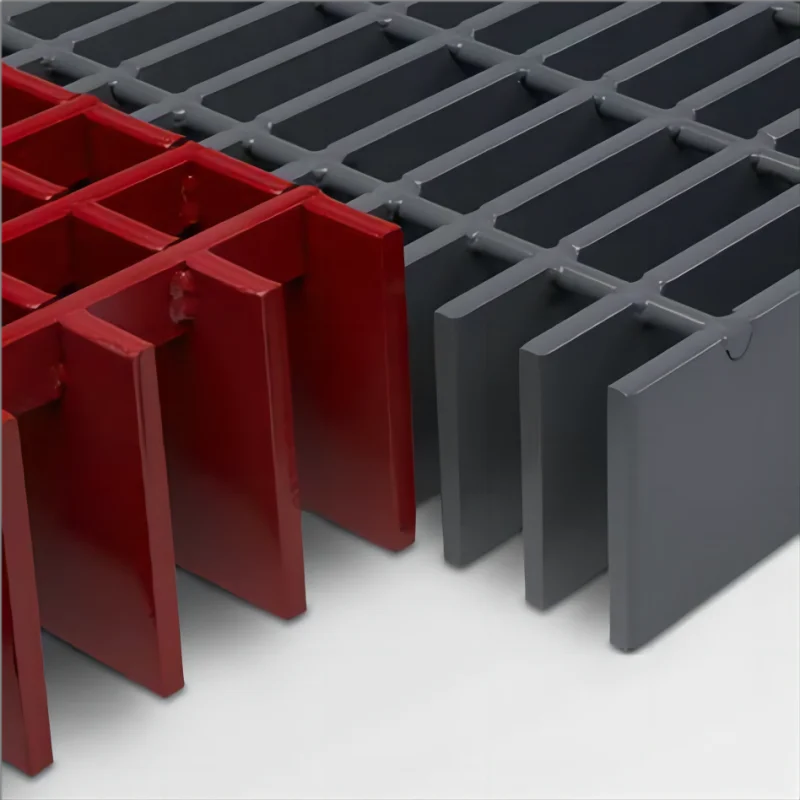

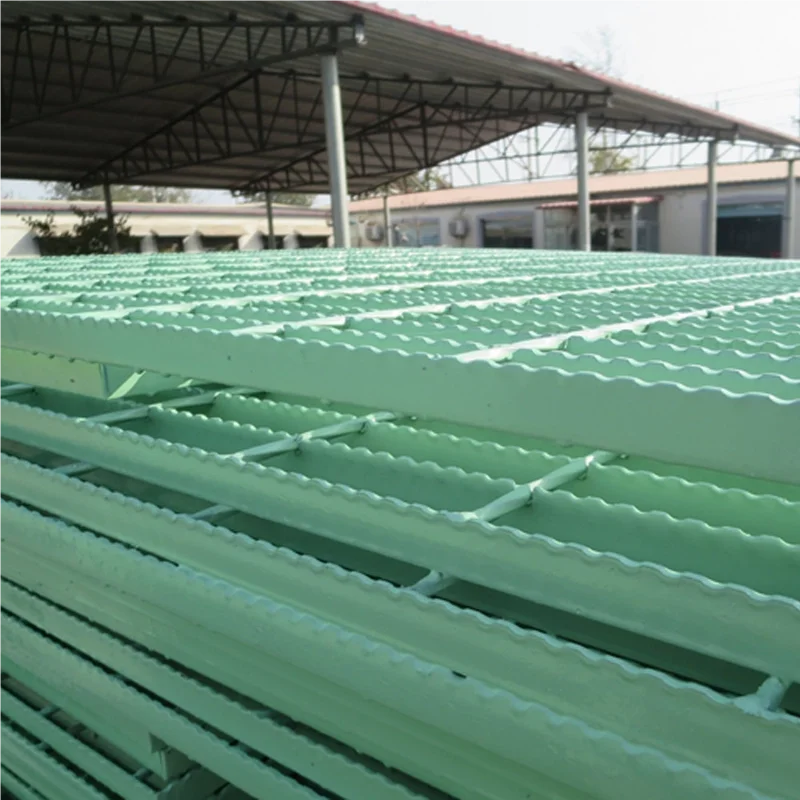

Painted metal grate Painted coat steel grating Paint booth grating
- Category: >>>
- Supplier: Hebei Tiedi International Trade Co. Ltd.
Share on (1601113168575):
Product Overview
Description

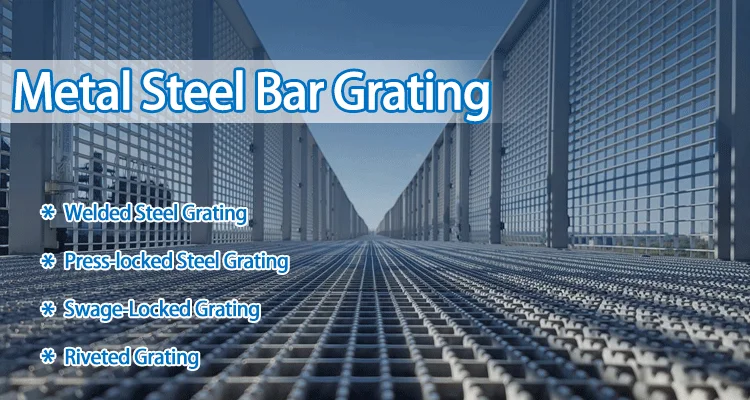

Metal Steel Bar Grating
Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings. According to the bearing bar,it can be divided into three types:Flat bar steel grating,I Bar steel gratings,T Bar steel gratings.
In addition, we also provide irregular steel grilles, accessories, and grating stanchion railing ball joint handrail to meet the different needs of various projects.
In addition, we also provide irregular steel grilles, accessories, and grating stanchion railing ball joint handrail to meet the different needs of various projects.
Material | Carbon steel ,Stainless steel ,Aluminum | |||||||
Manufacturing Process | Welded, Press-locked, Swage-locked, Riveted | |||||||
Bearing Bar | 25x2,25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5, 30x5,32x5,40x5,50x5 mm etc | |||||||
Special Pitch | 41mmx50mm,41mmx100mm,30mmx50mm, 30mmx100mm,33mmx50mm,33mmx100mm, 33mmx38mm,34mmx38mm,34mmx50mm, 34mmx100mm. | |||||||
Material Standard | Q235,ASTMA36,A1011,A569,S275JR,SS304&316 etc | |||||||
Surface Treatment | Galvanized,Painted, Powder coated,Untreated. | |||||||
Bearing Bar Type | Flat bar or I bar | |||||||
Surface | Plain or Serrated | |||||||
For more detailed information,please contact us to request the loading table. | ||||||||
Order Information
How to Choose Steel Bar Grating?
Ordering steel grating can be a confusing task if one has not ordered before.The following information can help you making certain each dimension of the job is correct when placing an order.
1. Type of material:
Carbon Steel
Stainless Steel
Aluminum
2. Manufacturing Process:

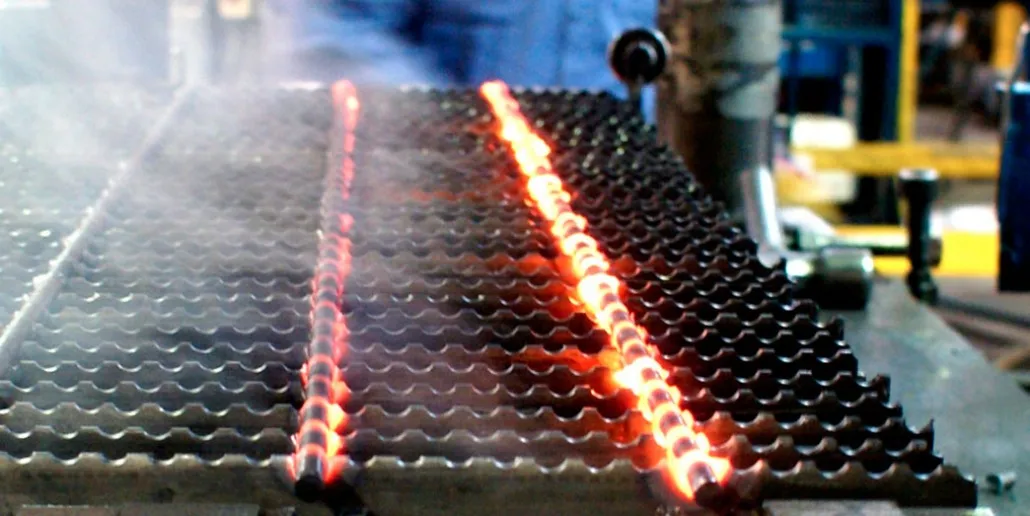

Welded Steel Grating
It consists of bearing bars that are automatically resistance-welded with the cross bars via precise use of intense heat and pressure.
Press-locked Grating
It relies on employing enormous hydraulic pressure that fuses the two close-tolerance slotted bars together.
Swage-Locked Grating
It is manufactured by inserting cross bars into pre-punched holes in the bearing bar and then cross bars are swaged forming a positive mechanical connection.
Riveted Grating
It has high load capacity, anti-slip surface to be used in heavy traffics as platforms, walkways as well as bride decking.

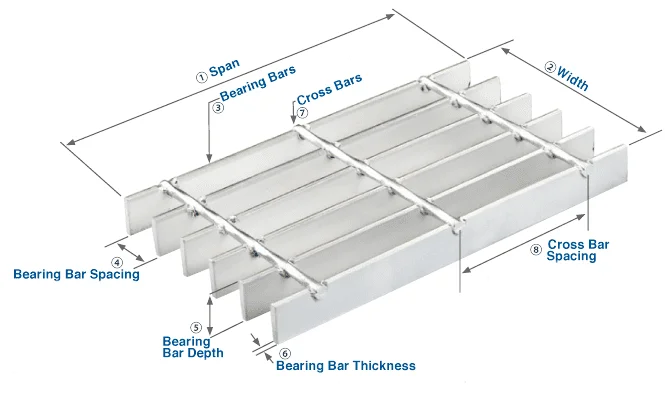

3. Specification and Size:
1. Bearing bar size and Cross bar size. →③,⑦,⑤,⑥
2. Bearing bar Spacing and Cross bar Spacing. →④,⑧
3. Span and Width. →①,②
4. Surface Treatment:
1 Galvanized
2 Powder Coated
3 Painted
4 Untreated

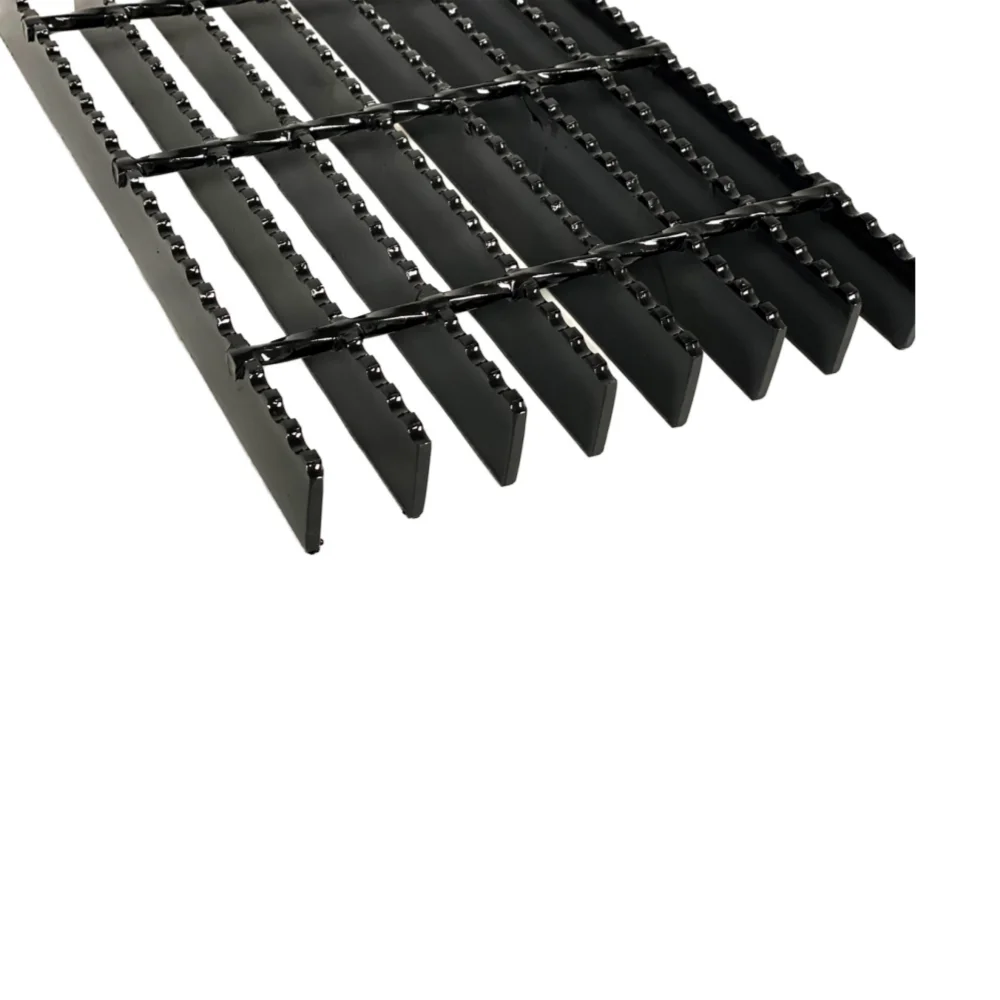

Serrated steel grating
It provides excellent slip resistance and is especially applicable to places where excellent slip resistance is required.
Plain steel grating
It provides excellent bearing capacity and is widely used in almost all industrial applications.
6. Type of anchorage:
Saddle clips
A special bent-clip type fastener for removable bar grating panels. Bent clips bridging two bearing bars are available in galvanized steel, stainless steel, or aluminum.
G-clips
Mechanical fasteners installed from the top surface of the grating create a friction connection with the flange supporting the panel.“G” clips are easily installed without drilling or welding.
Grate fast clips
Grating can be connected by one man only, working from above, without the need to drill the steel or weld on site.
Weld lugs
Plates, punched with holes and welded between the bearing bars, facilitate bolting to the supporting structure.
J-clip
Narrow formed clip captures one bearing bar when spacing is limited, They are especially helpful in holding down riveted grating.
Countersunkland
The narrow spacing of close mesh grating allows for countersinking or milling of the bearing bars to support bolt shoulders. It is available for aluminum grating only.

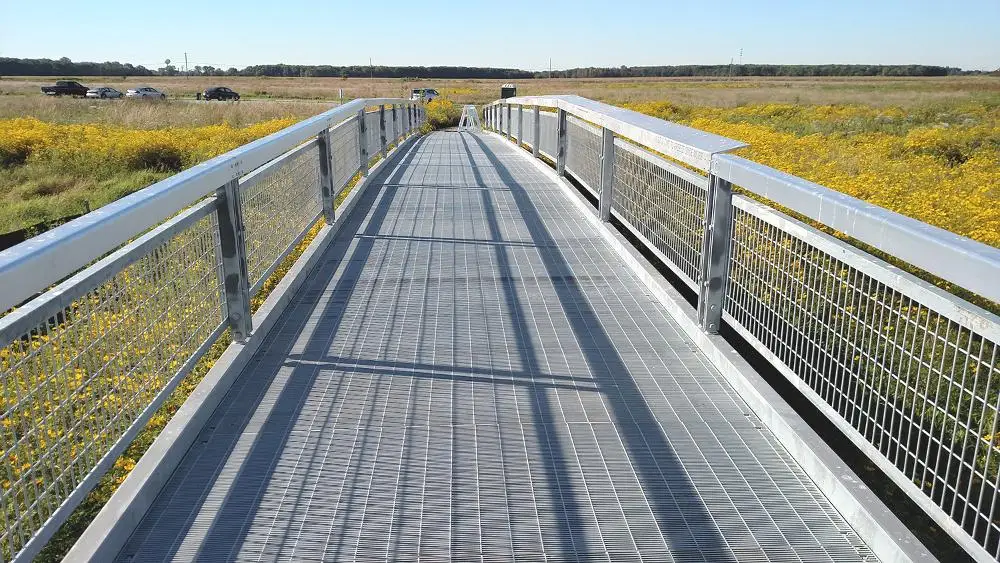

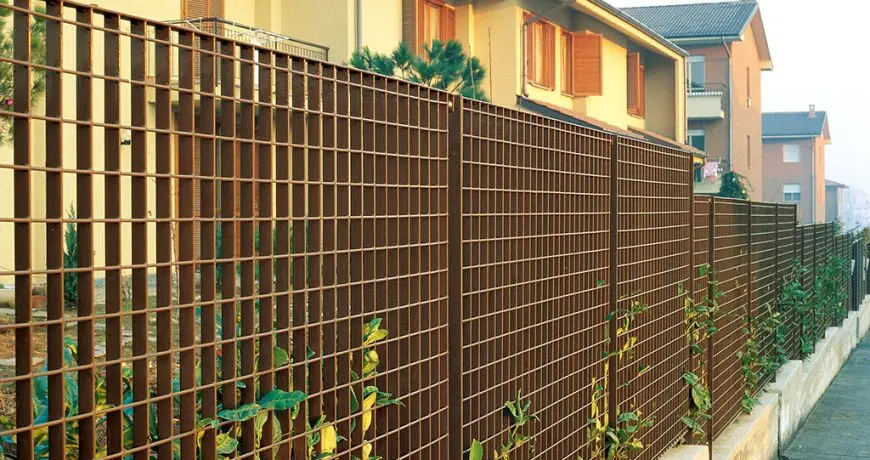

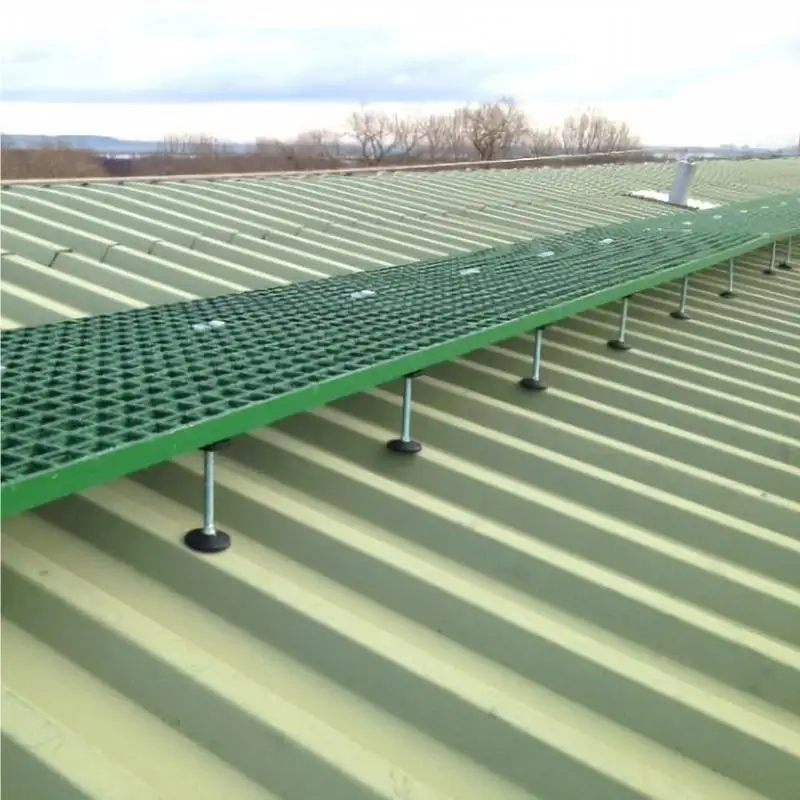

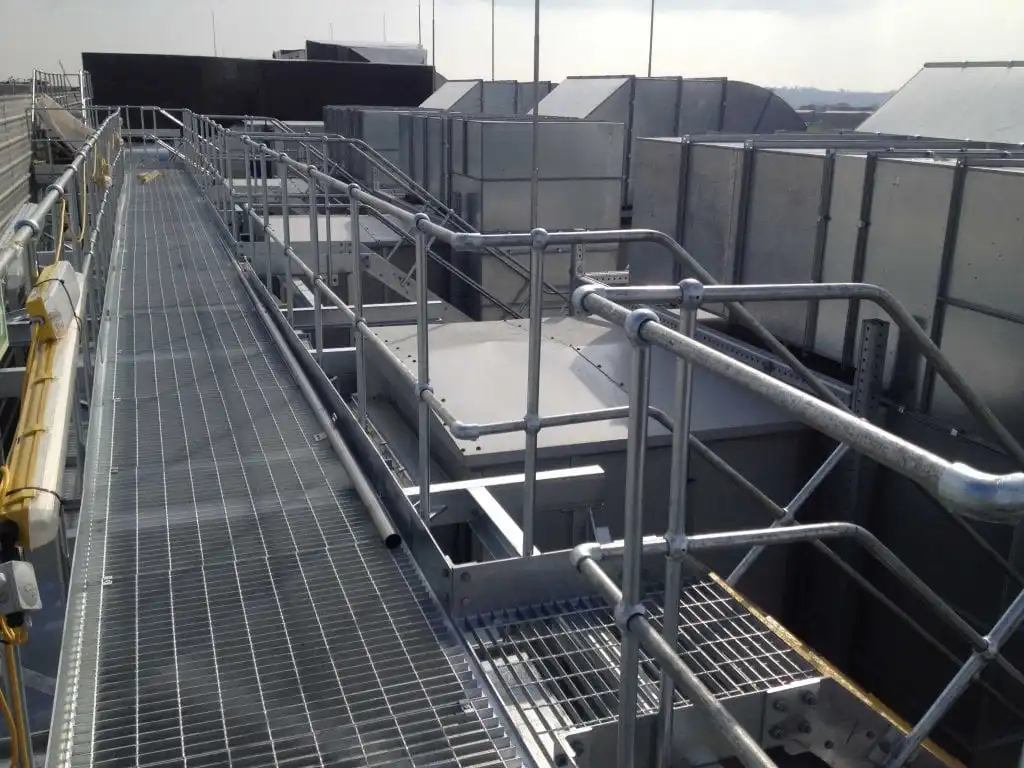

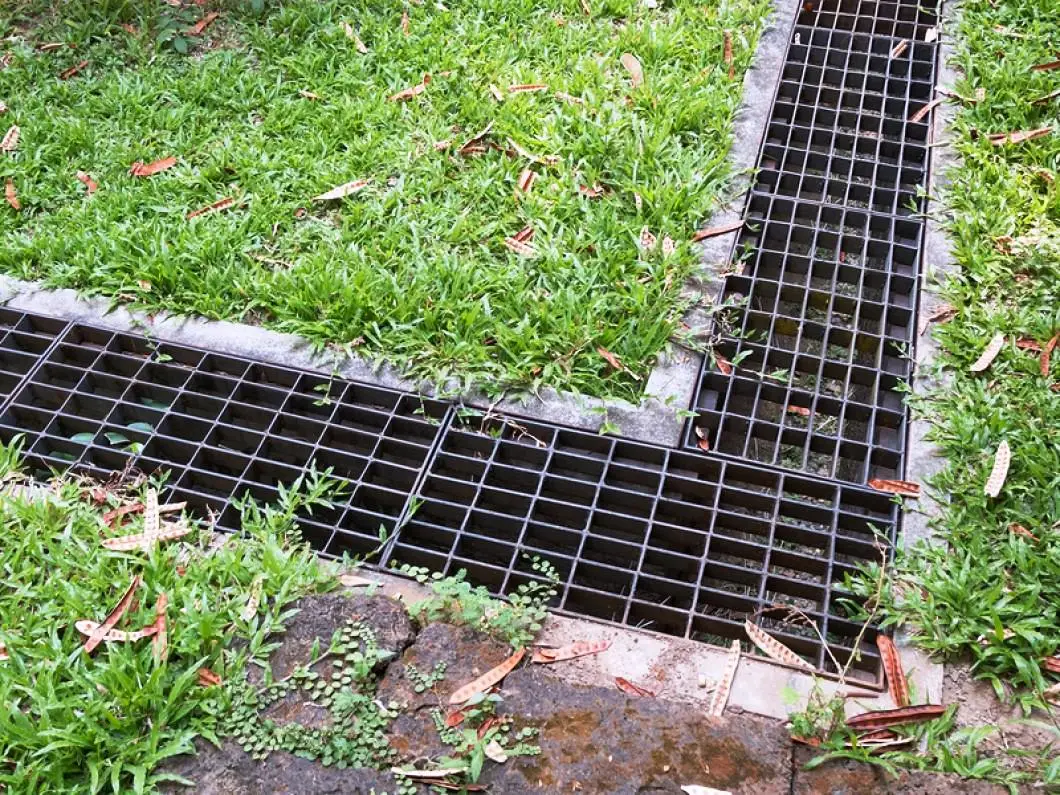

Applications

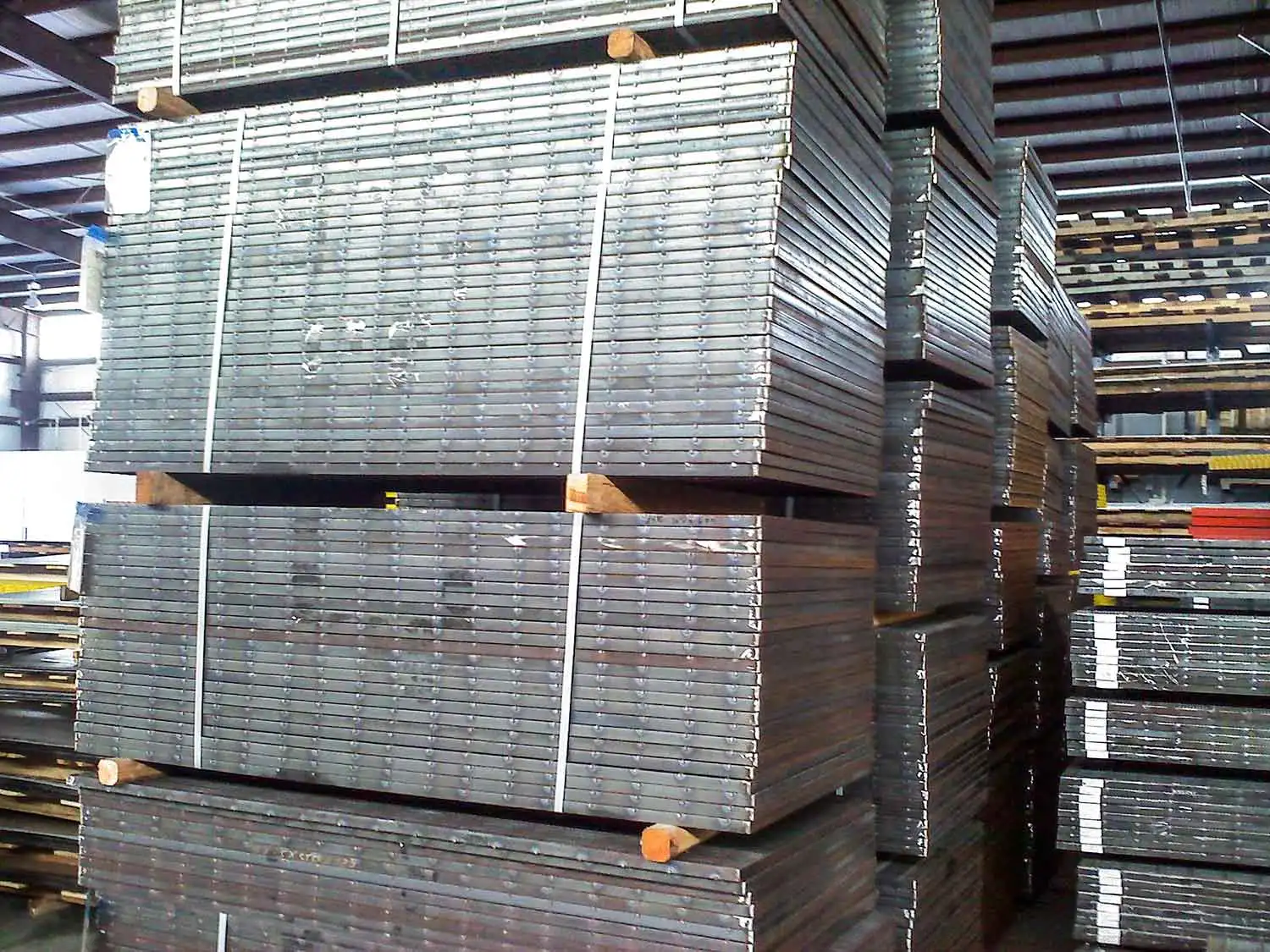

Packing&Shipping
Packing

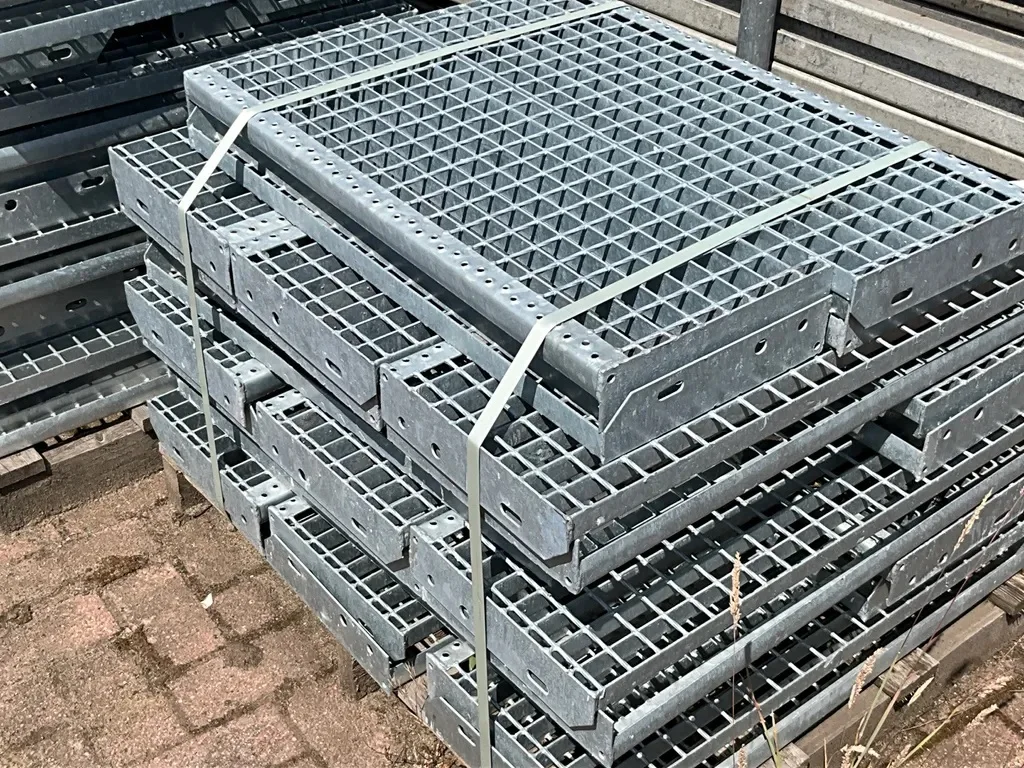

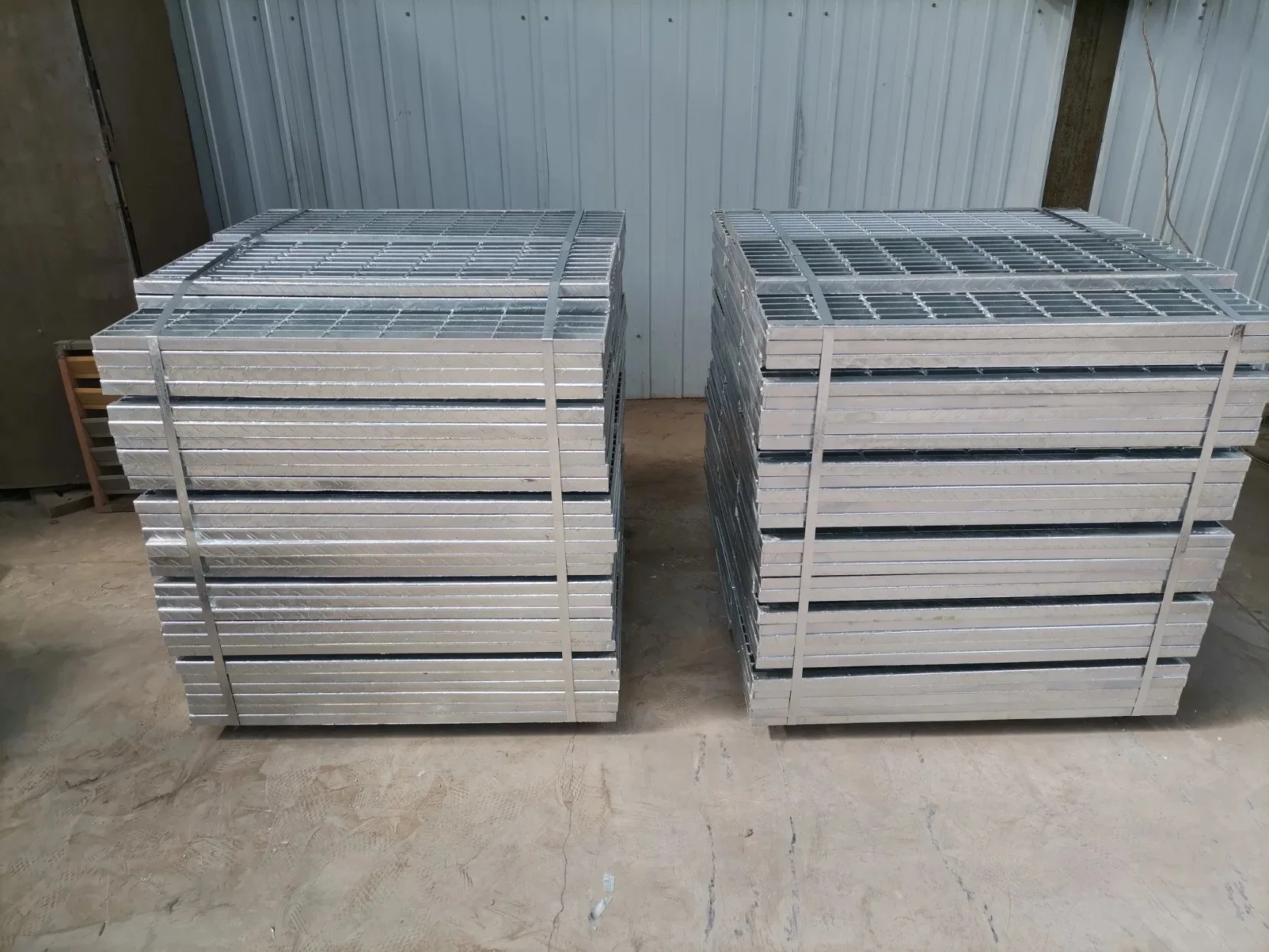

Strap packaging: generally used in neat steel grating.
Screw rod fixation: using four screws through the steel grating aperture, locking screw packaging method.
Pallet packaging: generally for export packing.
Screw rod fixation: using four screws through the steel grating aperture, locking screw packaging method.
Pallet packaging: generally for export packing.

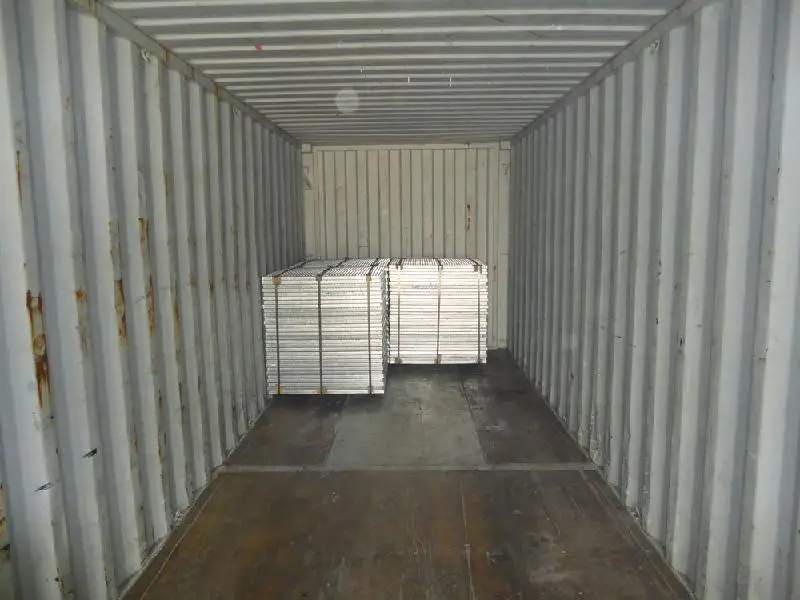

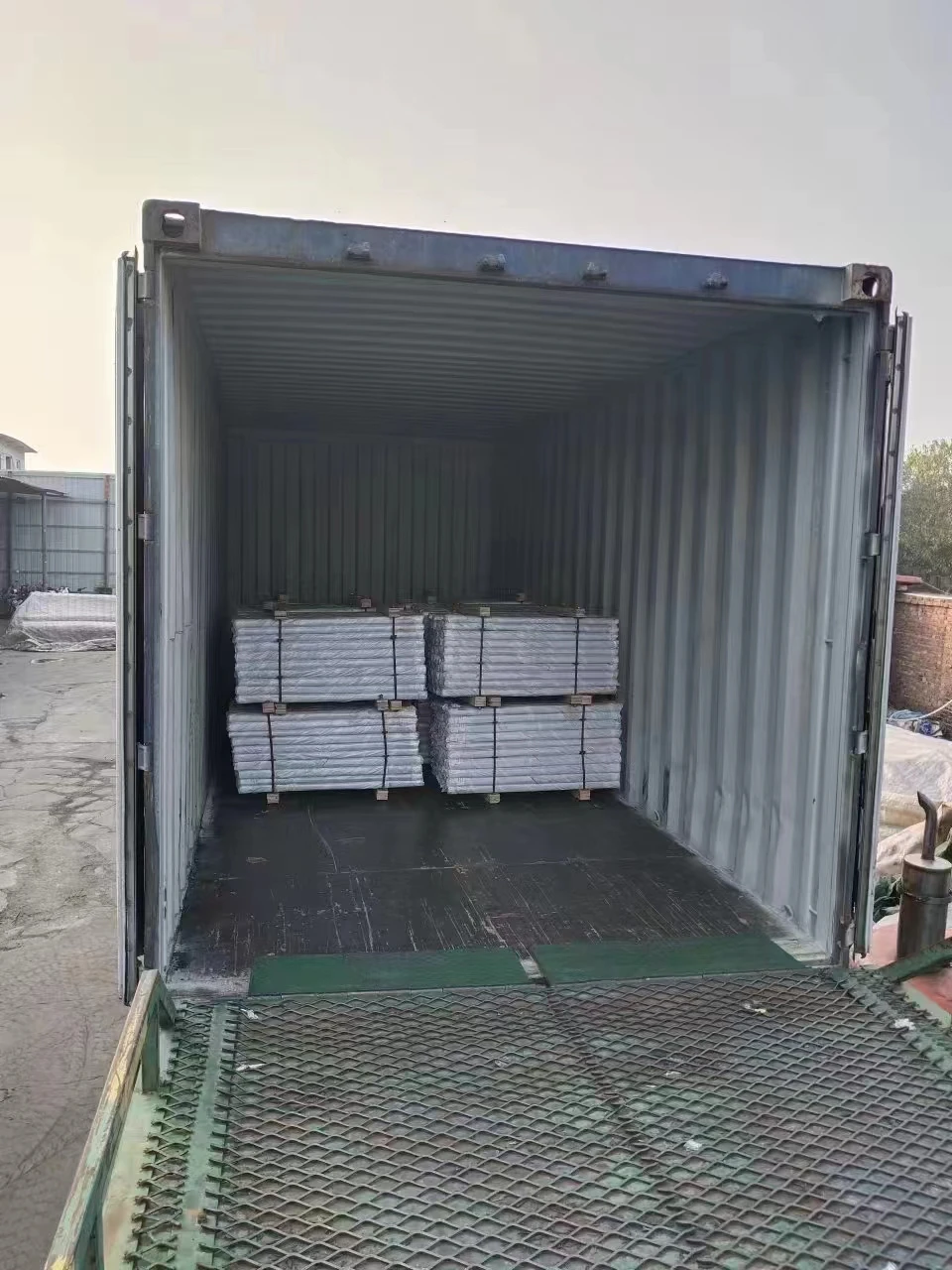

Shipping
1.No matter FOB or CIF the price term, we would try our best to find a lowest freight cost for customers' reference.
2.Do our best to help customer arrange the shipment and customs clearance.
2.Do our best to help customer arrange the shipment and customs clearance.
WHY CHOOSE US
1.Professional: 20+years of production experience and technology.
2.High Efficiency: Rapid product development and Stable production lead times.
3.Quick Response: 7 x 24 hours on-line service,ensure timely and effective communication.
4.Benefit: Rich market experience will help you expand your market.
5.Strictly quality control: ISO certificated enterprise ensure they meet international standards.
6.Supply Capacity: We have sufficient production capacity and inventory to meet orders of various scales.
5.Strictly quality control: ISO certificated enterprise ensure they meet international standards.
6.Supply Capacity: We have sufficient production capacity and inventory to meet orders of various scales.
7.Good reputation: We strictly abide by the contract and never cheat our customers.We have served numerous international clients.
8.Competitive Price: We benefit from advanced equipment and extensive production experience,which allows us to achieve low costs.Large orders can be discounted.
9.Reliable after-sales service: Quality issues, we are sure to give you full compensation in any way, money back or free reorder.
Company Profile
We have both real factory and trading company, mainly produce and sell metal mesh products.
▶Location:
Our factory (Anping Tiedi Metal Products Co.,Ltd) located in the hometown of Wire Mesh - Anping County, Hebei Province,China.
Our trading company (Hebei Tiedi International Trade Co., Ltd) is located in Shijiazhuang city, Hebei Province, China.
Established:
We have been in providing the products in this field for 20 years. Our company is a manufacture of metal wire mesh certified by Alibaba.
Factory floor area : 16650 square meters.
Workshop : 8188 m².

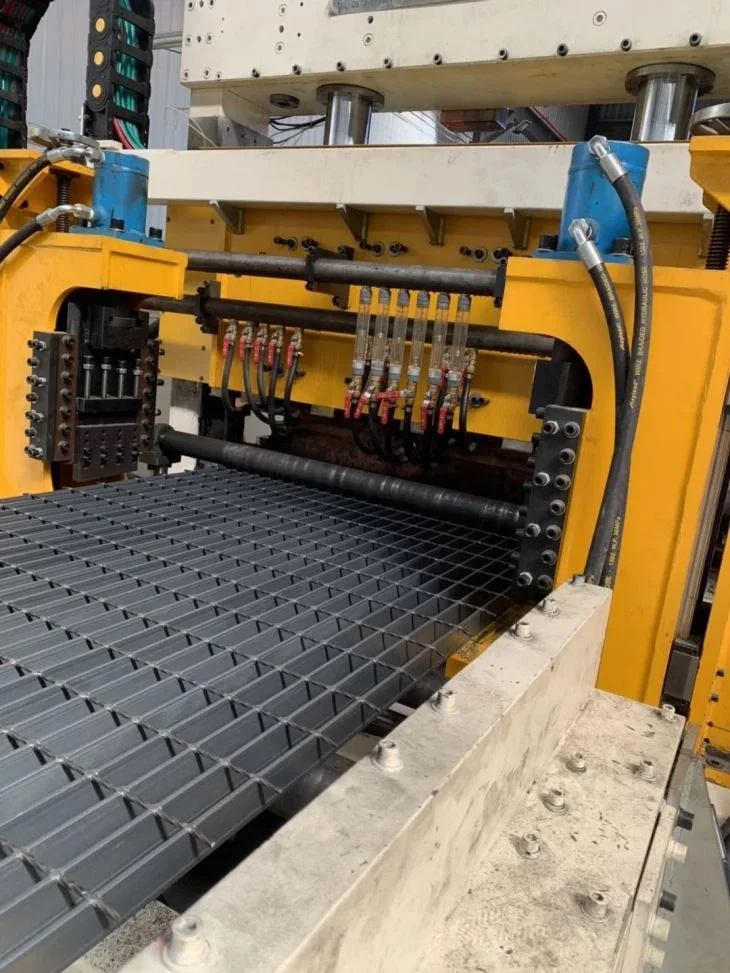

Equipment : 21 production lines (56 sets)
▶Top Market:
America, Canada, Germany, England, France, Russia, Singapore, Australia, New Zealand, Brazil,Saudi Arab, Philippines, Vietnam, etc. Over 30 countries and areas.
▶Main Products:
• Welded wire mesh, Razor wire & Barbed Wire, Steel Grating, Hexagonal Wire Mesh, Gabion Box, Expanded & Perforated Metal Mesh, Dog Cage, chicken pen.
• 3D Wire Mesh Fence, Double Wire Mesh Fence, 358 Security Fence, Airport Fence, Temporary Fence, Chain link Fence, Crowd Control Barriers, Pet Fence and so on.
▶Our Service:
1> Free Sample can be offered.
2> OEM & ODM order are accepted.
3> Design and customization services are accepted.
4> Free Drawings or install instruction can be offered.
5> Good Quality + Factory Price + Quick Response + Reliable Service.
6> Provide visualization services to view production progress anytime and anywhere.
7> We make every effort to ensure timely delivery of goods and provide timely logistics tracking information.
8> The third-party inspection is accepted. we will send production photos to customers if there is no inspection from the third-party.
9> Warranty: Our product can last for 10 years at least. different products have different life time.Depending on different products and usage environments, Usually we will provide 5-10 years guarantee.
2> OEM & ODM order are accepted.
3> Design and customization services are accepted.
4> Free Drawings or install instruction can be offered.
5> Good Quality + Factory Price + Quick Response + Reliable Service.
6> Provide visualization services to view production progress anytime and anywhere.
7> We make every effort to ensure timely delivery of goods and provide timely logistics tracking information.
8> The third-party inspection is accepted. we will send production photos to customers if there is no inspection from the third-party.
9> Warranty: Our product can last for 10 years at least. different products have different life time.Depending on different products and usage environments, Usually we will provide 5-10 years guarantee.
FAQ
Q1: Are you a real factory?
A: Yes, we have been in providing the products in this field for 20+ years.We have both real factory ( Anping Tiedi Metal Products Co.,Ltd ) and trading company ( Hebei Tiedi International Trade Co., Ltd ), mainly produce and sell metal mesh products.
Q2: Can you design and make as customers' request?
A:We support customization requirements from customers and provide corresponding solutions and services.
A:We support customization requirements from customers and provide corresponding solutions and services.
Q3: What is the minimum order quantity?
A:We can provide different minimum order quantities according to customer requirements to meet various purchasing needs.
Q4: How can I place an order and get the best price?
A:1. Please tell us the specifications of the product, such as size,color,quantity,packaging and your port.
2. After all details of the order were confirmed, we will send you our signed and stamped proforma invoice.
3. You can transfer the deposit by T/T(Telegraphic Transfer), Paypal, Western Union, MoneyGram, Credit Card etc.
4. You could also place the order by Trade Assurance on Alibaba which will protect your payment secure and benefit throughly.
5. In the receipt of your deposit, we will arrange the production and will send you the pictures of goods after it was finished.
6. The balance payment will be paid after your confirmation, and we will arrange the air freight or sea freight accordingly to the CBM of the goods.
Q5: Can I get a lower price if I make a large order?
A: Of course, cheaper price with large order.
Q6: How do you control the goods quality?
A: 1. After the final confirmation of the order,we would pre-produce a sample before mass production and strictly check the raw material, color and size of the sample.
2. Our salesman would trace every phase of production.
3. After finished the production, our QC will check the overall quality.If not pass our standard will rework.
4. When packing the products, our Packing Department will check the products again.
5. Before shipment, the final inspection will be carried out,and we will send a test report or test images and videos.
6. Any small problem happening in our product will be solved at the most prompt time.
Q7: If the quality is not met my request, how do you solve this problem?
A: First of all, we don’t allow any defective products to leave our factory.We do strict quality inspection in every step. But if there is any problem, we will guarantee to solve it within 2 working days after your pictures or videos proof.
Q8: Do you have quality guaranteed?
A:Our product can last for 10 years at least. different products have different life time.Depending on different products and usage environments, Usually we will provide 5-10 years guarantee.
Q9: How is your after sale?
A: After the goods are sent, we will track them in real time and give you timely feedback. After you receive the goods, we will have a dedicated staff to return visits, if there is a problem, we will reply to you within 2 working days.
Q10: What's the lead time?
A: Normally our lead time is 15-30 days after we received the down payment. Urgent order can be negotiated.
Q11: How do we ship the goods?
A:We will quote you the ocean freight, if the goods is not large, it will be loaded by air freight or Express. No matter any ways of transportation, our forwarders will provide professional service to ensure the goods arrives at your place smoothly.
Q12: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost. And all the sample cost will be refunded after you place the order.
