Product Overview
Description
Product Overview

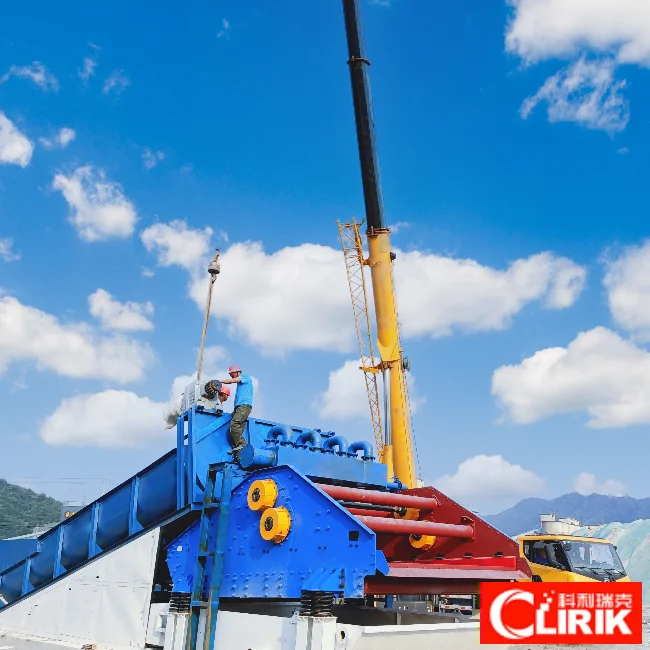

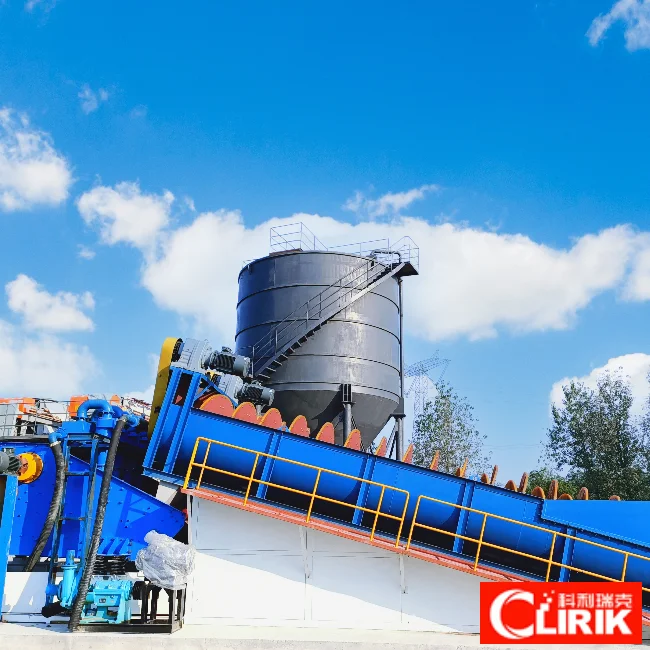

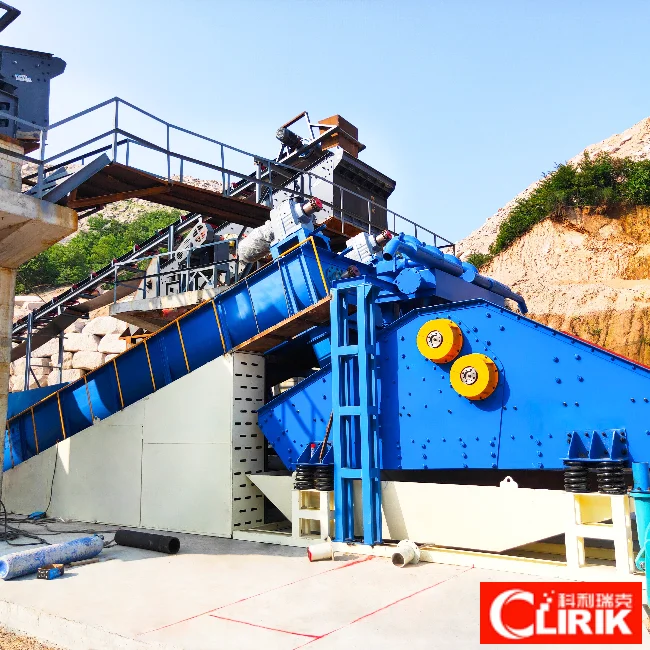

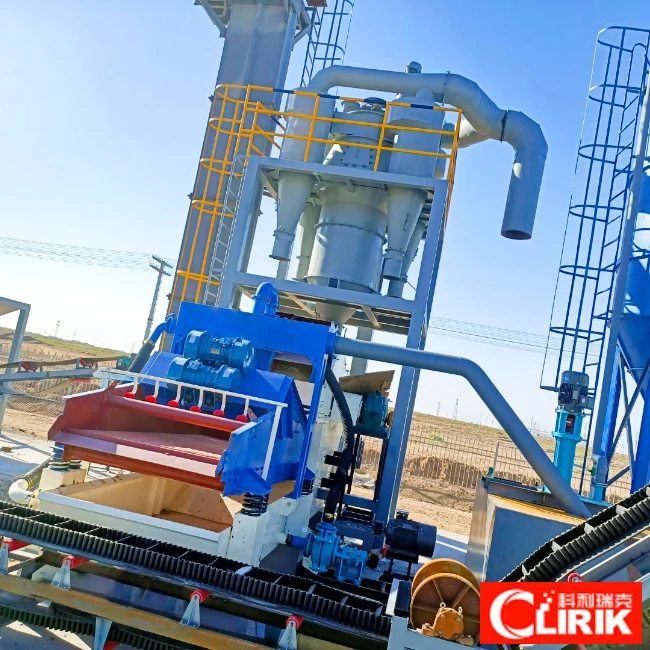

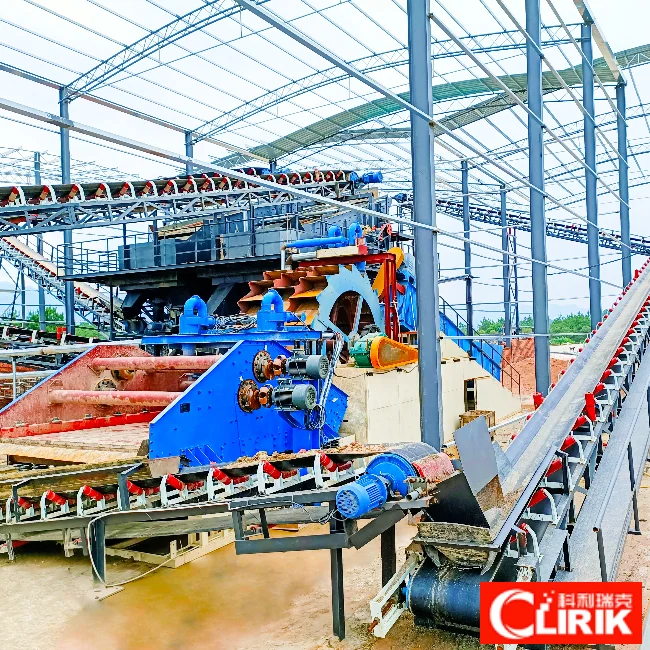

DS Multi-function Sand Washer
DS Multi-function Sand Washer consists of a spiral. It is composed of sand washing and dehydration recovery, suitable for cleaning and recovery of sand and stone with high mud content or clay content. Widely used in sand and stone field, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries of the material washing
PRODUCT SPECIFICATIONS
Model | Feed size （mm） | Copacity (t/h) | Screw diameter (mm） | Impeller diameter (mm） | Sieve plate specifications (mm) | Power (kw) | Overall size (mm) |
DS-LX09-25-1530 | ≤10 | 30-60 | 920 | 2500*1200 | 1500*3000 | 51 | 14550*5560*4150 |
DS-LX11-30-1842 | ≤10 | 40-80 | 1120 | 3000*1600 | 1800*4200 | 95 | 16250*6200*3700 |
DS-2LX09-30-1842J | ≤10 | 60-100 | 920*2 | 3000*1600 | 1800*4200 | 110.5 | 16250*6200*3700 |
DS-2LX11-36-2442J | ≤10 | 100-150 | 1120*2 | 3600*2000 | 2400*4200 | 140.5 | 17450*6800*3700 |
DS-2LX15-36-3048J | ≤10 | 120-200 | 1500*2 | 3600*2400 | 3000*4800 | 196 | 18000*7400*4600 |
DS-2LX15-42-3660J | ≤10 | 160-250 | 1500*2 | 4200*3000 | 3000*6000 | 214 | 18580*8000*5200 |
FEATURES AT A GLANCE
2. Efficient, energy saving, environmental protection.
3. Can be customized for different models, multi-layer screen.
4. Installation is simple, low maintenance costs.
5. Finished sand moisture content of less than 15% mud content of less than 2%.
Working Principle
1. When the spiral sand washing machine is working, the crushing and grading materials are first passed through the conveyor belt to the double spiral sand washing device.
2. After the grading and cleaning, the qualified material is dehydrated into the dewatering device,
3. the remaining waste water that after cleaning by the spiral sand washing device (containing a part of qualified material) is passed through the overflow device and get into the water reservoir device.
4. then the waste water is pumped into the separation recovery device by slurry pump, material is concentrated under the action of centrifugal force.
5.the concentrated material get into the dehydrating device for dewatering.
2. After the grading and cleaning, the qualified material is dehydrated into the dewatering device,
3. the remaining waste water that after cleaning by the spiral sand washing device (containing a part of qualified material) is passed through the overflow device and get into the water reservoir device.
4. then the waste water is pumped into the separation recovery device by slurry pump, material is concentrated under the action of centrifugal force.
5.the concentrated material get into the dehydrating device for dewatering.
Other Products offered
Ultrafine Vertical Roller Mill
Finished Size: 600-4500(mesh）Capacity: 3-20(t/h)
Pass rate: D50 2 micron
Company Profile
Our Company
Shanghai Clirick machinery Co., Ltd. is located in Pudong New Area of Shanghai, China, which is close to Shanghai port and convenient for shipment.
Shanghai Clirik machinery Co., Ltd. is a professional r & D, production, sales of all kinds of mining equipment enterprises. The company has formed a full set of modern production lines, equipped with intelligent, standardized testing and control laboratory,every year has new technology update, can provide you with more economical and efficient mine mill equipment.
Shanghai Clirik machinery Co., Ltd. has a professional r & D, production, sales and service team.Adequate staffing can provide you with excellent service.
Shanghai Clirik machinery Co., Ltd. is a professional r & D, production, sales of all kinds of mining equipment enterprises. The company has formed a full set of modern production lines, equipped with intelligent, standardized testing and control laboratory,every year has new technology update, can provide you with more economical and efficient mine mill equipment.
Shanghai Clirik machinery Co., Ltd. has a professional r & D, production, sales and service team.Adequate staffing can provide you with excellent service.
Our Services
Pre-sale service:
1.Clirik provides a variety of mining equipment for you to choose from.
2.Clirik will recommend suitable production lines and grinding equipment to you according to your site.
3.Clirik customizes the logo and color of the grinding equipment according to your company image.
4.Clirik provides third party inspection to ensure the quality of your grinding equipment.
After-sales service:
1. Clirik provides you with online installation and use videos.
2. Clirik will provide you with technicians to install and debug the grinding equipment.
3. Clirik trains you the technicians who use and maintain the grinding equipment.
4. Clirik provides you with a one-year warranty and lifetime service for the grinding equipment.
1.Clirik provides a variety of mining equipment for you to choose from.
2.Clirik will recommend suitable production lines and grinding equipment to you according to your site.
3.Clirik customizes the logo and color of the grinding equipment according to your company image.
4.Clirik provides third party inspection to ensure the quality of your grinding equipment.
After-sales service:
1. Clirik provides you with online installation and use videos.
2. Clirik will provide you with technicians to install and debug the grinding equipment.
3. Clirik trains you the technicians who use and maintain the grinding equipment.
4. Clirik provides you with a one-year warranty and lifetime service for the grinding equipment.
Our Certificate
Our company in the unremitting efforts, has been recognized in all aspects ，To obtain Shanghai honest and trustworthy enterprise honor certificate, product appearance patent and product new technology and other patents
Our Sales Area
Our mine mill equipment is sold to eastern Europe, the Middle East, Africa, South Asia, Southeast Asia, West Asia, Australia,America and other dozens of countries
Customer Case
Project in Thailand
Project in India
Project in Russia
FAQ
1. Are you manufacture or trading company?
We are factory
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
4. If I need the complete crushing plant can you help us to build it?
We are factory
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
4. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
