4 Lines Harvesting Machine Agriculture Yongmeng Self propelled Corn Harvester Mini Combine Harvester For Sale
- Category: >>>
- Supplier: Yuhuan Wancheng Machinery Co. Ltd.Yuhuan Ltd.
Share on (1601113262457):
Product Overview
Description
Product Description
Technical features:
Cutting table patented technology, picking fast, less power consumption, high efficiency;
Equipped with 1000 series front axle gearbox, flexible shift, large transmission torque, high reliability;
Torsional walking stepless speed change, more convenient operation;
Equipped with grain recovery device, the loss rate is lower;
The engine fire-proof cover is used to effectively prevent debris from igniting the engine;
Rear-view surveillance camera, more comfortable operation, higher security;
Longer and wider cab, equipped with DVD player, more comfortable driving;
Swinging knife type stalk returning machine has better returning effect;
Large capacity grain box, higher efficiency;
Peeling mechanism patented technology, peeling rate of more than 95%, no breaking grain;
Add the fan at the end of the conveyor, the impurity rate is lower, and the cleaning rate is higher;
The use of fruit ear throwing device can effectively improve the utilization rate of granary;
Strong adaptability, both dry and wet conditions can be harvested.

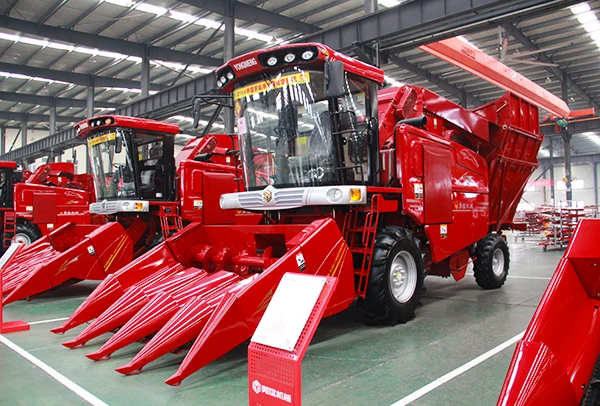

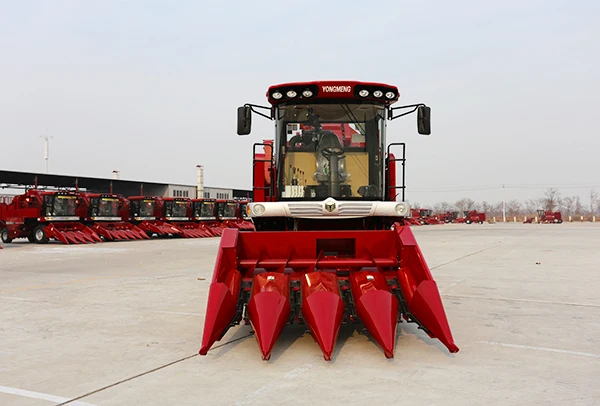

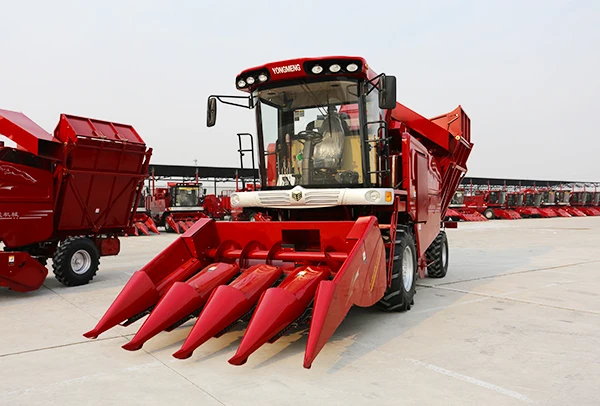

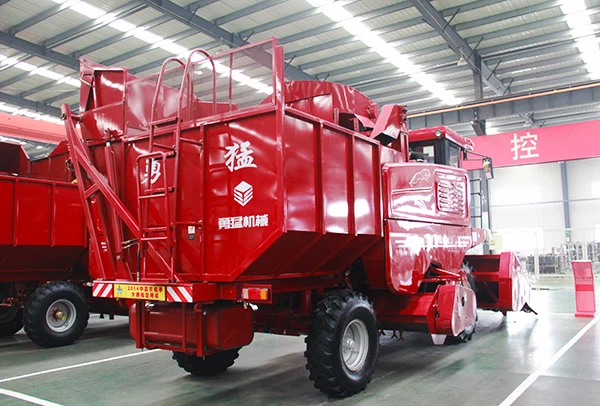

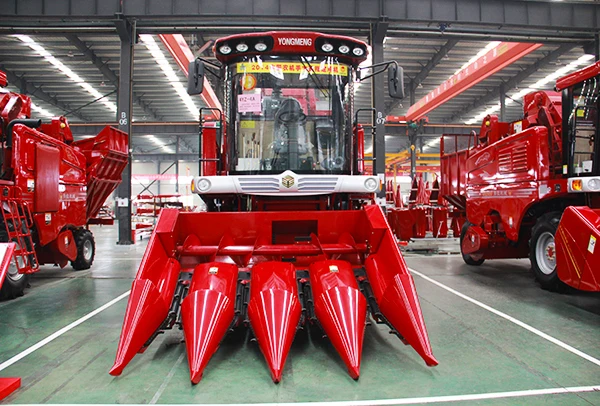

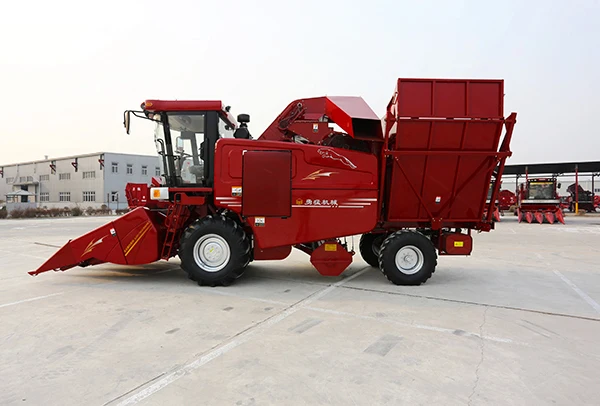

Exterior Images

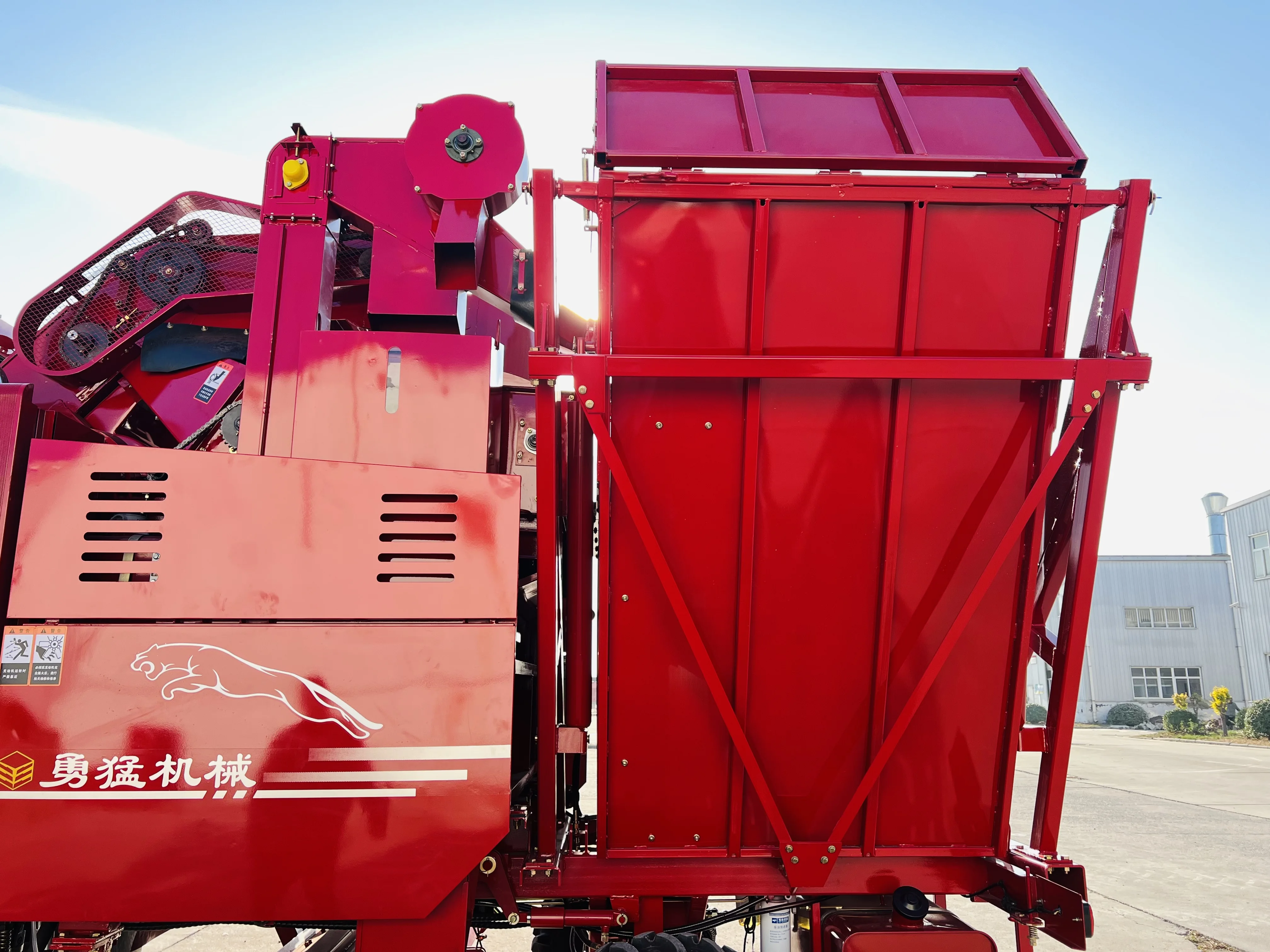

Detail Images
A new type of counter tool pulling stem type picking box and a new type cutting table body

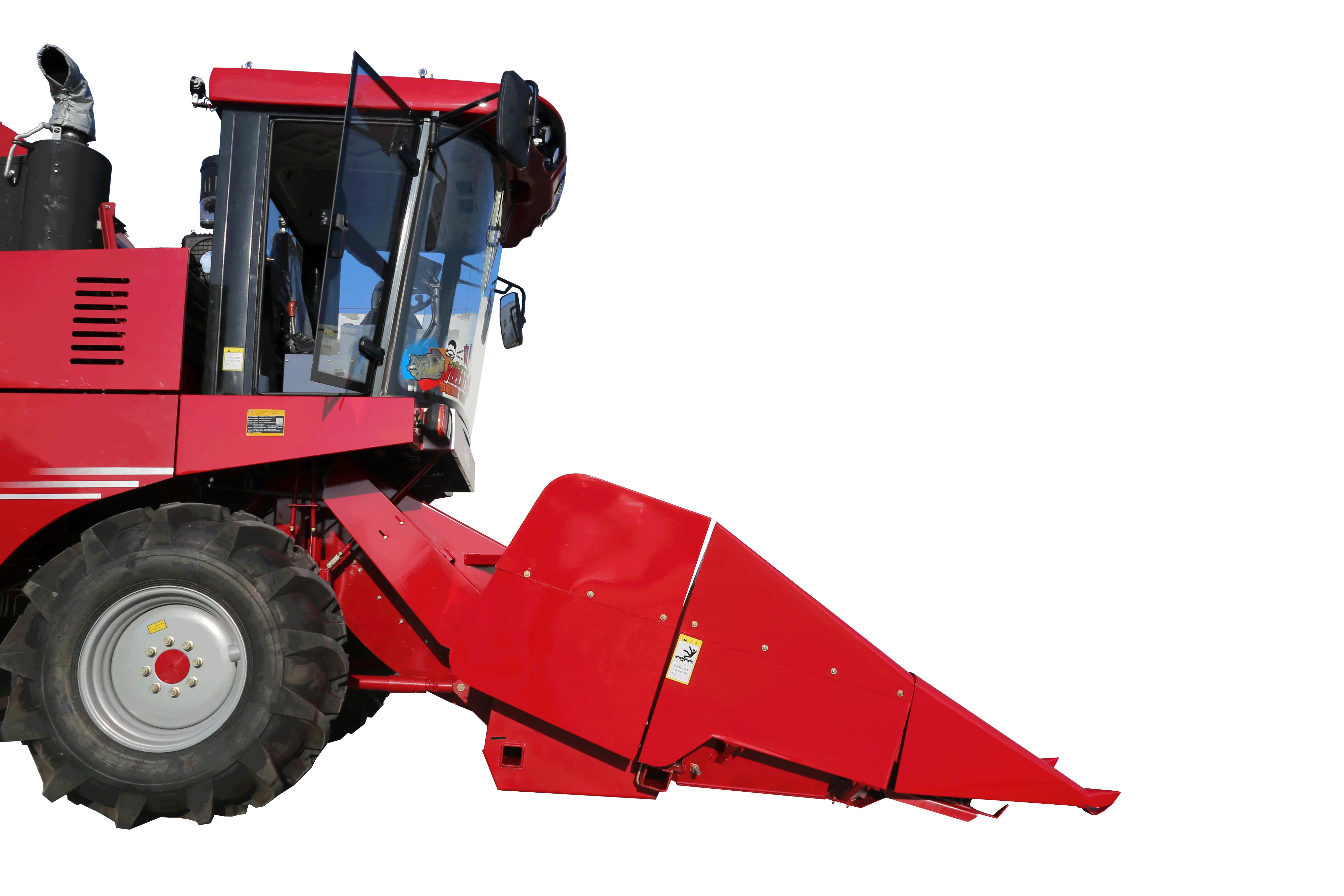

Low Angle cutting table
Standard grain exhaust fan, clean grain recovery without debris
Kernel return to the bin optional function, back to the grain bin or ear bin can be switched
Use electronic control multi-function handle control
Configuration suspension seat
Product information
Type specification | -- | 4YZ-4A |
Structure type (self-propelled) | -- | Picking/peeling type |
Working condition dimensions (L × W × H) | mm | 9270*3245*3700 |
Working lines | 行 | 4 |
Working width | mm | 2680 |
Maximum unloading head height | mm | 2500 |
Structural quality | ㎏ | 8900 |
Minimum ground clearance | mm | 350 |
Operating speed | km/h | 2.8-7.5 |
Operational hourly productivity | hm²/h | 0.5-1.15 |
Fuel consumption per unit area | kg/hm2 | 18.7-38 |
Straw treatment method | -- | Pulverized return to field type |
Cab type | -- | Plain type |
Variable speed mode | -- | Hydraulic variable speed or mechanical |
wheelbase | mm | 3550 |
Complete machine warranty period | -- | 24 months/two years |
brand | / | Full of courage and vigour |
Matching engine structure type | -- | Suspension, in-line, six cylinder, four stroke, mechanical pump, supercharged water cooling |
Matching engine rated power | kw | 118 |
Matching engine model specifications | -- | YC6B160Z |
Rated engine speed | r/min | 2200 |
Supporting engine production enterprises | -- | Yuchai of Guangxi |
Supporting engine emission standards | -- | National III |
Number of matching engine cylinders | Number | 6 |
Fuel tank volume | L | 200 |
diameter | mm | Φ 400 |
quantity | 个 | 1 |
type | -- | centrifugal |
Guide wheel | mm | 12.00 to 18 |
Driving wheel | mm | 15 to 24 |
Driving wheel | mm | 1925 |
Guide wheel | mm | 1900 |
Maximum passing height | mm | 3700 |
Layout position | -- | centralize |
Structural pattern | -- | Chain harrow |
Type of picking roller/plate | -- | Pull the stem on the knife |
Number of peeling rolls | Number | 20 |
Peeling roller type | -- | Iron roller mixed loading |
Size of peeling roller | mm | 1880 |
Driving mode | -- | Hydraulic drive |
Method of discharging grain | -- | Tilting bucket type |
volume | L | 3.8 |
position | -- | Lower chassis (front of rear axle) |
Model name | -- | 1JH-240 |
type | -- | Flail type |
Adapt to line spacing range | mm | 600-700. |
Grain breakage rate | % | 2 or less |
Total loss rate | % | 0.93 |
Bract stripping rate (ear harvest type) | % | 96.5 |
Percentage of impurities in ear | % | 0.43 |
Qualified rate of straw crushing length | % | 92.4 |
Operating gear | -- | 4 forward gears + reverse gears |
Minimum left turn radius | mm | 7600 |
Minimum right turn radius | mm | 7800 |
English Our company undertakes CKD/SKD factory project, interested customers can contact Sunny LI. The KD (Knocked Down) factory project stands for "knocked down assembly." We produce welded parts and components in China, transport them overseas through containers, set up KD factories overseas, assemble the received parts into complete vehicles, and then sell them abroad. CKD(Complete Knocked Down) is fully assembled. SKD(Semi-Knocked Down) is semi-assembled, and a part of the assembly is ready-made. Advantages of KD Plant Project: 1. Strong production capacity; 2. Low import tariff; 3. High quality; 4. High production efficiency; 5. Sustainable profitability. | русск Наша компания реализует проект завода CKD/SKD,заинтересованные клиенты могут связаться с Sunny LI. Проект завода "KD" означает "сборочная сборка". Мы производим сварные детали и компоненты в китае, Транспортировка их за границу через контейнеры, создание заводов KD за рубежом, сборка полученных частей в комплектные транспортные средства и Тогда продай их за границу. CKD(полностью сбит с ног) полностью собран. SKD(полу-сбит с ног) является полусборкой, и часть сборки уже готова. Преимущества проекта завода KD: 1. Мощный производственный потенциал; 2. Низкий импортный тариф; 3. Высокое качество; 4. Высокая эффективность производства; 5. Устойчивая рентабельность. | español Nuestra empresa lleva a cabo CKD/SKD proyecto de fábrica, los clientes interesados pueden ponerse en contacto con SunnyLI. El proyecto de fábrica KD (Knocked Down) significa "Asamblea derribada." Produprodupiezas soldadas ycomponentes en China, Transportarlos al extranjero a través de contenedores, establecer fábricas de KD en el extranjero, montar las piezas recibidas en vehículos completos, yLuego venderlos en el extranjero. CKD (Complete Knocked Down) está completamente montado. SKD(semi-derribabajo) es semi-montado, y una parte del conjunto está listo. Ventajas del proyecto de planta de KD: 1. Fuerte capacidad de producción; 2. Arancel de importación bajo; 3. Alta calidad; 4. Alta eficiencia de producción; 5. Rentabilidad sostenible. |
Company Profile
Yuhuan Wancheng Machinery Co., Ltd. is located in Yuhuan City, a beautiful and rich coast of the East China Sea. The company's operating tenet is "survive by quality, and development by innovation", and the quality policy is "conscientiously, ensure product quality; go hand in hand to meet the needs of each customer". We have a series of advanced production technology and testing equipment, and all products have passed the quality system certification in design, development and production. At the same time, we have a strong management team and professional technical control personnel. On the basis of occupying the domestic market, we are also actively expanding the international market. At the same time, we provide high-quality products and commodity services for new and old customers. The main products include new energy vehicles, second -hand cars, sales of mechanical parts, and car modification，etc. Products are exported to more than 20 countries, including: the United States, Canada, Britain, Germany, France and Japan, enjoying a good reputation in the market. Dedication to meet and exceed customer requirements is our eternal goal. Our factory is the industry leader in quality and price, so you can rely on us with confidence.
Exhibition

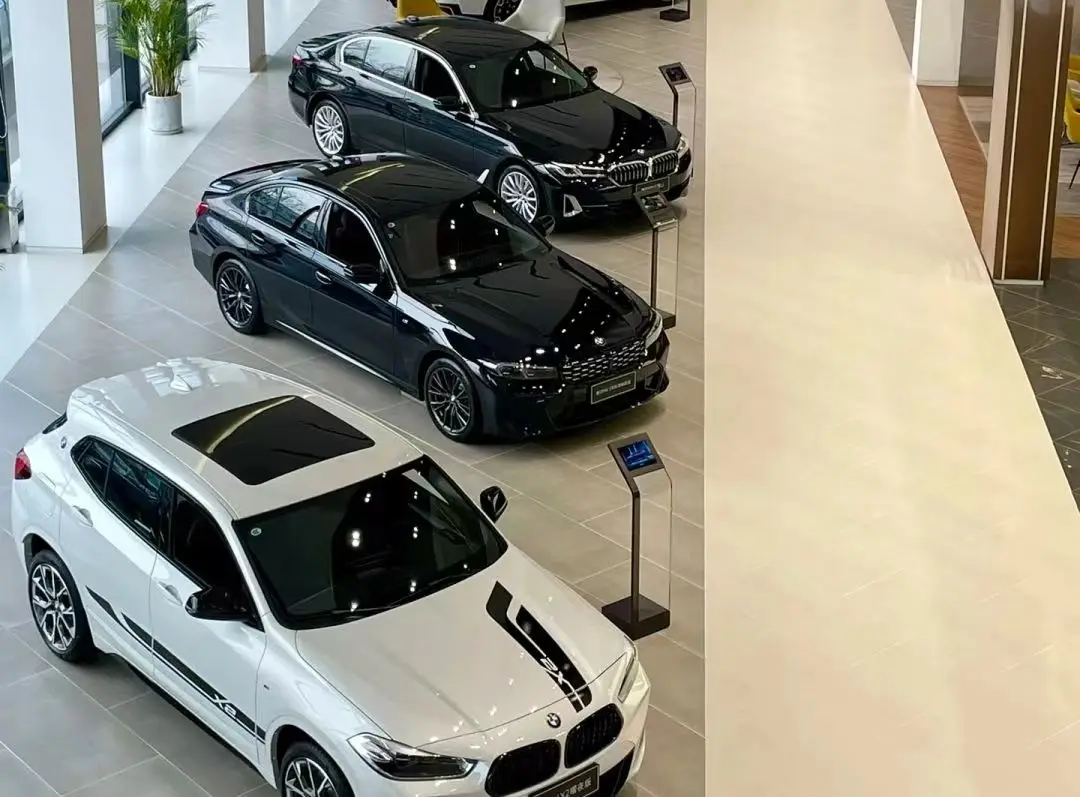

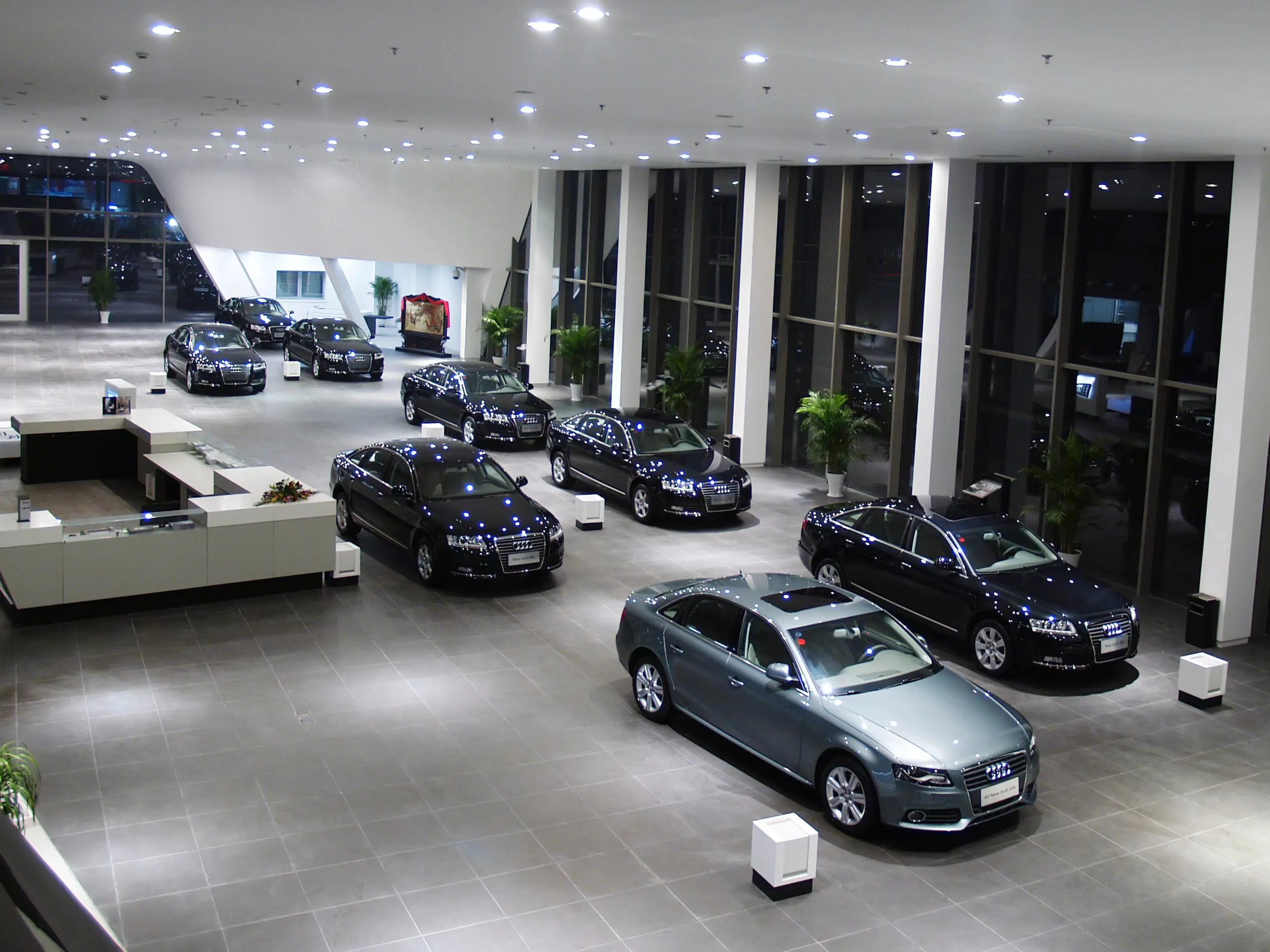

Sample Room
