double shaft coal mixer
US $7999-$8699
Diesel Engine Concrete Mixer Machine with Pump Mobile Drum JZC350 500L 750L Engineering & Construction Machinery Forced Mixing
- Category: >>>
- Supplier: Ningdu Xingye Machinery Manufacturing Co. Ltd.Ningdu Ltd.
Share on (1601113322268):
Product Overview
Description
Product Overview
Get the right equipment for your job

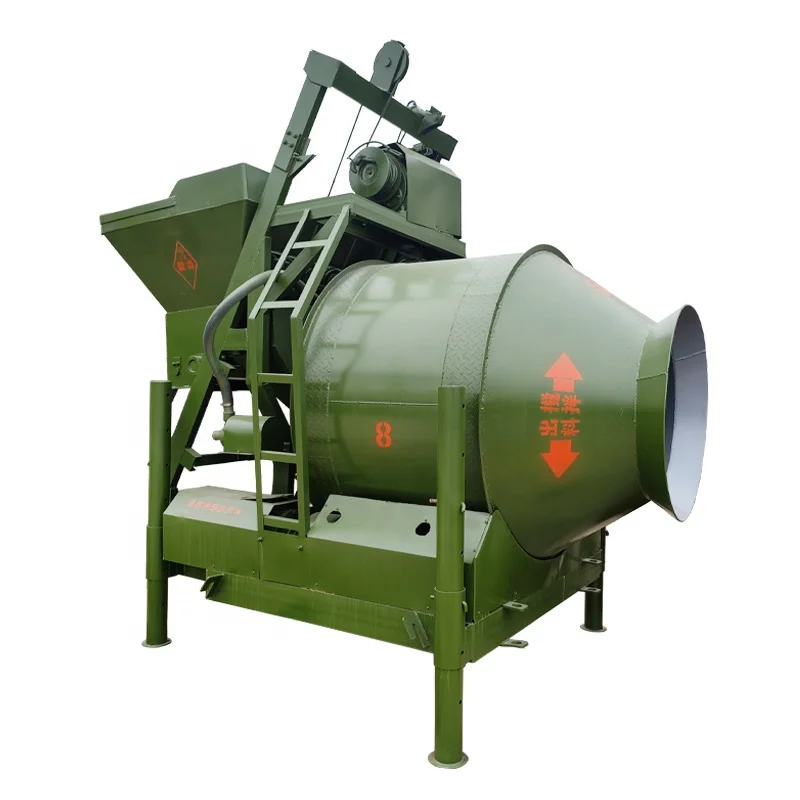

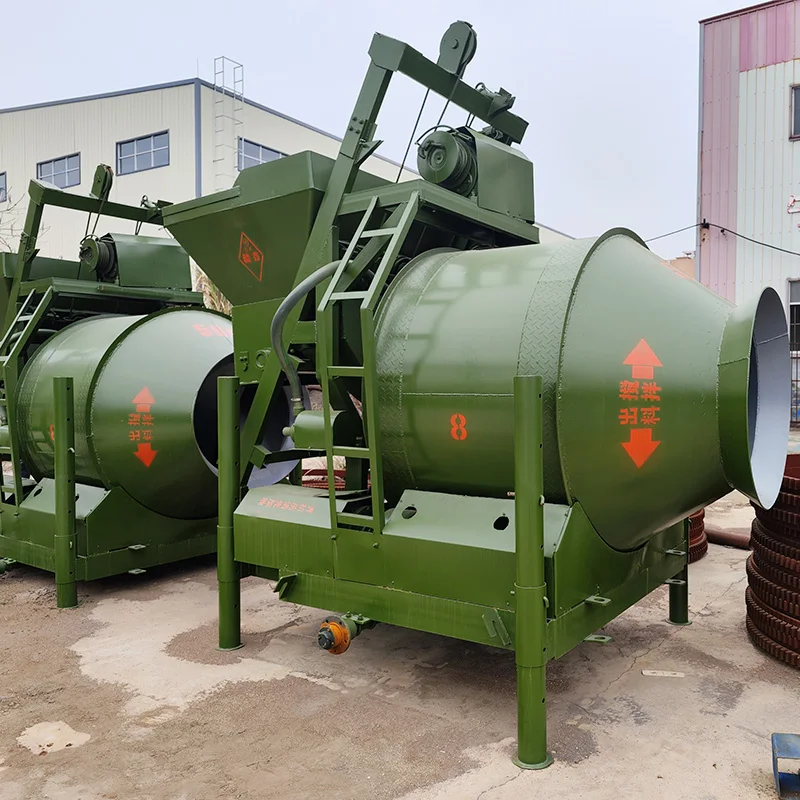

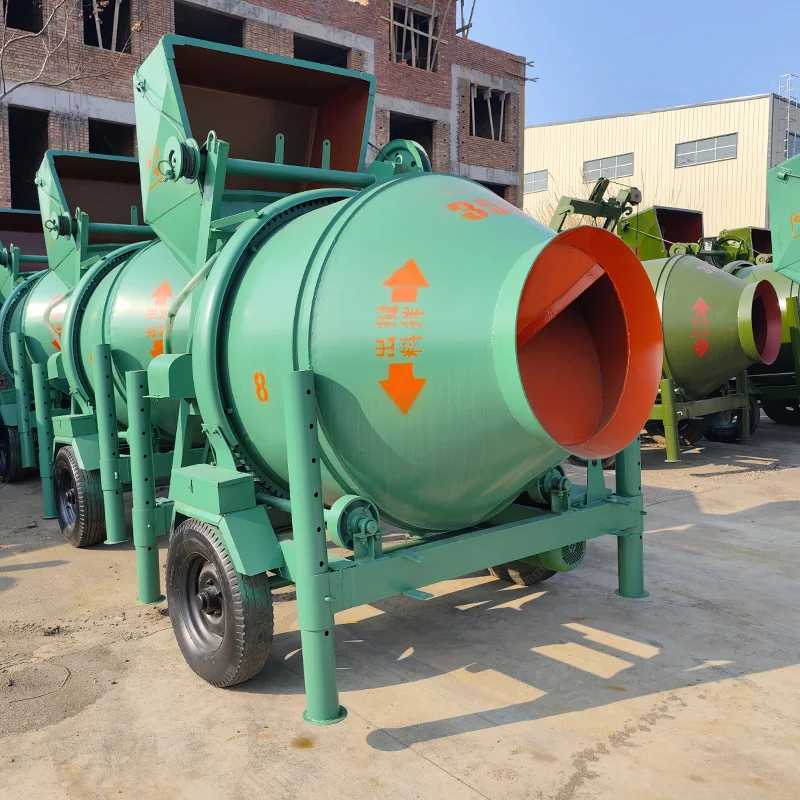

Mobile Drum JZC350 500L 750L Concrete Mixer Diesel Engine
Concrete Mixer Machine With Pump
JZC350 main technical specifications
* Water supply accuracy ≤2%
* Feeding capacity 560L
* Stirring drum speed 14r/min
* Productivity 10 ~ 14 m3/h
* Maximum aggregate diameter 60mm
* Tire specifications 6.50~16
* Stirring lifting motor: model: Y132S-4B3; Power: 5.5KW
* Pump motor: model: 40DWB8=12A; Power: 0.55KW
* Dimensions (L * W * H) 2765*2140*3000mm
* Speed: 1440 r/min
* The quality of 1950 kg
* Maximum towing speed 20km/h
* Feeding capacity 560L
* Stirring drum speed 14r/min
* Productivity 10 ~ 14 m3/h
* Maximum aggregate diameter 60mm
* Tire specifications 6.50~16
* Stirring lifting motor: model: Y132S-4B3; Power: 5.5KW
* Pump motor: model: 40DWB8=12A; Power: 0.55KW
* Dimensions (L * W * H) 2765*2140*3000mm
* Speed: 1440 r/min
* The quality of 1950 kg
* Maximum towing speed 20km/h
FEATURES AT A GLANCE
* The drum type mixing mechanism is composed of mixing drum, supporting wheel
and transmission system.*The mixing drum is biconical. There are two pairs of high and low pieces welded in the drum. They are arranged in a cross way and
form an included angle with the axis of the mixing drum.
*.A pair of discharge blades are welded inside the discharge cone of
*The motor drives the gear ring through the reducer to rotate the mixing drum
*Two-stage helix gear reducer
*The forward and reverse rotation of the shaking cylinder is realized by the motor commutation.
When the mixing drum rotates, the blades not only lift and fall the materials,but also make the materials move back in the axial direction.
Strong mixing , and the homogeneous concrete can be achieved in 35-45 seconds
the transmission ratio is 6.0 the speed ratio of V-belt pulley is 2.4,the speed ratio of mixing drum ring gear is 7.0
PRODUCT CONFIGURATION
In case of shutdown
,Check whether it is caused by the following conditions:
(1) The gear ring is not lubricated
(2) Overcharge (far more than two thirds of total capacity)
(3) Long time use, motor overheating, etc
The motor itself has overload protection
(1) The gear ring is not lubricated
(2) Overcharge (far more than two thirds of total capacity)
(3) Long time use, motor overheating, etc
The motor itself has overload protection
The rated discharge is two-thirds of the total volume of the drum
Taking 140L as an example, the rated discharge is 94l (45 ° barrel inclination),
which is about 200kg according to the concrete density (2.3 ~ 2.5kg / L);
If more concrete needs to be mixed, it can be mixed several times in batches.
which is about 200kg according to the concrete density (2.3 ~ 2.5kg / L);
If more concrete needs to be mixed, it can be mixed several times in batches.

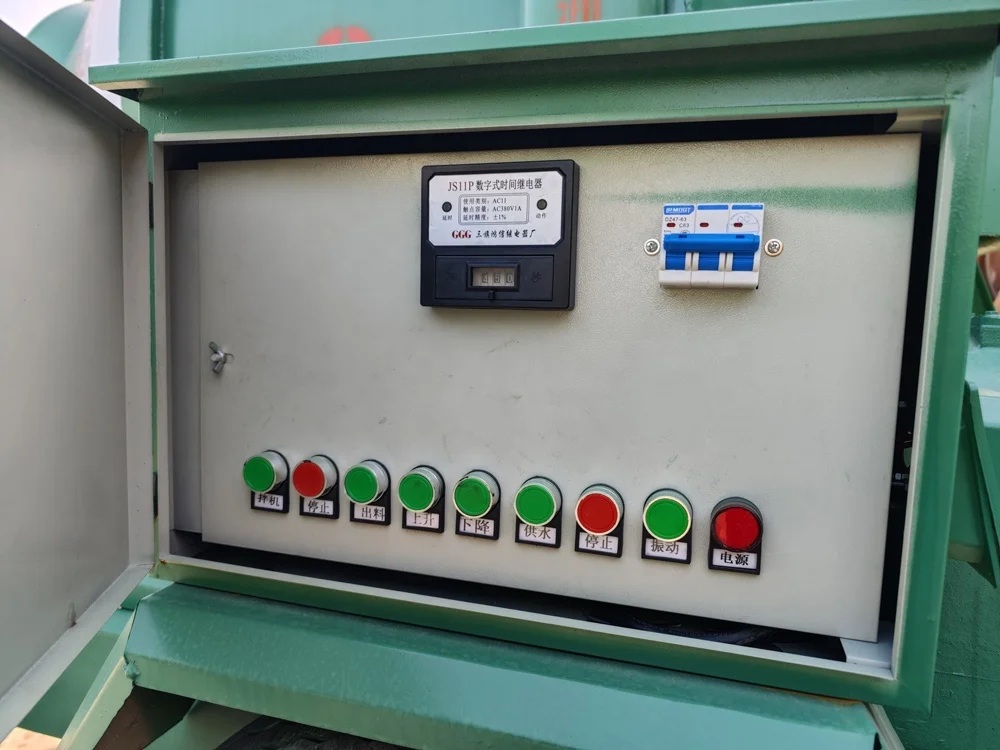

The water supply system is composed of a motor, a water pump
The water flow is adjusted through the regulating valve
When supplying water, press a button on the left to start the water pump.
When the time is up, the water supply circuit will be cut off automatically.
PRODUCT SPECIFICATIONS
Model no. | JZC350 | JZC400 | JZC450 | JZM500 | JZM750 |
Loading volume(L) | 560 | 640 | 720 | 800 | 1200 |
Unloading volume(L) | 350 | 400 | 450 | 500 | 750 |
Productivity(m³/h) | ≤13 | ≤15 | ≤18 | ≤20 | ≤30 |
Maximum aggregate size ( mm) | 60 | 60 | 60 | 60 | 60 |
Hopper lifting speed（m/min） | 18 | 19.2 | 21.9 | 23 | |
Mixing motor power (kw) | 5.5 | 5.5 | 7.5 | 2*5 | 11 |
Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.
Certifications
Our products concrete batching plant and concrete mixer both own CE QMS certifications.
Packing and Delivery
Our products have been exported to more than 20 countries in Southeast Asia, Middle East, Africa and so on.
FAQ
Question 1: Are you factory or a trading company?
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: Just tell us the capacity (m3/day)of concrete you want to produce concrete per day or per month.
Question 3: What's your advantage?
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Question 4: Do you supply training and after-sale service?
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Question 5: What about the payment terms and incoterms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance before shipment.
EXW, FOB, CIF, CFR these are the common incoterms we operating.
Question 6: What about the delivery time?
Answer: Normally, the stock items can be send out in 1~2 days after receive the payment.
For customized product, the production time need about 7~15 working days.
Question 7: What about the warranty?
Answer: All of our machines can provide 12-months warranty.
