Product Overview
Description
Product Description
Smart PV Monitor & Gateway
FR-PVMS-MDEB
Specification
Item | Specification | Unit | Comment | |||
Electrical Data | ||||||
Range of power supply voltage | 100~260 | Vac | - | |||
Max power consumption | 15 | W | - | |||
Aux power output voltage | 24 | Vac | - | |||
Max aux power output | ≤18W | W | - | |||
Environmental Data | ||||||
Operating ambient temperature range | -30 ~ 70 | ℃ | - | |||
Relative humidity range | 0~90 | % | - | |||
Ingress protection | IP42 | - | - | |||
Compliance | ||||||
Safety compliance | CE LVD Directive 2014/35/EU CE EMC Directive 2014/30/EU | - | - | |||
Cloud Connection | ||||||
Cloud | Fonrich SafeSalor | - | customize | |||
IoT protocol | MQTT 3.1 | - | - | |||
Key Features:
① RS485 connects up to 4 Smart PV PLC Transceivers
② Bluetooth BLE for local setting with mobile APP
③ WIFI and RJ45 Ethernet for cloud connecting
④ Local display max 2496 PV modules
PV Rapid Shutdown System (PVRSS) is one of the fundamental safety factors of disbursed photovoltaic system. Its essential attribute is to reduce the voltage of 30cm away from the PV module to under 30V indoors within 30s after the shutdown laptop is started.
When the growing the place the PV module is placed requires safety or firefighting, it can correctly quit manageable safety risks such as electric shocks, and protect the lives of renovation personnel and firefighters.

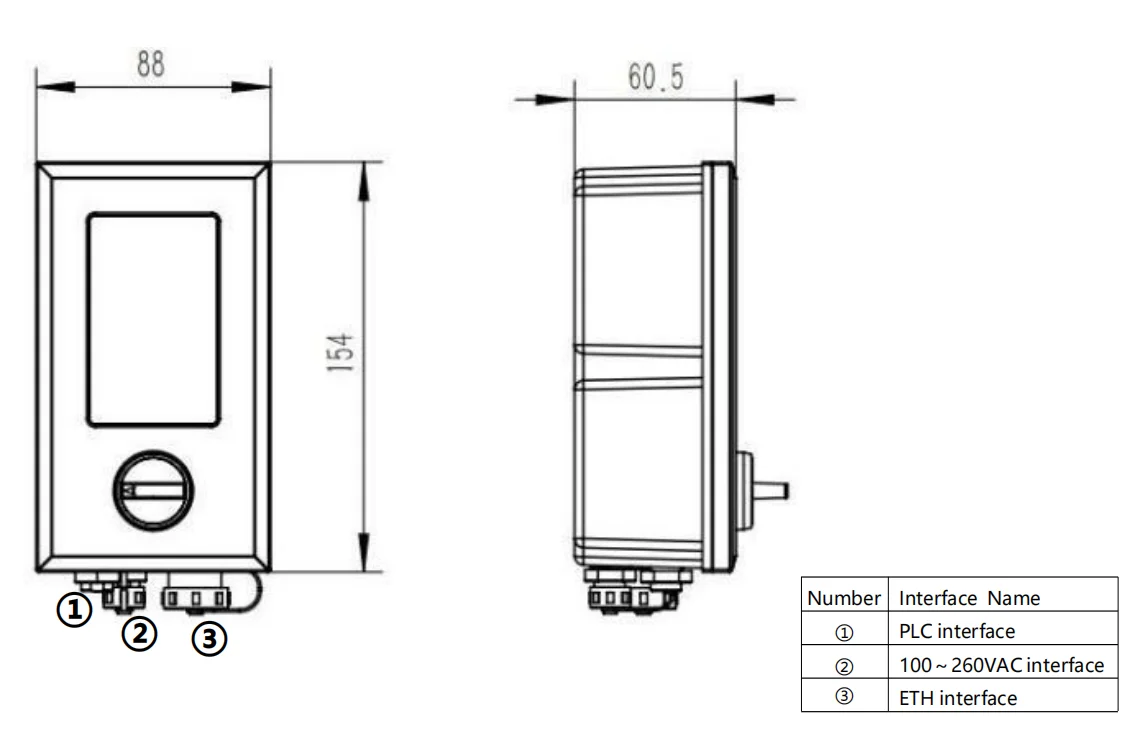

Product Size:
