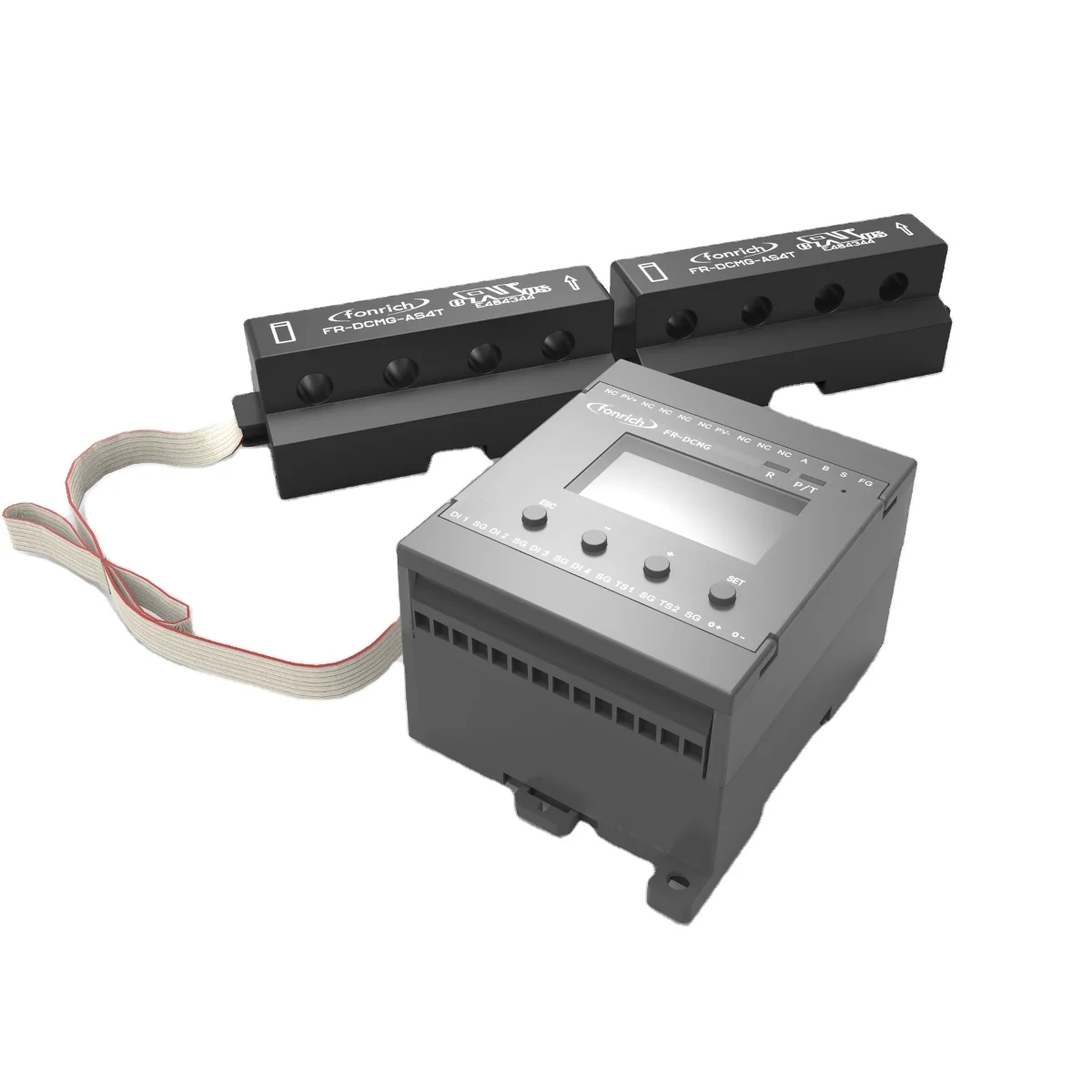

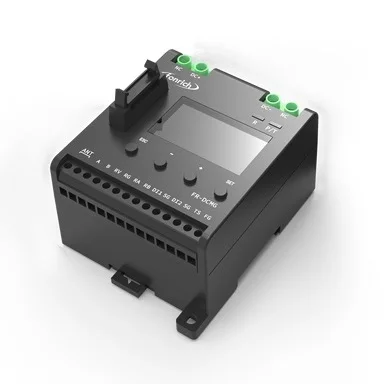

FR DCMG MMPS DC Safety Box Supporting 32 Channels LCD Display AFCI Controller For PV Site Combiner Box

• Supports up to 32 channels


• Local LED display, real-time of PV string information


• Can view the total power generation of each string


• RS485 or PLC communication


• Various specifications of Hall sensor, -20A~+20A, -30A~+30A, -60A~60A


• Support shunt release trip

PV Site Combiner Box Monitoring

With Fonrich Gilgal 3 combiner box monitoring, you will be able to monitor 1000V and 1700V solar systems in real-time, the string current, bus voltage, bus box temperature and switch status, with alarm output when data is abnormal. You can also transmit data wirelessly to RS485 devices.

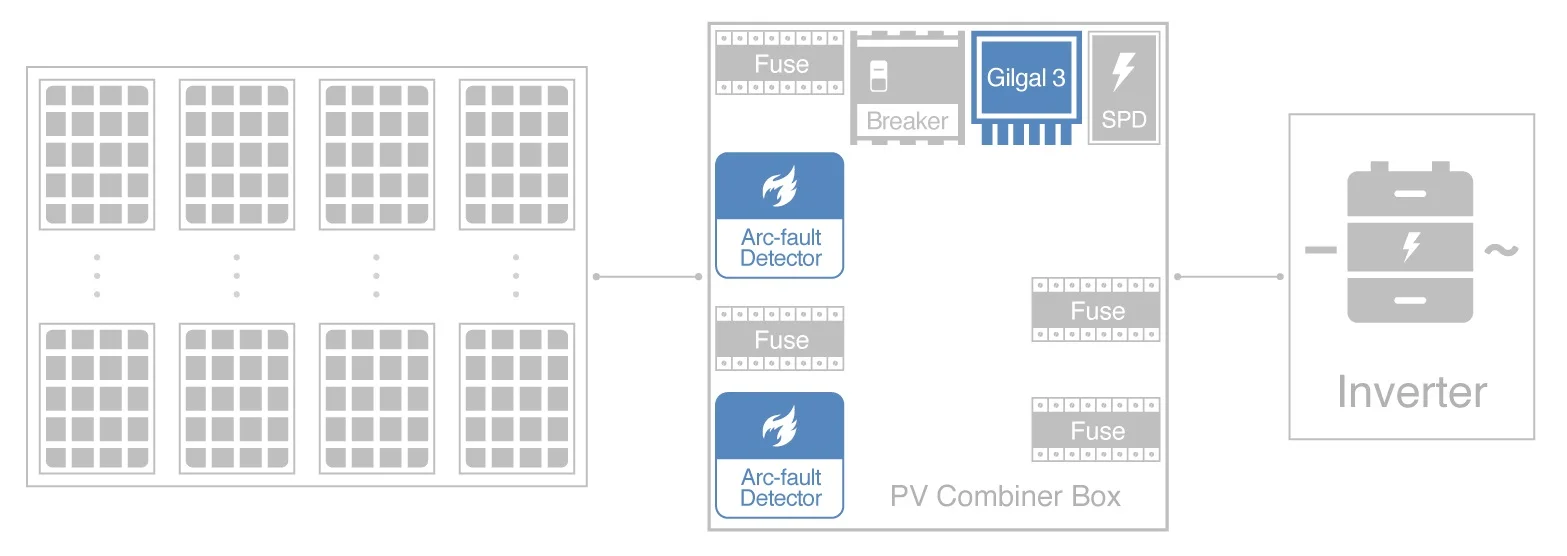

Application Diagram of FR-DCMG

Selection table of FR-DCMG

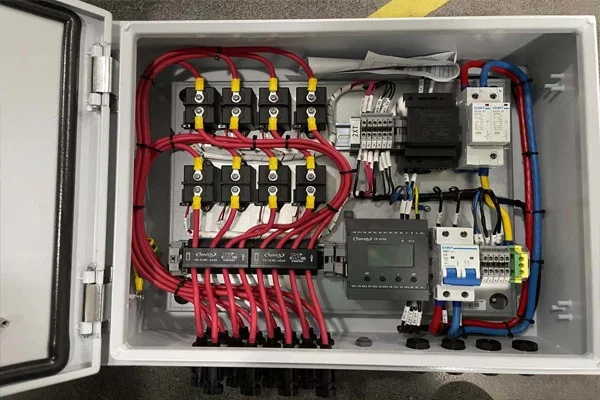

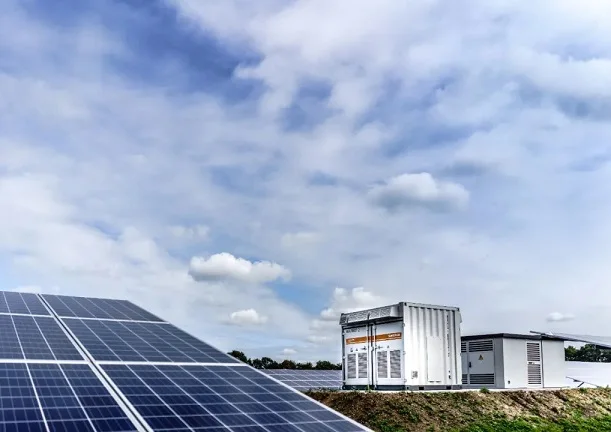

Application Cases
