Factory Price Lubricating Filtration System Centrifuge Bypass Filter Centrifugal Bypass Oil Lube Filter RG110

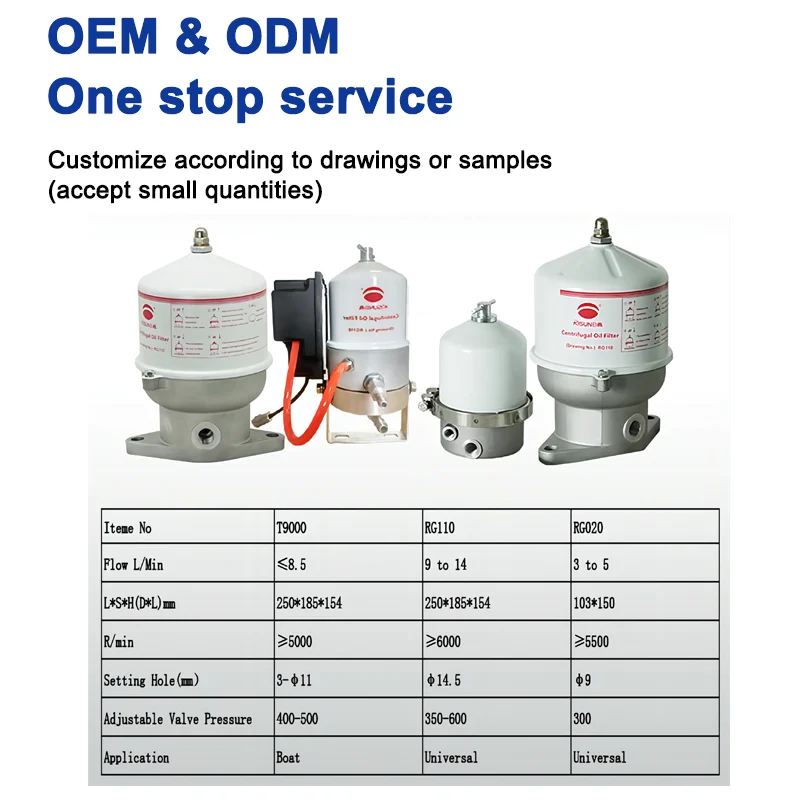

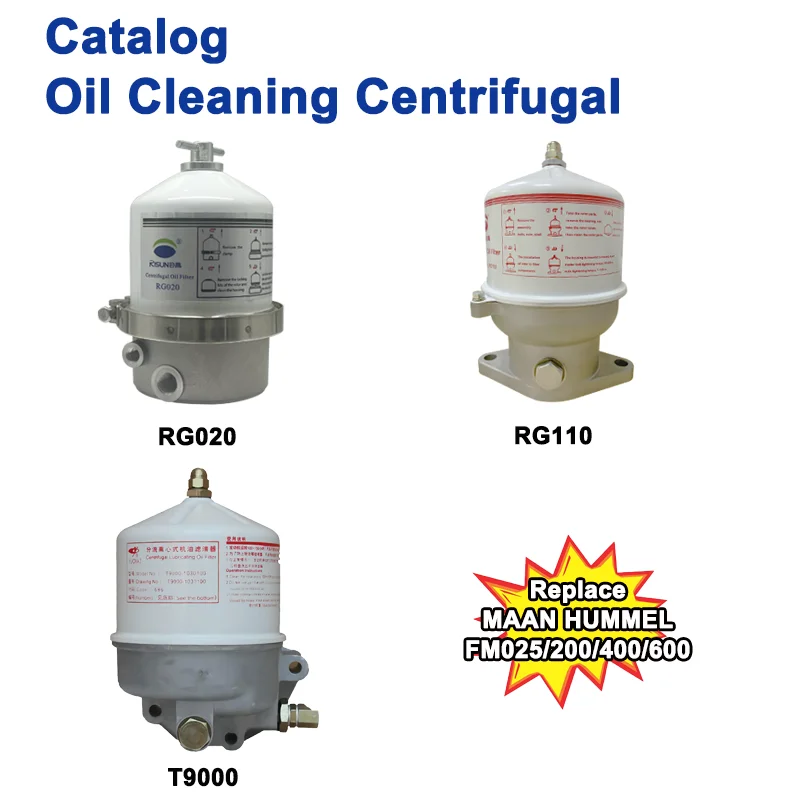

The centrifuges RG020/RG110/T9000 were designed to extend the life of lubrication oil of industrial and marine engines.
The oil inlet pipe needs to be equipped with a connector with M18*1.5 threaded.Users need to prepare an device(sealing ring on the
filter base(φ70xφ60mm), outlet size is φ50mm) to connect outlet.
Oil Pressure | 350 kPa | 600 kPa | |
Rotor Speed | ≥6000 rpm | ≥8000 rpm | |
Volume Flow Range (maximum 18L/min) | ≤9 L/min | ≤14 L/min | |
Dust Capacity | 90g | ||
Efficiency After Testing For 30mins | ≥70% | ≥85% | |

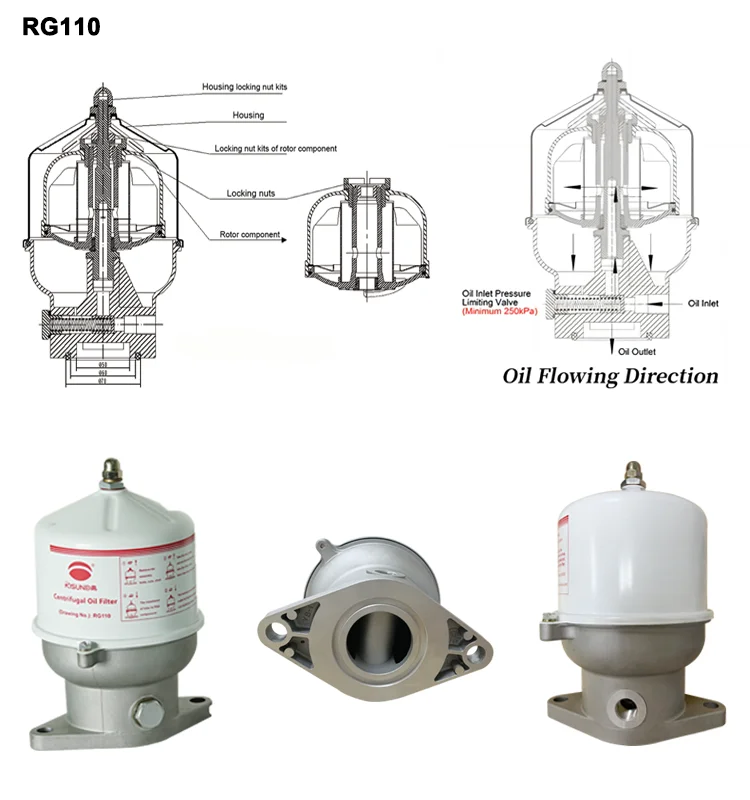

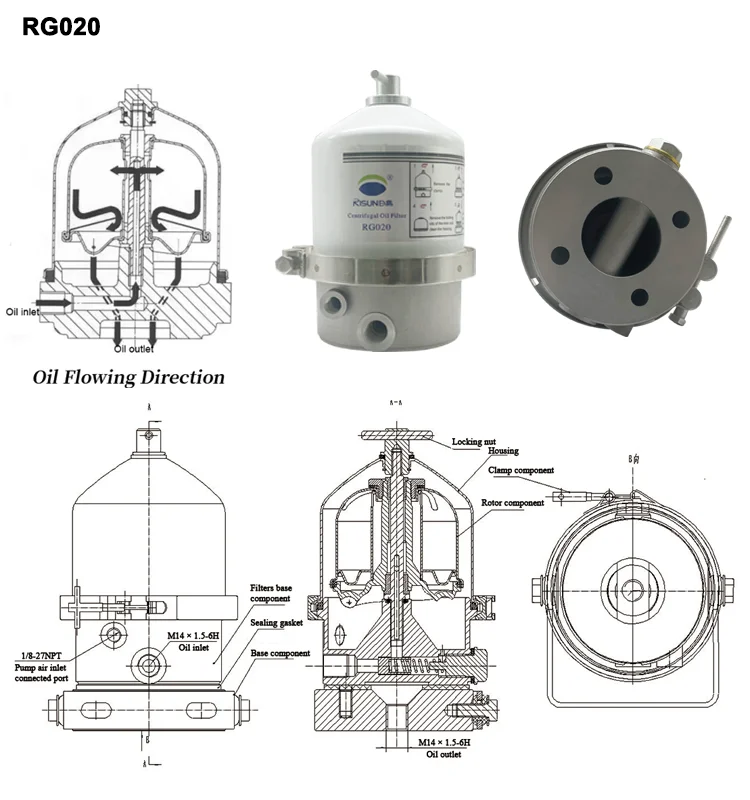

1.Oil enters the centrifugal filter from oil inlet(M14*1.5-6H), and flows out from oil outlet.The oil inlet and outlet pipe needs
to be equipped with an M14*1.5 threaded connector.
2.Air pump connection port(thread A 1/8-27NPT)has installed on the filter base for users who in need to equip the air pump.Air
pump makes the oil flow out more quickly and smoothly,it won't increase the rotation speed.If the oil flow rate is small and the
oil can flow out smoothly,there is no need to equipped with an air pump.Users who are not equipped with an air pump need to make a
plug with a thread of 1/8-27NPT to seal the inlet port of the air pump,otherwise there will be oil leakage from port.
to be equipped with an M14*1.5 threaded connector.
2.Air pump connection port(thread A 1/8-27NPT)has installed on the filter base for users who in need to equip the air pump.Air
pump makes the oil flow out more quickly and smoothly,it won't increase the rotation speed.If the oil flow rate is small and the
oil can flow out smoothly,there is no need to equipped with an air pump.Users who are not equipped with an air pump need to make a
plug with a thread of 1/8-27NPT to seal the inlet port of the air pump,otherwise there will be oil leakage from port.
OE Number | RG020 |
Size | 103*150mm |
LPM | 2.8-4.6L |
Setting Hole | M14X1.5 |
PSI@PRM | PSI rating29-72.5PSI @2400-4300RPM |
Inlet Thread Size NPT | 0.125 NPT |
