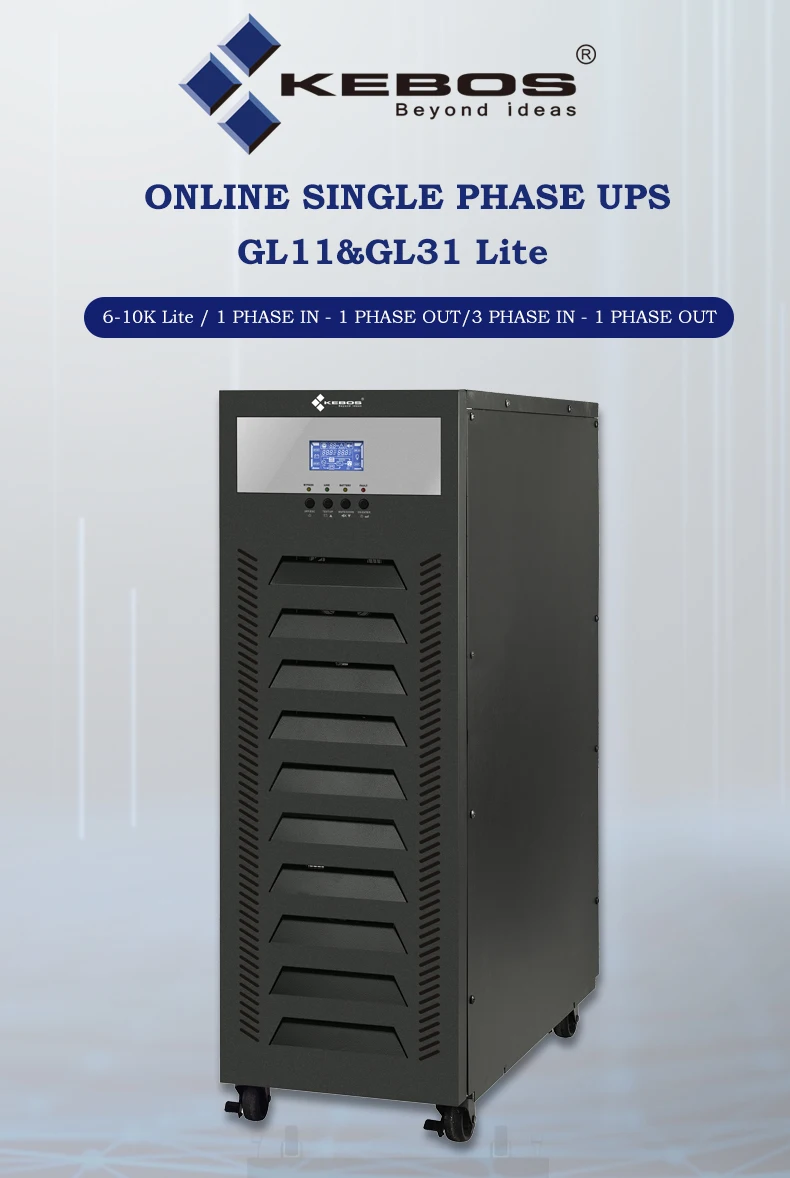

Kebos GL11 6K(L) Zero Transfer Time 6000va 4800w Pure Sine Wave Single Phase Data Center Online Industrial Ups With LCD Display
- Category: >>>
- Supplier: Kebos Power Co. Limited
Share on (1601113408827):
Product Overview
Description

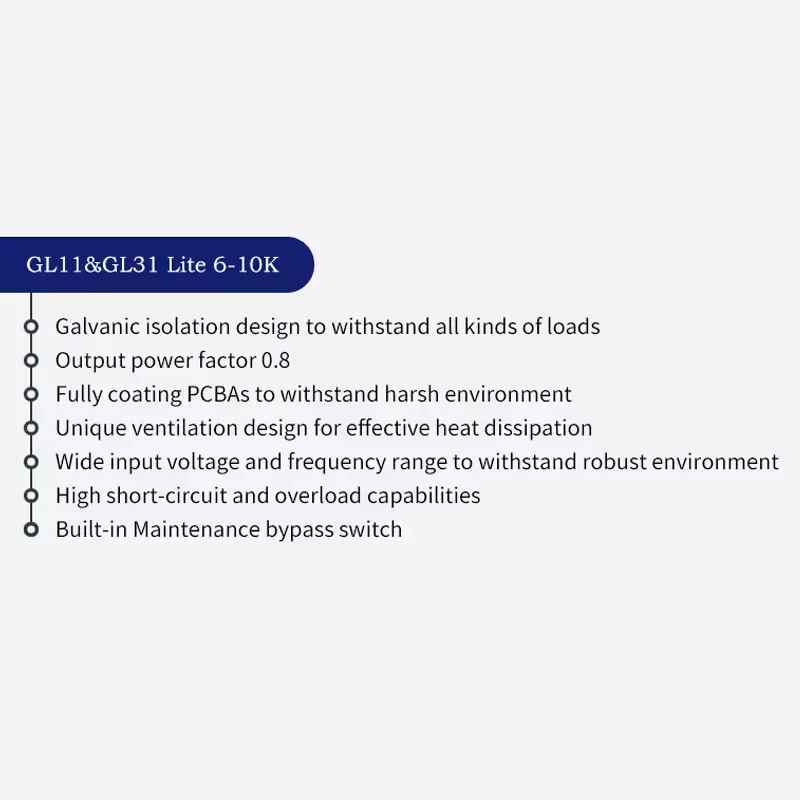

| Advantages: |
|
|
|
|
|
|
|
Specification:
| MODEL | GL11-6K(L) | GL11-7.5K(L) | GL11- 10K(L) | ||||
| PHASE | Single phase with ground | ||||||
| Capacity* | 6KVA/4.8KW | 7.5KVA/6KW | 10KVA/8KW | ||||
| INPUT | |||||||
| Nominal Voltage | 208VAC/220VAC/230VAC | ||||||
| Voltage Range | 165VAC ~ 285VAC @ 16 pcs of batteries 185VAC ~ 285VAC @ 18 pcs of batteries | ||||||
| Frequency Range | 40Hz ~ 55 Hz @ 50Hz system 56 Hz ~ 64 Hz @ 60Hz system | ||||||
| OUTPUT | |||||||
| Output Voltage | 208VAC/220VAC/230VAC | ||||||
| Voltage Regulation | ± 1% | ||||||
| Frequency Range (Synchronized Range) | 45Hz ~ 55 Hz or 56 Hz ~ 64 Hz | ||||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz | ||||||
| Current Crest Ratio | 3:1 | ||||||
| Harmonic Distortion | ≤ 3 % THD (Linear Load) ≤ 5 % THD (Non-linear Load) | ||||||
| Transfer Time | AC to DC | Zero | |||||
| Inverter to Bypass | Zero | ||||||
| Waveform (Batt. Mode) | Pure Sinewave | ||||||
| EFFICIENCY | |||||||
| AC Mode | 88.3% | ||||||
| Battery Mode | 92% | ||||||
| BATTERY | |||||||
| Standard Model | Battery Type | 12V / 9Ah | |||||
| Battery Numbers** | 16 pcs | ||||||
| Recharging Time | 6 hours recover to 90% capacity | ||||||
| Charging Current (max.) | 2A | ||||||
| Charging Voltage | 218.4 V ± 1% | ||||||
| Long-run Model | Battery Type | Depending on the applications | |||||
| Numbers | 16pcs | 18 pcs | 16pcs | 18 pcs | 16pcs | 18 pcs | |
| Charging Current (max.) | Default :8 A; 2A/4A/8A(Adjustable) | ||||||
| Charging Voltage | 218.4 V ± 1% | 245.7 V ± 1% | 218.4 V ± 1% | 245.7 V ± 1% | 218.4 V ± 1% | 245.7 V ± 1% | |
| INDICATORS | |||||||
| LCD | UPS status, load level, battery level, input/output voltage and frequency, fault code/warning code | ||||||
| ALARM | |||||||
| Battery Mode | Sounding every 4 seconds | ||||||
| Low Battery | Sounding every second | ||||||
| Overload | Sounding twice every second | ||||||
| Fault | Continously sounding | ||||||
| PHYSICAL | |||||||
| Standard Model | Dimension, D X W X H (mm) | 592 x 300 x 826 | |||||
| Net Weight (kgs) | 106 | 114 | 122 | 130 | 130 | 138 | |
| Long-run Model | Dimension, D X W X H (mm) | 592 x 250 x 826 | |||||
| Net Weight (kgs) | 62 | 78 | 86 | ||||
| ENVIRONMENT | |||||||
| Operation Temperature | 0 ~ 50°C (battery life cycle will be shorten when temperature is above 25°C) | ||||||
| Operation Humidity | <95 % and non-condensing | ||||||
| Noise Level | Less than 60dBA @ 1 Meter | ||||||
| MANAGEMENT | |||||||
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC | ||||||
| Dry Contact | Five signals: AC failure, low battery, UPS alarm, bypass and UPS fault | ||||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||||
