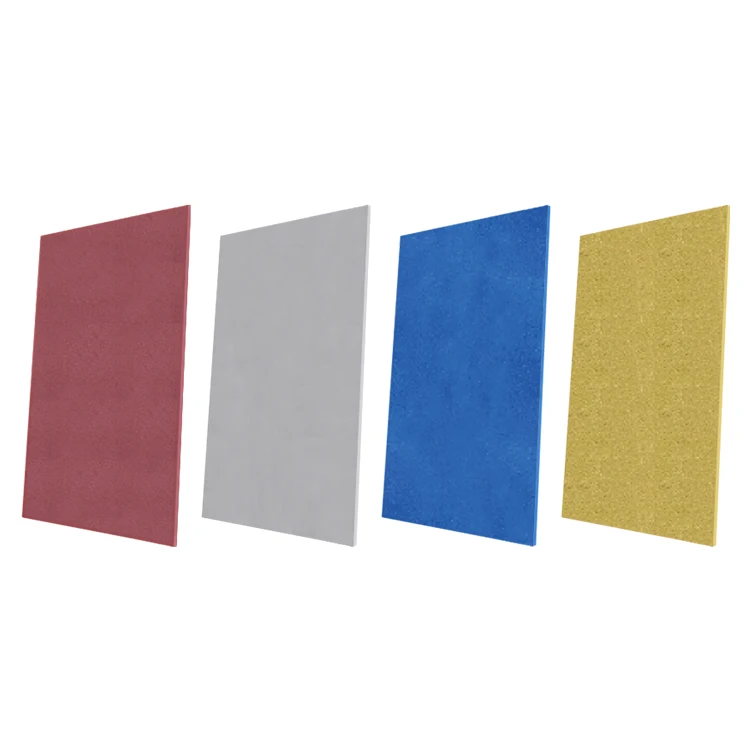

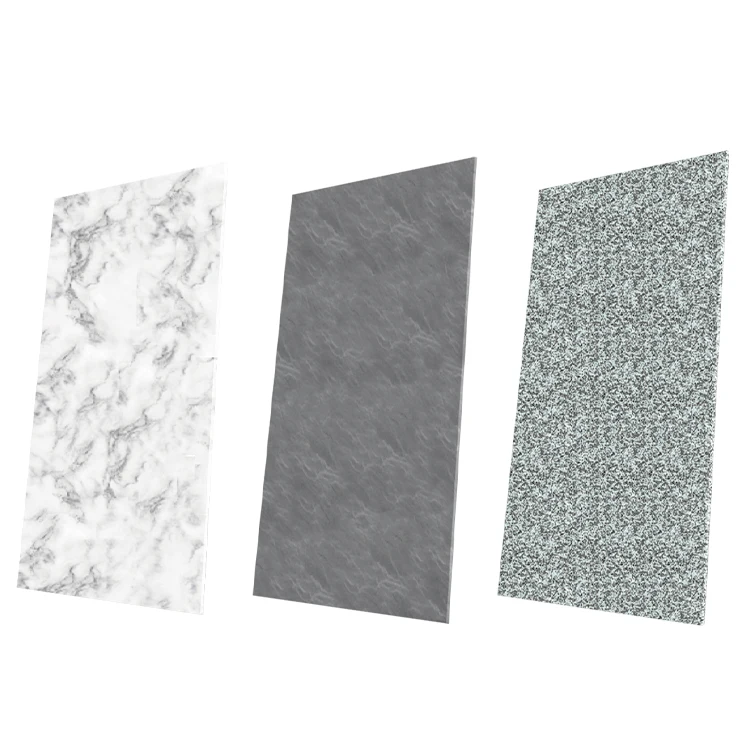

New arrival 14.4mm thickness HJT cells color size customized BIPV products for buildings Solar windows for energy storage
New arrival 14.4mm thickness HJT cells color size customized BIPV products for buildings Solar windows for energy storage
New arrival 14.4mm thickness HJT cells color size customized BIPV products for buildings Solar windows for energy storage
New arrival 14.4mm thickness HJT cells color size customized BIPV products for buildings Solar windows for energy storage
New arrival 14.4mm thickness HJT cells color size customized BIPV products for buildings Solar windows for energy storage
New arrival 14.4mm thickness HJT cells color size customized BIPV products for buildings Solar windows for energy storage
New arrival 14.4mm thickness HJT cells color size customized BIPV products for buildings Solar windows for energy storage

New arrival 14.4mm thickness HJT cells color size customized BIPV products for buildings Solar windows for energy storage

Share on (1601113560281):


Price:$252.00

Quantity:


Product Overview

Description



Specification


Mechanical parameters
Cell type
Single-crystal heterojunction 166×83mm
Cell arrangement
120 (60×2)
Module size
1790×1080×14.4 mm
Module weight
63 kg
Junction box
Protection grade IP67/IP68
Output cable
4mm2, L: 1100 mm (customized) / UV protection
Connector class
MC4 compatible
Frame
N/A
Sealant
PVB
Front static load (snow pressure)
5400 Pa
Back static load (wind pressure)
2400 Pa
Glass
(F) 6.0mm ultra-white toughened glass
(B) 6.0mm toughened glass
Electrical parameter(STC*)
Module type
Light transmitting element
Silver gray
amber
crimson
Maximum power (Pmax)
355W
305W
210W
225W
Module efficiency (%)
18.36%
15.78%
10.86%
11.64%
Optimum operating voltage (Vmp)
37.73V
37.89V
37.15V
37.38V
Optimum operating current (Imp)
9.41A
8.05A
5.66A
6.02A
Open-circuit voltage (Voc)
44.51V
44.25V
43.62V
44.38V
Short-circuit current (Isc)
9.63A
8.56A
5.85A
6.12A
Operating temperature range
-40 ~ +85°C
Maximum system voltage
DC1000V (IEC)
Maximum rated fuse current
20A
Power tolerance range
0~+5W
*STC (standard test condition): irradiance 1000W/㎡, battery temperature 25 °C, spectrum AM1.5.
Temperature coefficient
Rated operating temperature of battery (NOCT)
44° C±2°
Maximum power temperature coefficient (Pmax)
-0.26%/°C
Temperature coefficient of open-circuit voltage (Voc)
-0.24%/°C
Temperature coefficient of short-circuit current (Isc)
0.04%/°C
Safety level & warranty
Safety level
Class Il
Product warranty
10-year product materials and processes
Power warranty
30-year linear power output
* The attenuation is 1% in the first year, not more than 0.375% annually from the next year, and not
less than 88% in the 30th year.
Packaging information
Capacity of each case: 26 pieces
