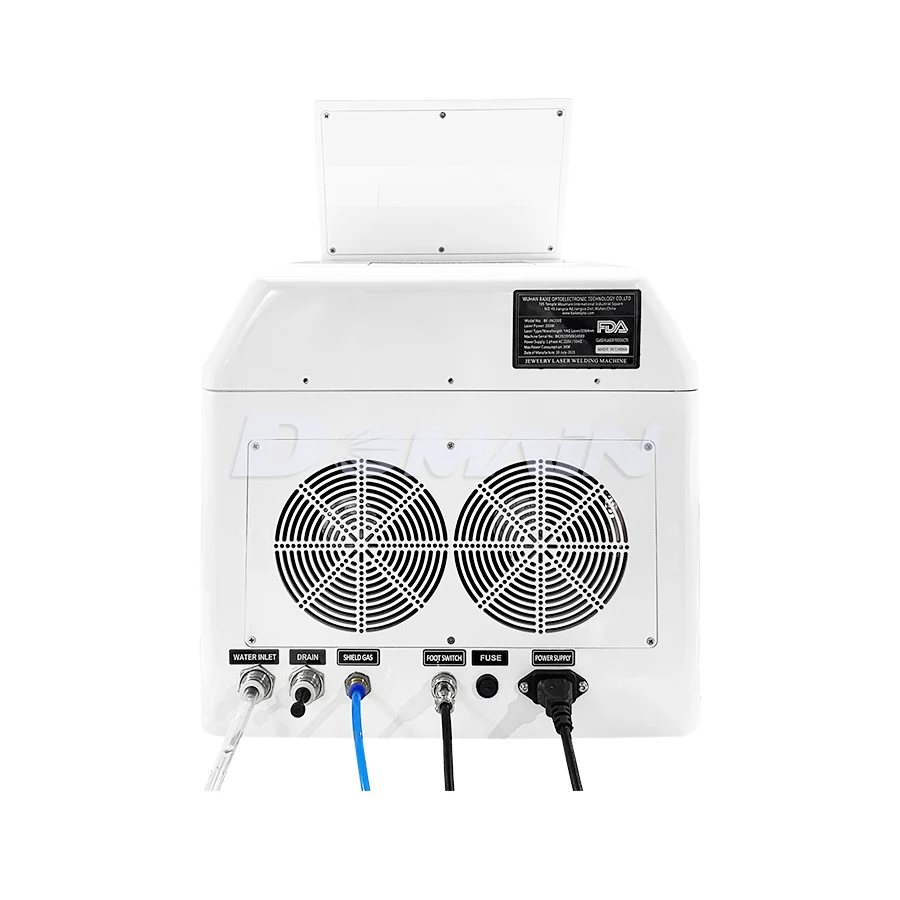

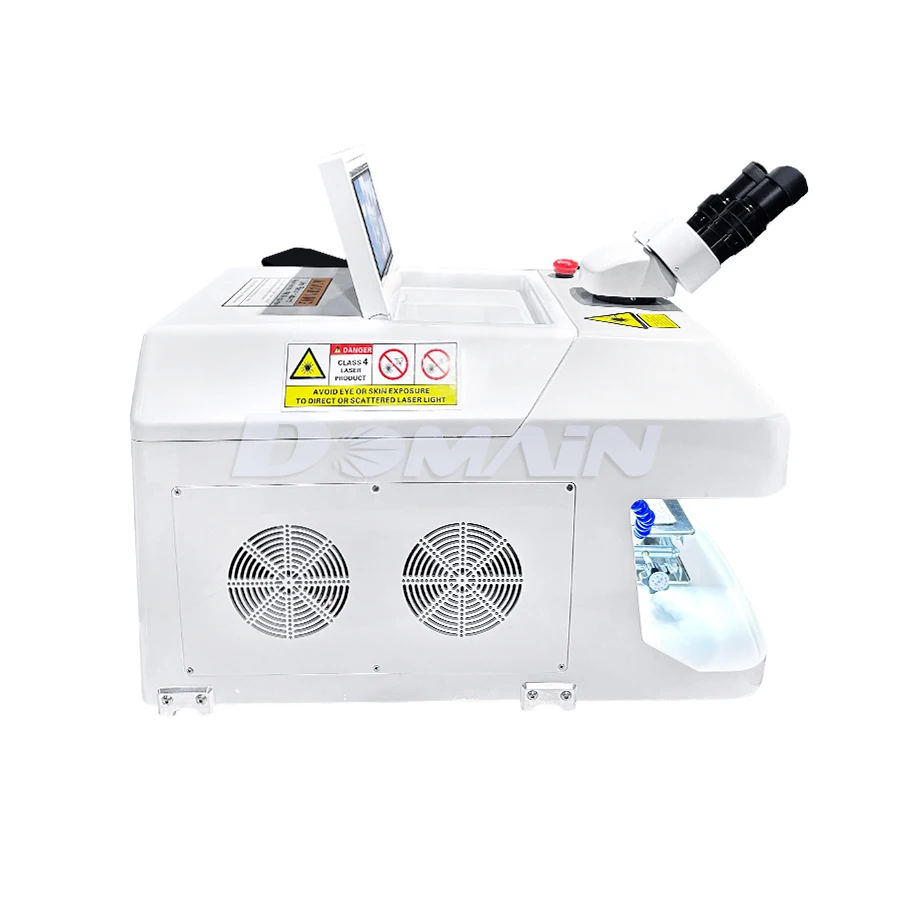

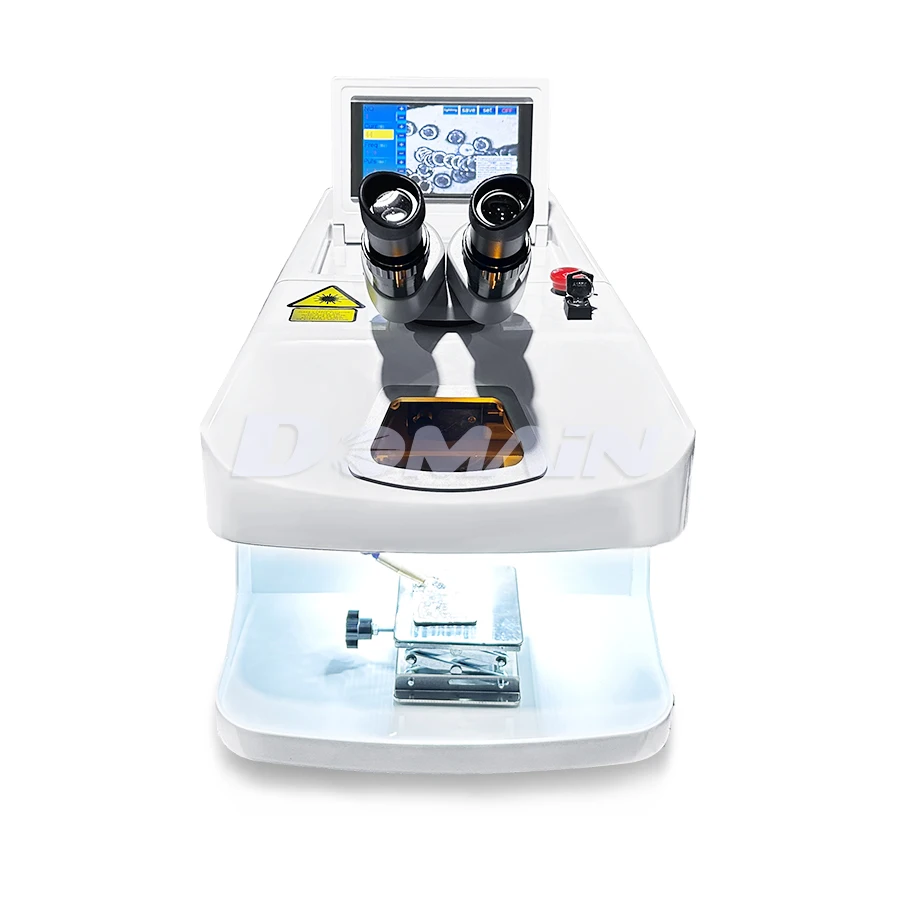

Portable Desktop Laser Welders jewelry laser welding machine for gold silver stainless
- Category: >>>
- Supplier: Wuhan Chuyu Optoelectronic Technology Co. Ltd.
Share on (1601113608889):

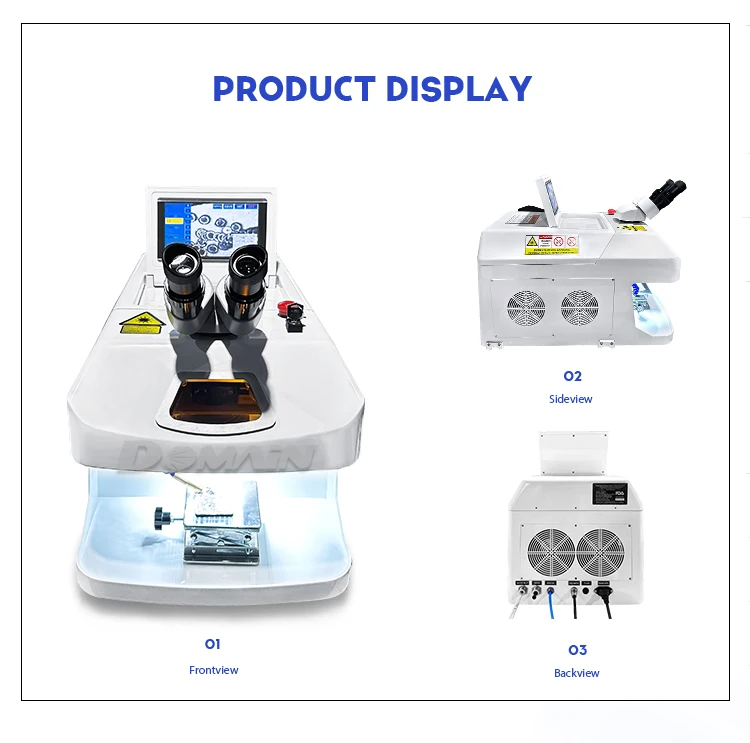

Product Overview
Description

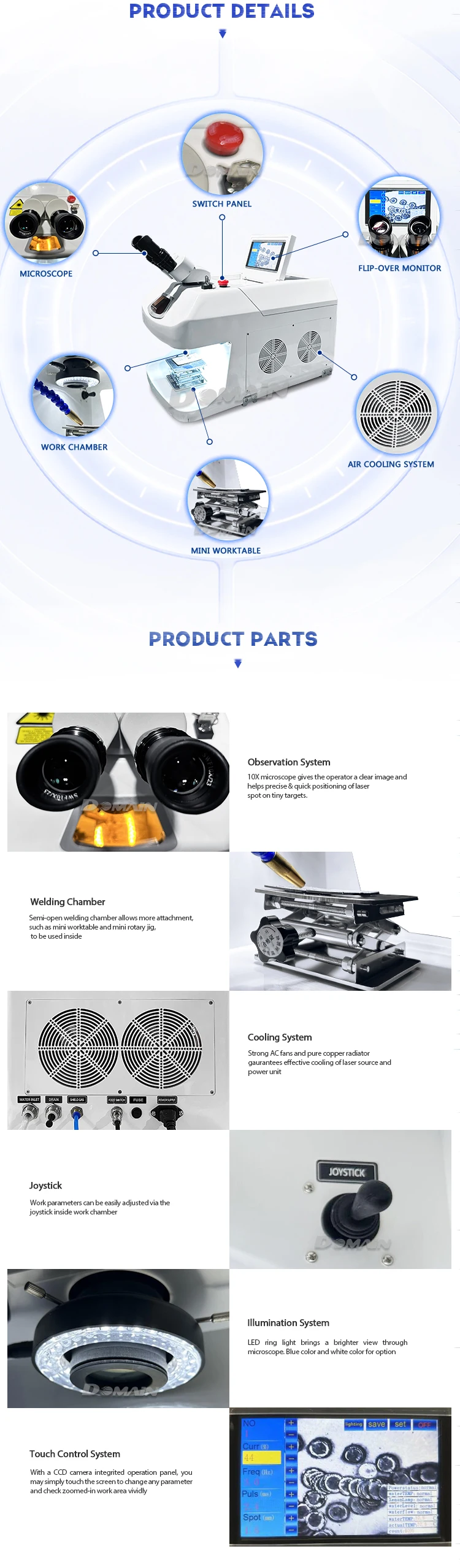

Product Detail

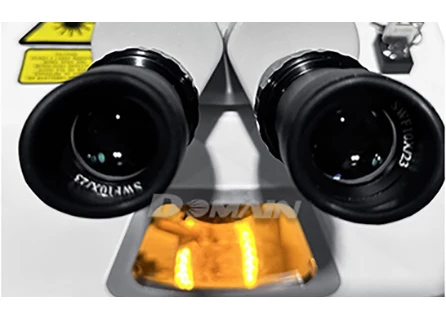

Observation System
10X microscope gives the operator a clear image and helps precise & quick positioning of laser spot on tiny targets.
Welding Chamber
Semi-open welding chamber allows more attachment, such as mini worktable and mini rotary jig, to be used inside

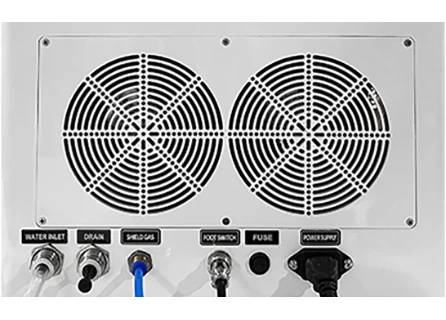

Cooling System
Strong AC fans and pure copper radiator gaurantees effective cooling oflaser source and power unit

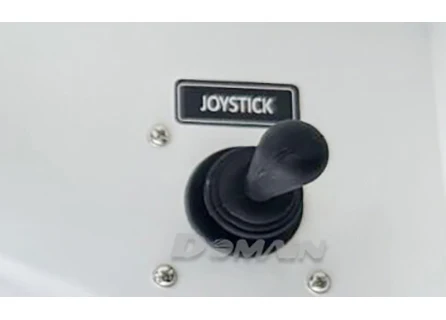

Joystick
Work parameters can be easily adjusted via the joystick inside work chamber

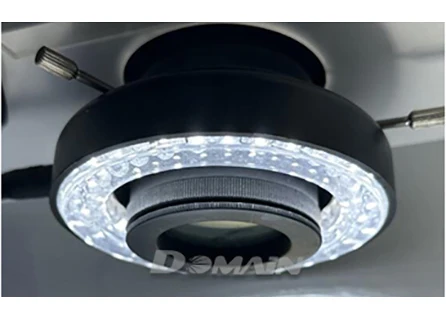

Illumination System
Semi-open welding chamber allows more attachment, such as mini worktable and mini rotary jig, to be used inside

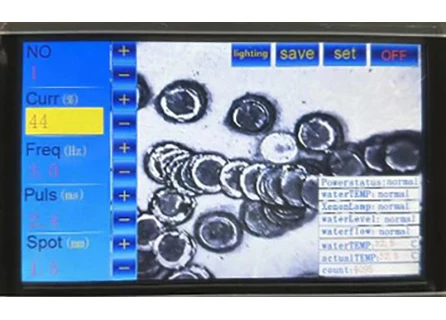

Touch Control System
With a CCD camera integrited operation panel, you maysimply touch the screen to change any parameter and check zoomed-in workarea vividhy
· Energy, pulse width, frequency, spot size can be rapidly adjusted to achieve a variety of welding effects
· Capable of welding 18k gold, copper alloy, zinc alloy, stainless steel, titanium alloy and other metals
· Compact and practical light path design, smallest weight and footprint on market
· The service life of the spotlight cavity is more than 5 years, and the service life of the xenon lamp is more than 6 million times
· The operation interface and observation interface are the same full-color touch LCD screen
· Stainless steel water tank welded by laser can effectively prevent scale from corroding the inner wall of water tank and optical components
· Support 12 hours of continuous work with stable performance, and no lamp replacement required within 8000 hours.
· Human-based design accords with ergonomics, avoiding fatigue after long time working.
· Slight deformation, small heat-effective area, high welding quality, pollution free, eco friendly.
· Capable of welding 18k gold, copper alloy, zinc alloy, stainless steel, titanium alloy and other metals
· Compact and practical light path design, smallest weight and footprint on market
· The service life of the spotlight cavity is more than 5 years, and the service life of the xenon lamp is more than 6 million times
· The operation interface and observation interface are the same full-color touch LCD screen
· Stainless steel water tank welded by laser can effectively prevent scale from corroding the inner wall of water tank and optical components
· Support 12 hours of continuous work with stable performance, and no lamp replacement required within 8000 hours.
· Human-based design accords with ergonomics, avoiding fatigue after long time working.
· Slight deformation, small heat-effective area, high welding quality, pollution free, eco friendly.
Technical Parameter

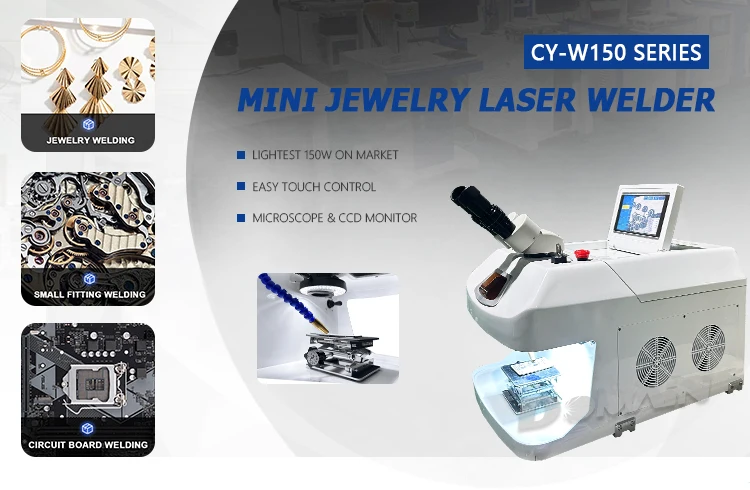

Model No. | CY-W150 | ||||
Laser Wavelength | 1064nm | Settings Memory | 10 groups | ||
Laser Power | 150W | Protection Alert | flow alert | ||
Energy Stability | ±5% | Language Display | Chinese/English | ||
Pulse Width | ≤15ms | Shield Gas Supply | Single line Argon/Nitrogen | ||
Pulse Frequency | ≤10Hz | Cooling System | Forced Air Cooling | ||
Beam Diameter | 0.1-3.0mm | Peak Power Consumption | 3KW | ||
Power Supply | 220V@50Hz /110V@60Hz | Net Weight | 28KG | ||
Observing System | Microscope and CCD both available | Machine Dimensions | 580mm*350mm*340mm (L*W*H) | ||
Chamber Illumination | LED ring lamp | Ambient Environment | 5%-75% humidity | ||
Related Products
Samples Show

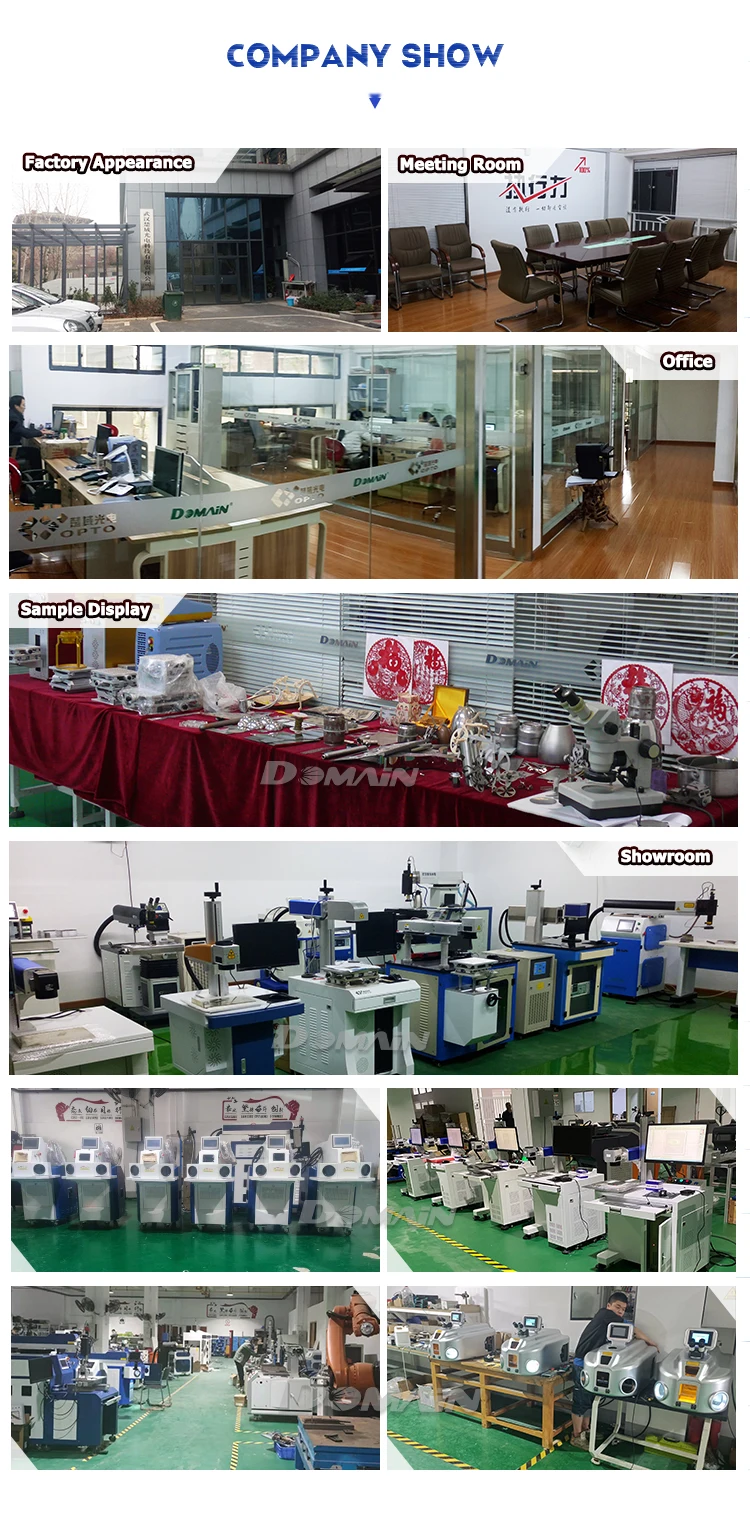

Company Introduction
Packaging and Delivery
FAQ
Q1：What's your warranty policy?
>> We offer 1 year free overall warranty and life-time technical support to our customers .Thorough check will be done with the help of customer when any problem comes out. After professional diagnosis, we will send you any necessary part via international express and guide you how to replace them in the form of image or video. We’ll cover all the expenses relative.
Q2：Is this machine stable to use and is it complicated to maintain?
>> YAG laser welder is already very mature and of cause stable to use after more than 20 years development. It is known as easy operation and easy maintenance. Based on the statistics figure of 2013,our total rework rate is only 0.5% and failure rate only 3%. For daily maintenance, you just need to change the water in the chiller tank every two weeks and do some regular cleaning work.
Q2：How can I do if the machine goes wrong?
>> If happens, you can contact our sales directly. We will offer engineer delivery service.
But, pls don't try to fix the machine by yourself or someone else. We will response within 12 hours as soon as we can do for you!
But, pls don't try to fix the machine by yourself or someone else. We will response within 12 hours as soon as we can do for you!
