Product Overview
Description
Products Description
Based on the Android 14, R330 Plus OS is more fluent and efficient.Work with TMS(Terminal Management System)，private deployment,Central-ized management is easily done
Features：
1.MTK6765 Octa-core CPU 2.3GHz, high-performance, excellent experience.
2.Latest Android 14 OS, Google GMS certified (EEA&ROW), support SoftPOS payment technology debugging.
3.DDR4 3GB RAM+32GB ROM upgrade large memory, high operating efficiency.
4.2.4/5G dual Wi-Fi, dual SIM card, suit for various environments.
1.MTK6765 Octa-core CPU 2.3GHz, high-performance, excellent experience.
2.Latest Android 14 OS, Google GMS certified (EEA&ROW), support SoftPOS payment technology debugging.
3.DDR4 3GB RAM+32GB ROM upgrade large memory, high operating efficiency.
4.2.4/5G dual Wi-Fi, dual SIM card, suit for various environments.
Operating System | Android 14 GMS certified |
Processor | MTK6765, Octa-core, 2.3GHz |
Memory | 3GB RAM+32GB ROM, DDR4 |
Display | 5.5″HD, 1440 * 720, capacitive Multi-touch |
Camera | Rear: 5.0 MP auto-focus with flash LED, support 1D/2D |

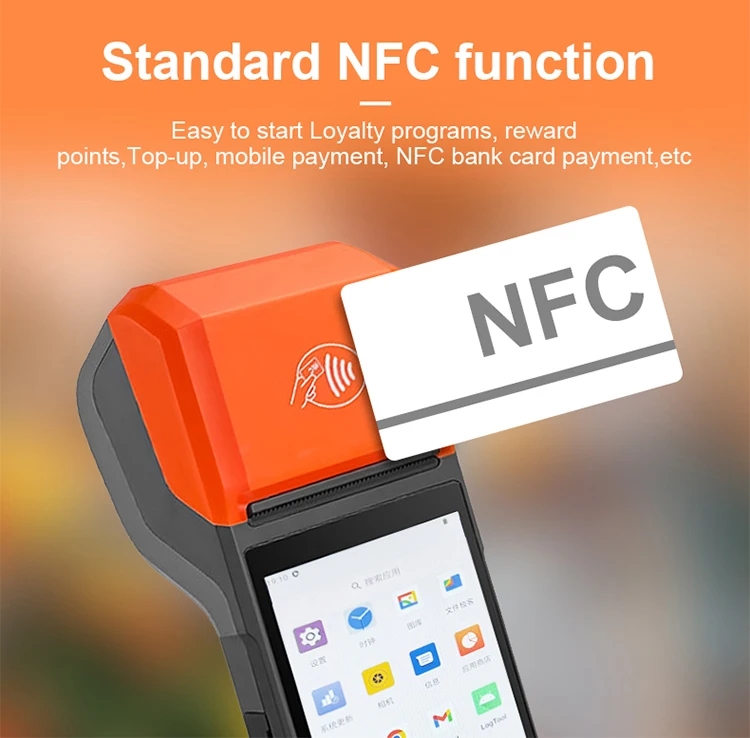

NFC Reader（Standard） | Type A&B card, Mifare card, Felica card ISO/IEC 14443 and ISO 15693 complaint |

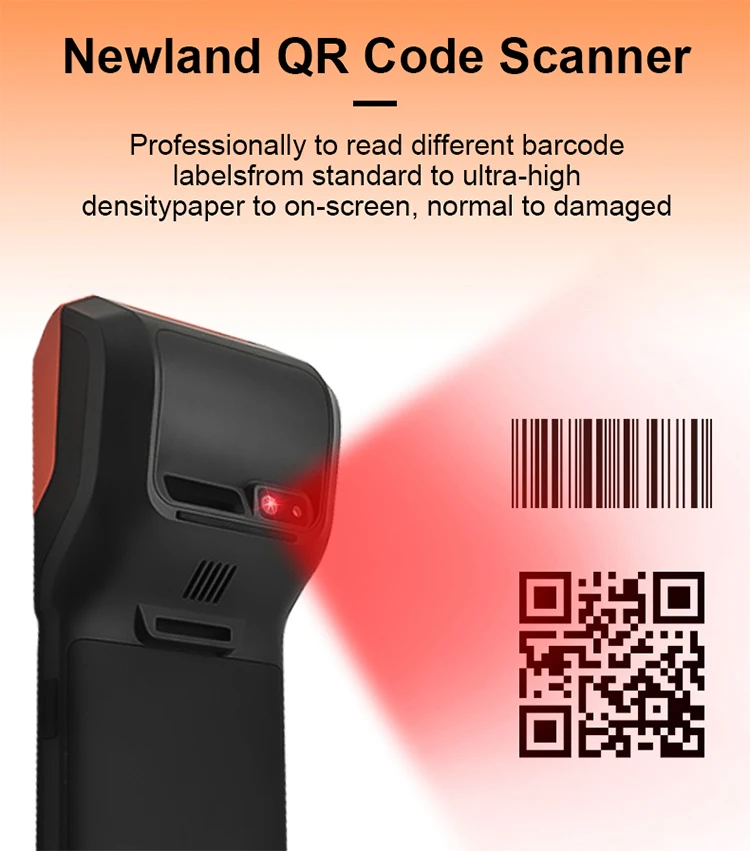

Scanner (optional) | Newland 1D&2D barcode scan module, support 1D/2D scan |

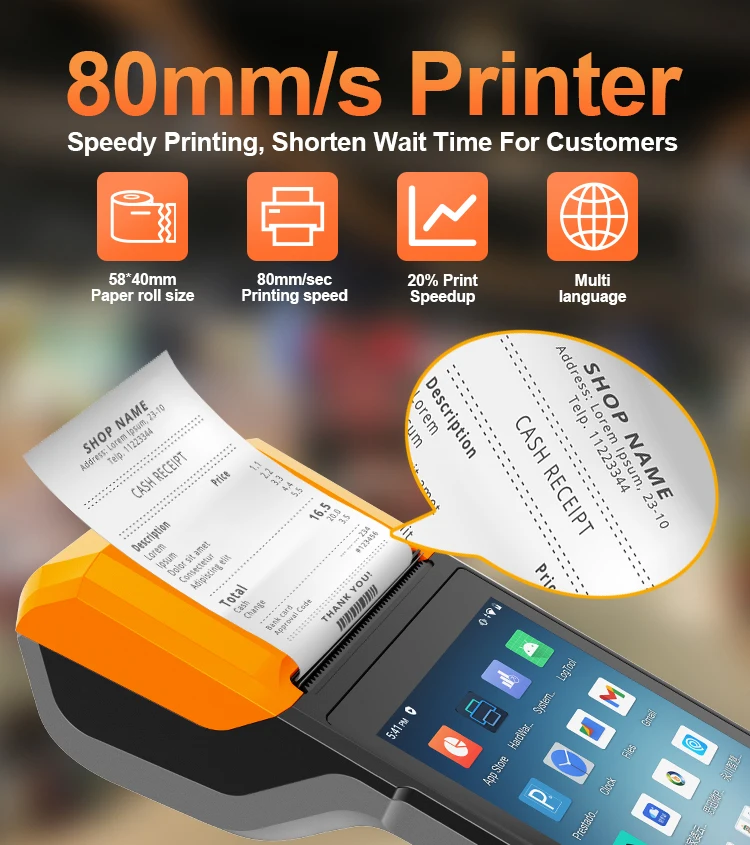

Printer | Built-in 58mm thermal printer Printing speed up to 80 mm/s Paper roll: 58 * 40 mm |
Battery | Removable, polymer lithium-ion battery 7.7V 3000mAh (equal to 3.85V 6000mAh) TUV CB Safety verify |
Certificates | CE/FCC/ROHS/GMS |
Network | 2G&3G&4G network 2G/GSM: B2/B3/B5/B8 3G/UMTS (WCDMA): B1/B2/B4/B5/B8 4G/TD-LTE: B38/B39/B40/B41 4G/FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
Card Slots | 1 * Nano SIM+ 1 * Micro SIM card slot 1 * Micro SD expand card slot |
Wi-Fi | 2.4G/5G IEEE 802.11 a/b/g/n/ac |
Bluetooth | BT 2.1/4.2/5.1 |
Speaker | 1 * 1W |
GPS | GPS& AGPS |
Interface | 1 * Type-C, support OTG |
Power Adapter | Input: AC 100~240V Output: DC 5V/2A |
Working Environment | Working temperature: -10~50℃ Storage temperature: -20~60℃ |
Body Dimension | 219 (L) * 80 (W) * 17.9 (H)mm NW (with battery): 345g |
Package Size | Single box: 23 * 9 * 6cm, GW: 0.65kg Package list: Adapter * 1, Type-C * 1, Thermal Paper Roll 58 * 40 * 1, Manual * 1. Carton Size: 32 * 24.5 * 21 cm GW: 6.8kg (10 pcs) |
Accessories Optional | Tempered Screen protector, Hand Strap, Silicone Case Bag |
Features:
1. Slim body：
Large "core" and dirty: The new generation handheld POS flagship configuration has a larger screen, stronger core, and longer battery life;
2. Based on the Android 13 deeply customized OS, process system, and more
worry free ecological adaptation - special selling points, there is currently no Android 13 handheld terminal product in the market;
3. Starting from the product structure design, moisture-proof and splash-proof
measures should be taken, and the rear shell should not be tightened with a single screw; Key interface, incorporating rubber plug design to prevent water and oil stains from entering the equipment - special selling point;
4. Equipped with a free remote terminal management system, hardware
dynamic viewing and monitoring, multi-level account classification management, exclusive application store, customized software deployment, handy - special selling points;
5. Dual band WiFi, 4G band full coverage, no distinction between Europe and Asia, supporting multiple languages;
6. Upgrade the optional QR code scanning module to support one-dimensional
and two-dimensional scanning, making checkout and settlement more efficient; Upgrade and select 3+32 large memory for a more user-friendly process experience
1. Slim body：
Large "core" and dirty: The new generation handheld POS flagship configuration has a larger screen, stronger core, and longer battery life;
2. Based on the Android 13 deeply customized OS, process system, and more
worry free ecological adaptation - special selling points, there is currently no Android 13 handheld terminal product in the market;
3. Starting from the product structure design, moisture-proof and splash-proof
measures should be taken, and the rear shell should not be tightened with a single screw; Key interface, incorporating rubber plug design to prevent water and oil stains from entering the equipment - special selling point;
4. Equipped with a free remote terminal management system, hardware
dynamic viewing and monitoring, multi-level account classification management, exclusive application store, customized software deployment, handy - special selling points;
5. Dual band WiFi, 4G band full coverage, no distinction between Europe and Asia, supporting multiple languages;
6. Upgrade the optional QR code scanning module to support one-dimensional
and two-dimensional scanning, making checkout and settlement more efficient; Upgrade and select 3+32 large memory for a more user-friendly process experience
Related Products
Company Profile
Recommend Products
Certifications
Package & Shipping
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 14+ years. We can provide OEM / ODM customized service according to our customers’ various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4.What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales
department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing. By Sea: Inform us the Sea Port to check which ship line.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4.What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales
department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing. By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight. Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
