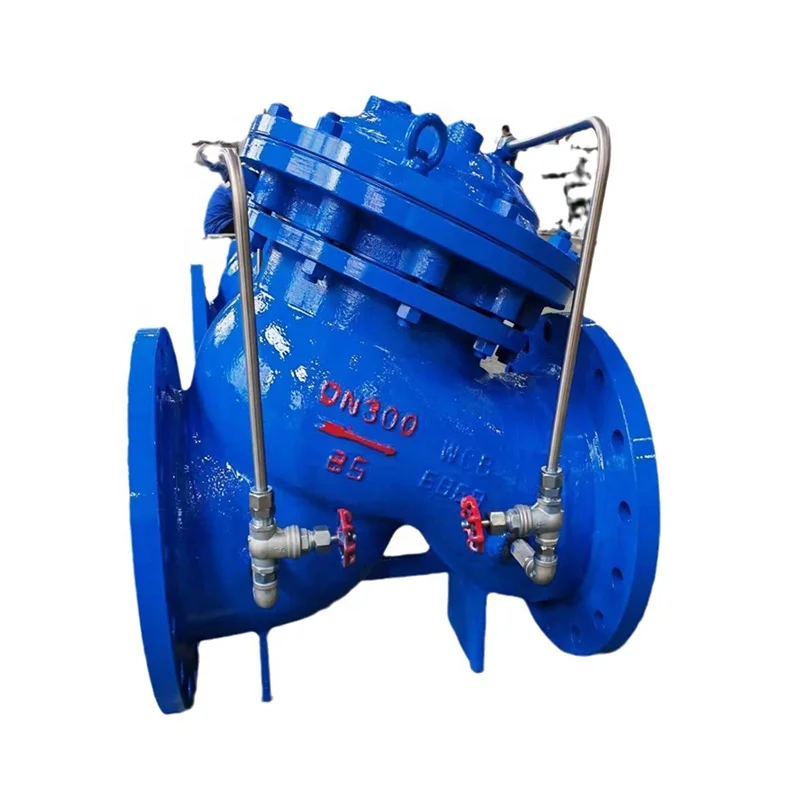

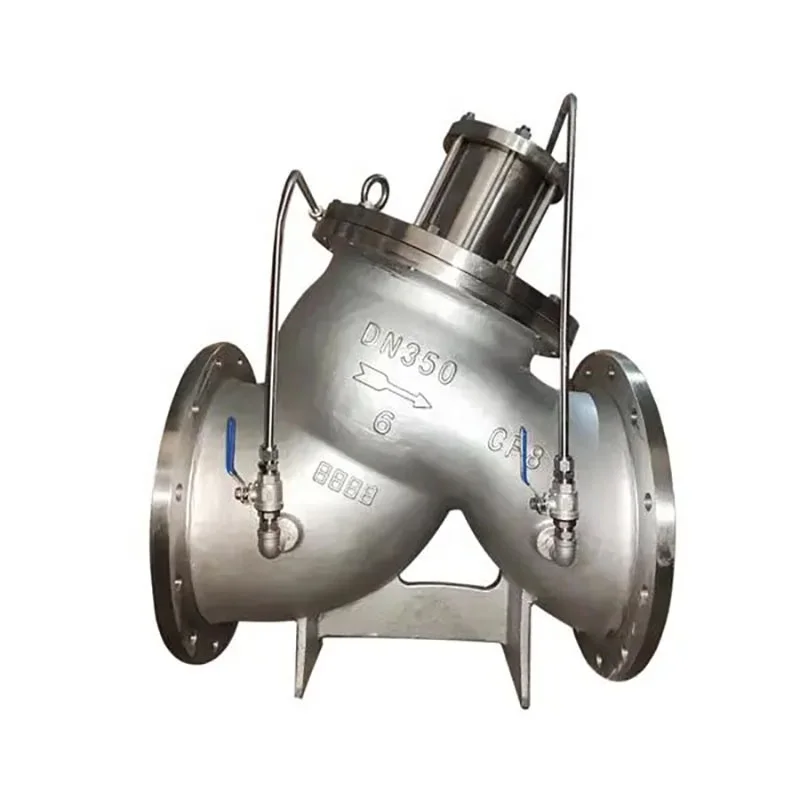

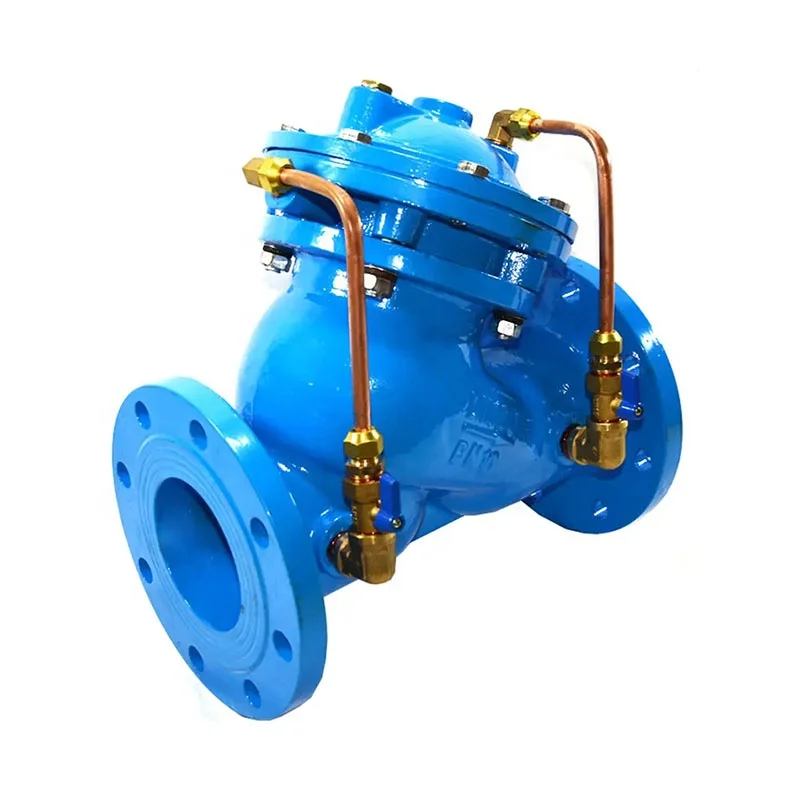

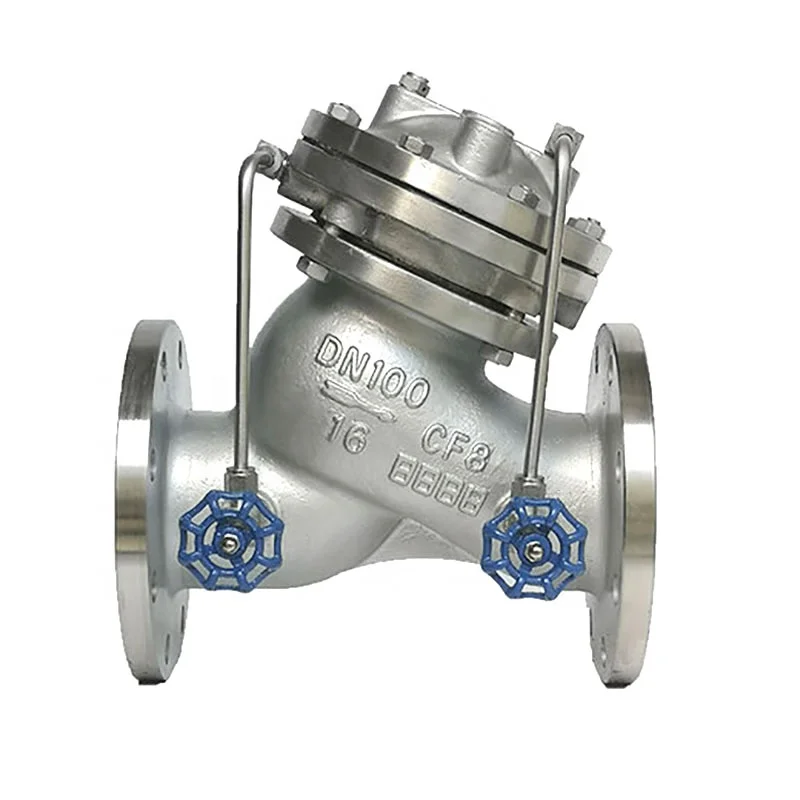

Flange End Multi function Water Pump Control Valve
- Category: >>>
- Supplier: Henan Haoyuan Intelligent Water Co. Ltd.
Share on (1601113671244):
Product Overview
Description
Flange End Multi-function Water Pump Control Valve
Main technical parameters
| Nominal pressure | PN10/PN16/PN25/PN40/125LB/150LB |
| Flange connection standard | GB/T17241.6, GB/T9113-2010, EN1092-2, ANSIB16. 10 |
| Test standard | GB/T13927-2008, API598 |
| Applicable media | Water, oil, gas, etc |

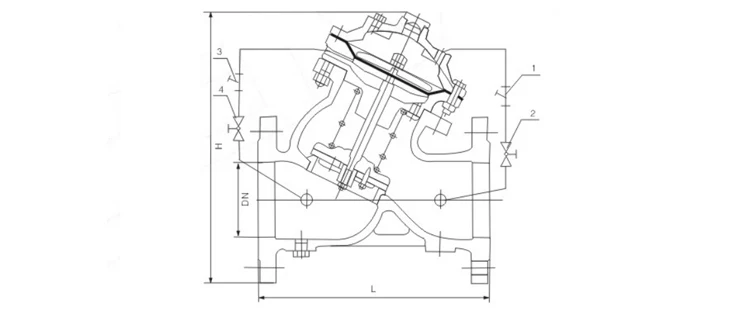

Product structure diagram
Maximum pressure conditions
| Size | Max pressure (bar) | Min/Max Temp (℃) | Test Pressure (bar) | |
| Shell | Seat | |||
| DN50-DN600 | 10.0/16.0 | -10℃ +100℃ | 15.0/24.0 | 11.0/17.6 |

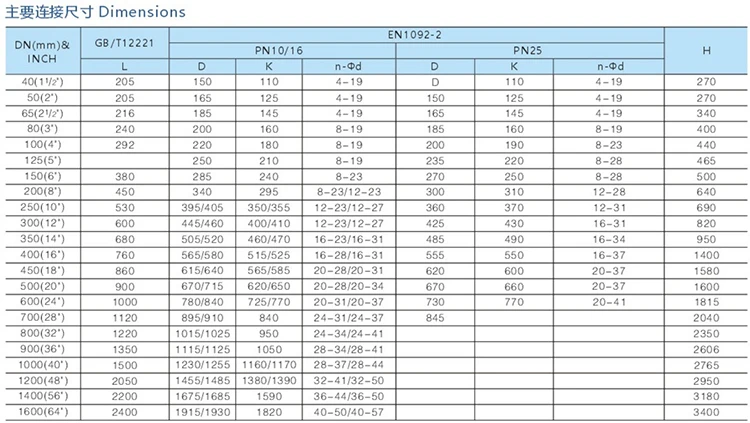

Dimensions
FAQ:
Q. Can I have my own Logo on the product?
A: Yes, OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
