Connection Buoy Type Oxygen Inhaler Hospital Bull Nose Medical Oxygen Pressure Regulator With Humidified Bottle for BOC Cylinder
- Category: >>>
- Supplier: Ningbo Kimpin Industrial Pte Ltd.
Share on (1601113813036):
Product Overview
Description

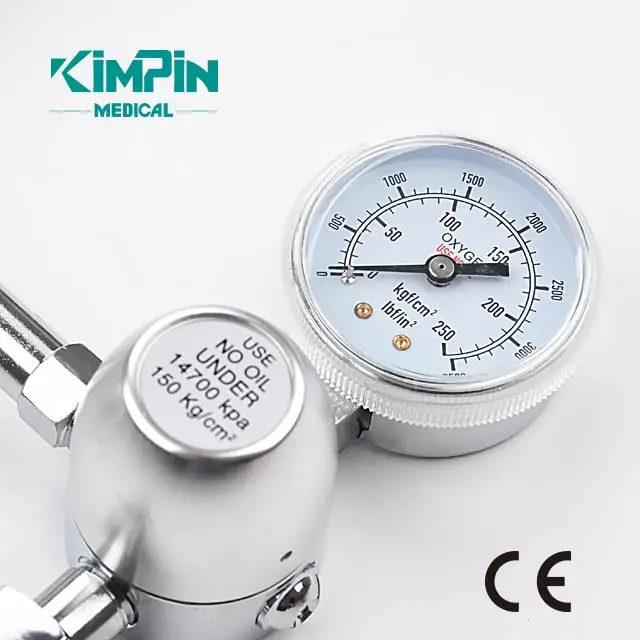

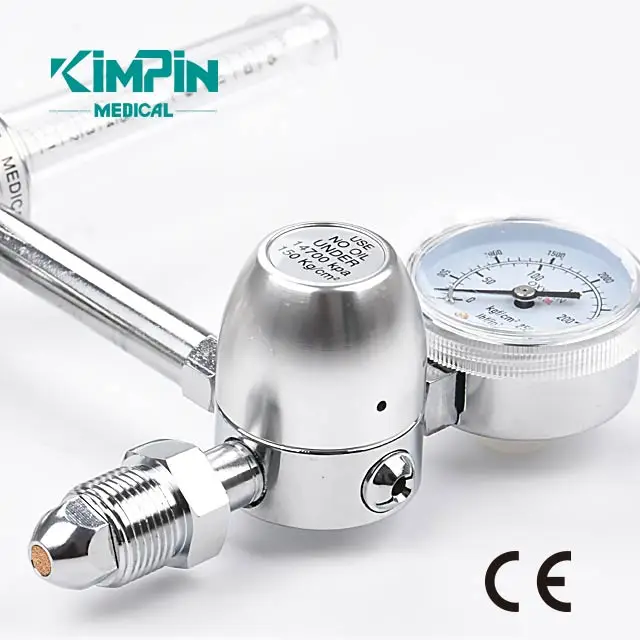

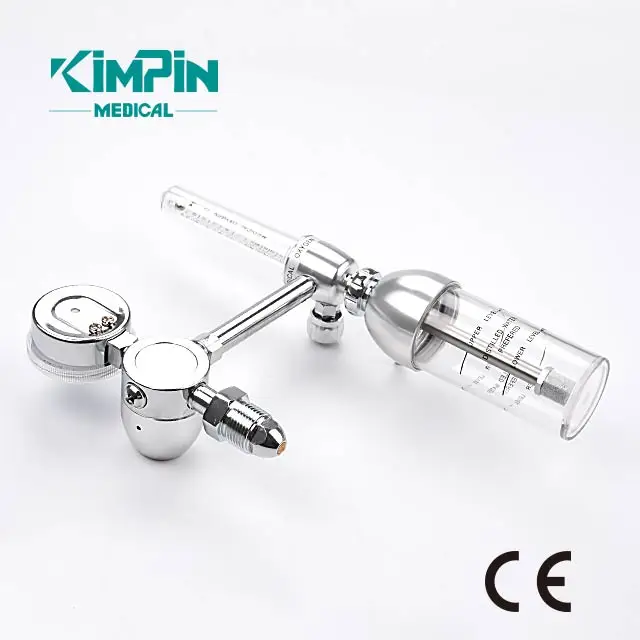

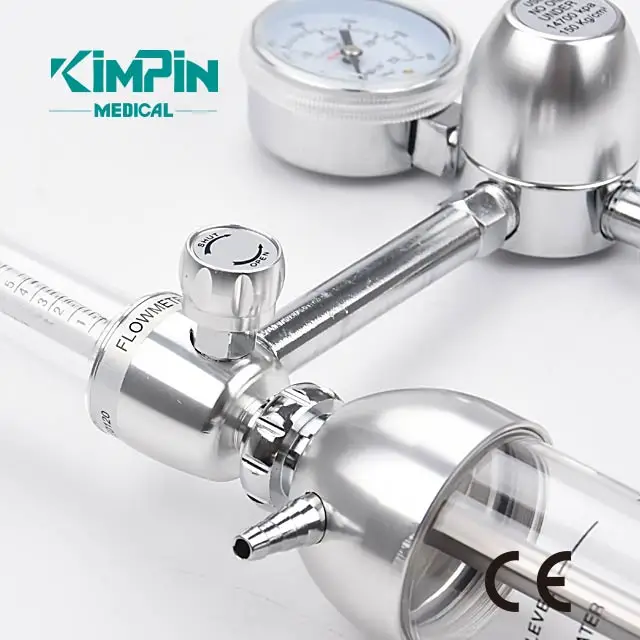

Connection Buoy Type Oxygen Inhaler Hospital Bull Nose Medical Oxygen Pressure Regulator With Humidified Bottle for BOC Cylinder
Medical oxygen regulator YR-86 Series
The Oxygen Regulator is designed to reduce the pressure and Control the flow of oxygen from an oxygen cylinder or tank.
The regulator uses its own pressure reducing device to reduce the oxygen pressure from the oxygen cylinder to a lower level(0.2~0.3Mpa),Which can be safety used by the patient,and then output the oxygen after being moistened by water.
Oxygen regulators are used to provide oxygen to patients who need to increase oxygen levels to improve their breathing conditions.
1. Brass body with chrome plated.
2. Easy to read dual scale gauge with screw-on polycarbonate lens for durability.
3. Precision engineered pressure compensated design flowmeter for precise flow.
4. Flowmeter with easy to read tube and virtually unbreakable transparent polycarbonate outer cover for strength and 360 visibility.
5. sintered metal inlet filter to trap impurities.
6. Reliable external safety relief valve.
7. Flow range:0-15LPM/0-10LPM.
8.3000PSI maximum inlet pressure.
9.CE listed.
YR-86 Series Table
| Modeel Number | Humidifier Bottle(Ml) | Inlet Pressure(MPa) | Metering Range(L/min) | Inlet Connection | Outlet Connection Size | Outlet Pressure (MPa) | Accuracy of Flowmeter |
| YR-86-1 | 140 150 200 | 15 | 0-10 0-15 | G5/8-14-RH(Male/Female) CGA540-RH G3/4-14-RH-Female CGA870 Frame W21.8-14 Femal | Hose Barb 6-8mm | 0.2-0.3 | Class4 |
| YR-86-2 | |||||||
| YR-86-4 | |||||||
| YR-86-7 | |||||||
| YR-86-10 | |||||||
| YR-86-12 | |||||||
| YR-86-13 | |||||||
| YR-86-16 | |||||||
| YR-86-17-B | |||||||
| YR-86-18 | |||||||
| YR-86-11-B |
| Carton size | N.W./G.W. | Packing |
| 52*34*23cm | 9.1/10kg | 1pc/box 10pcs/ctn |
Company Information
About KIMPIN MEDICA
As a manufacturer of medical devices of various gas and respiratory products, KIMPIN MEDICAL has been the trusted brand for patients, nursing staff,doctors and healthcare professionals.
We manufactures a series of premium quality medical items such as medical regulators,flow meters and supplies oxygen concentrator, nebulizer and medical consumables.
With products proudly made in the China, KIMPIN MEDICAL works to accelerate innovation and develop solutions of oxygen,N2O and air supply We have high quality products with CE certificate and also have economical products as per Chinese Medical Standard to meet the requirements from different customers all around the world.
Full of enthusiasm and hope, we protect a healthy environment where enterprises, society and people grow together.
FAQ
1. Q: Are you manufacturer or trader?
A: We are the most professional manufacturer in China for medical equipment. We have one factory producing medical regulators, and another factory producing oxygen concentrator & air-compressing nebulizer.
2.Q: Do you have CE?
A: yes we have CE for some producing.
3. Q: what is your quality control system?
A:Our factory had passed ISO 9001. And we are using ERP management system for 3 years already. 100% product is tested as the standard testing procedure before leaving our factory.
4. Q: What’s the delivery time?
A: Usually it takes 30-35 working days after customer confirms the order.
5. Q: What'S your warranty terms ?
We offer 1 year warranty for materials for all our products For quality problem.
6. Q: About OEM ?
A: OEM is welcome, special packing design free.
