Customize 11KW 11000watts 48v watt pure sine wave inverter lCD display wifi remote solar inverter high frequency 8KW
- Category: >>>
- Supplier: Guangdong Techfine Electronic Co. Ltd.
Share on (1601113894545):
Product Overview
Description
Products Details
Product Parameters
Model | GA8048JMH | GA11048JMH | |
Nominal Voltage | 220/230/240VAC | ||
Voltage Range | 90-280VAC3V(Inverter Mode) 170-280VAC3V(UPSMode) | ||
Frequency | 50-60Hz Auto sensing | ||
Rated Output Power | 8000W | 11000W | |
Output Voltage(Ac) | 220/230]240VAC±5% | ||
Output Frequency | 50/60Hz±0.1% | ||
Waveform | Pure sine wave | ||
Transfer time(AC to DC) | 10ms for Computer Equipment, 20ms for Household Equipment | ||
Peak Power | 16000VA | 22000VA | |
Overload Capacity(Battery Mode) | 21s@105%~150%Load； 11s@150%~200%Load； 400ms@>200%Load | ||
Peak Efficiency(Battery Model) | 98% | ||
Norminal Voltage | 48VDC | ||
constant charging Voltage | 56.4VDC | ||
Float Charging Voltage | 54VDC | ||

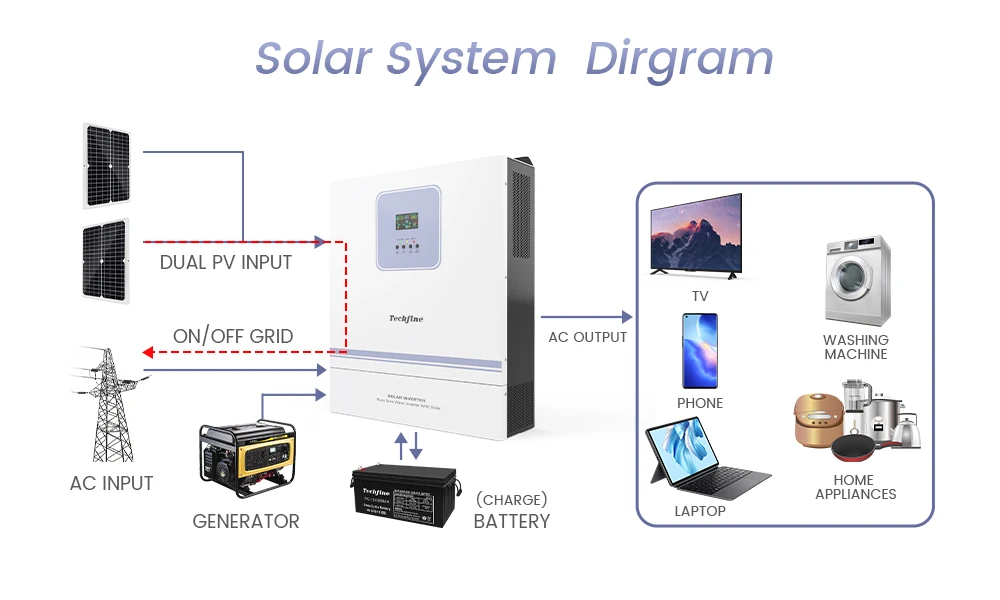

Pv Charging Way | MPPT | ||
Max PV Input Power | 2*4000W | 2*5500W | |
MPPT Controller Voltage | 90-500VDC | ||
MAX PV Input Voltage | 500VDC | 500VDC | |
MAX Pv Charge Current | 120A | 150A | |
MAX AC Charge Current | 60A | 60A | |
MAX Charge Current | 120A | 150A | |
LCD Display | AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage. Output Frequency, Battery Voltage,Load Current,etc. | ||
RS232 | 5PIN/Pitch2.0mm | ||

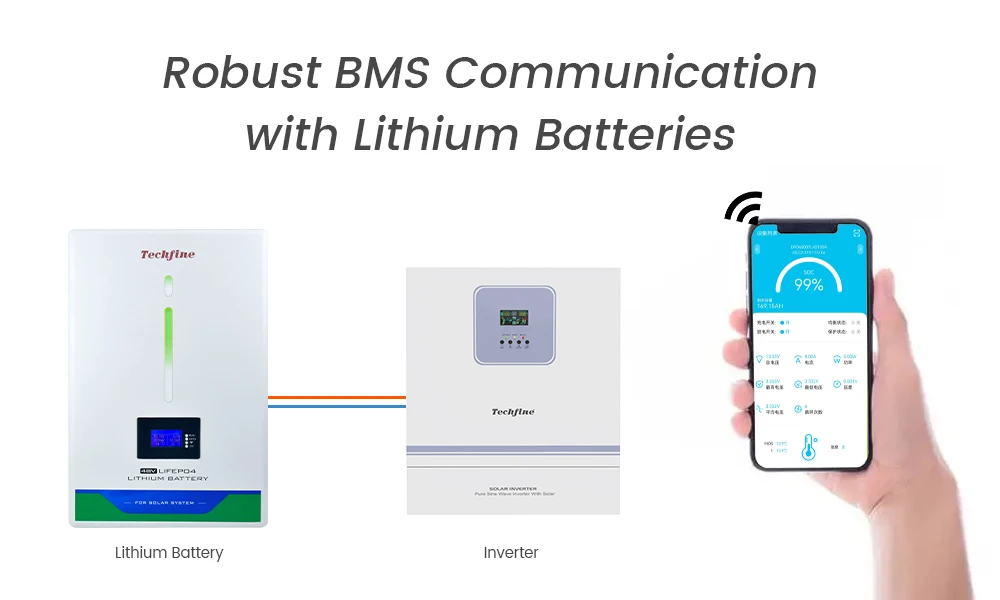

Expansion Slot Communication Interface | 2x5PIN/Pitch2.54mm，Lithium battery BMS communication card、WIFl,etc | ||

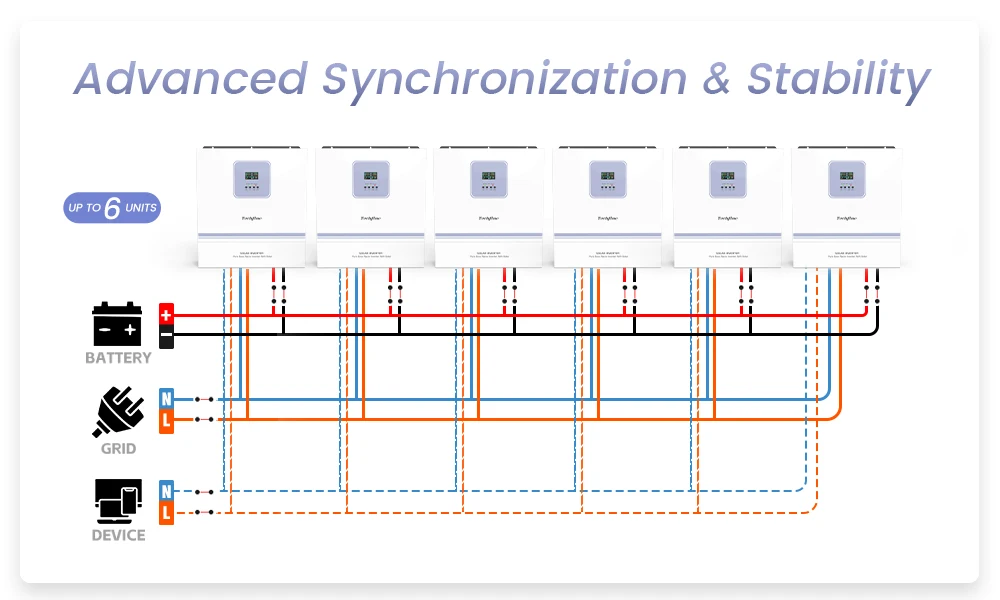

Parallel Interface | Yes | ||
Operating Temperature | 0-40°C | ||
Humidity | 20%~95%(Non-condensing) | ||
Storage Temperature | -15~60°C | ||
Altitude | <1000m | ||
Noise(dB) | ≤50db | ||
Company Profile
FAQ
Q1：May I take some samples to test before placing the order ?
A1：Yes, welcome to take some sample to test!
Q2：How about the delivery time?
A2：7 days for sample; 25 days for bulk order.
Q3：What payment methods do your company support?
A3：T/T, Western Union, Paypal, L/C etc.
Q4：Are you manufacturer or Trader?
A4：We are Focus on Solar Product Manufacturer 20+ years, and we accept OEM / ODM for products.
Q5：What are the price terms can you offer for us?
A5：We can accept EXW, FOB, CIF and so on.
Q6：Do you have any certifications for your products?
A6：We have ISO9001:2000, CE, RoHS, certificates for all of our products.
