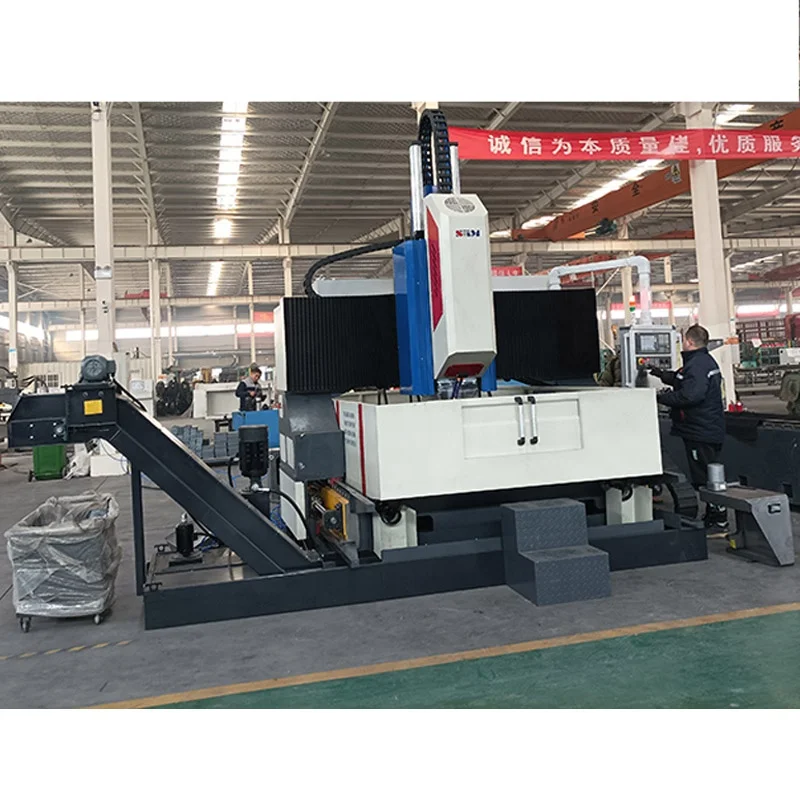

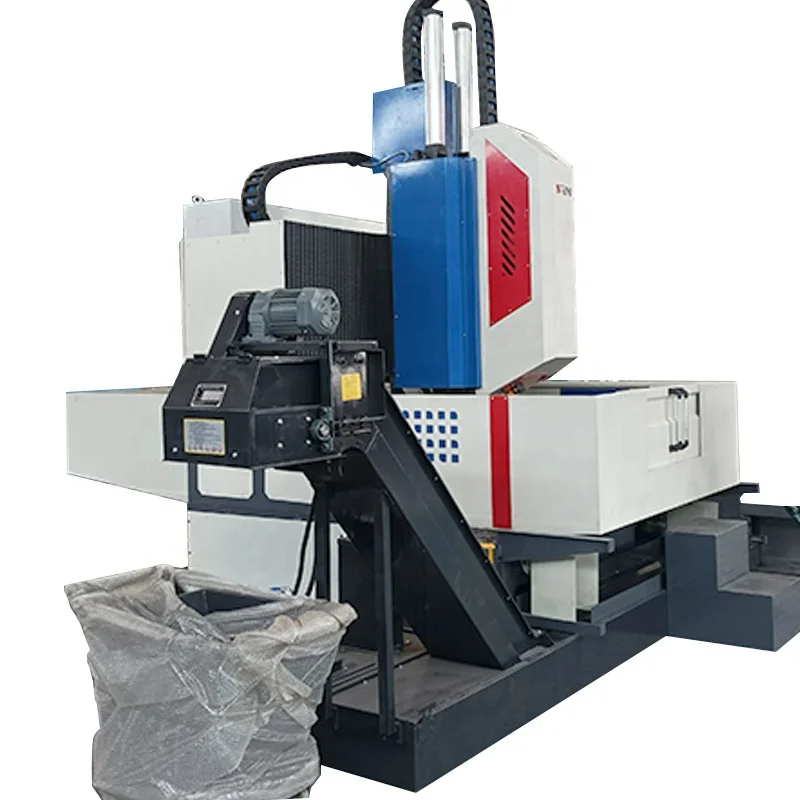

Raintech Machine High Speed PXD Series CNC Drilling Milling Machine With BT50 Spindle
- Category: >>>
- Supplier: SHANDONG RAINTECH SANS TECHNOLOGY CO. LTD
Share on (1601113993149):
Product Overview
Description
Best Price PXD1616 CNC High Speed Flange Drilling Machine With BT40 50 Spindle
Product Description
Advantage and Highlight:
1.Steel plate welded bed workbench.
2.Honeycomb mobile gantry .
3.Double screw synchronous drive system.
4.Servo motor power head.
5.BT40/50 precision spindle.
Product Parameters
Model | PXD1616 | PXD2016 | PXD2020 | ||||
Processing range | LxW(mm) | 1600*1600 | 2000*1600 | 2000*2000 | |||
Max. Thicknesss(mm) | 15-100 | ||||||
Slide Ram type power head | Number of spindle ( pcs ) | 1 | |||||
Spindle model | BT40/BT50 | ||||||
Spindle speed(r/min) | 30-4500 | ||||||
Feed stroke (mm ) | 260 | ||||||
Tapping diameter (mm ) | M20 | ||||||
Motor Power(KW) | Spindle Servo Motor | 7.5/11 | |||||
X axis | 2x2.3 | ||||||
Y axis | 2.3 | ||||||
Z axis | 2.3 | ||||||
Positioning accuracy ( mm) | 0.1 | ||||||
Repeated positioning accuracy ( mm ) | 0.08 | ||||||

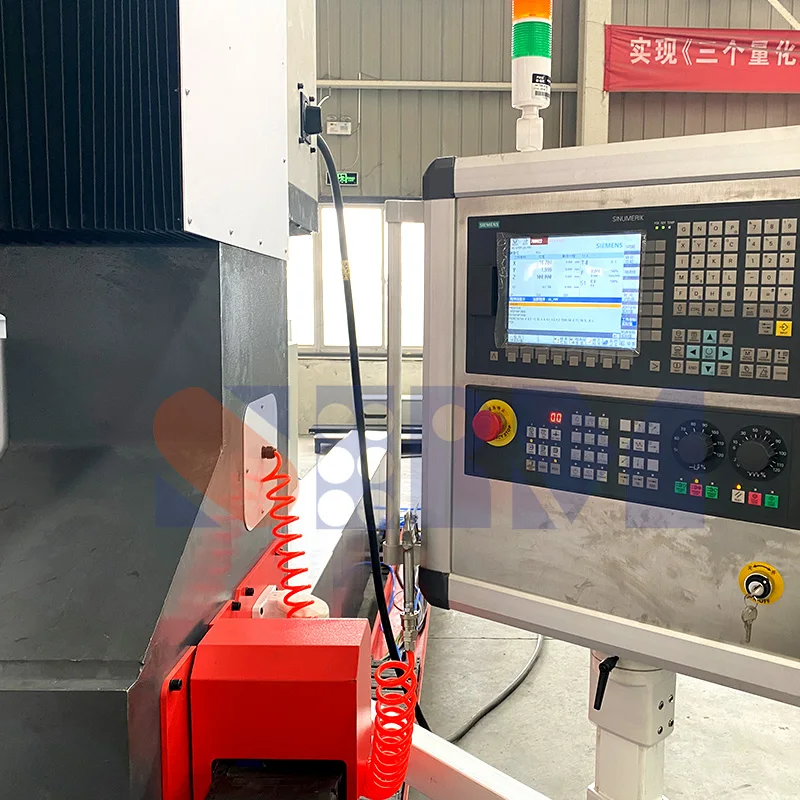

Control method | Siemens 808D CNC system/PLC+host computer | ||||||
Weight (T) | 5.5 | 6.6 | 7.2 | ||||
Dimensions (mm） | 3800x2050x2750 | 4200x2450x2750 | 4200x2850x2750 | ||||

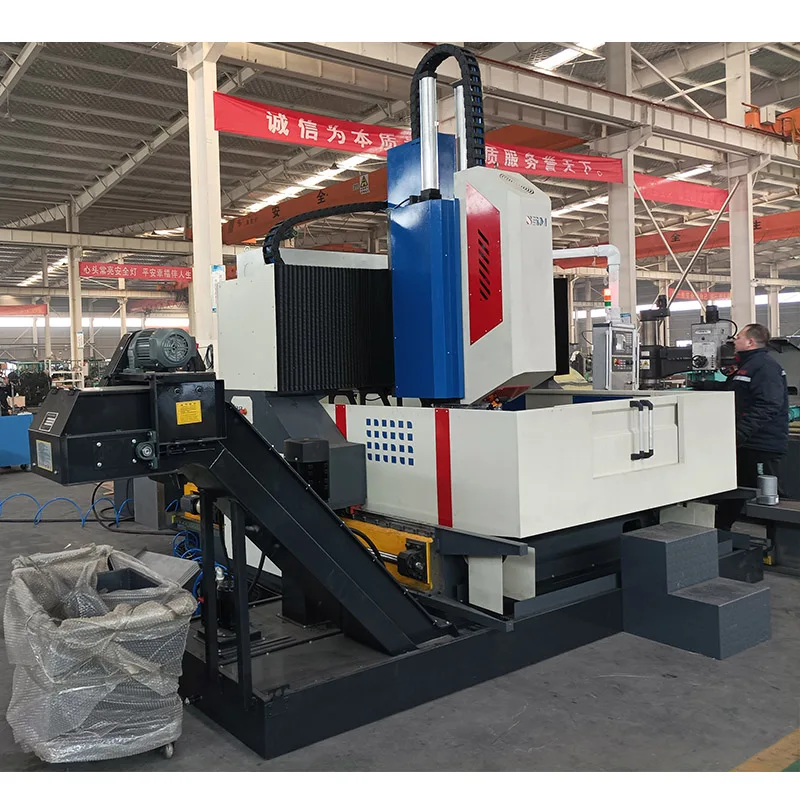

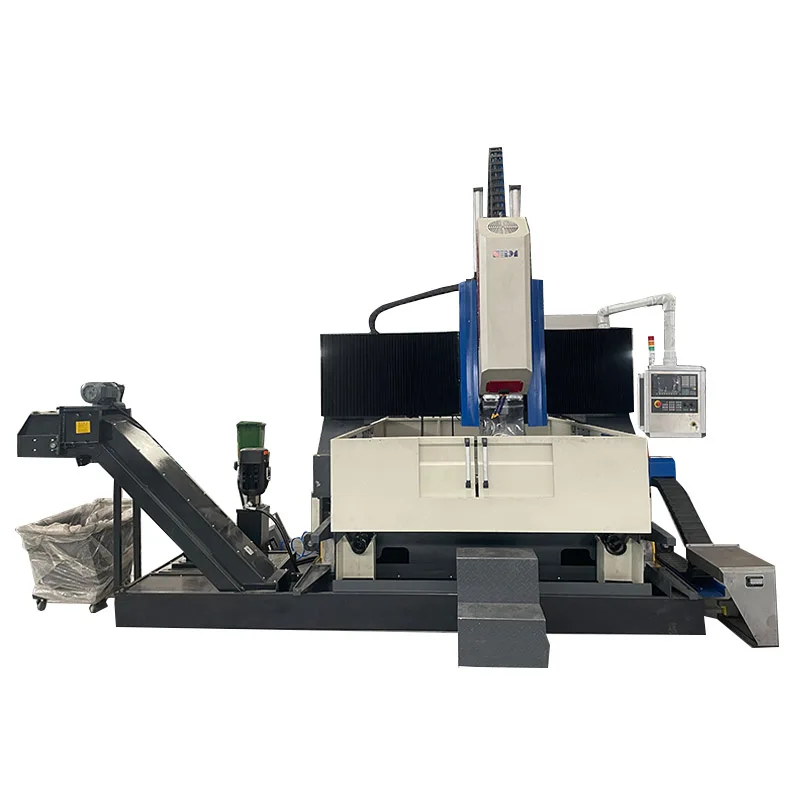

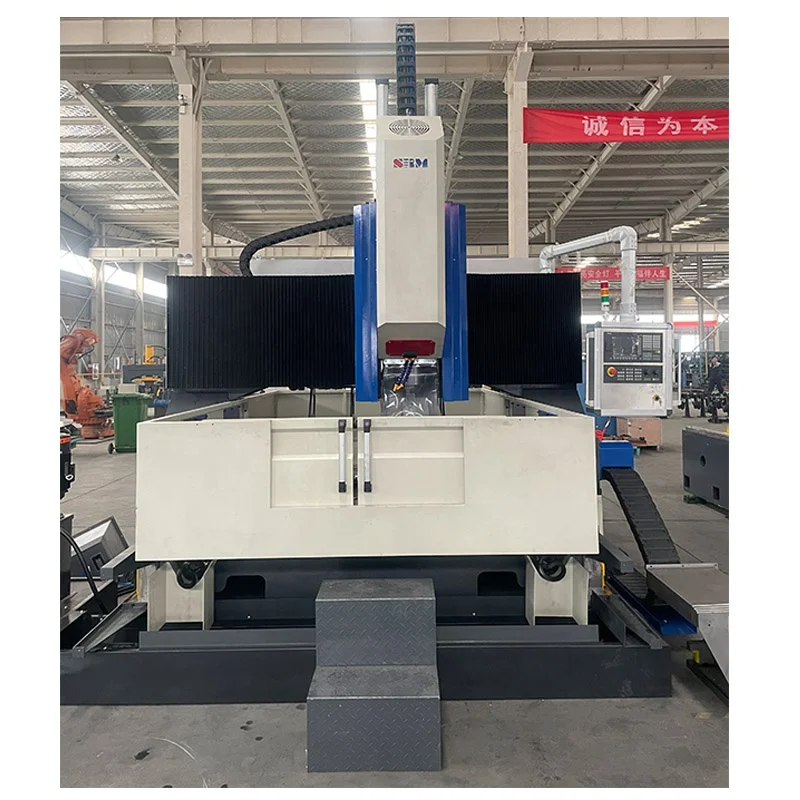

Product Details
The bed&worktable are whole welded by steel plates. In order to eliminate the resonance generated during drilling and prolong the
service life of the alloy drill, the integrated structure of the bed and worktable is adopted.
service life of the alloy drill, the integrated structure of the bed and worktable is adopted.
The drilling coordinates can be directly converted for programming, storage, display and communication.
The movable gantry is welded with high-quality steel plate, honeycomb structure, and the stress is removed by two tempering heat
treatments.
treatments.

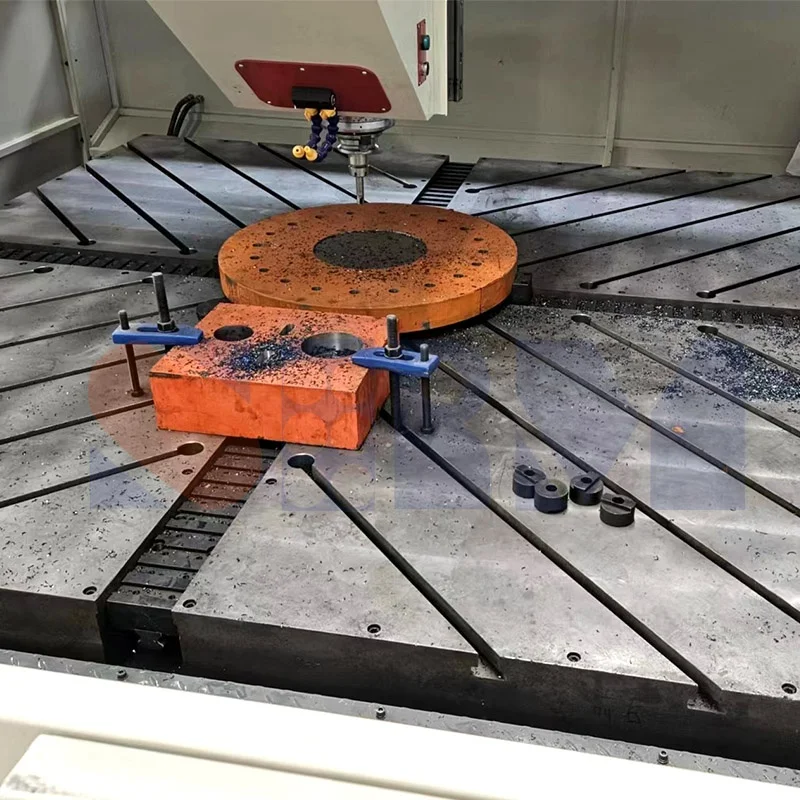

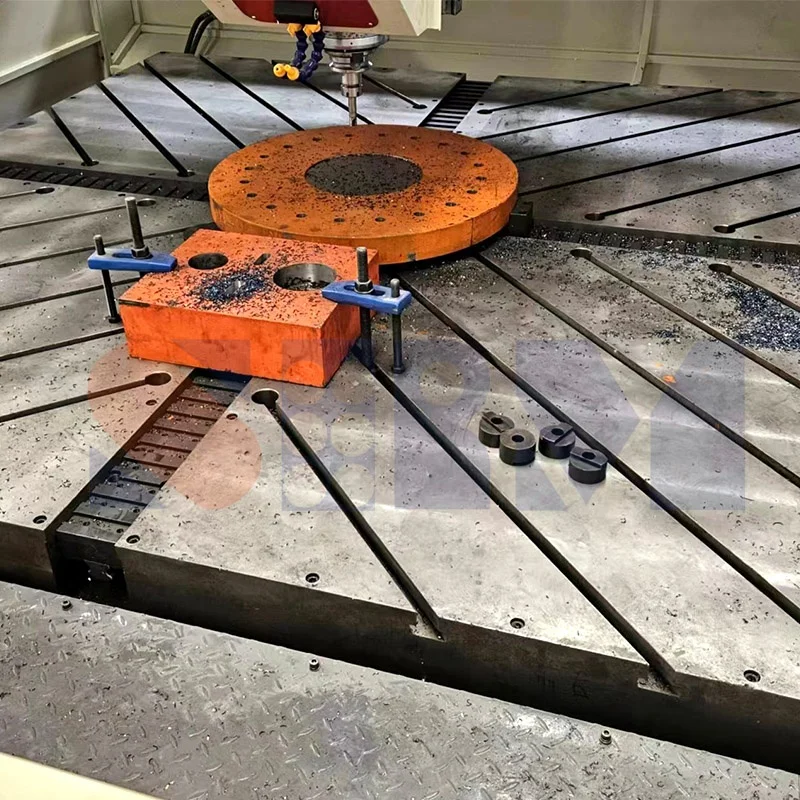

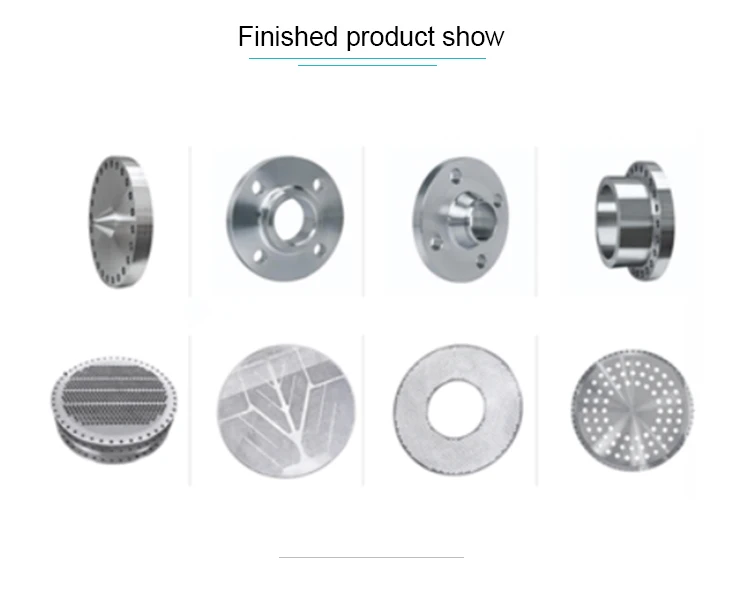

Sample Display
Application

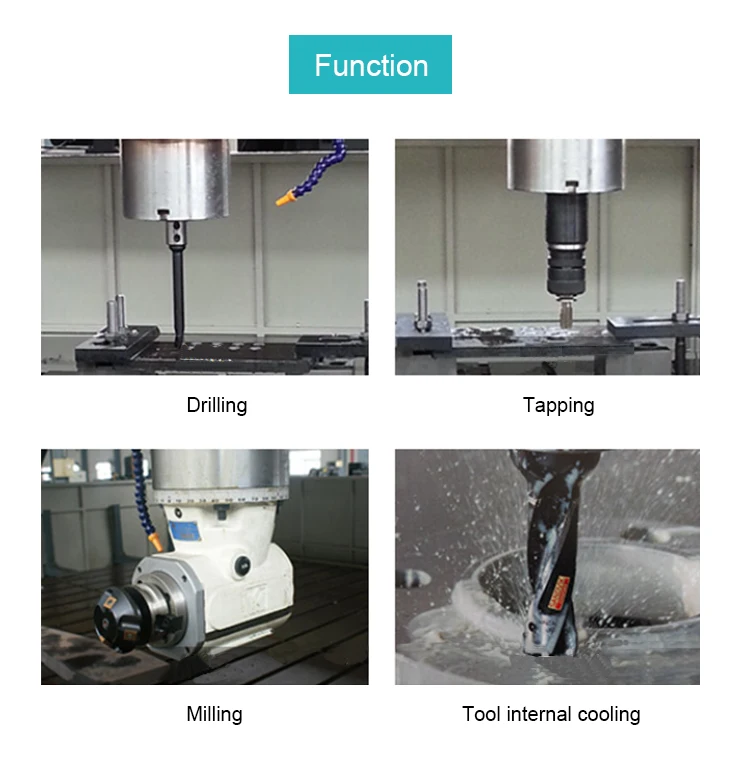

The machine is mainly used for drilling and milling of steel structure,irontower,bridge,
mechanical processing and other industries,such as connectingplate and floor board,drilling and milling of tubes,baffles and flanges inindustries such as boiler petrochemical,pressure vessel and so on; drillingholes,blind holes,step holes,chamfering and light milling.
After-sale Service
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
company introducation
SHANDONG RAINTECH SANS TECHNOLOGY co., LTD

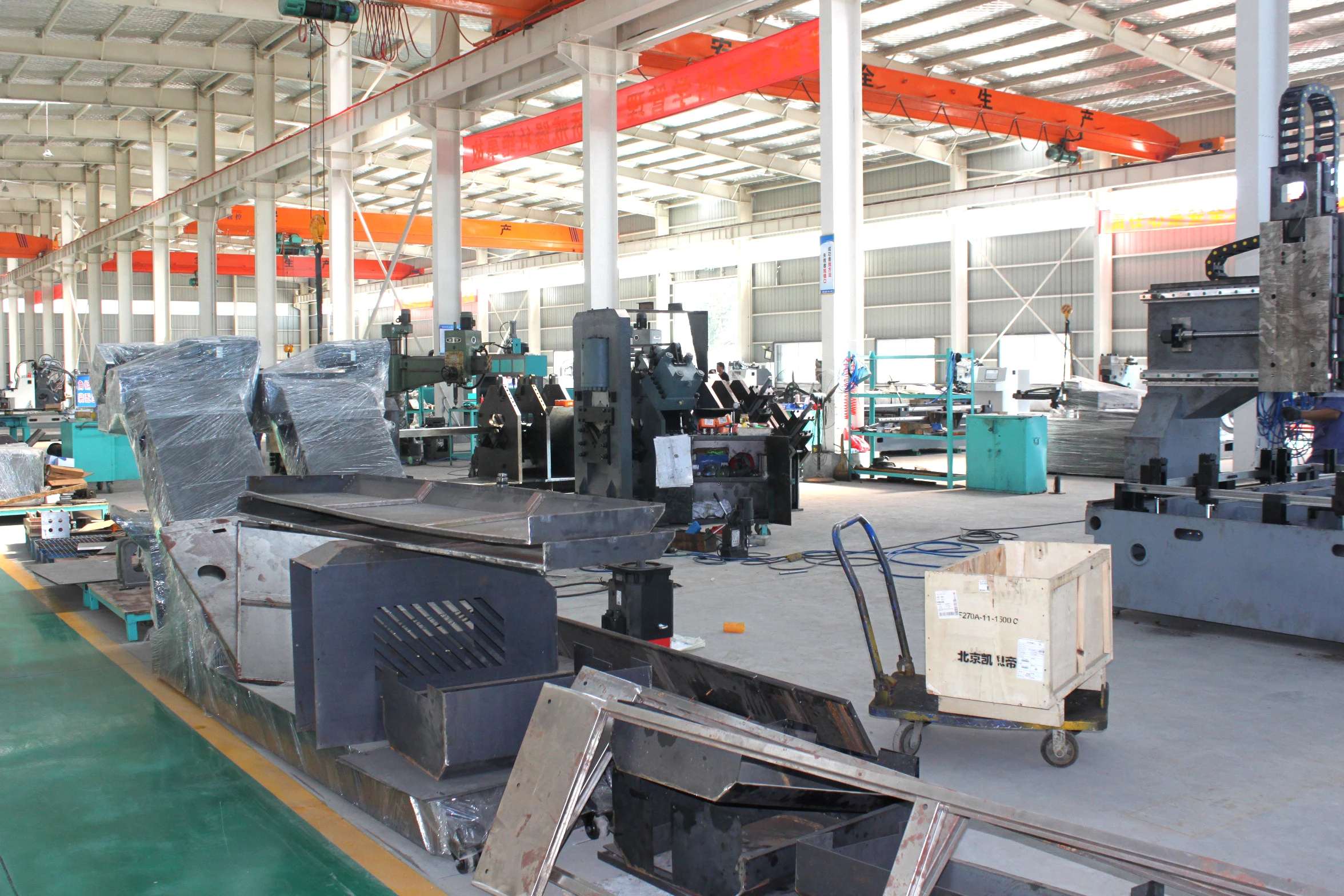

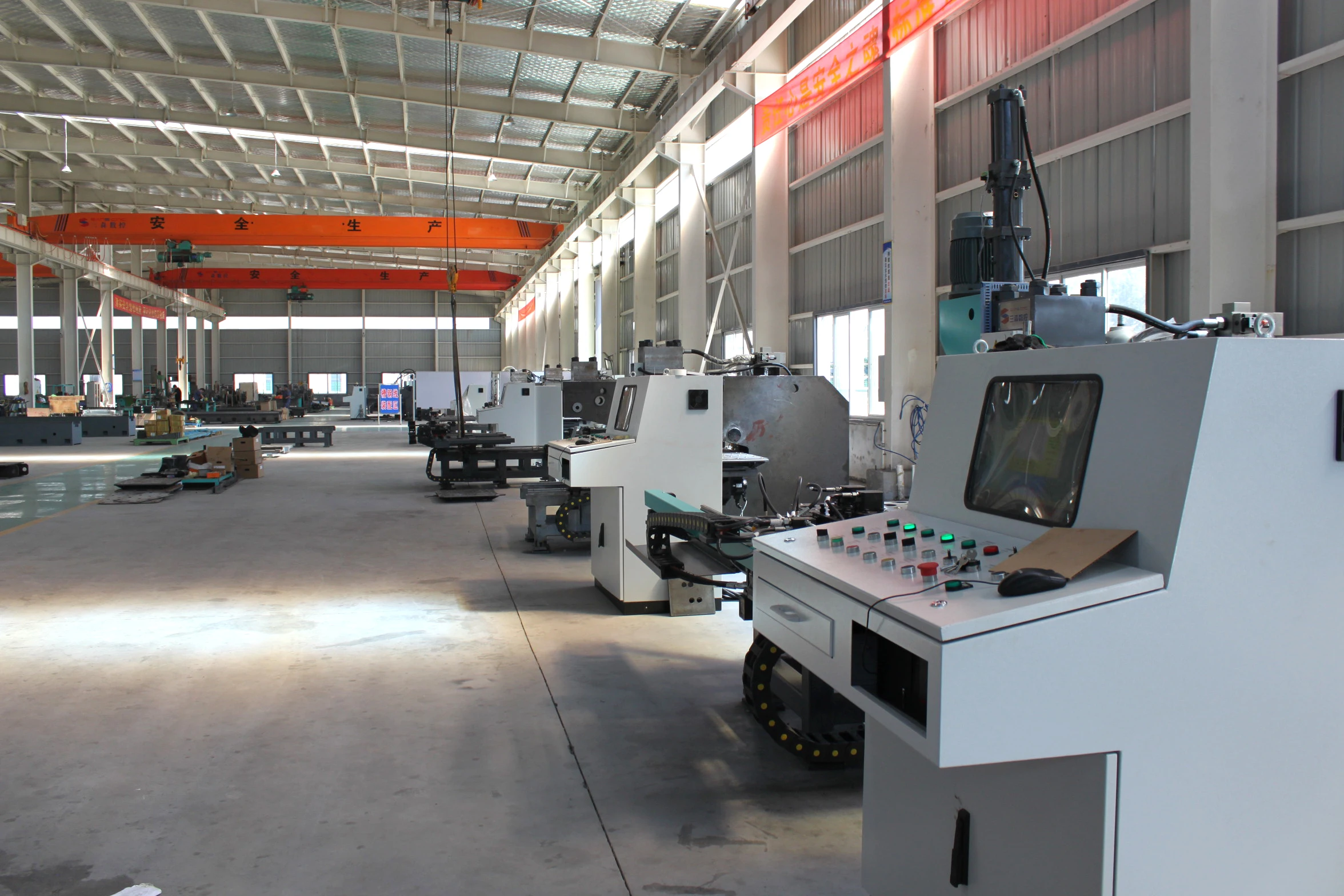

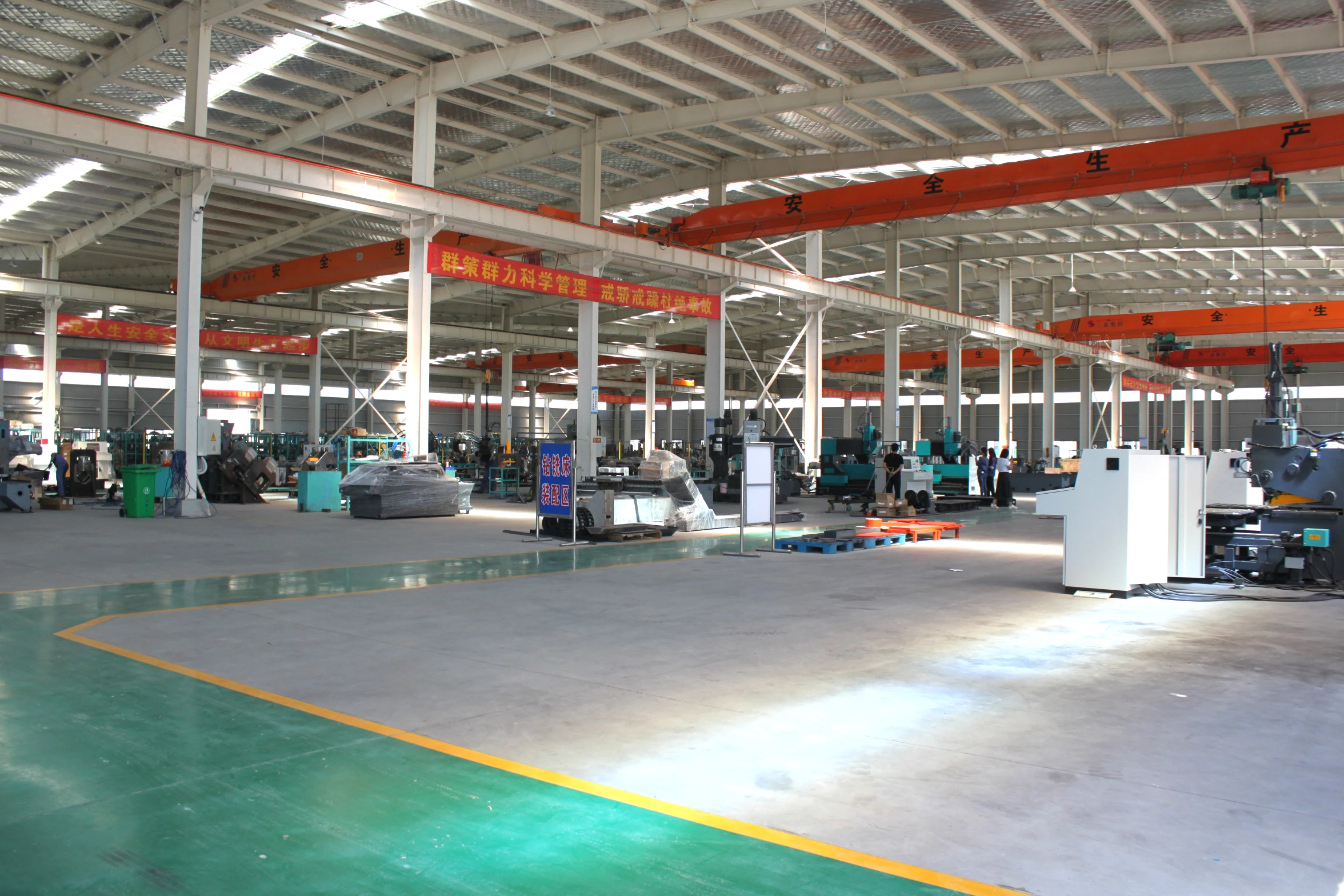

It is a professional group for CNC machines with more than 13 years experience. Plant now covers an area of more than 12000 square meter, annual capacity is around 200 units. Raintech have an experienced expert with young active technical team, which can provide the professional with improved design solutions for our customers, assure that can satisfy various customer's special requirements by cost- effective way.
In addition,Raintech still pays great attention on the technique research and quality, have own many patents on many products depends on our plenty experience in research and management of manufacturing. After years of development, we have exported to many countries in the world such as Italy, Ecuador, America, India, Indonesia, Philippines, Brazil,Thailand, Vietnam, Russia, Malaysia, Peru, Korea etc. and gained high reputation from our customers and the agents. Our faith is: Quality is base, Technology get development,Service gains reputation. Welcome all the partners and users from all over the world cooperate with us!
ENTERPRISE CERTIFICATE
International exhibitions
Customer visits
FAQ
♥1.How to operate the machine ?
We will deliver English manual and video with the machine to you. lf you still need our help,please contact us.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.
♥4. What about the package and shipment ？

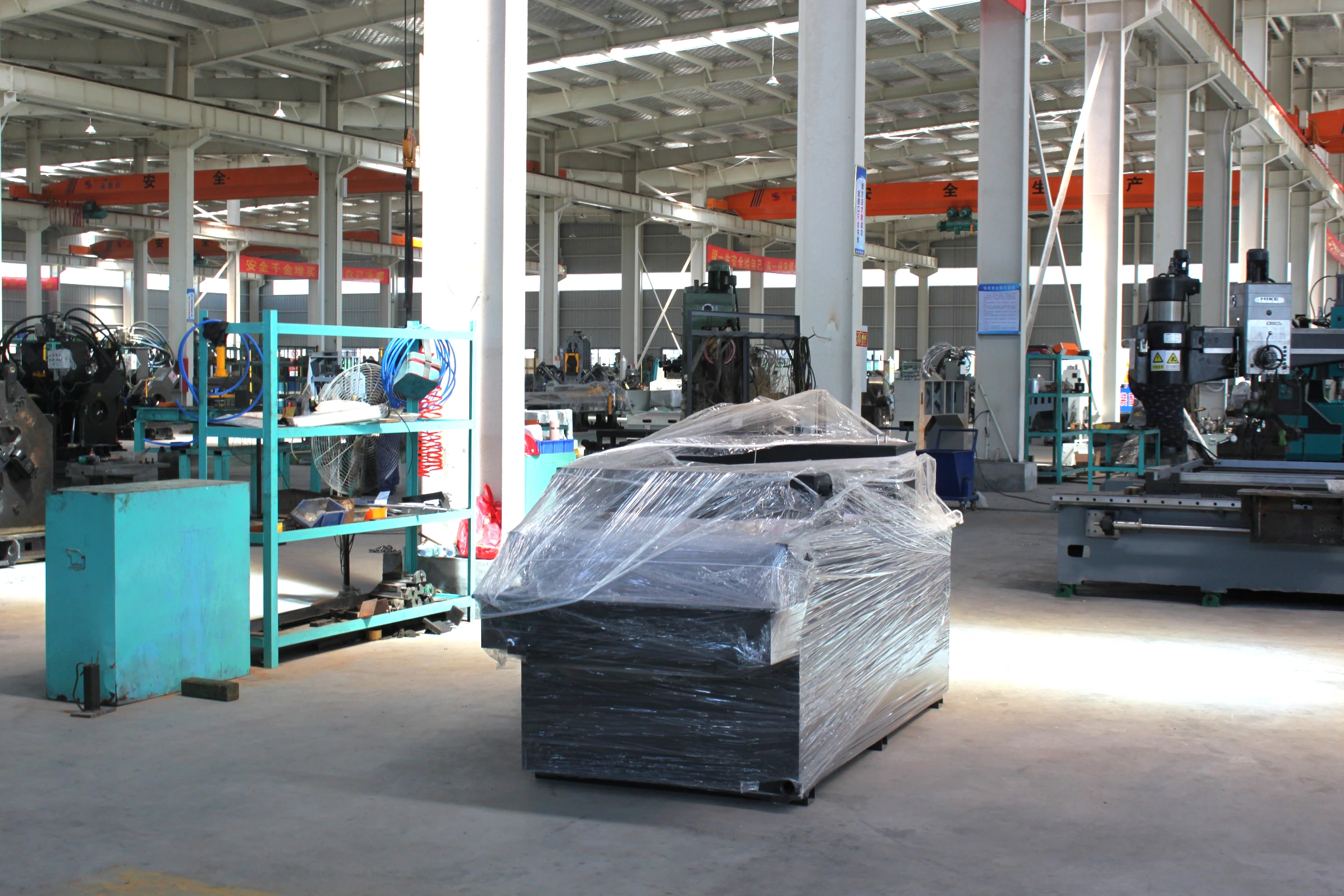

The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.
♥4. What about the package and shipment ？
The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
