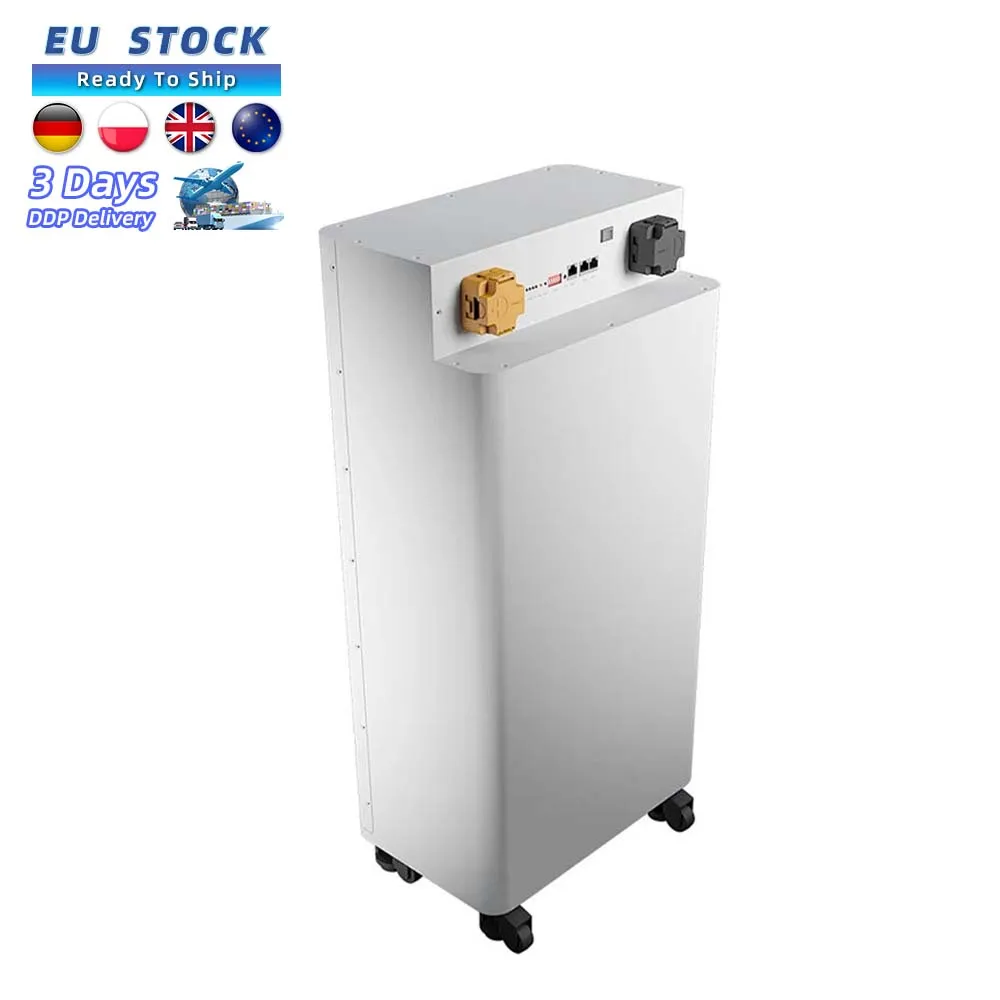

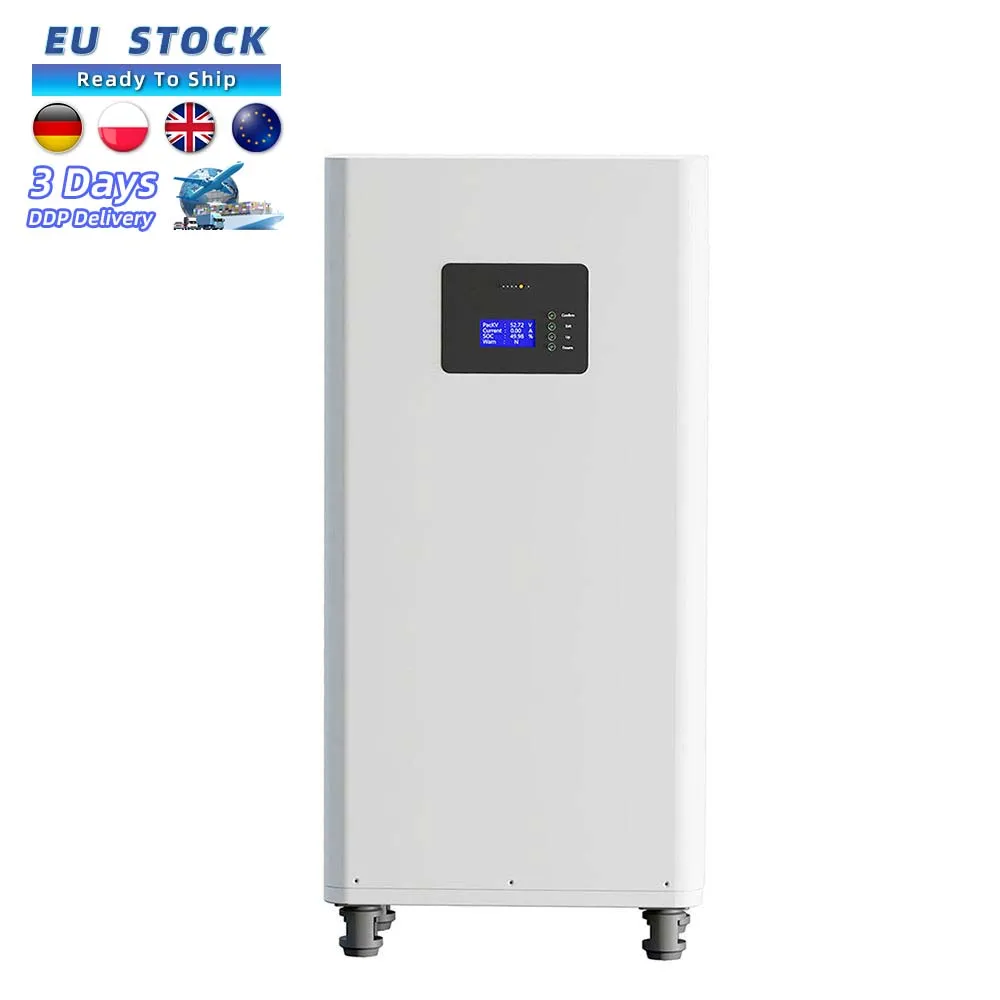

EU Stock High Quality Brand New Standing Seplos 15Kwh Battery Box Mason 51.2V 280Ah Diy Kit For 48V Energy Storage System
- Category: >>>
- Supplier: Shenzhen Xingzhijie Electronic Co. Ltd.
Share on (1601114093461):
Product Overview
Description
Product Description
Product name | 280 KIBO | |
Configuration | 1P16S | |
Nominal Voltage(V) | 51.2V | |
Nominal Capacity(Ah) | 280Ah @0.5C discharge current 25±2℃ | |
Nominal Power(wh) | 14.3kwh | |
Dimension(mm) | 750*440*251mm | |
Weight (kg) | DIY BOX=28.5KG,DIY BOX with cells=112±5kg | |
Discharg Cut-off Voltage(V) | 41.6v | |
Charge Voltage(V) | 57.6v | |
Continuously Charge/Discharge Current(A) | 140A@25±2℃(Recommended) | |
Max Standard charge/discharge Current | 200A@25±2℃ | |
Standard charge/discharge Current | 140A@25±2℃(Recommended) | |
Working Temperature | 0-50℃(Charge) | |
(-10——50℃)Discharge | ||
(-20——55℃)Storage | ||
SOC Range | 5%-100% | |
Recommended SOC Range | 15%-95% | |
Communication Interface | CAN(Default) or RS485 | |
Humidity | 10%-85% | |
IP level | IP 20 | |
Certificates | CE, ROHS, MSDS, UN38.3 | |

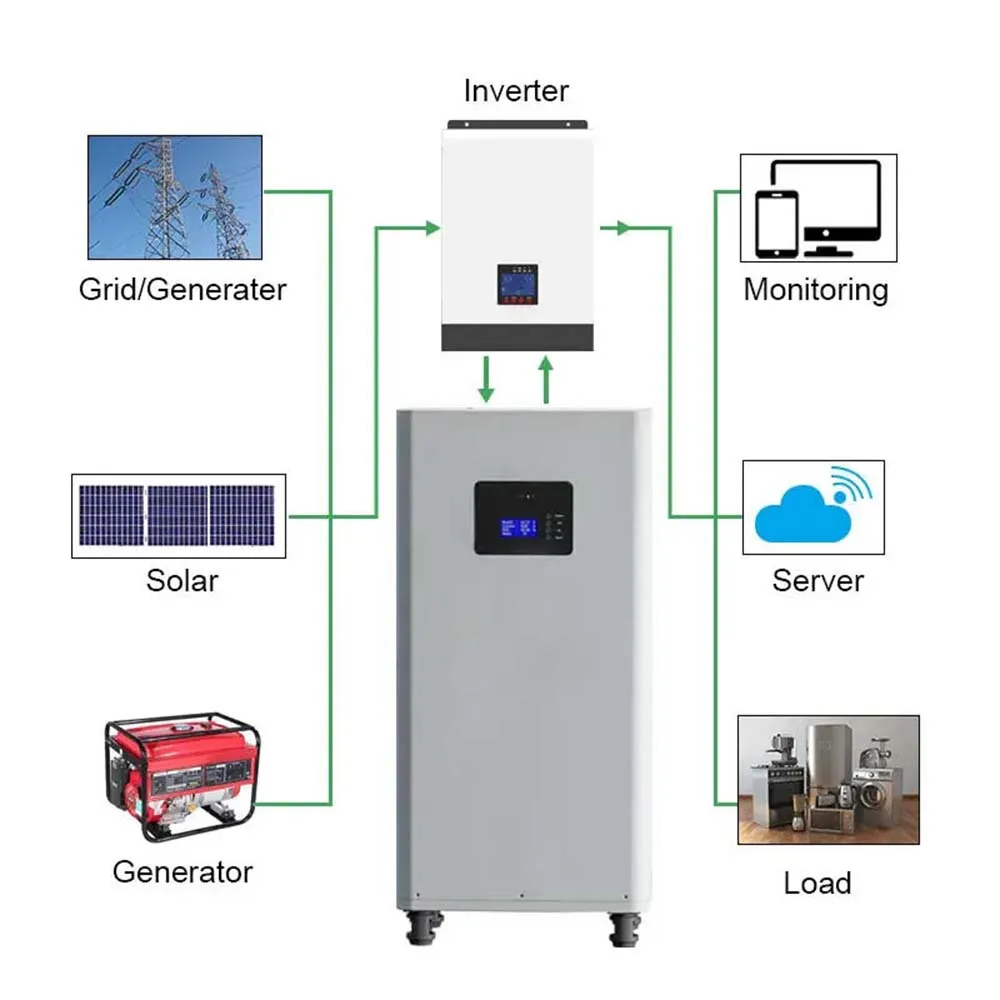

Our BMS is compatible with Growatt, Goodwe, Sofar, SMA, Victron, DEYE, Luxpower, Sermatec, Renac, TBB Power, Solis, Foxess, and IMEON inverters. Support max. 16 connected in parallel | ||

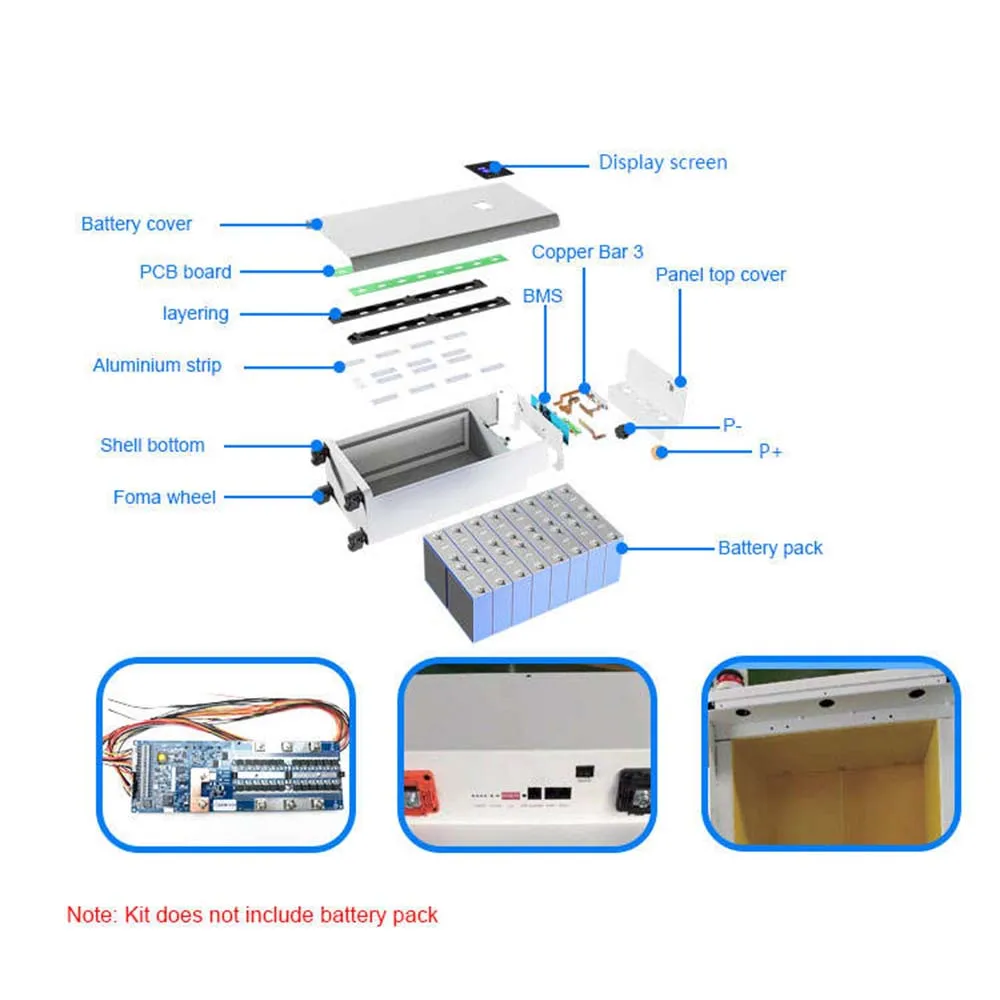

Package List:
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S Seplos BMS
1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S Seplos BMS
1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
1.Q:What are the advantages of your company?
A:Strong R & D team, independent R & D and production of main parts, to control product quality very strictly.
2.Q:Can you supply OEM &ODM service ?
A:Yes,we have R&D team and need MOQ.
3.Q:What kind of certificates your products have acquired ?
A:Most of our solar products have acquired CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing
requirements.
4.Q. What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-45days.
5.Q:How do you ship the goods since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
6.Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
7.Q:Can your machines carry refrigerators, coffee makers, and electric kettles?
A:Please read the product manual carefully for details. As long as the Noninductive load not over our rated load.
8.Q:Does your portable power station have UPS function?
A:The portable power station has no UPS function, while the home systems has UPS function.
9. Q:Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
10.How long is the warranty of your products? How to guarantee the after-sale services?
A:We guarantee most of our products for one year,the solar panel for 5 years.
We will prepare 3‰ to 5‰ accessories for easy damage parts. We will help you solve all the technology problems through email,phone,video...
A:Strong R & D team, independent R & D and production of main parts, to control product quality very strictly.
2.Q:Can you supply OEM &ODM service ?
A:Yes,we have R&D team and need MOQ.
3.Q:What kind of certificates your products have acquired ?
A:Most of our solar products have acquired CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing
requirements.
4.Q. What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-45days.
5.Q:How do you ship the goods since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
6.Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
7.Q:Can your machines carry refrigerators, coffee makers, and electric kettles?
A:Please read the product manual carefully for details. As long as the Noninductive load not over our rated load.
8.Q:Does your portable power station have UPS function?
A:The portable power station has no UPS function, while the home systems has UPS function.
9. Q:Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
10.How long is the warranty of your products? How to guarantee the after-sale services?
A:We guarantee most of our products for one year,the solar panel for 5 years.
We will prepare 3‰ to 5‰ accessories for easy damage parts. We will help you solve all the technology problems through email,phone,video...
