Automated Gate Safe Infrared Detector Sensor IP55 Waterproof DC/AC 12 36V Safety Sensor Alarm Infrared Beam Sensor Photocell
Automated Gate Safe Infrared Detector Sensor IP55 Waterproof DC/AC 12-36V Safety Sensor Alarm Infrared Beam Sensor Photocell
Automated Gate Safe Infrared Detector Sensor IP55 Waterproof DC/AC 12-36V Safety Sensor Alarm Infrared Beam Sensor Photocell
Automated Gate Safe Infrared Detector Sensor IP55 Waterproof DC/AC 12-36V Safety Sensor Alarm Infrared Beam Sensor Photocell
Automated Gate Safe Infrared Detector Sensor IP55 Waterproof DC/AC 12-36V Safety Sensor Alarm Infrared Beam Sensor Photocell
Automated Gate Safe Infrared Detector Sensor IP55 Waterproof DC/AC 12-36V Safety Sensor Alarm Infrared Beam Sensor Photocell
Automated Gate Safe Infrared Detector Sensor IP55 Waterproof DC/AC 12-36V Safety Sensor Alarm Infrared Beam Sensor Photocell

Automated Gate Safe Infrared Detector Sensor IP55 Waterproof DC/AC 12 36V Safety Sensor Alarm Infrared Beam Sensor Photocell

Share on (1601114294739):


Price:$9.90-10.45

Quantity:


Product Overview

Description



Product Paramenters


DC/AC 12v/24v/36v Photocell Sensor Beam For Sliding Gate Opener Infrared Safety Photo Cell
SPECIFICATIONS:
Receiver:
Power Source: 12v - 36v AC/DC
Maximum Range: 15m
Wavelength: 940nm
Modulation Frequency: Pulsed
Internal rotation system adjusted angle: 0-180 degree
Relay Contact: Potential Free 1 AMP C/O
Physical Size: 132*57*35mm
Transmitter
Power source: 12v - 36v AC/DC or 3V (2 x AA Alkaline Batteries)
Battery Life: approx 2 year

This Infrared Safety Photo Cell is used in automatic doors, garages, barriers, and indoor and outdoor security protection. The product uses ultra-low power consumption technology, and the battery life is more than 2 years. designed for outdoor scene applications, it has the ability to resist rain erosion and at the same time has a good ability to resist sunlight interference to avoid product failures caused by sunlight interference.



Specification for Infrared Safety Photo Cell
Model
HS-A002
Receiver Power Source
AC/DC 12v - 36v
Transmitter Power Source
AC/DC 12v - 36v or 3V (2 x AA Alkaline Batteries)
Detecting distance
15m
Modulation Frequency
Pulsed
Wave length
940nm
internal rotation system adjusted angle
0~180 degree
Battery Life
Approx 2 year
Usage
Gate Open/Garage Door/Automatic Door/Barrier Gate/Access Control System
Installation
Outdoor/Indoor
Certificate
CE certificated
Working temperature
-25℃~+55℃
Alarm Output
Relay output NC NO; 1A/36V Max
Waterproof grade
IP55
Dimension
132*57*35mm


Packing & Delivery


Packing Details for Infrared Safety Photo Cell
PACKING
Neutral color box or customer's packing
PCS/CARTON
60PCS
GW/CARTON
13.8KG
CARTON SIZE
45*35*30 cm


Products Description

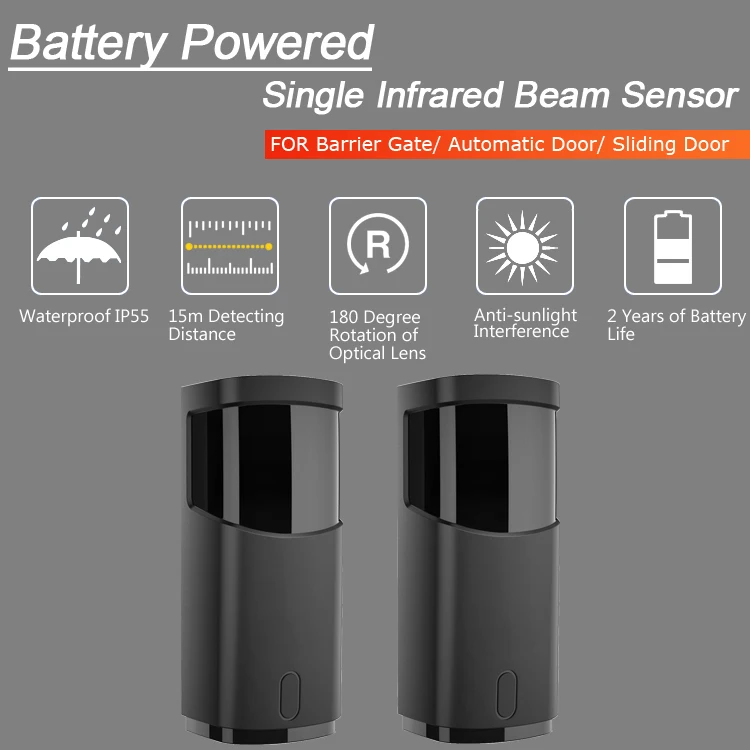

 Automatic Door Safety Photocell Beam Sensor
Waterproof IP55 / 15 Meters Detecting Distance / Relay Output NC/NO / Good Ability To Resist Sunlight Interference / 2 Years of Battery Life / 180 Degree Rotation of Optical Lens


180 Degree Rotation of Optical Lens
The lens can be rotated 180 degrees left and right

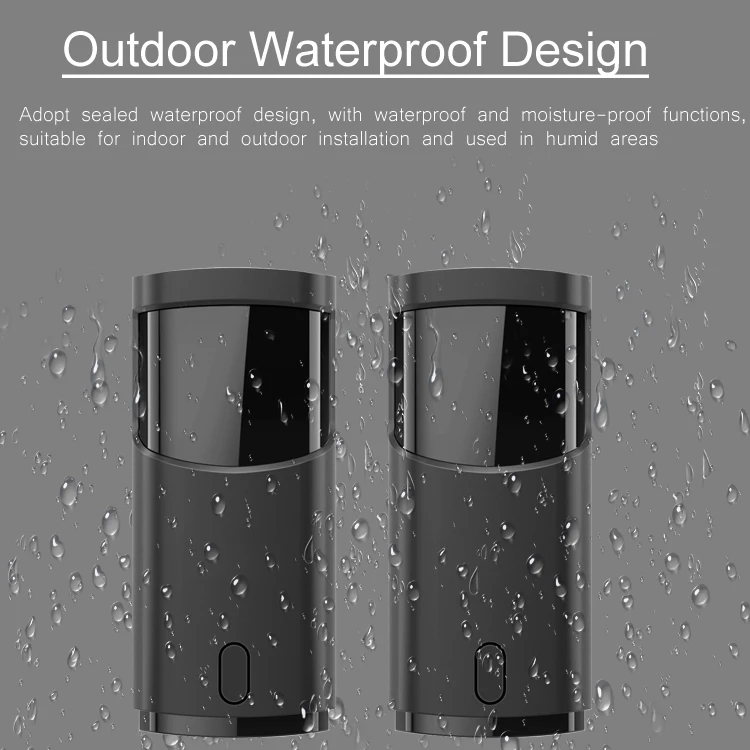

Outdoor Waterproof Design
Adopt sealed waterproof design, with waterproof and moisture-proof functions suitable for indoor and outdoor installation and used in humid areas

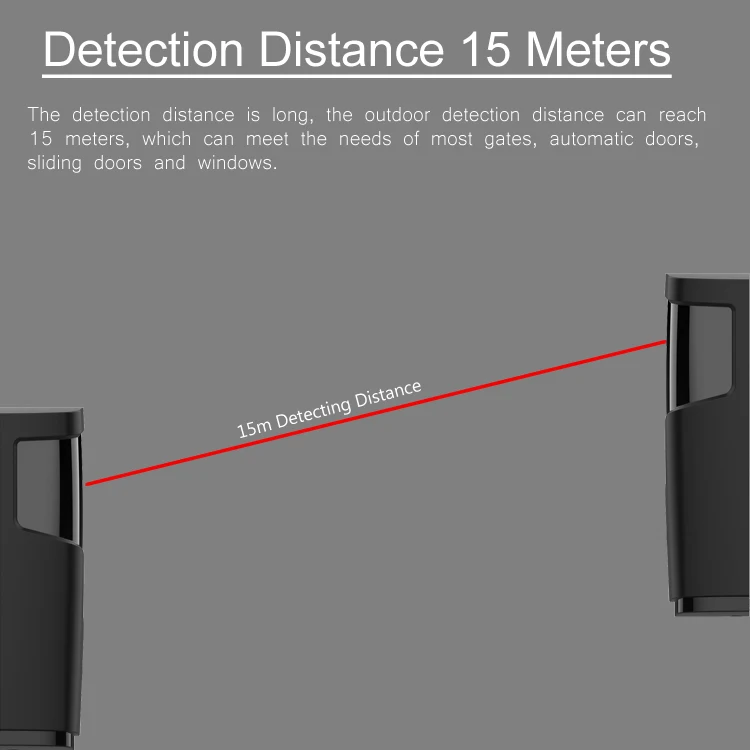

Detection Distance 15 Meters
The detection distance is long,the outdoor detection distance can reach 15 meters,which can meet the needs of most gates,automatic doors,sliding doors and windows

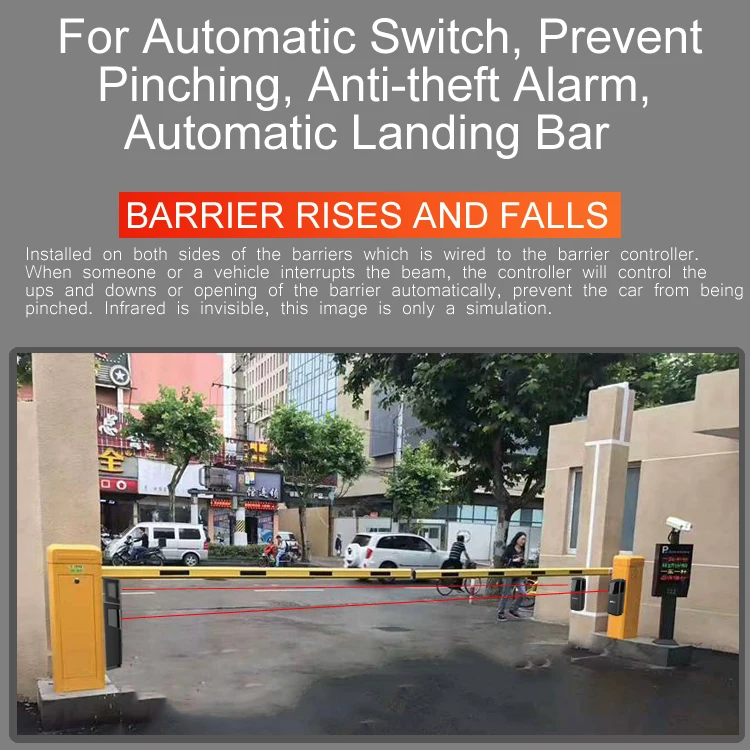

For Automatic Door,Sliding Door Switch, Anti-pinch Sensor
Installed on both sides of the door which is wired to the door controller,when someone passes by and blocks the infrared beam,the door will open automatically


Certifications
