Wind Power and Solar Panel Q Type Wind Turbine Generator 3KW 5KW 10kw Vertical Wind Turbine System
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.
Share on (1601114496420):
Product Overview
Description
You May Like
Recommended for
--Household,Garden,Farm,Urban,Rooftop
--Telecom sites
--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection
--Automatic speed reduction protection

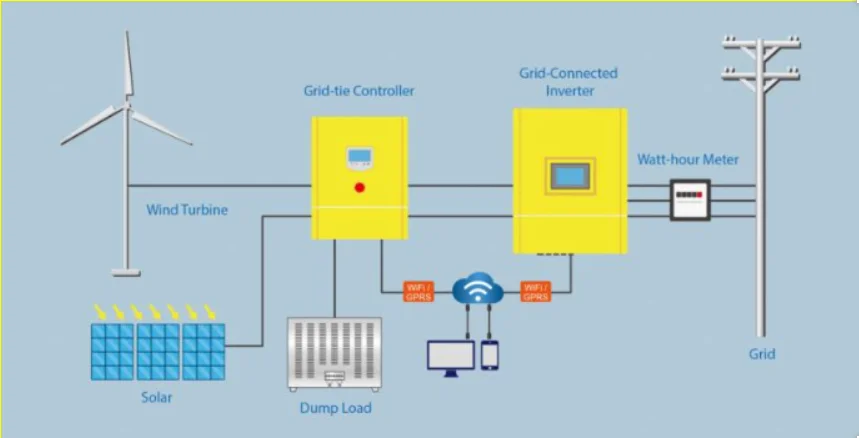

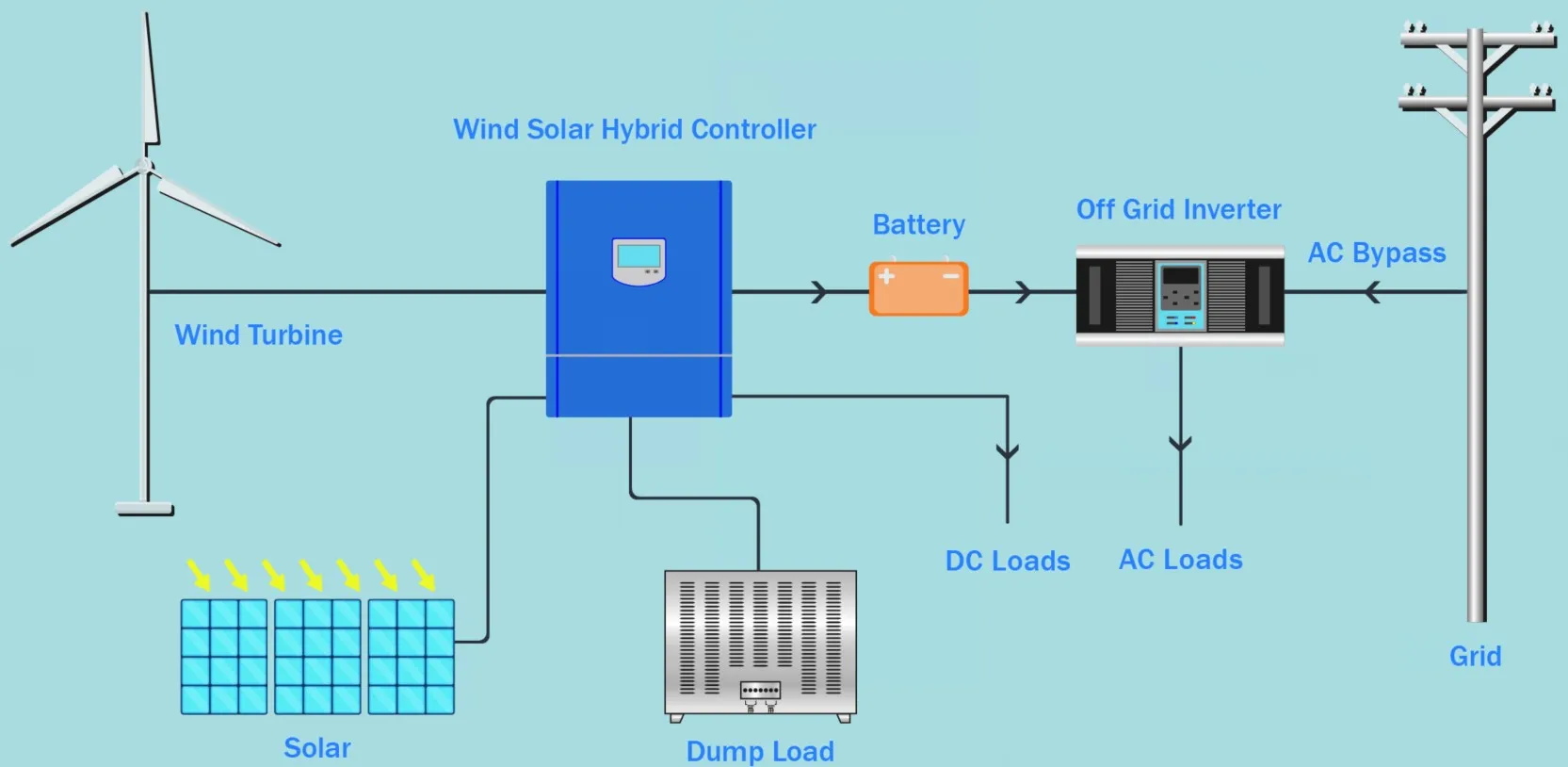

Wiring Diagram
Specification
Mode | RX-Q2000 | RX-Q3000 | RX-Q5000 | RX-Q7000 | RX-Q10K | ||||
Rated power | 2000W | 3000W | 5000W | 7000W | 10KW | ||||
Max power | 2200W | 3500W | 6000W | 8000W | 12KW | ||||
Rated Voltage | 12/24/48V | 48/96/110/220/380V | 48/96/110/220/380V | 96/110/220/380V,customized | 96/110/220/380V,customized | ||||
Blade Height | 1.5m | 2m | 2.5m | 3m | 4m | ||||
Rotor Diameter | 2m | 2m | 2.5m | 3m | 4m | ||||
Weight | 50kgs | 120kgs | 160kgs | 250kgs | 500kgs | ||||
Start up wind speed | 2m/s | ||||||||
Rated wind speed | 10m/s | ||||||||
Survival wind speed | 55m/s | ||||||||
Blade quantity | 3pcs | ||||||||
Blade material | Aluminum alloy | ||||||||
Packing | Carton/wooden box | ||||||||
Generator type | Three phase AC permanent magnet generator | ||||||||
Braking model | Electromagnetism | ||||||||
The wind adjustment | Automatically adjust to windward | ||||||||
Noise level | <50dBA | ||||||||

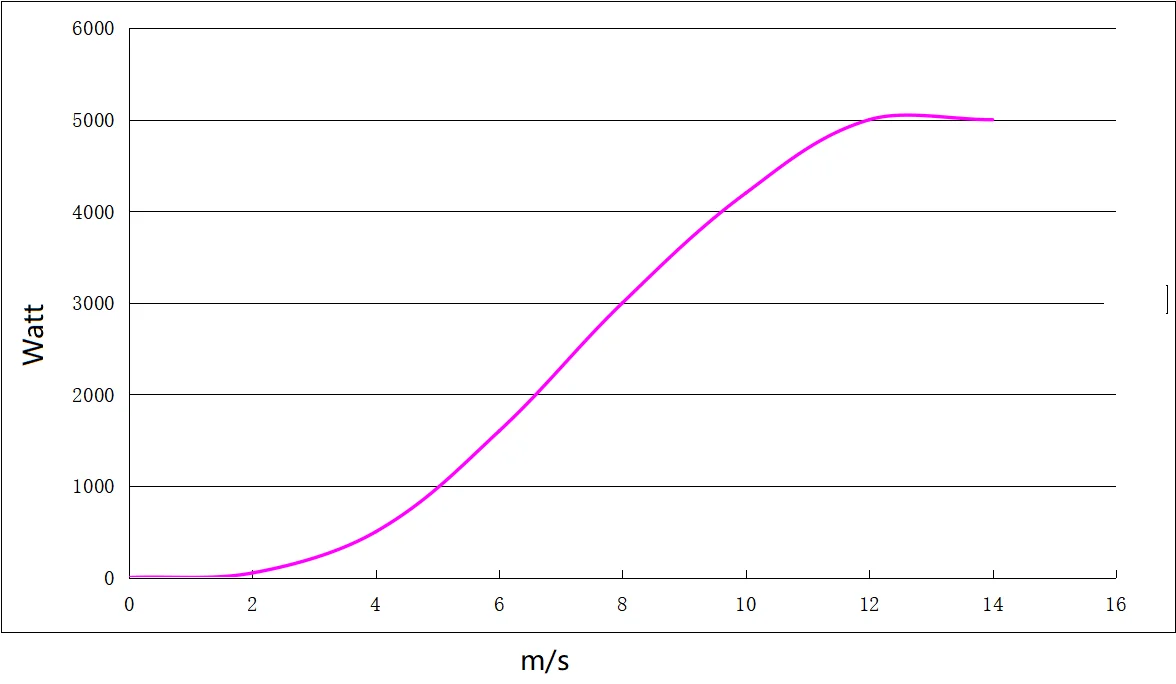

Power curve

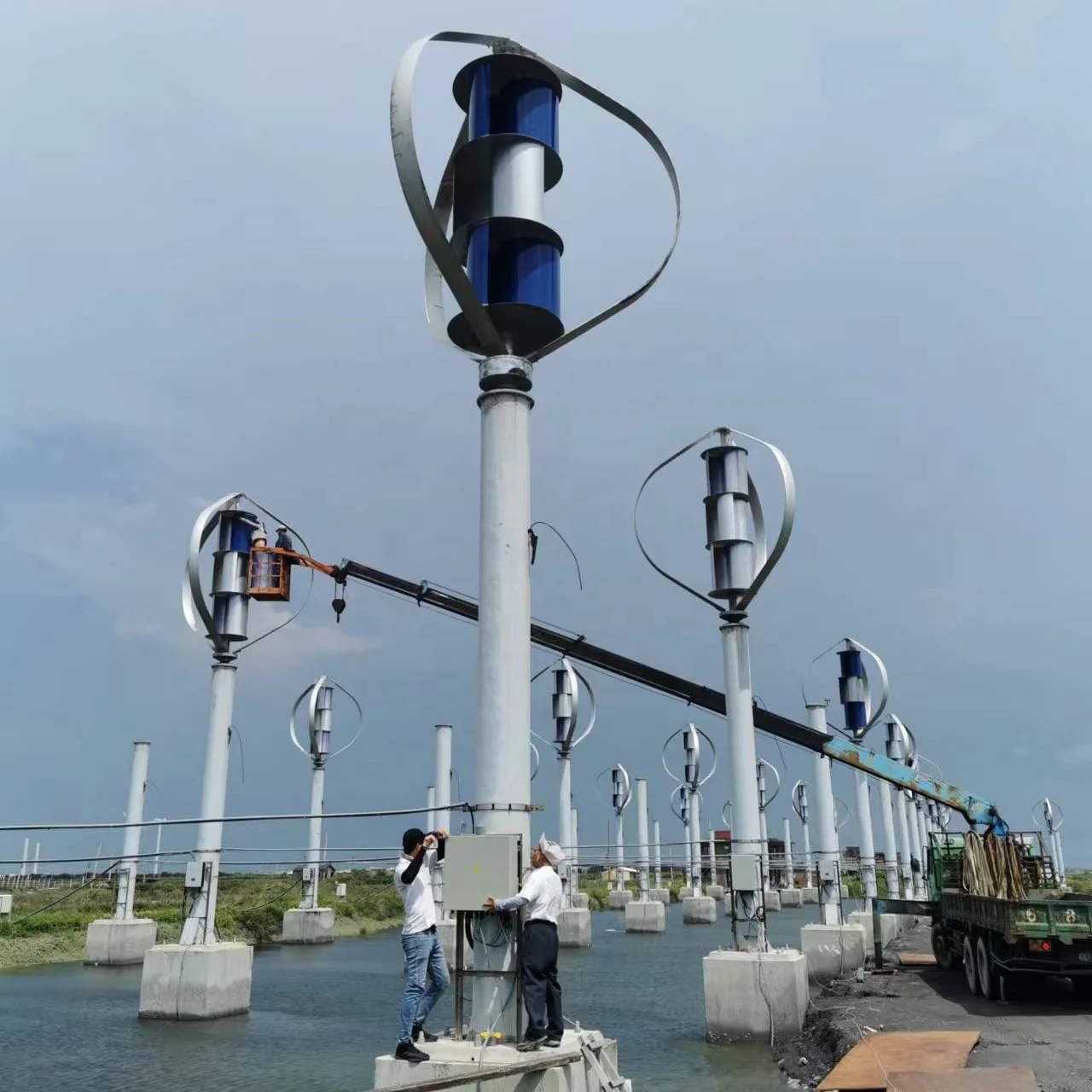

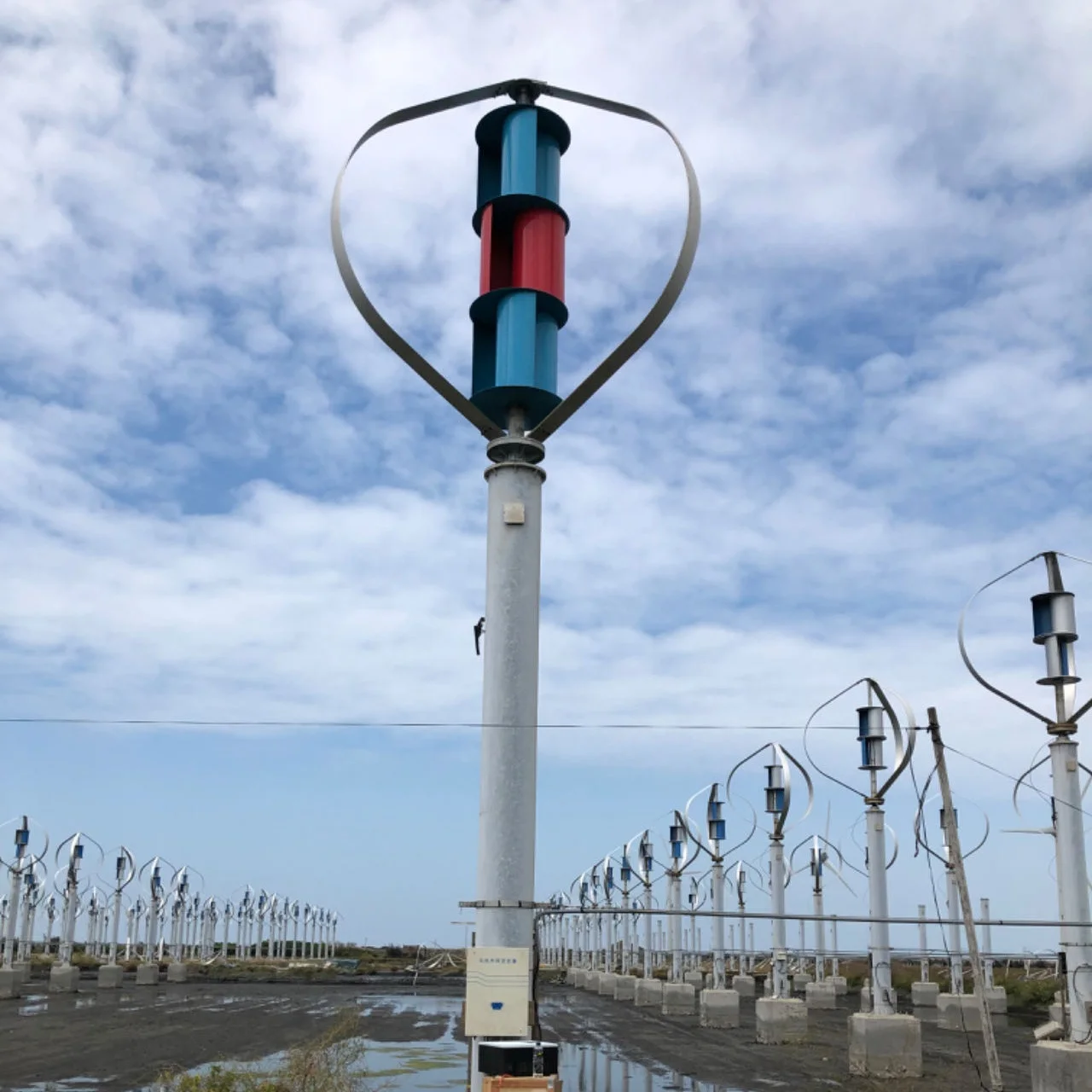

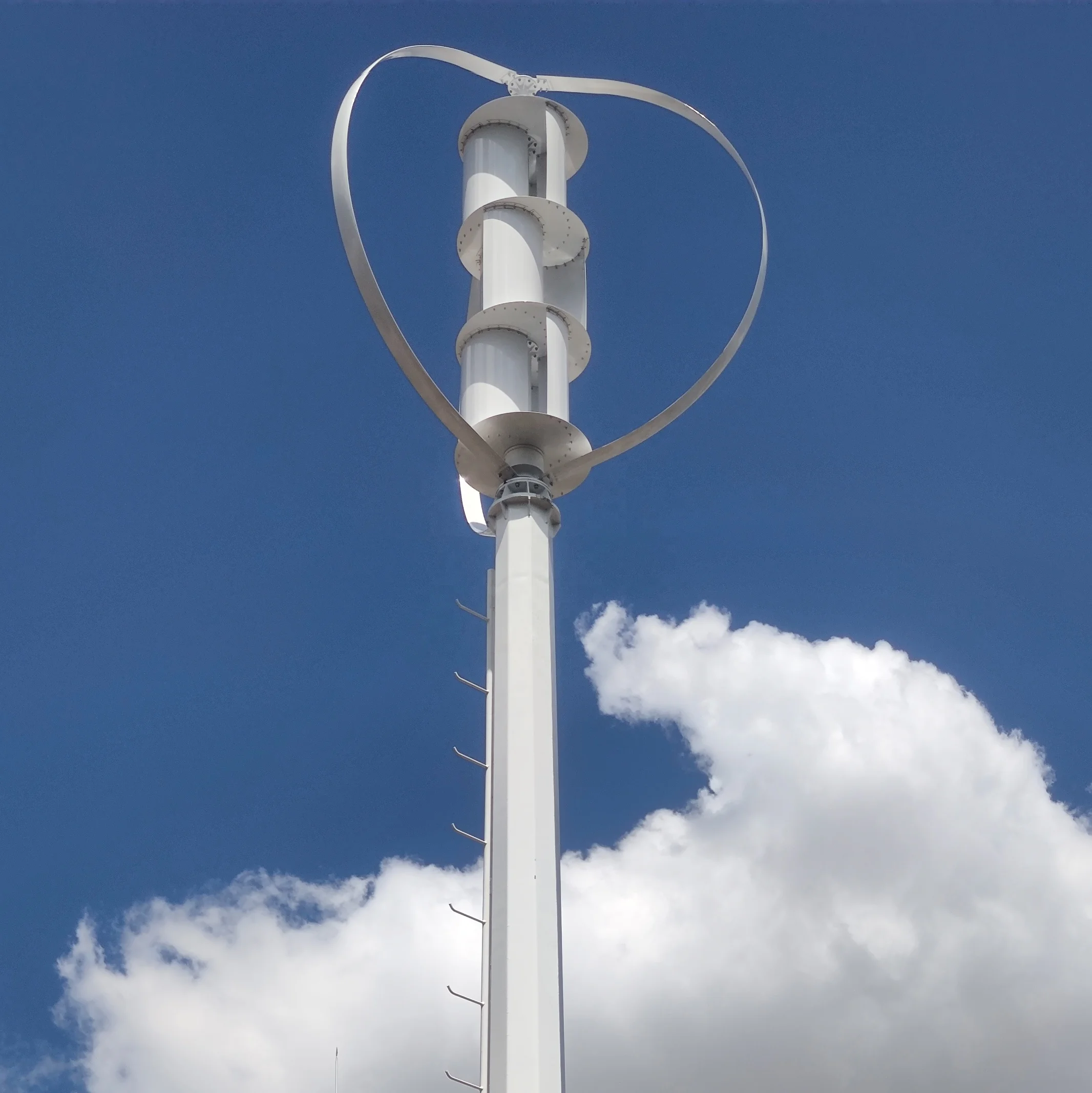

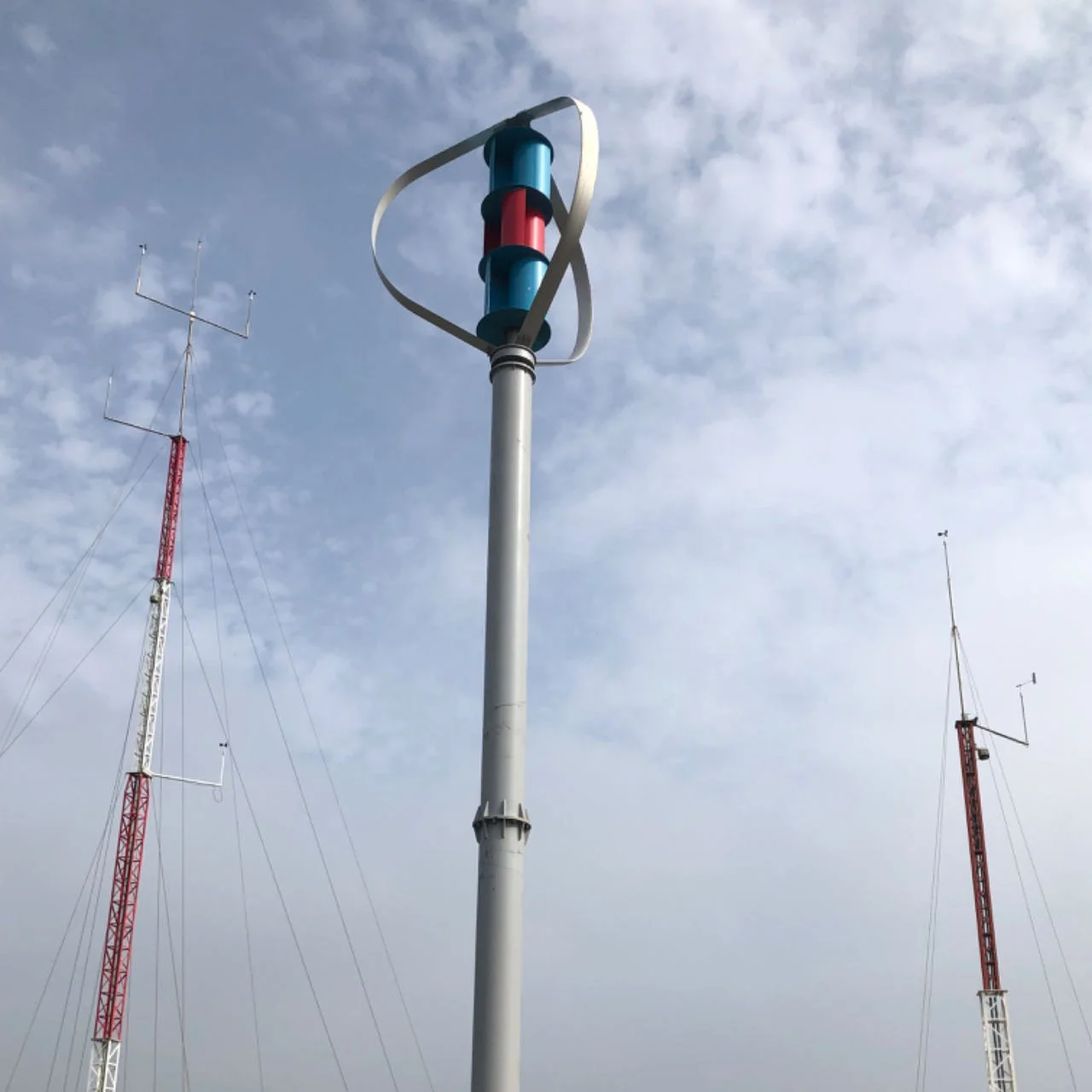

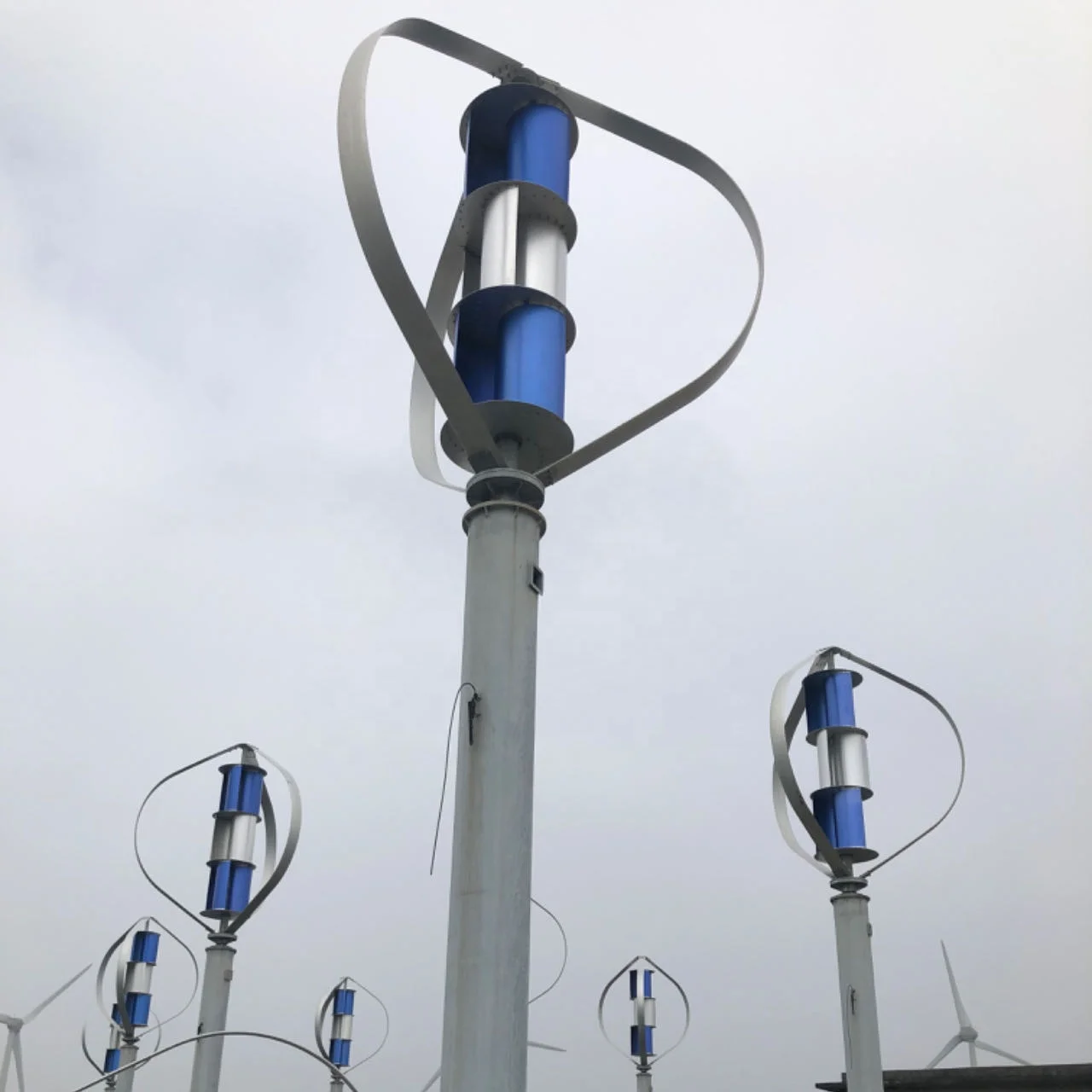

Project Photos Show
Packing photos
