Vertical Plasma Low Temperature Sterilizer for CSSD Laboratory Dental Operating Room

Share on (1601114561918):


Price:$8,500.00 - $10,000.00

Quantity:


Product Overview

Description

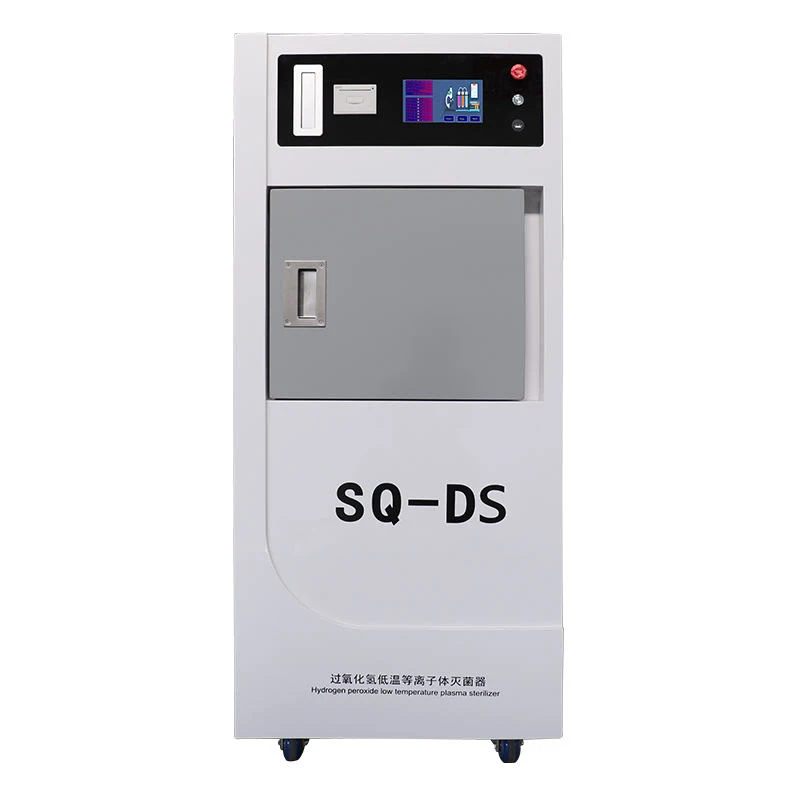

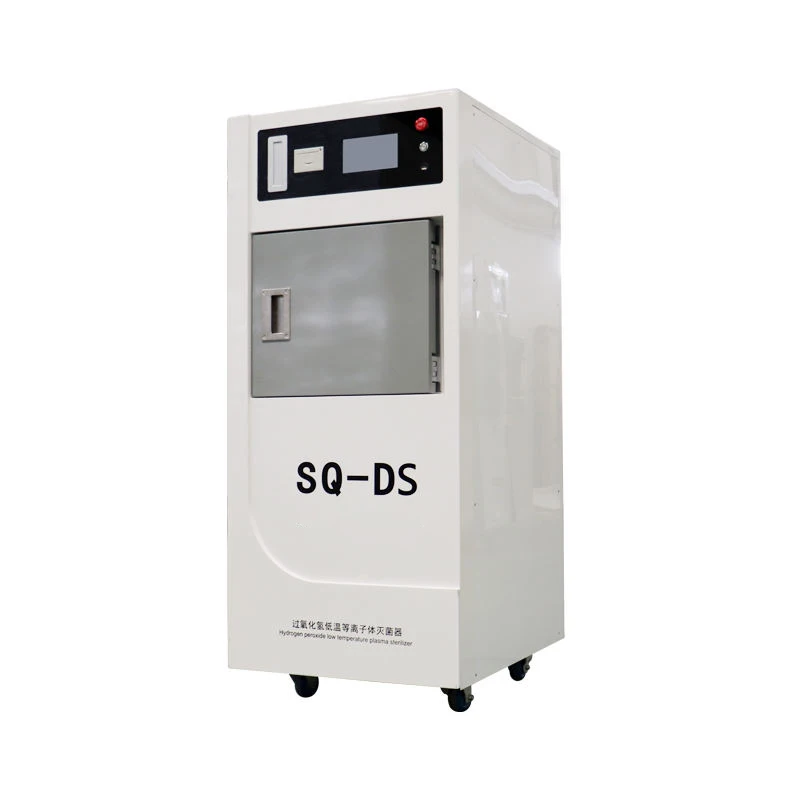

Vertical Plasma Hydrogen Peroxide Low Temperature Sterilizer for CSSD Laboratory Dental Operating Room




Product Description


Product name
Vertical Plasma Hydrogen Peroxide Low Temperature Sterilizer for CSSD Laboratory Dental Operating Room
Item no.
Sterilization room size(cm)
Outline dimension(cm)
Power(kw)
SQ-D60
61*35*32
75*63*151
2.6
Product form
Manual door vertical
Power supply
AC220V,50Hz
Temperature display
Liquid crystal touch screen
Sterilization temperature
50℃±5℃
Selection of sterilizers
hydrogen peroxide(H202)
Sterilization time
45±3 minutes
Vacuum speed
5 minutes to 50pa
Sterilizing chamber material
The structure of the cavity is rectangular and the space utilization rate is improved. The cavity is made of 304 anticorrosive
stainless steel or aluminum with thickness ≥ 8 mm. It has excellent thermal conductivity and ensures hydrogen peroxide to keep
100% gaseous state.
Outer box material
Carbon steel baking powder and fiberglass
Material of electrode net
Aluminum alloy material 5052,Sheet metal forming,thickness≥2mm
Automatic control system
LCD touch screen display PLC circuit design, safe and reliable; one button start to end, the whole process of automatic
completion, display temperature, pressure, sterilization time, the system can be maintained and upgraded.
Printer
Use micro printer, print out every minute of data in the whole process of sterilization, can do permanent preservation. Able to
print records: program name, sterilization date, sterilizing pot number, sterilization start end time, Sterilization process
pressure and temperature change data, phase time and end state information, and provide printed samples.
PLC
Adopt Siemens smart series PLC control system.
Display screen
7-inch color touch screen, communication rate≥19.2Kbps.
Display status
Temperature, pressure, time, cycle mode, process phase and alarm information, and provide actual interface photos.
Multiple protective functions
It has the function of overvoltage and overtemperature protection, and has the trouble display screen on the LCD screen, which
makes the after-sales personnel faster and better deal with the fault point.
Stop caster
have
Alarm system
High temperature alarm system
Category
Class II medical devices
