KYQ25LS Water Diaphragm Pump Low Pressure PP Pneumatic Used To Transport Mud Pottery Pulp And Other Ceramic Raw Materials

Share on (1601114572097):


Price:$120.00 - $130.00

Quantity:


Product Overview

Description



Plastic Pneumatic
















    KYQ25LS Pump Parameters












































Pump Body Material:Polypropylene
Air Motor Material:Aluminum Alloy
Pump Weight:About 26.4 lbs
Air Inlet Size:1/2 in BSP
Fluid Inlet/Outlet Size:1 in BSP
Max.Suction Height:Dry:5m  Wet:8m
Max.Flow:26.4GPM
Max.Working Pressure:109PSI
Max.Permitted Grain:1/8 in

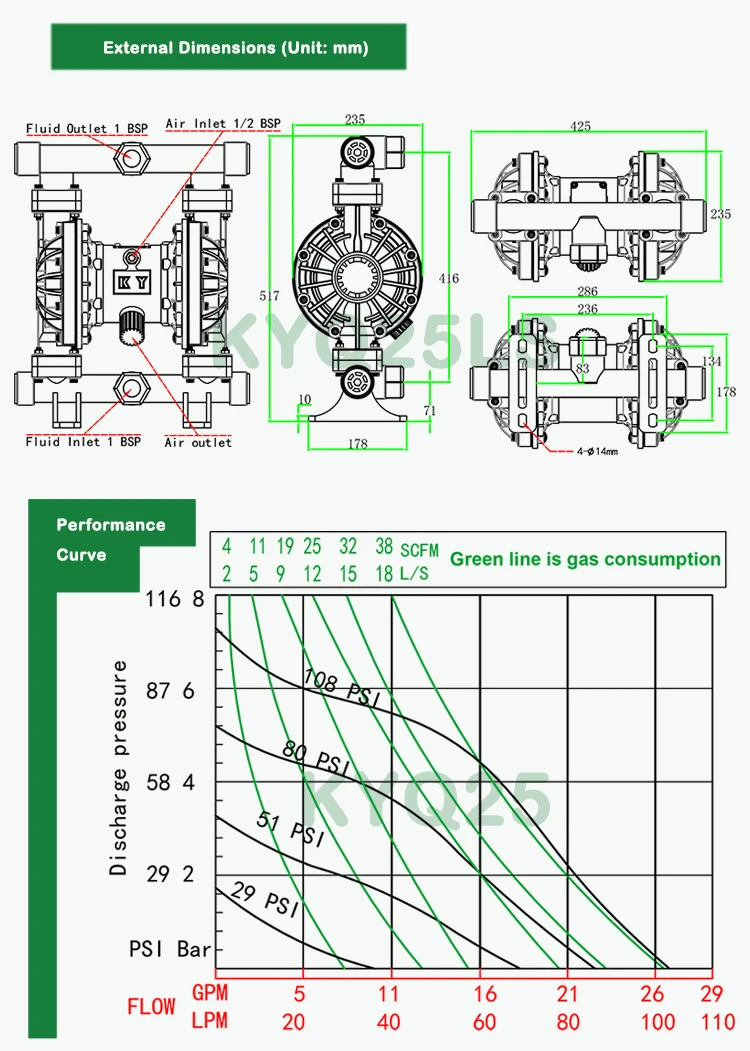

    Performance Curves And Dimensions















    The Meaning Of Pump Model


















    Model Selection Table


















    Installation Instruction Diagram
















3.jpg4-1.jpg4-2.jpg5-1.jpg5-2.jpg5-3.jpg6A.jpg6 B.jpg










FQA





Q1: what is the packaging of your product?
Answer: standard exports plywood box or carton to be decided according to specific product.



Q2: how about the quality and service of your company?
Answer: we are a professional manufacturer of diaphragm pump, to quality survival, welcome your use and inspection; We are China Great Wall quality system certification enterprise, please feel free to use.



Q3: what kind of diaphragm pumps do you produce?
Answer: my company is an experienced diaphragm pump manufacturer, materials have cast steel, aluminum alloy, stainless steel, polypropylene, fluorine plastics, lining teflon; Diaphragm pump caliber is 1/2 "3/4" 1 "1.5" 2 "2.5" 3 "4", the power mode is divided into pneumatic and electric.



Q4: can your company guarantee our healthy cooperation?
Answer :1. Our company guarantees our good long-term cooperation with the guarantee of product quality and the assistance of professional receiving services.


2. We hope to establish good cooperative relations with friends around the world. The process of cooperation is not only business, but also the process of making friends.



Q5: when is your delivery time?
A: most of our products are in stock, depending on type and quantity. We'll deliver the goods as soon as possible.
