SUN 12K SG04LP3 EU Solar Inverter Charger DC to AC Power Inverters High Quality Inverter
- Category: >>>
- Supplier: Sunlink (xiamen) New Energy Technology Co. Ltd.
Share on (1601114646274):
Product Overview
Description

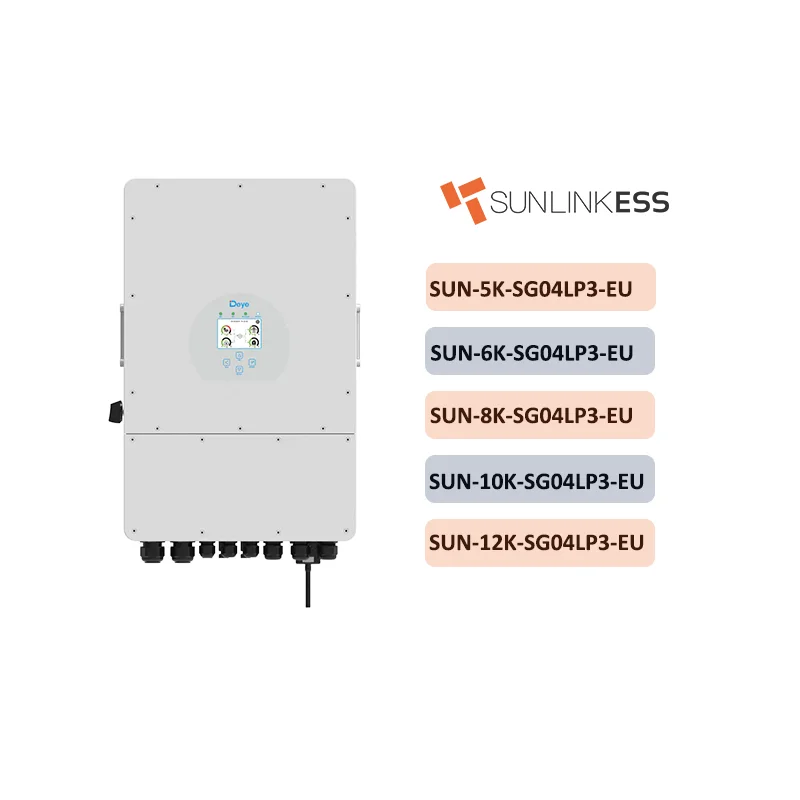

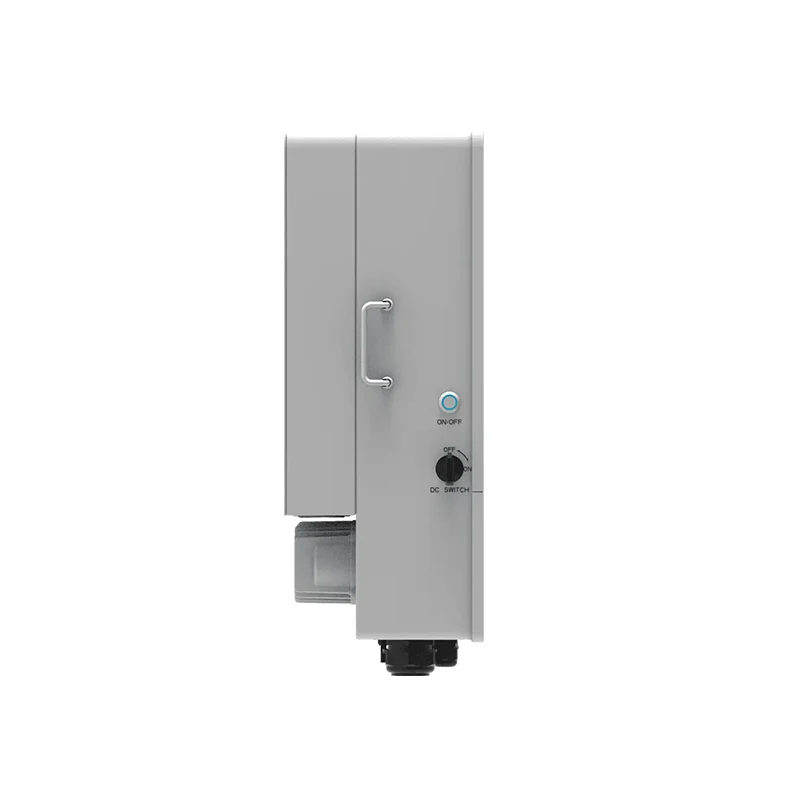

SUN-12K-SG04LP3-EU Solar Inverter Charger DC to AC Power Inverters High Quality Inverter
Products Description
SUN-12K-SG04LP3-EU Solar Inverter Charger DC to AC Power Inverters High Quality Inverter
SUN-5/6/8/10/12K-SG04LP3
5-12kW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
* AC couple to retrofifit existing solar system
* Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
* Max. charging/discharging current of 240A
* Support storing energy from diesel generator
* 48V low voltage battery, transformer isolation design
* 6 time periods for battery charging/discharging
* Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
* Max. charging/discharging current of 240A
* Support storing energy from diesel generator
* 48V low voltage battery, transformer isolation design
* 6 time periods for battery charging/discharging
Higher yields
Safe & Reliable
User-friendly

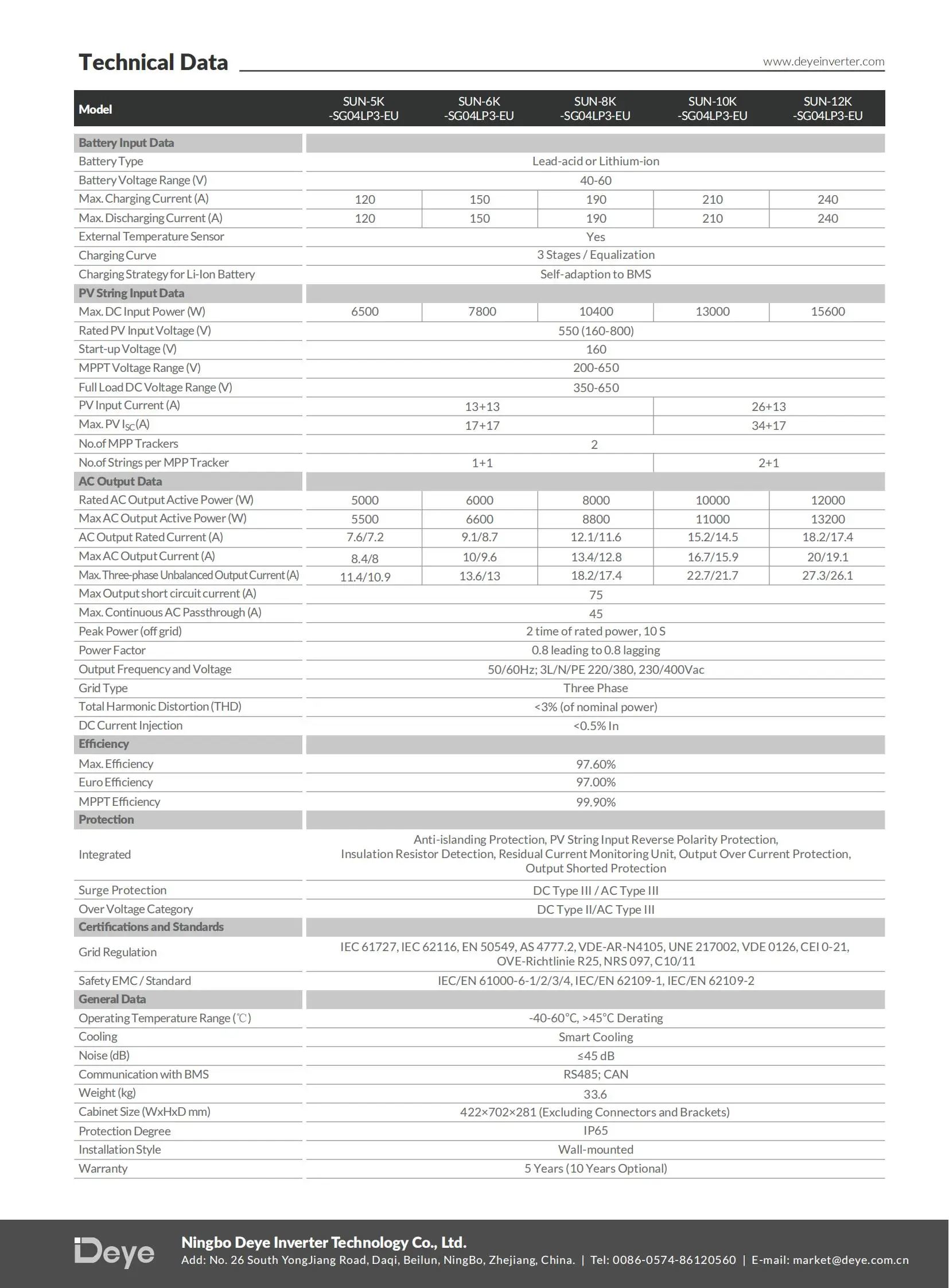

Product Paramenters
Model | SUN-5K -SG04LP3-EU | SUN-6K -SG04LP3-EU | SUN-8K -SG04LP3-EU | SUN-10K -SG04LP3-EU | SUN-12K -SG04LP3-EU | |||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range (V) | 40-60 | |||||||||
Max. Charging Current (A) | 120 | 150 | 190 | 210 | 240 | |||||
Max. Discharging Current (A) | 120 | 150 | 190 | 210 | 240 | |||||
External Temperature Sensor | Yes | |||||||||
Charging Curve | 3 Stages / Equalization | |||||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||||
PV String Input Data | ||||||||||
Max. DC Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 | |||||
Rated PV Input Voltage (V) | 550 (160-800) | |||||||||
Start-up Voltage (V) | 160 | |||||||||
MPPT Voltage Range (V) | 200-650 | |||||||||
Full Load DC Voltage Range (V) | 350-650 | |||||||||
PV Input Current (A) | 13+13 | 26+13 | ||||||||
Max. PV I (A) | 17+17 | 34+17 | ||||||||
No.of MPP Trackers | 2 | |||||||||
No.of Strings per MPP Tracker | 1+1 | 2+1 | ||||||||
AC Output Data | ||||||||||
Rated AC Output Active Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | |||||
Max AC Output Active Power (W) | 5500 | 6600 | 8800 | 11000 | 13200 | |||||
AC Output Rated Current (A) | 7.6/7.2 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 | |||||
Max AC Output Current (A) | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 | |||||
Max. Three-phase Unbalanced Output Current (A) | 11.4/10.9 | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 | |||||
Max Output short circuit current (A) | 75 | |||||||||
Max. Continuous AC Passthrough (A) | 45 | |||||||||
Peak Power (off grid) | 2 time of rated power, 10 S | |||||||||
Power Factor | 0.8 leading to 0.8 lagging | |||||||||
Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | |||||||||
Grid Type | Three Phase | |||||||||
Total Harmonic Distortion (THD) | <3% (of nominal power) | |||||||||
DC Current Injection | <0.5% In | |||||||||
Efficiency | ||||||||||
Max. Efficiency | 97.60% | |||||||||
Euro Efficiency | 97.00% | |||||||||
MPPT Efficiency | 99.90% | |||||||||

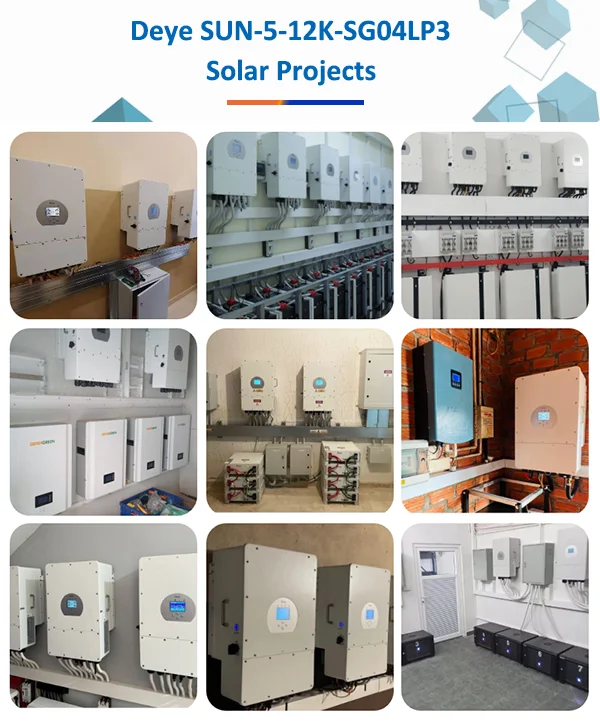

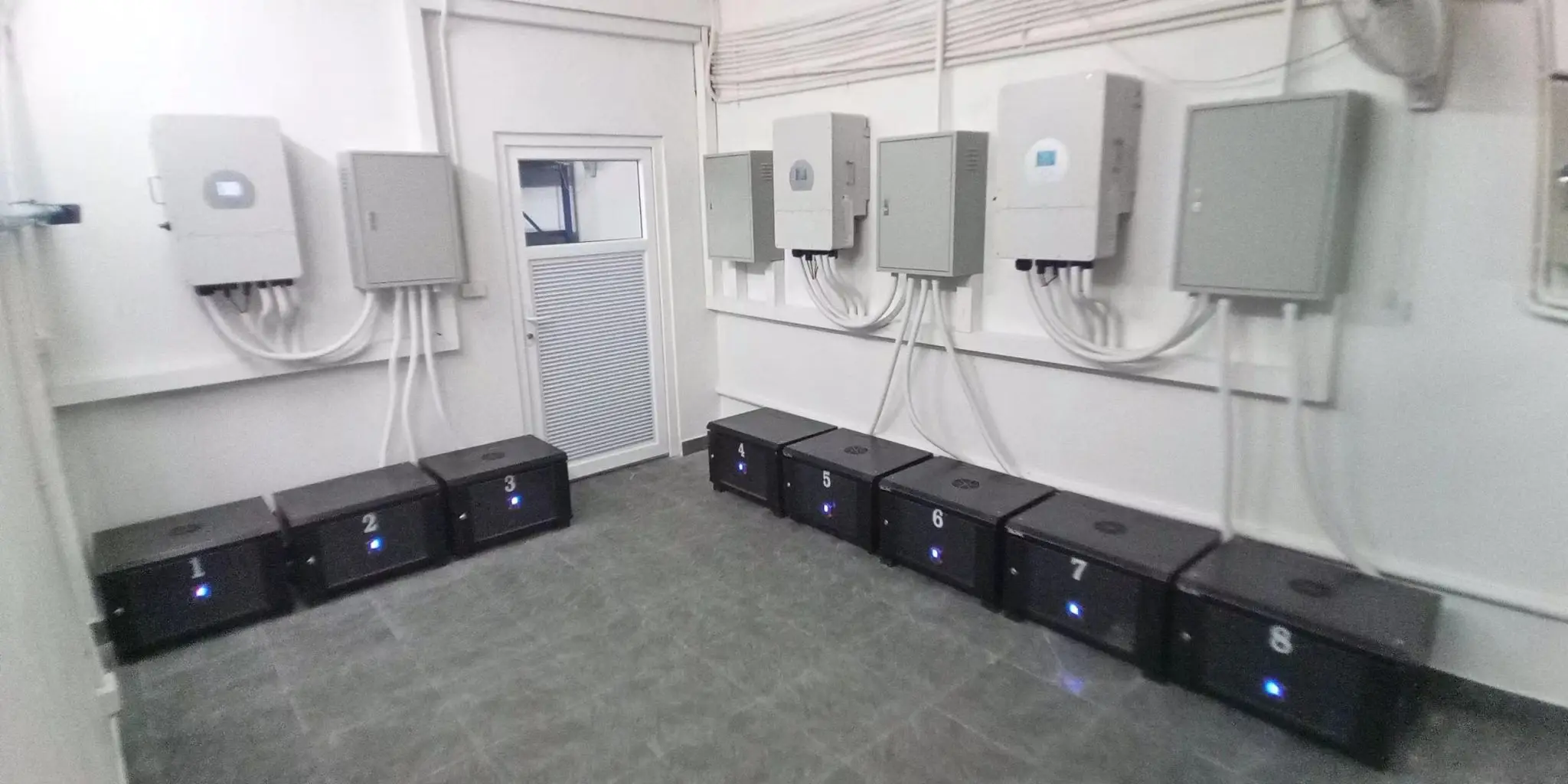

Project Cases

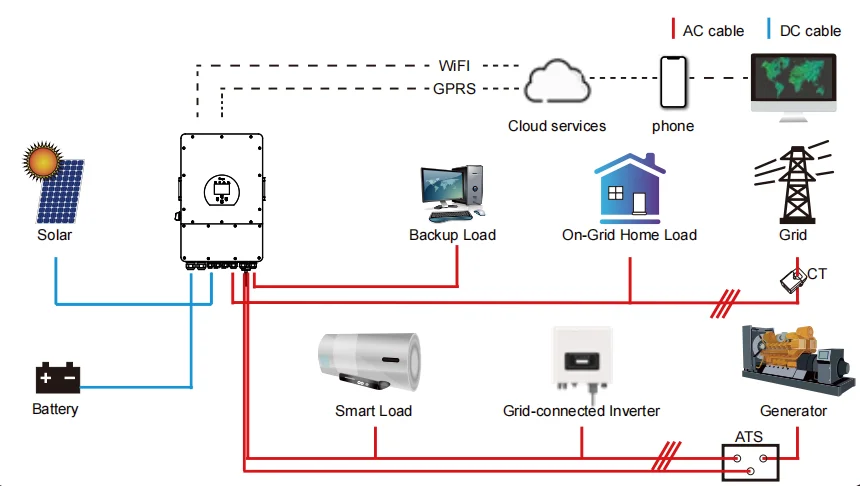

The following illustration shows basic application of this inverter.
It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Product Packaging
