Applied to cloth,leather,toys,computer embroidery cutting,mould,crafts,bamboo and wood.
Available for engraving and cutting such nonmetal metal hard material as acrylic,color plates,ABS board,rubber,plastic,cloth toys,leather,wool,crystal,glass,ceramic tile,jade,bamboo products,wood products. advertising and building decoration,packaging and printing,paper products industries
Brand: JIN ZHI YIN
Original: China
Front to rear design , suitable for large materials.
Brand: RUIDA Technology
Original: China
Ruida 6442s controller have many features.
1, support for multiple languages
2, support color layering
3, support offline work
4, support carving and cutting simultaneously
5, support for size compensation
Brand: Reci brand or EFR Brand
Original: China
EFR Laser tube 60w/80w/100w optional ( glable warranty 12 months,6000 hour work life-span )
Reci brand laser tube optional ( 10000 hours work life-span ). 80w w1 / 100w w2 tube optional

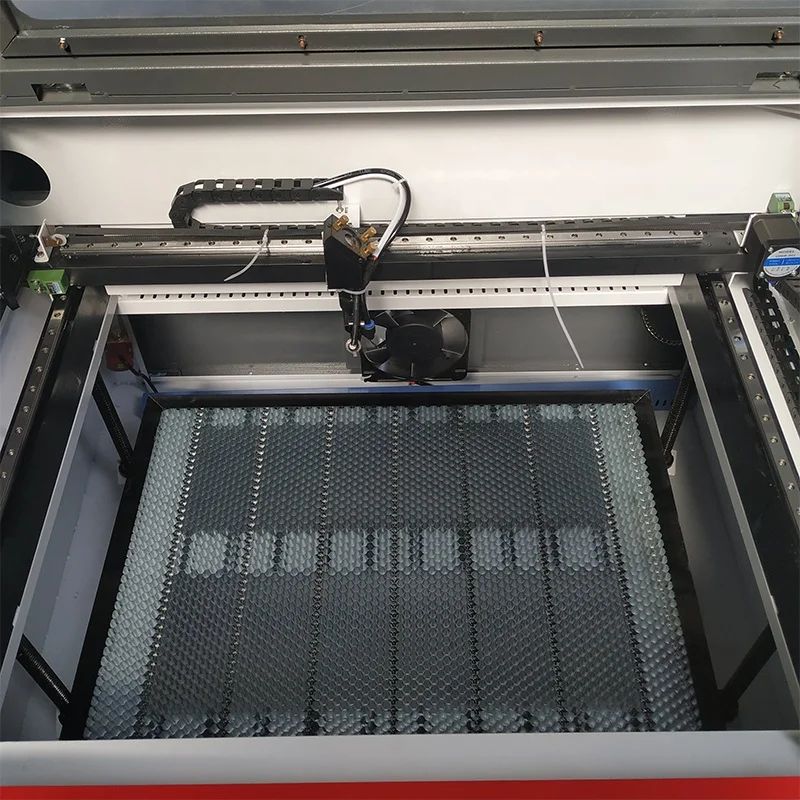

Blade worktable is better for hard materials such as wood,acrylic; Honeycomb worktable use for soft materials such as leather,fabric etc
(1) Ruida 6442s controller, the most popular control system for co2 laser engraving cutting machine
(2) Front to rear design, suitable for large materials
(3) EFR Laser tube ( glable warranty 12 months,6000 hour work life-span ) or Reci laser tube optional ( 10000 hours work life-span
(4) Electrical up and down blade work table, 600mm*900mm work area, lift distance 180mm
(5) 12 Months warranty + all life teach support + 16 hours online service .
(6) Y-Axis double linear square guide rail + big power motor, small noise, fast speed, max is 700mm/s
Model | IR-CLE6040 | IR-CLE9060 | IR-CLE1390 | ||
Working Area | 600*400mm | 900*600mm | 1300*900mm | ||
Laser Power | 60W 80W 100W 130W 150W | ||||
Laser Type | CO2 Sealed Laser Tube, 10.6μm | ||||
Cooling Type | Water Cooling | ||||
Engraving Speed | 0-60000mm/min | ||||
Cutting Speed | 0-40000mm/min | ||||
Laser Output Control | (0-100% Set by Software ) | ||||
Min. Engraving Speed | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm | ||||
Locating Precision | ≤+0.01mm | ||||
Controlling Software | RD Control System | ||||
Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||||
Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc | ||||
Color Separation | Yes | ||||
Drive System | High-precision 3-phase Stepper Motor | ||||
Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||||
power Supply | AC110V/220V+10%,50HZ/60HZ | ||||
Working Environment | Temperature:0-45°C,Humidity 5-95%(No Condensate Water) | ||||
Optional Spare Parts | Honeycomb Worktable, Rotary Device |
Applicable Materials | Cutting | Engraving |
Acrylic | Plexiglass | PMMA | Perspex | √ | √ |
Organic Board | Double Color Sheet | √ | √ |
Wood | Plywood | Veneer | MDF | Balsa | √ | √ |
Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather | √ | √ |
Fabric | Cloth | Textile | √ | √ |
Carpet | Mat | Rug | Wool Felt | √ | √ |
Paper | Cardboard | Chipboard | Press Board | √ | √ |
Ceramic | Tile | Marble | Glass | × | √ |
Plastic | √ | √ |
Fiber Glass | Filter Cloth | √ | × |
Coated Metal/Anodized Metal | × | √ |
Cutting thickness of different laser power for reference | ||||||
Laser power(W) | Acrylic(mm) | Plywood(mm) | MDF(mm) | |||
40W | 3 | 2 | 1.5 | |||
60W | 8 | 5 | 3 | |||
80W | 12 | 8 | 6 | |||
100W | 15 | 12 | 9 | |||
150W | 25 | 20 | 15 |
