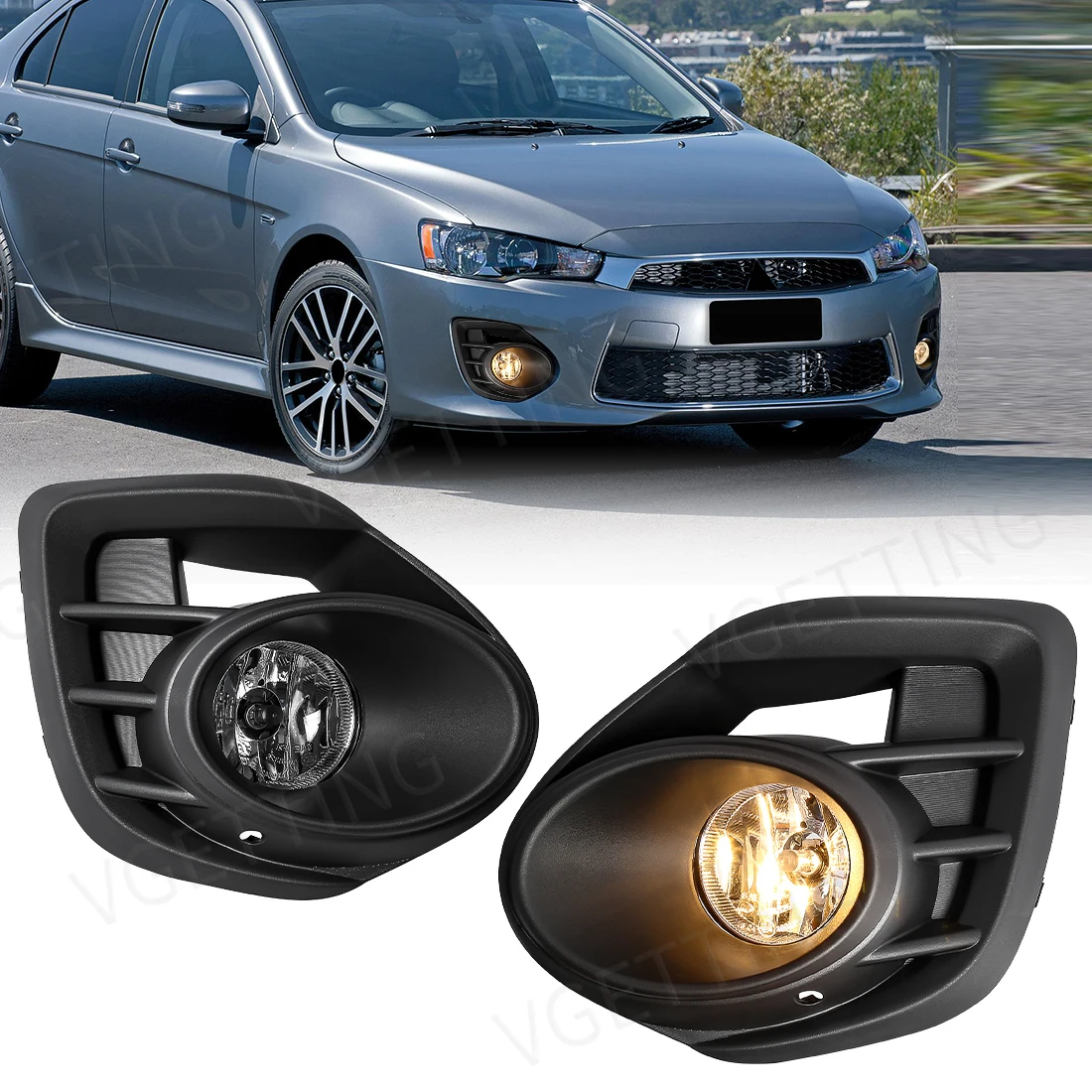

Car Fog Lamps Fog Lights for Mitsubishi Lancer 2015 2016 2017
- Category: >>>
- Supplier: Guangzhou Hotmall Auto Accessories Trade Co. Ltd.
Share on (1601114900509):
Product Overview
Description
Product Description
Product Name: Car Fog Lamps Fog Lights for Mitsubishi Lancer 2015 2016 2017

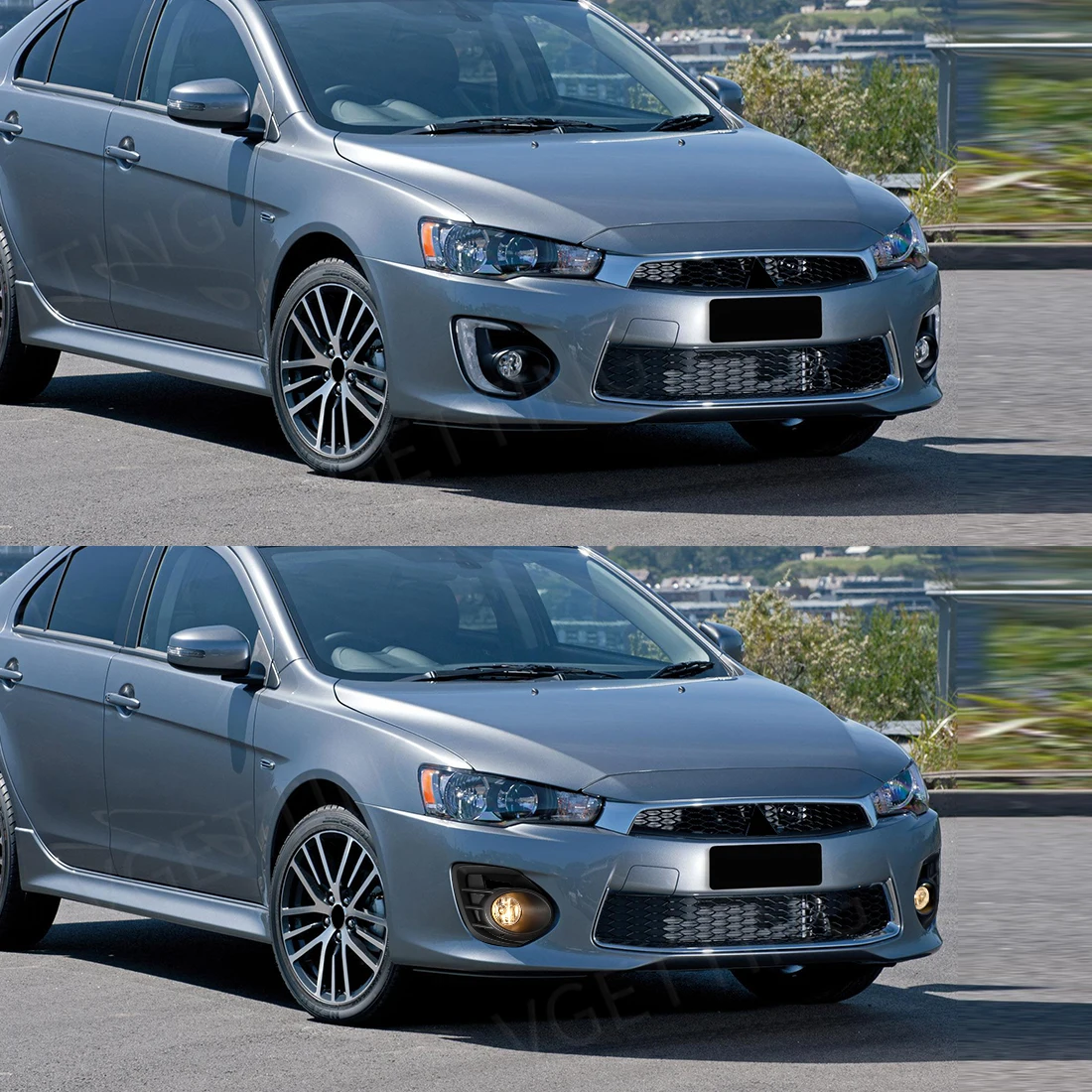

2015-2017 Mitsubishi Lancer
Item Specifications:
Item Type: Fog Lamp Assembly
Voltage: 12V
Power: 110W/Set; 55W/Light
Light Color: Amber Fog, White+Yellow DRL
Headlight Bulb Type: H11
Colour: Black
Material: ABS+Glass
Features:
100% Brand New.
High Quality
Perfect Aftermarket Replacement.
Professional Installation is Recommended.
Note:
-Pls confirm the item if they matches your car before purchasing.
-Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The
measurement allowed error is +/- 1-3cm.

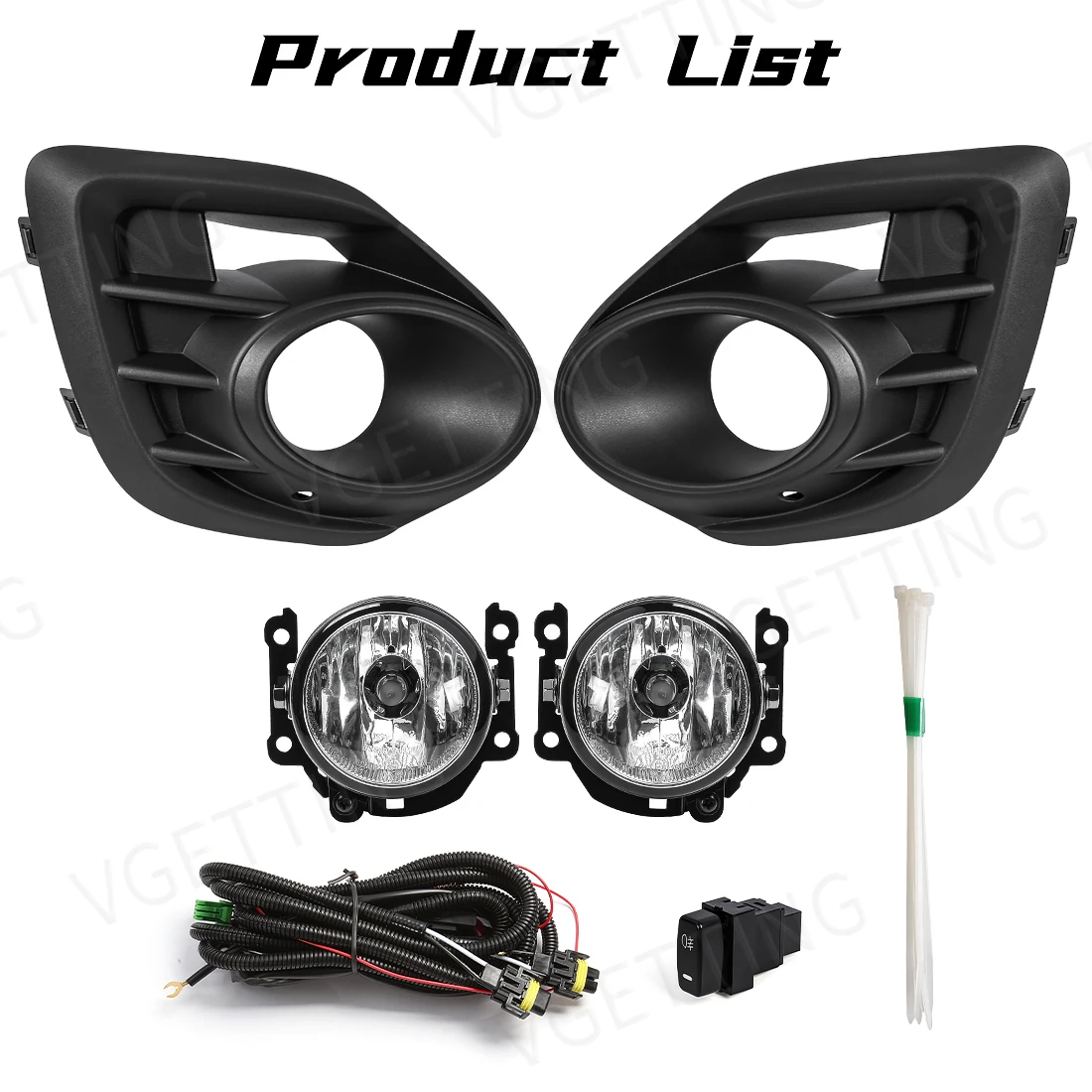

What is in the package? OEM Package Can be Provided
Left fog lamp *1
Right fog lamp *1
Fog Lamp cover *2
Wires* 1
Switch *1
Place of Origin | China |
Model Number | For MB Mitsubishi Lancer |
Warranty | 12 Months |
Certification | CE/ RoHS/R10 EMC |
OE No. | N/A |
Voltage | 12-28V DC |
Bulb Type | Halogen |
Temperature | 4300K |
Function | Waterproof |
Usage | Front |
Packing | 2pcs fog lights lamp per box |
Material | Plastic |
Special Notice:
Before place an order, please make sure this light is fit for your car. Please check the picture of our listing to confirm your
car is the same style with our picture shows, if have doubt, you can contact with us.
The set of wiring kit is only applying to the fog light sets which packed together with the wiring kit. To attach different fog
lights and different vehicle, the fog light wiring kit will be different. Before starting installation, you are expected to
carefully read the instructions.
1. Right tools are required to ensure proper execution of the work. Such as wrench, nippers, flat-tip screwdriver, phillips
screwdriver, clip remover, shop towel, cardboard or blanket and the so on.
2. Bind all harnesses together so that they do not move around loosely, otherwise the harnesses may break or short circuit, and
accidents, electric shocks or fire may occur.
3. When connecting the harnesses or plugs, insert the connectors firmly until they lock securely into place.
4. Disconnect the negative terminal of the battery before installation. Make sure that lamps, air conditioner and other devices
are switched off.
NOTE: The memories of the radio presets, clocks, etc. can be erased by disconnecting the battery cable. Write down these presets
before disconnecting the battery cable.
5. Then open the hood and remove the front bumper if necessary, then install fog lights to the proper positions.
6. Turn the steering wheel clockwise or counterclockwise. Left-hand-drive vehicle turn clockwise, right-hand-drive vehicle turn
counterclockwise. Then remove the front inner fender of the driver side.
7. Route the main wiring harness (A) through the engine room to the lamp and connect with bulb (B). Attach relay to relay box (C)
then attach black wire (Negative ) of main wiring harness to frame metal parts to create a ground circuit (D). Attach red wire
(Positive ) of main wiring harness to Positive of the battery (E).
8. Route the main wiring harness (A-1) through the cut grommet (F) and connect with main switch wiring harness (G).
NOTE: Some vehicle models may be pre-wired, then find out the correct circuit and plug it together.
9. Find an appropriate location to mount the switch. It’s usually on the dashboard but some vehicle’s switch position is near the
hand brake.
10. Remove the driver’s dashboard lower cover if necessary, then find the power line of the parking lamp (Small lamp) (H-1) and
connect with the red wire (Positive ) of the main switch harness (H). Attach the black wire (Negative ) of main switch wiring
harness to metal frame to create a ground circuit (I). Then connect the switch (J) with switch connector (K) and put the switch to
the right position.
11. Push the fog light switch to the “ON” position. (Indicator in switch light up.)
12. The fog lights operate only in the low-beam position. Adjust the light aiming according to local laws and regulations.
13. If the fog lights don’t turn on, check the fuse (Most vehicle’s fuse box is located in driver’s dashboard lower cover) and all
wire connectors, including the ground cable.
14. The fog lights lenses may cloud when the outside temperature is cold. It is normal and would go away in warm weather.
15. Do not touch the bulb with bare hand. The bulb becomes very hot during operation or just after use. Stains or greasy
substances will shorten the service life of the bulb.
car is the same style with our picture shows, if have doubt, you can contact with us.
The set of wiring kit is only applying to the fog light sets which packed together with the wiring kit. To attach different fog
lights and different vehicle, the fog light wiring kit will be different. Before starting installation, you are expected to
carefully read the instructions.
1. Right tools are required to ensure proper execution of the work. Such as wrench, nippers, flat-tip screwdriver, phillips
screwdriver, clip remover, shop towel, cardboard or blanket and the so on.
2. Bind all harnesses together so that they do not move around loosely, otherwise the harnesses may break or short circuit, and
accidents, electric shocks or fire may occur.
3. When connecting the harnesses or plugs, insert the connectors firmly until they lock securely into place.
4. Disconnect the negative terminal of the battery before installation. Make sure that lamps, air conditioner and other devices
are switched off.
NOTE: The memories of the radio presets, clocks, etc. can be erased by disconnecting the battery cable. Write down these presets
before disconnecting the battery cable.
5. Then open the hood and remove the front bumper if necessary, then install fog lights to the proper positions.
6. Turn the steering wheel clockwise or counterclockwise. Left-hand-drive vehicle turn clockwise, right-hand-drive vehicle turn
counterclockwise. Then remove the front inner fender of the driver side.
7. Route the main wiring harness (A) through the engine room to the lamp and connect with bulb (B). Attach relay to relay box (C)
then attach black wire (Negative ) of main wiring harness to frame metal parts to create a ground circuit (D). Attach red wire
(Positive ) of main wiring harness to Positive of the battery (E).
8. Route the main wiring harness (A-1) through the cut grommet (F) and connect with main switch wiring harness (G).
NOTE: Some vehicle models may be pre-wired, then find out the correct circuit and plug it together.
9. Find an appropriate location to mount the switch. It’s usually on the dashboard but some vehicle’s switch position is near the
hand brake.
10. Remove the driver’s dashboard lower cover if necessary, then find the power line of the parking lamp (Small lamp) (H-1) and
connect with the red wire (Positive ) of the main switch harness (H). Attach the black wire (Negative ) of main switch wiring
harness to metal frame to create a ground circuit (I). Then connect the switch (J) with switch connector (K) and put the switch to
the right position.
11. Push the fog light switch to the “ON” position. (Indicator in switch light up.)
12. The fog lights operate only in the low-beam position. Adjust the light aiming according to local laws and regulations.
13. If the fog lights don’t turn on, check the fuse (Most vehicle’s fuse box is located in driver’s dashboard lower cover) and all
wire connectors, including the ground cable.
14. The fog lights lenses may cloud when the outside temperature is cold. It is normal and would go away in warm weather.
15. Do not touch the bulb with bare hand. The bulb becomes very hot during operation or just after use. Stains or greasy
substances will shorten the service life of the bulb.
