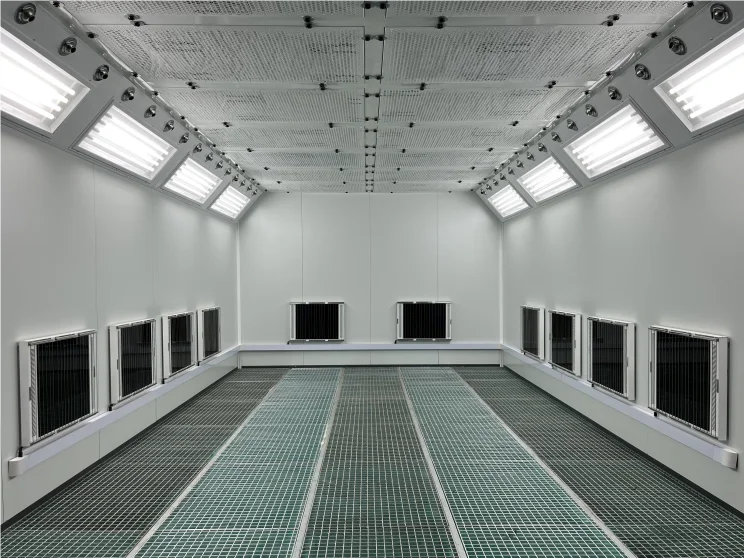

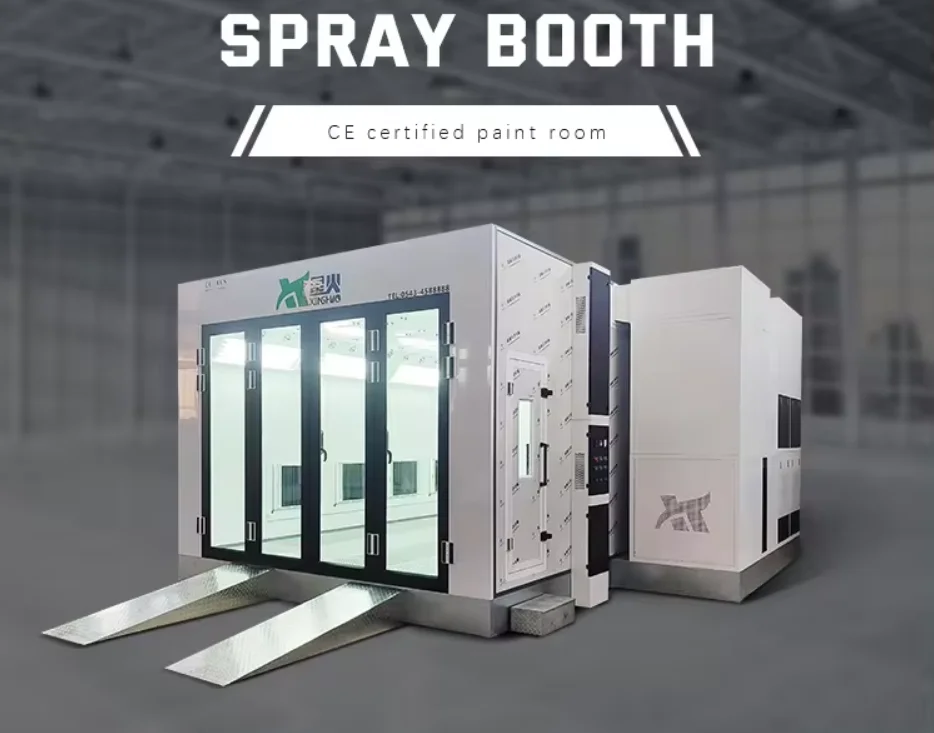

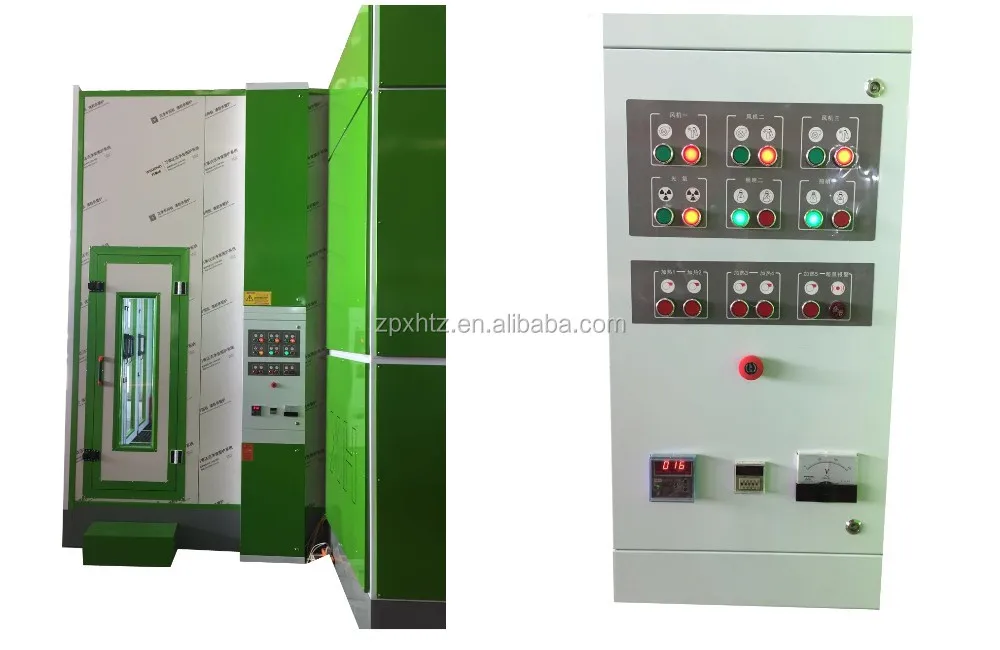

Spray Paint Room Car Paint Booth X 700
- Category: >>>
- Supplier: Zouping Xinghuo Coating Equipment Co. Ltd.
Share on (1601114902037):
Product Overview
Description
Specification
Project | Specification |
Type | electrical heating,diesel heating,natural gas heating |
Internal size | 6900 mm×3900 mm×2800 mm |
External size | 7000 mm×4000 mm（+1300 mm）×3500 mm |
The door opening size | 3200 mm×2600 mm ( 4 sheet metal gates ) |
Entrance door size | 300 mmx2500 mm |
working noise | ≤85dB |
Indoor illumination | ≥1000Lux |
Average indoor wind speed | ≥0.3m/s |
Air supply filter | tertiary filtration |
aint mist treatment efficiency | ≥98％ |
Paint temperature | 60-80℃ |
Total enter air volume | 25000m³/h; 1 sets of 7.5kw intake fan |
Total exhaust air volume | 25000m³/h;1 set 7.5kw exhaust fan |
Products Detail
House System

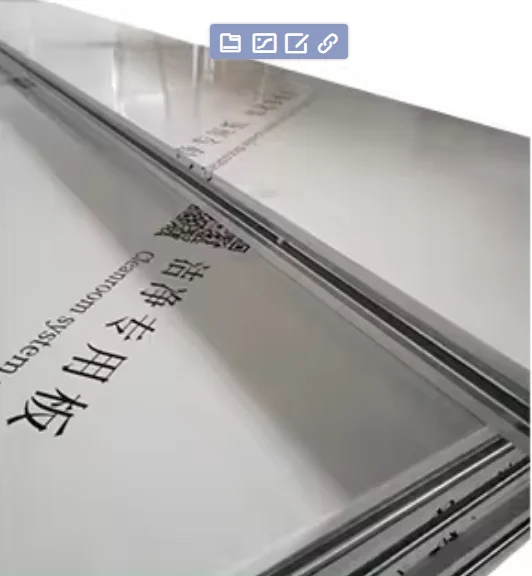

1.wall panel:
50 mm fireproof rock wool board ,
120 kg/cubic;
insulation board: 50 mm;
single-layer color steel plate: δ0.5 mm;
2.The roof:
0.6 mm galvanized sheet,and the top skeleton is welded with 40*60 square tube.
3.The slot and wrap angle:
bent with δ1.2 mm galvanized sheet and sprayed with plastic.
50 mm fireproof rock wool board ,
120 kg/cubic;
insulation board: 50 mm;
single-layer color steel plate: δ0.5 mm;
2.The roof:
0.6 mm galvanized sheet,and the top skeleton is welded with 40*60 square tube.
3.The slot and wrap angle:
bent with δ1.2 mm galvanized sheet and sprayed with plastic.

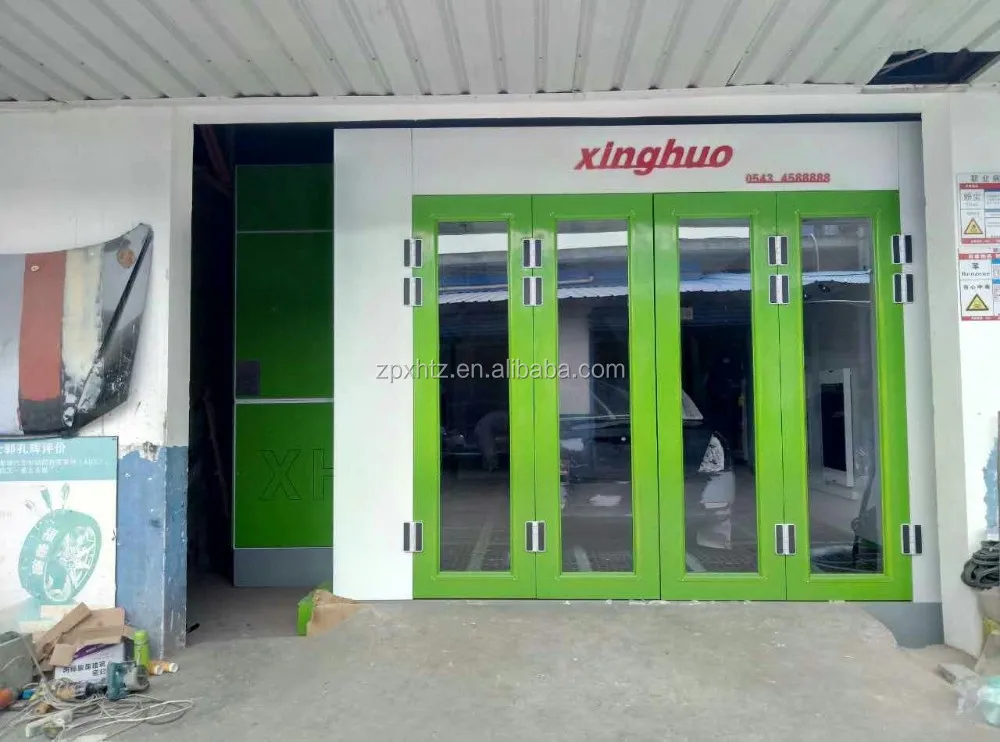

Gate system
1.Gate width: W :3200 mm×H:2600 mm;

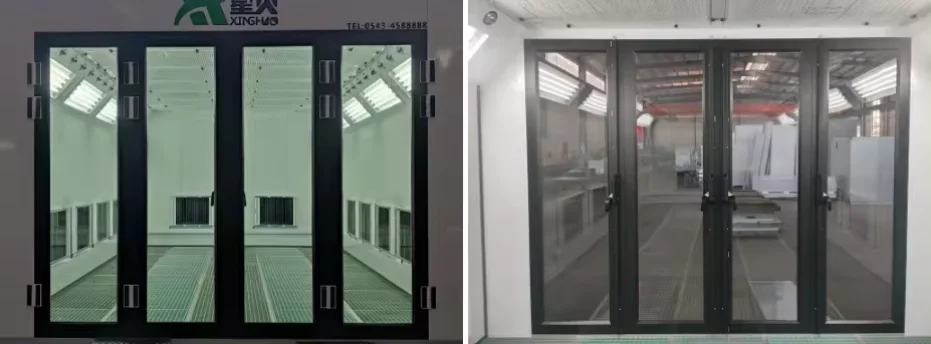

2.Entrance door:folding four-sheet metal large glass door,W: 800 mm×H: 2600 mm;
3.safety door: W:650 mm×H:1800 mm. It's on one side of the room, equipped with a safety pressure lock device.
2.Entrance door:folding four-sheet metal large glass door,W: 800 mm×H: 2600 mm;
3.safety door: W:650 mm×H:1800 mm. It's on one side of the room, equipped with a safety pressure lock device.

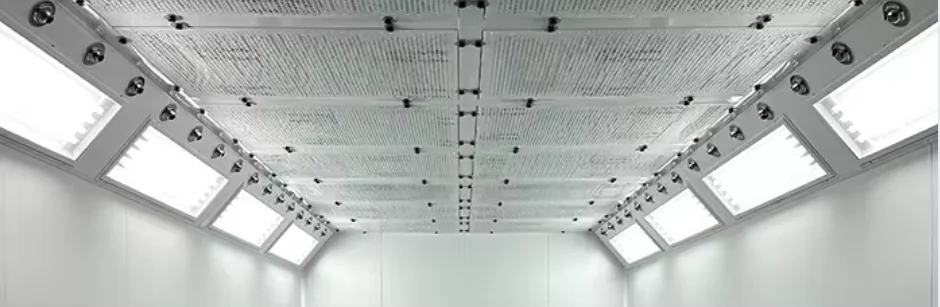

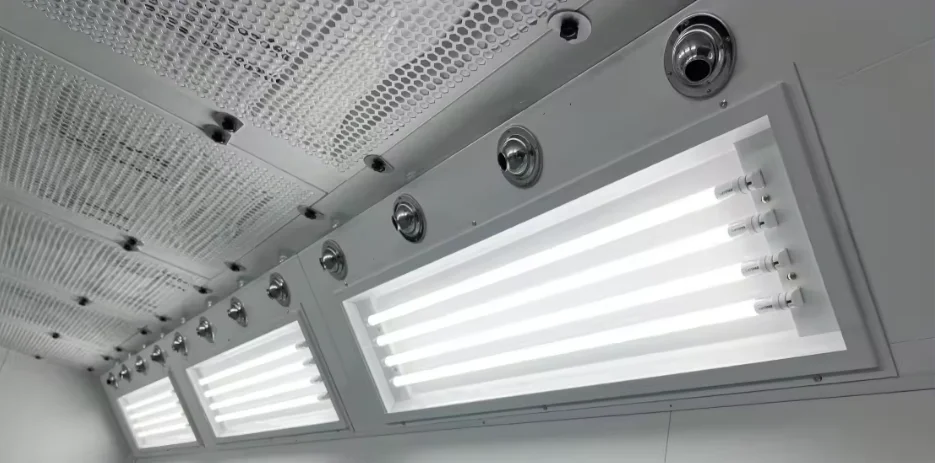

lighting device
1.The light box：δ1.2 mm galvanized steel sheet；
2.The ceiling light: 8 groups LED integrated tubes,each group has 4 lamps；
3.The waist light： 9 groups LED panel lights；
4.Lighting power: 2 KW.
2.The ceiling light: 8 groups LED integrated tubes,each group has 4 lamps；
3.The waist light： 9 groups LED panel lights；
4.Lighting power: 2 KW.
Air Filtration System

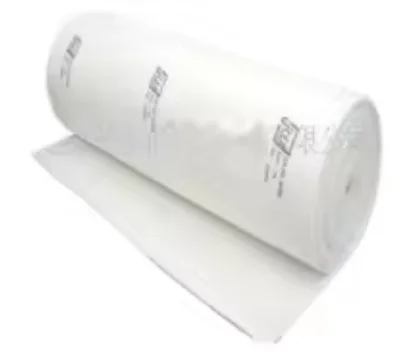

①The air inlet of the fan adopts the primary filter of the special air inlet cotton;
②The top of the static pressure chamber
adopts CC-800XU advanced filter cotton for high-efficiency filtration;
adopts CC-800XU advanced filter cotton for high-efficiency filtration;
③The bottom of the steel grille is equipped with bottom cotton paint mist filter felt for efficient filtration;
⑤The exhaust box body adopts 2 layers of paint mist filter cotton.

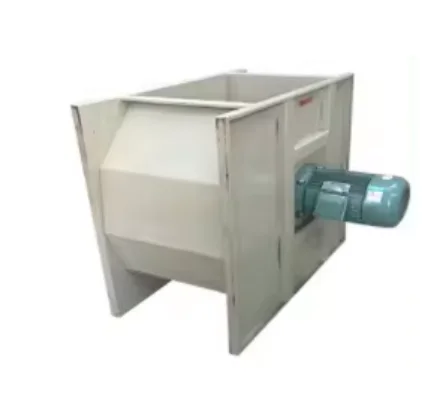

Fan system
one set of 7.5 KW DDF type single air inlet fan.
2.Outtake fan:
2.Outtake fan:
one set of 7.5 KW DDF type single air outtake fan.
Heating system
Diesel Heating system
Italian G20 diesel burner, heat exchanger made of SUS304 high-quality stainless steel.
Electrical Heating system
A total of graphene heating baking lamps are configured, each group is 2.4kw, a total of 24kw.
Natural gas Heating system
Italian FS20 natural gas burner, heat exchanger made of SUS304 high-quality stainless steel.

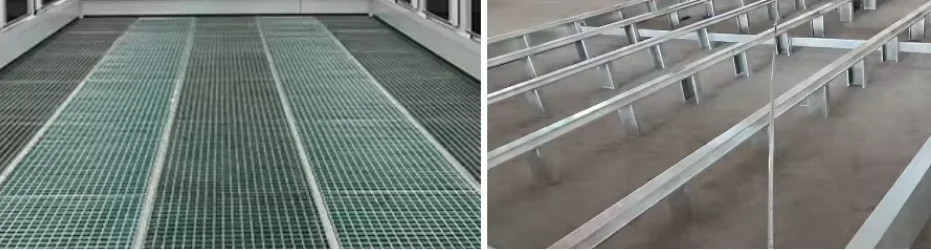

Base system
1.The front and lower skirts of the house ：
δ1.2 mm galvanized sheet; the other skirts：δ0.8 mm galvanized sheet;
2.The connecting legs ：δ1.8 mm galvanized sheet；
3.The bottom of the house： 30*5 mm flat iron and 8# thread welding;
4.The checkered plate ：δ2.3 mm steel plate;
5.The bottom of the steel grille: special bottom cotton bracket;
2.The connecting legs ：δ1.8 mm galvanized sheet；
3.The bottom of the house： 30*5 mm flat iron and 8# thread welding;
4.The checkered plate ：δ2.3 mm steel plate;
5.The bottom of the steel grille: special bottom cotton bracket;
6.Through-through ramps and small door steps: 2.75 mm skid plates.
water-based paint system
1.The water-based paint fan:
2 sets of YDW type double-inlet fan,each fan is 0.55 KW, and the total is 1.1KW;
2.The water-based paint air duct:
1.0mm bending;the air supply duct is fixed with 2 sets of flexible connections;
3.The top light box:32 sets of water-based paint blowing nozzles;
4.The water-based paint bellows:welded by 20x20mm galvanized square tube,with 0.8mm galvanized sheet skin,and contains 1 air supply purifying cotton.
