Product Overview

Description



Products Description


small submersible electric pump deep well submersible well pump farm irrigation
QS submersible pump for deep well is a water lifting machine tool which submerges for operation with a submersible motor in direct connection with the submersible pump. It mainly applies to farm irrigation as well as water supply and drainage works for cities and industrial and mining enterprises.
The submersible pump is designed by the world's advanced technology, manufactured from imported stainless steel housing, central spindle, coupling, copper alloy pump head and pump base,the impeller and the bow-type vaned casing are made of high-strength, anti-sand, wear-resistant PC polymer composite, with a new three-dimensional fluid hydraulic design. it is in a "floating" impeller structure, and each level of bowl-type vaned casing is provided with a metal or rubber wear bushing. having the best performance.


QS Submersible Pumps
Parameter of QS Series Submersible Pumps:
Model: QS Series
Caliber: 50mm
Flow: 5-200m³/h
Lift: 18-200m
Power: 2.2-18.5kw
Speed: 2800r/min
Voltage: 220/380v
Efficiency: 67%


Main Uses of QS Series Submersible Pumps:
Lift water from deep well
Drain water from pool into rivers
Water supply for high-rise buildings


Best Selling Model of QS Series Submersible Pumps:


Submersible Pump Model
QS20-60/4
Flow Rate (Q)
20m³/h
Lift (H)
60m
Motor Power (P)
5.5KW
Rated Voltage
380V
Speed
2860r/min
Water Outlet Diameter
65mm
Weight
61KG

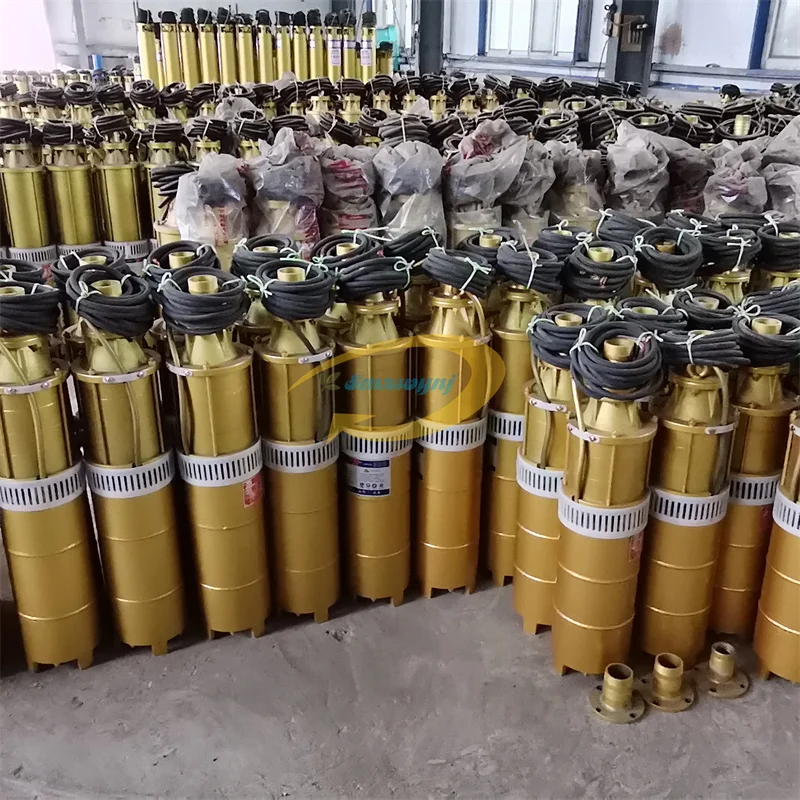

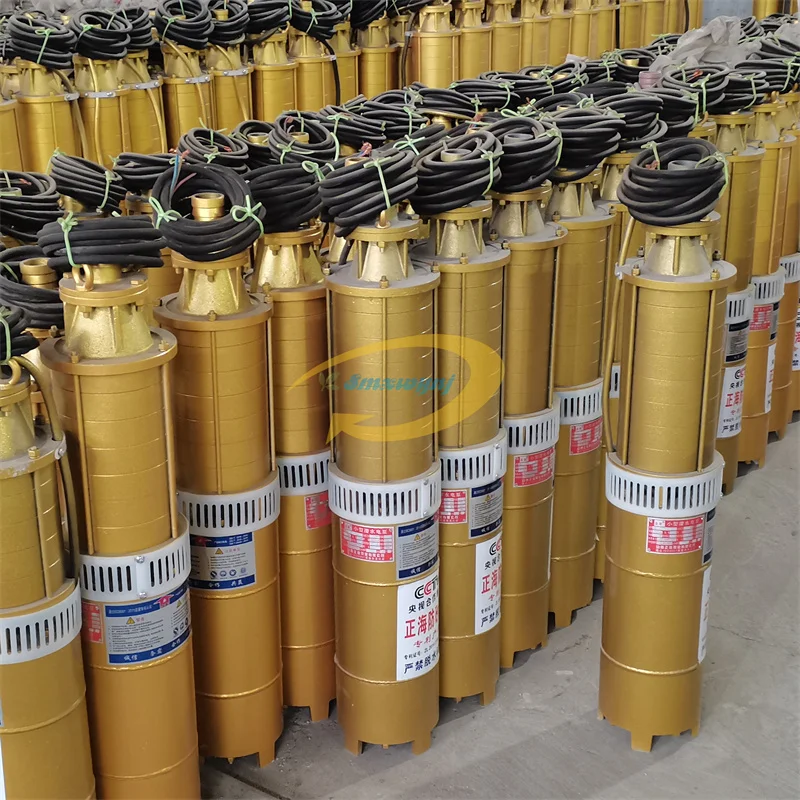

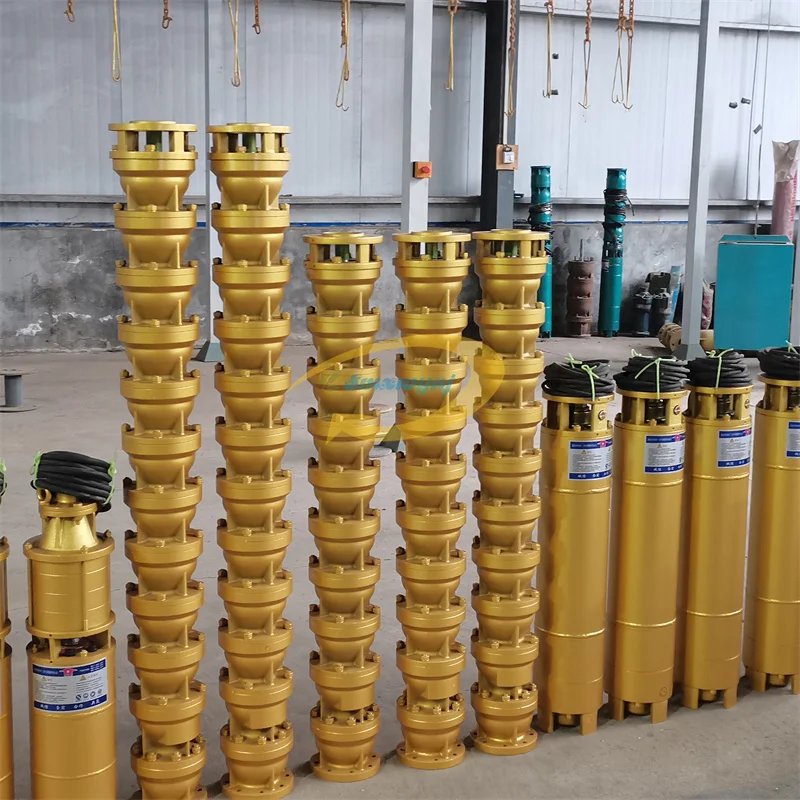

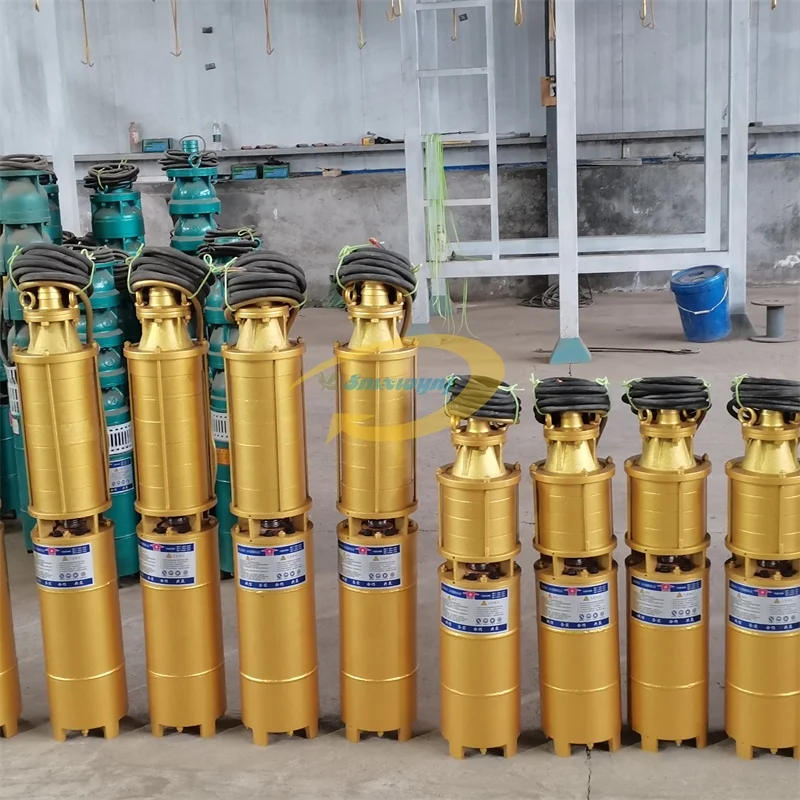

Details Images






Exhibition

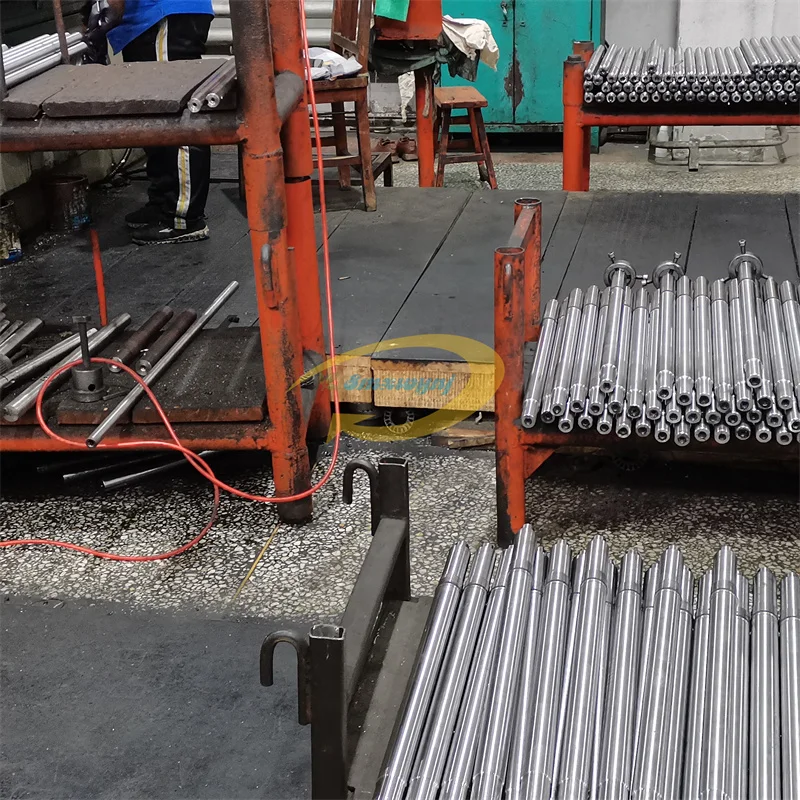

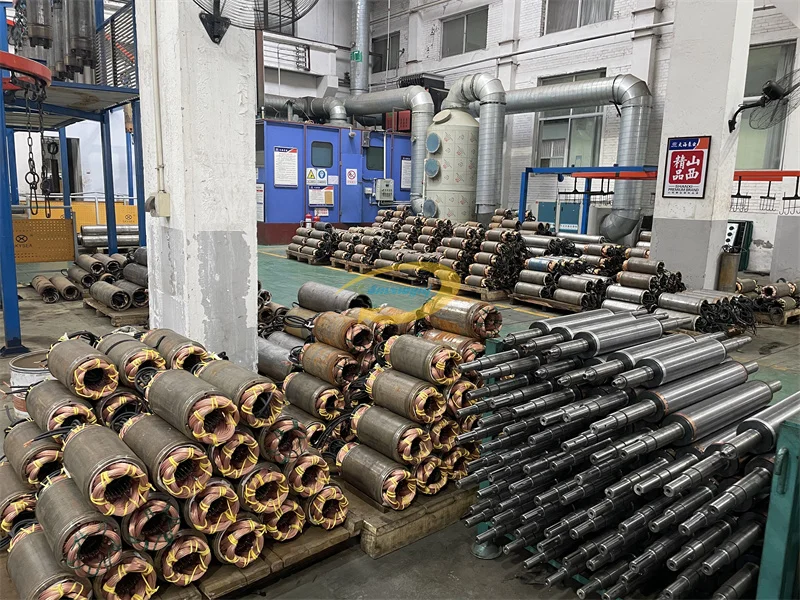

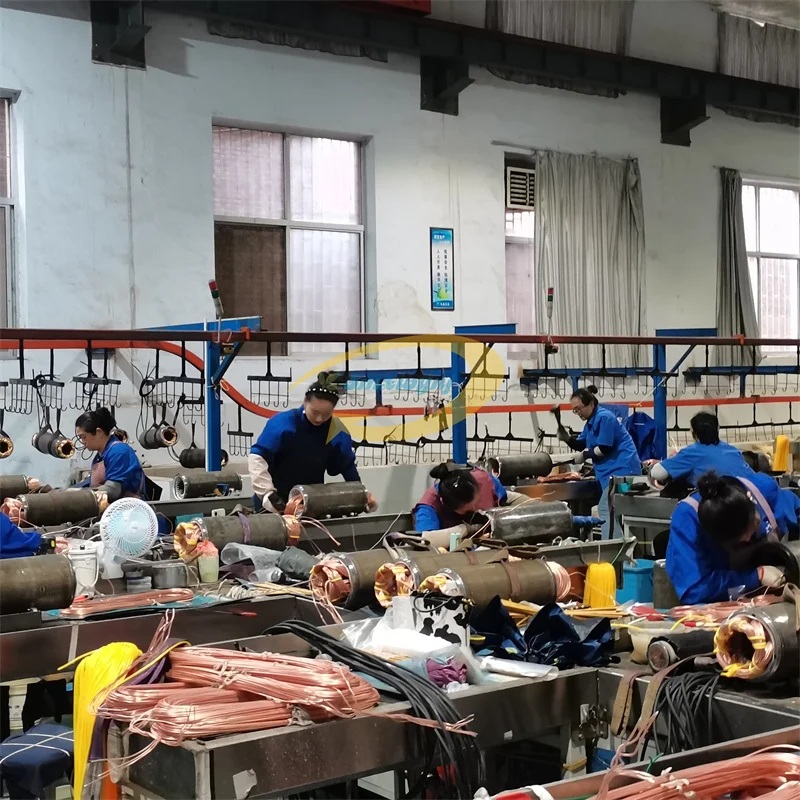

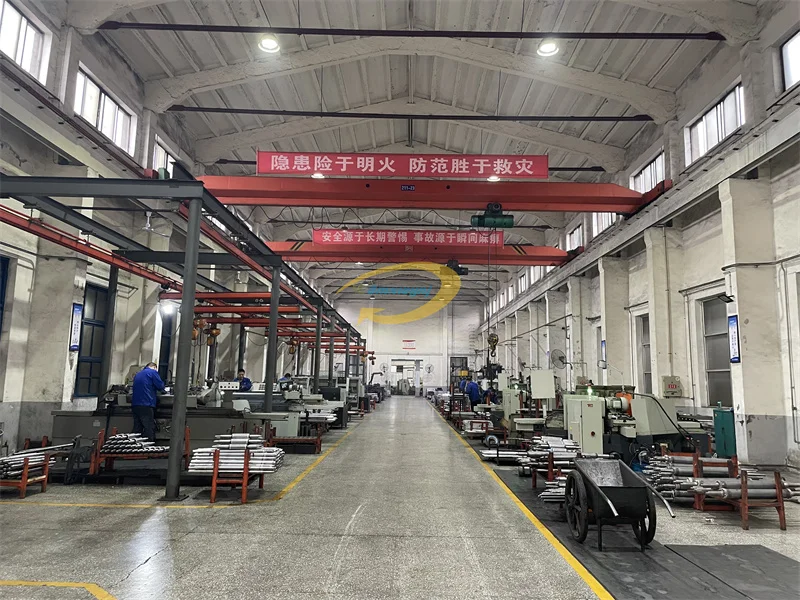

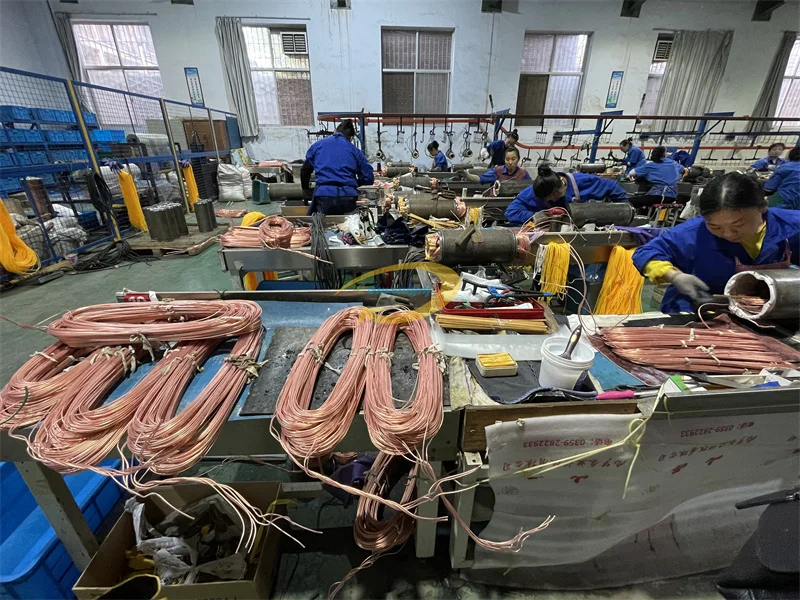

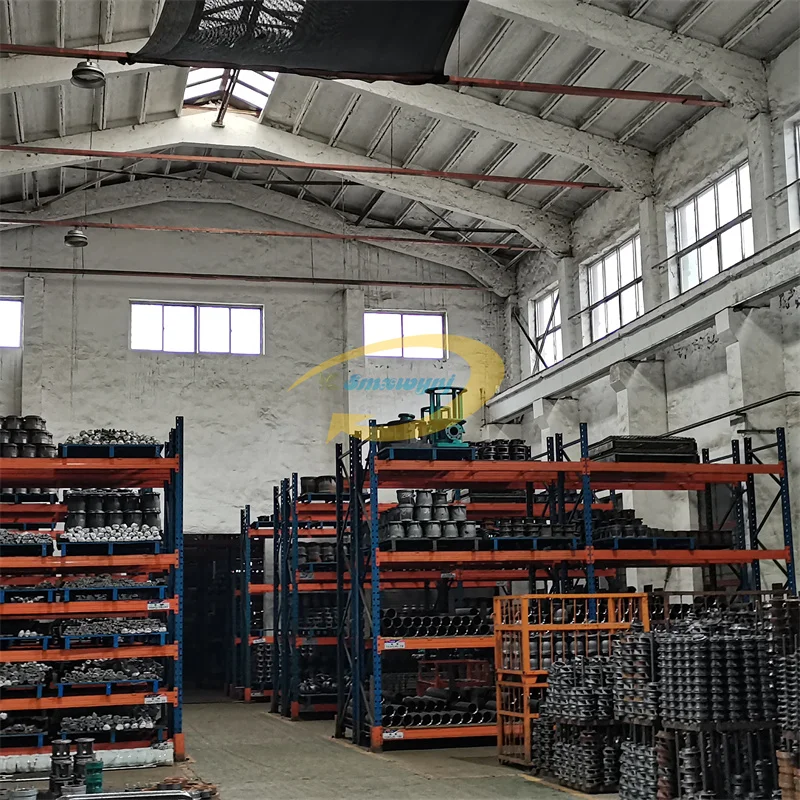

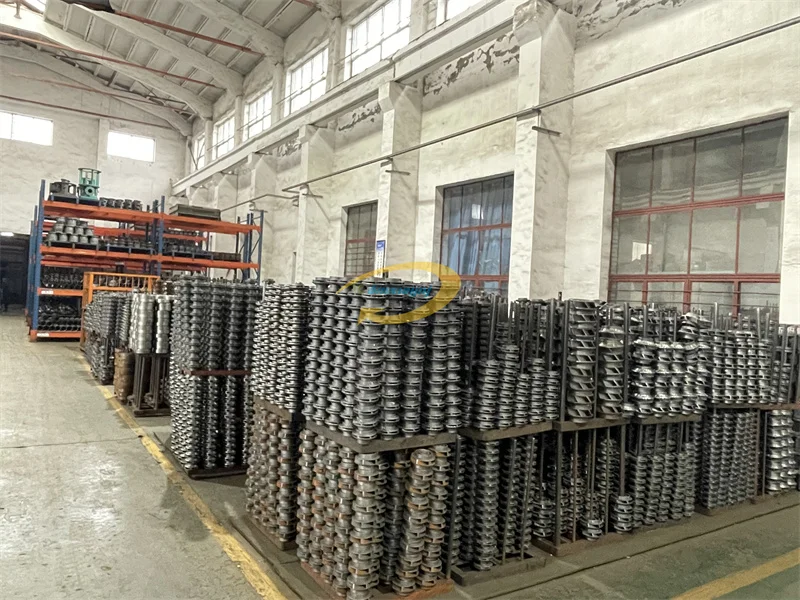

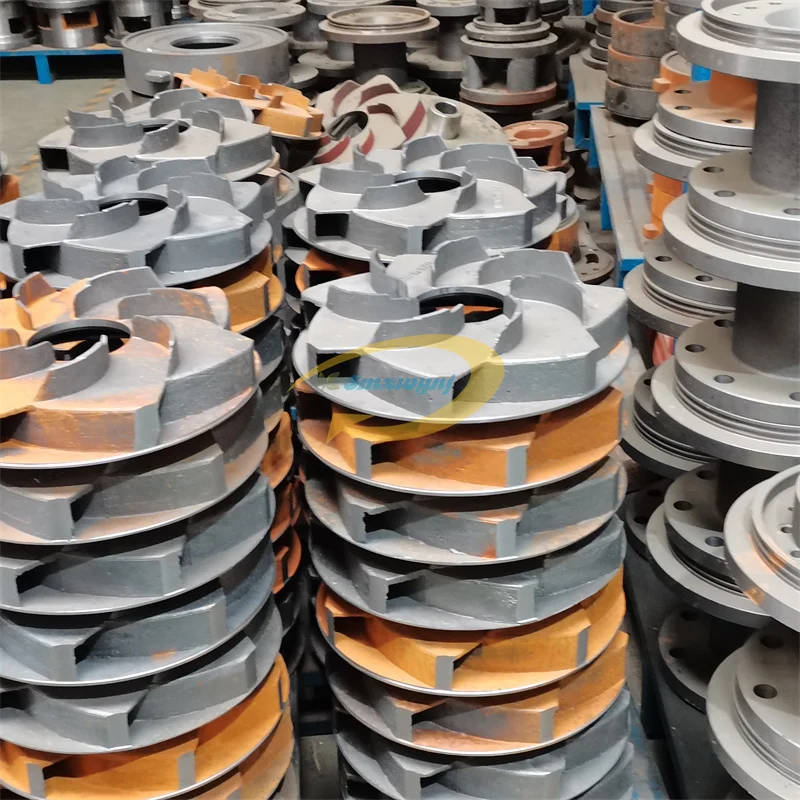

Our Factory














Packaging & Shipping






Contact Us




【 If you want to get the latest prices, please click on " Send " below to leave us a message. 】
↓ ↓ ↓
