4040 3050 4060 Wood Cutter CO2 Laser Engraving and Cutting Machine Woodworking Machinery with M2 Control System
- Category: >>>
- Supplier: Wuhan Yirui Technology Co. Ltd.
Share on (1601115005196):
Product Overview
Description
Product Description
Applicable industries
Applied to cloth,leather,toys,computer embroidery cutting,mould,crafts,bamboo and wood.
Applicable materials
Available for engraving and cutting such nonmetal metal hard material as acrylic,color plates,ABS board,rubber,plastic,cloth toys,leather,wool,crystal,glass,ceramic tile,jade,bamboo products,wood products. advertising and building decoration,packaging and printing,paper products industries
Detailed Images

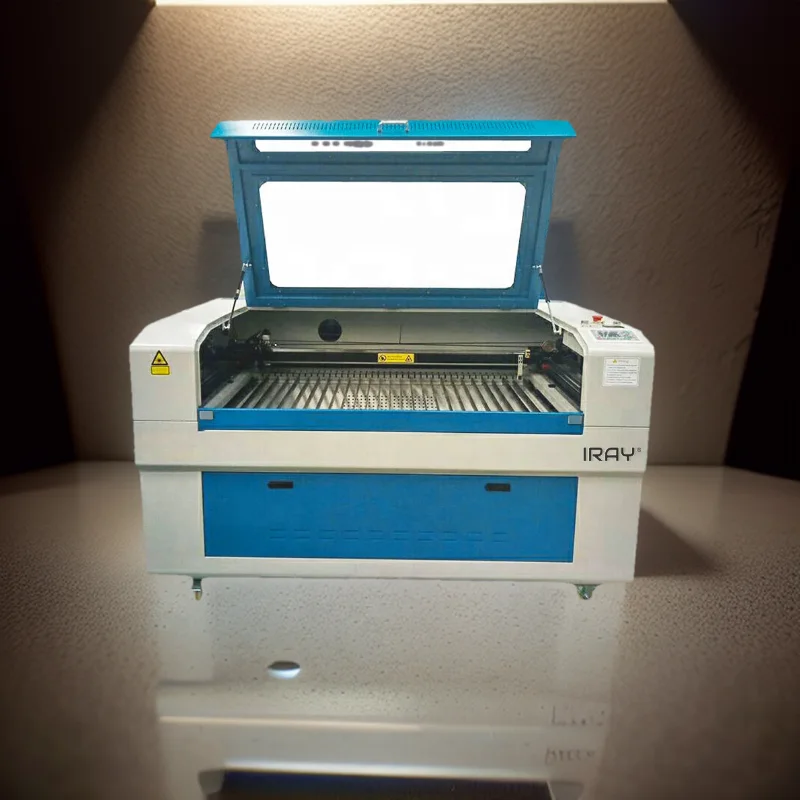

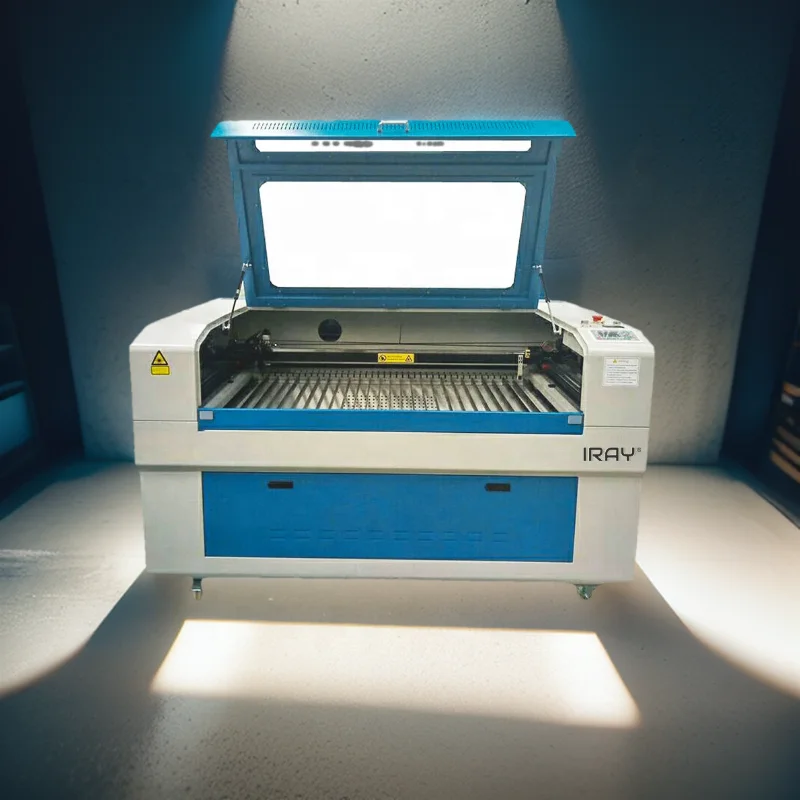

Front to rear design
Brand: JIN ZHI YIN
Original: China
Front to rear design , suitable for large materials.

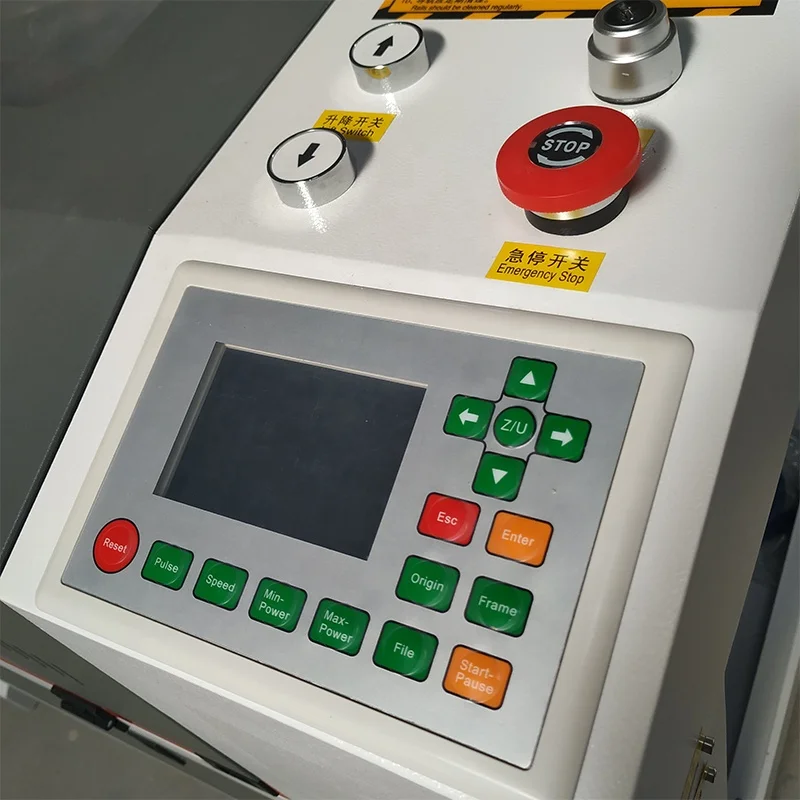

RUIDA offline/M2 Main Board
Brand: RUIDA Technology
Original: China
Ruida 6442s controller have many features.
1, support for multiple languages
2, support color layering
3, support offline work
4, support carving and cutting simultaneously
5, support for size compensation
Laser tube
Brand: Reci brand or EFR Brand
Original: China
EFR Laser tube 60w/80w/100w optional ( glable warranty 12 months,6000 hour work life-span )
Reci brand laser tube optional ( 10000 hours work life-span ). 80w w1 / 100w w2 tube optional
Blade worktable/Honeycomb worktable
Blade worktable is better for hard materials such as wood,acrylic; Honeycomb worktable use for soft materials such as leather,fabric etc
Main Features:
(1) Ruida 6442s controller, the most popular control system for co2 laser engraving cutting machine
(2) Front to rear design, suitable for large materials
(3) EFR Laser tube ( glable warranty 12 months,6000 hour work life-span ) or Reci laser tube optional ( 10000 hours work life-span
(4) Electrical up and down blade work table, 600mm*900mm work area, lift distance 180mm
(5) 12 Months warranty + all life teach support + 16 hours online service .
(6) Y-Axis double linear square guide rail + big power motor, small noise, fast speed, max is 700mm/s
Parameters
Model | IR-CLE6040 | IR-CLE9060 | IR-CLE1390 | ||
Working Area | 600*400mm | 900*600mm | 1300*900mm | ||
Laser Power | 60W 80W 100W 130W 150W | ||||
Laser Type | CO2 Sealed Laser Tube, 10.6μm | ||||
Cooling Type | Water Cooling | ||||
Engraving Speed | 0-60000mm/min | ||||
Cutting Speed | 0-40000mm/min | ||||
Laser Output Control | (0-100% Set by Software ) | ||||
Min. Engraving Speed | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm | ||||
Locating Precision | ≤+0.01mm | ||||
Controlling Software | RD Control System | ||||
Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||||
Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc | ||||
Color Separation | Yes | ||||
Drive System | High-precision 3-phase Stepper Motor | ||||
Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||||
power Supply | AC110V/220V+10%,50HZ/60HZ | ||||
Working Environment | Temperature:0-45°C,Humidity 5-95%(No Condensate Water) | ||||
Optional Spare Parts | Honeycomb Worktable, Rotary Device | ||||
Applications
Applicable Materials | Cutting | Engraving |
Acrylic | Plexiglass | PMMA | Perspex | √ | √ |
Organic Board | Double Color Sheet | √ | √ |
Wood | Plywood | Veneer | MDF | Balsa | √ | √ |
Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather | √ | √ |
Fabric | Cloth | Textile | √ | √ |
Carpet | Mat | Rug | Wool Felt | √ | √ |
Paper | Cardboard | Chipboard | Press Board | √ | √ |
Ceramic | Tile | Marble | Glass | × | √ |
Plastic | √ | √ |
Fiber Glass | Filter Cloth | √ | × |
Coated Metal/Anodized Metal | × | √ |
Cutting thickness of different laser power for reference | ||||||
Laser power(W) | Acrylic(mm) | Plywood(mm) | MDF(mm) | |||
40W | 3 | 2 | 1.5 | |||
60W | 8 | 5 | 3 | |||
80W | 12 | 8 | 6 | |||
100W | 15 | 12 | 9 | |||
150W | 25 | 20 | 15 | |||
Packing & Delivery
Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
Shipping
We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
Our company
Iray laser equipment factory
We are a professional manufacturer of industrial laser equipment.
Our main products include laser cutting machines, laser engraving machines, laser cleaning machines, laser welding machines, and laser marking machines. Products support customization and have a complete after-sales service system.
Each product is strictly examined according to ISO9001 (QCS) standard before it is put on to the market. Many laser equipment series have acquired CE certificate.
