Lifepo4 Battery 280ah Lithium Ion Battery Pack for Solar Energy System Energy Storage Battery
- Category: >>>
- Supplier: Guangzhou Renepoly Energy Technology Co. Ltd.
Share on (1601115106973):
Product Overview
Description
Product Description
| Technical Parameters | 166.4V280Ah |
| AC Side (Grid Tied Scenario) | |
| AC Output Power | 50kW @ 45°C |
| Max. AC Current | 87A |
| Nominal AC Voltage / Range | 400V/230V(-20%-1596) |
| Nominal Grid Frequency/Range | 50Hz/47Hz~ 52H2 60H2/57HZ~ 62HZ |
| Harmonic(THD) | <3% (at Nominal Power) |
| Power Factor at Nominal Power/Adjustable | -1~l |
| Colling Concept of PCS Chambe | Air-Cooling |
Seamless Switching from Grid toBESS In Case of Power Outage | Optional |
| AC Side (Microgrid Scenairo) | |
| Nominal AC Voltage | 400V/230V |
| Harmonic (THD) | <1%(Resistance Load) |
| Nominal Frequency/Range | 50Hz/45Hz~ 55H2 60H2 55HZ~ 65HZ |
| Max. AC Power | 55kW |
| Batteries | |
| Nominal Battery Voltage | 691.2VDC |
| Battery Type | LiFePO4 3.2V/150Ah |
| Battery Pack Configuration | 1P24S/11.52kWh |
| Battery System Configuration | 1P216S |
| Capacity | 103.68kWh |
| Battery Voltage Range | 650-850VDC |
| Max Charging/Discharging Current | 88A |
| Battery Disconnect | Integrated |
| Cooling concept of battery chamber | Air-Cooling |
| Normal Parameters | |
| Dimension W*DH | 1200*800*2400 mm |
| Charge/Discharge Rate | 0.5C |
| Depth of Discharge | 0.95 |
| Life Cycle | 6000 |
| Degree of Protection | IP54 |
| System Efficiency | >90% |
| Fire Protection System | Perfluorhexone |
| Allowed Ambient Temperature | -30~ 55 °C(>45 °C Derating) |
| Allowed Relative Humidity | 0~95% |
| Enclosure Corrosion Resistance Level | C3(C4/C5 Optional) |
| Weight | ~1500kg |
| SPD | DC TYPE II/AC TYPE I |
| Lifting Options | Fork/Crane |
| Scalability | Yes, Units Can Be Connected In Parallel |
| Accessories (Optional) | Energy Management System,Microgrid Controller, Scada, 4/5G Router, MCCB (Breakers),Power Cables, Smart Meters, Static Transfer Switch(STS), Electri Cabinet |
| Monitoring | |
| Display | 7 Inches Touchscreen |
| Communication | RS485/Ethernet |
| Communication Protocols | MODBUS-RTU/MODBUS-TCP |
| Remote Control System | EG Cloud |
| Solar PV Charge (Optional) | |
| Solar PV MPPT (Optional) | 50kw |
| Solar PV DC Regulator (Optional) | 50kw |
Supply OEM/ODM Service.
100% After-Sales Gurantee,100% Free Technical Support;Fast Delivery.
Longer cycle life, more Powerful.
Built-in smart BMS monitor battery state.
Extremely safe, no explosion, no fire under collision.
Customized battery solutions base on yours requirements.
Excellent large current discharge performance.
Low self-discharge and good discharge performance at low temperatures.
Packaging & Shipping
Packaging
The goods will be packed by the standard packing materials following the international standards and upon the requirements of the custom.
Shipping
By sea,The overseas shipping time is around 14-35 days, which varies with the countries.
Our Services
- Product customerization design
- OEM and ODM
- Hybrid system architechture design
- Technical consultancy of battery system and microgrid system

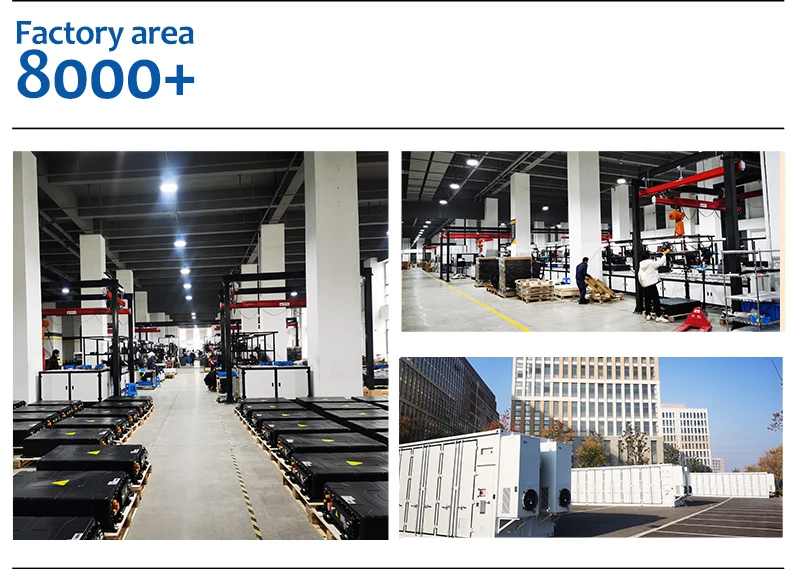

Company Information
Renepoly Energy is a renewable energy innovation technology company focusing on providing smart distributed energy solutions. Guangzhou Ruinaituo Energy Technology Co., LTD. (Renepoly Energy) was founded in Guangzhou, China in 2016. Since its inception, the company has been committed to the research and development of distributed new energy systems and the expansion of practical application scenarios.
The company consists of a group of industry experts, doctors and senior engineers, and relies on the professional skills and management system of Tianjin University, KTH Royal Institute of Technology, Sweden, European Institute of Innovation and Technology and other internationally renowned institutions. The team has more than 10 years of experience in the development and design of smart microgrid systems (distributed photovoltaic systems, small wind power systems, modular electrochemical energy storage systems, small and medium-size diesel/gasoline generators and energy m -anagement systems).
After years of development, the company's main business includes investment, construction, design, research and development, sales, integration, technical consulting and management consulting services of distributed power generation systems. Relying on the professional service network, the company has rich experience in project technology and business operation in the renewable energy sector, especially in the field of smart microgrid. Renepoly Energy will rapidly and efficiently develop economically feasible renewable energy distribution systems to promote sustainable energy development in communities and regions in an efficient manner.
FAQ
Q: How long does it take to receive the goods?
A: The goods will be ready in 7-30 days, depending on the quantitty of the goods. The overseas shipping time is around 14-35 days, which varies with the countries. Consult with our online agent for the details.
Q: How is the package of the goods?
A: The goods will be packed by the standard packing materials following the international standards and upon the requirements of the custom.
Q: The goods and brand can be customerized?
A: Yes. we are Original Equipment Manufacturer, Orignal Brand Manufacturer and Original Design Manufacturer.
Q: Where is your company?

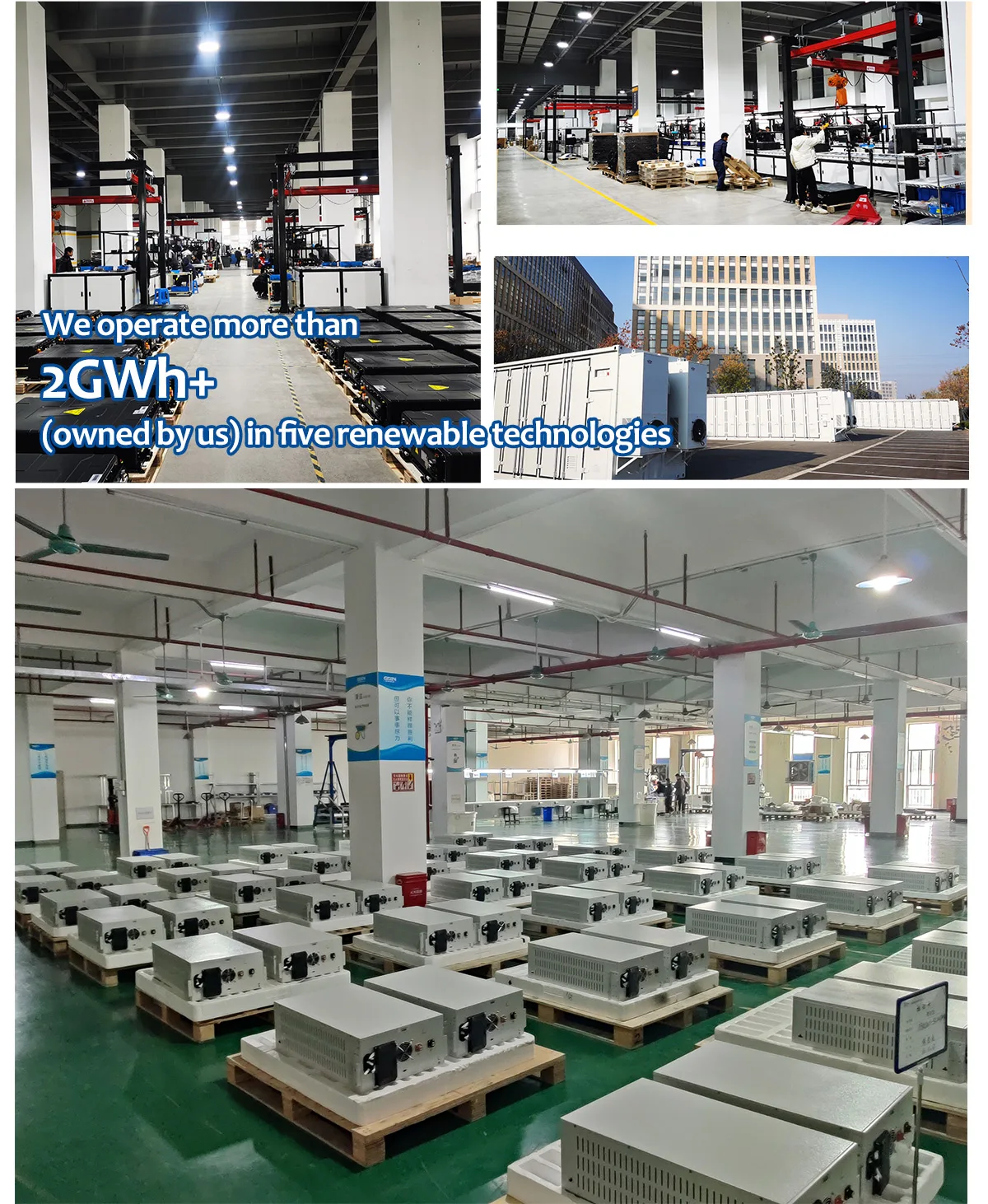

A: The plant is located in Dongguan, Guangdong, China, and the international sales centers is in Guangzhou,China.
Q: Do you have customerization service for the big solar/battery system?
A: Yes. Please consult with our online agent for the details.
Q: What is included in the price for the integrated system?

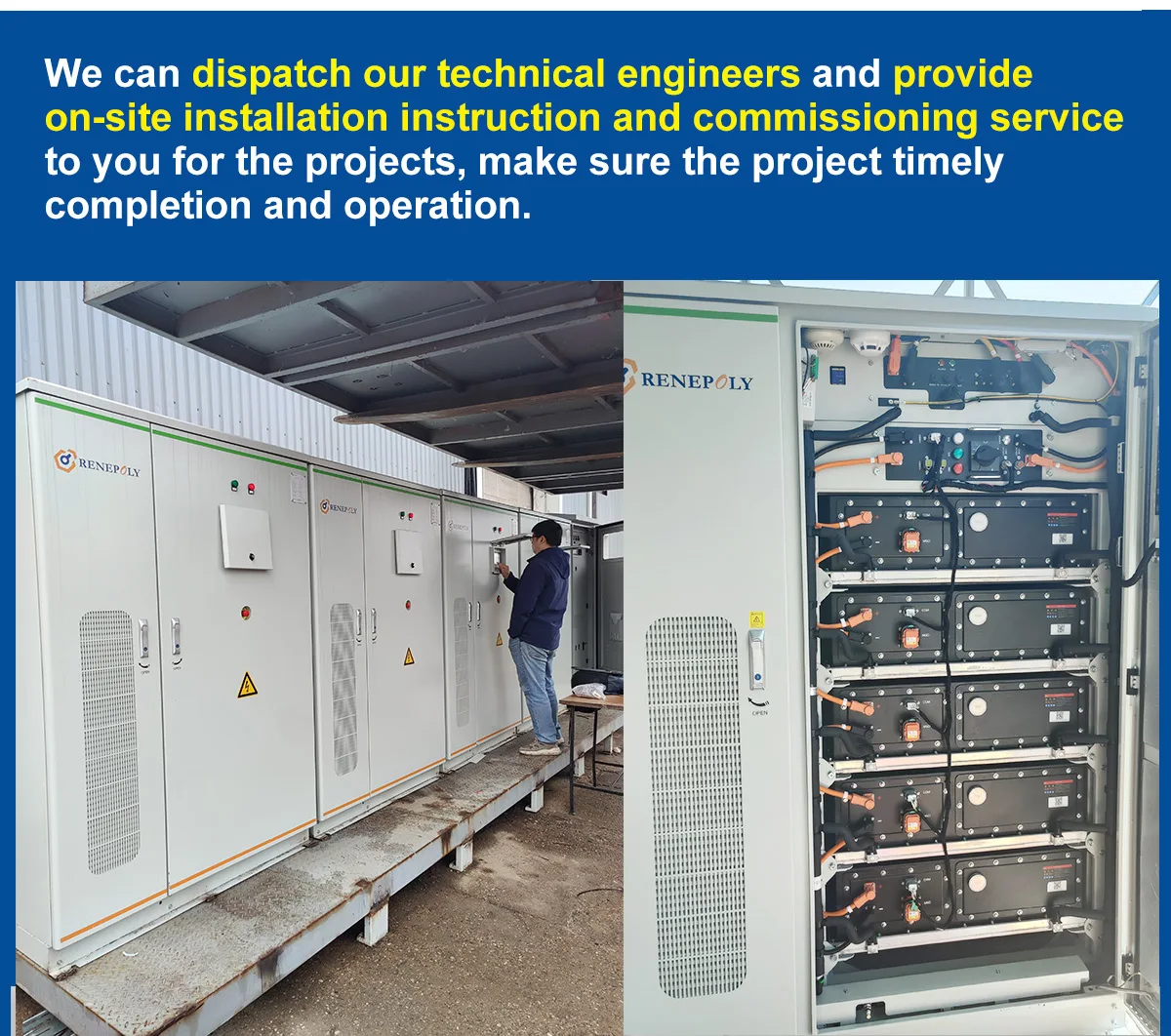

A: Engineering design and materials cost are included in the price. The price of onsite installation supervision, testing and commissioning will be quoted upon request.
