fiberglass grid gravel grid paver geocell ground grid paver asphalt reinforcement fiberglass geogrids 100 100kN
- Category: >>>
- Supplier: Shandong GeoRoad Engineering Materials Co. Ltd
Share on (1601115193554):
Product Overview
Description
Product Description

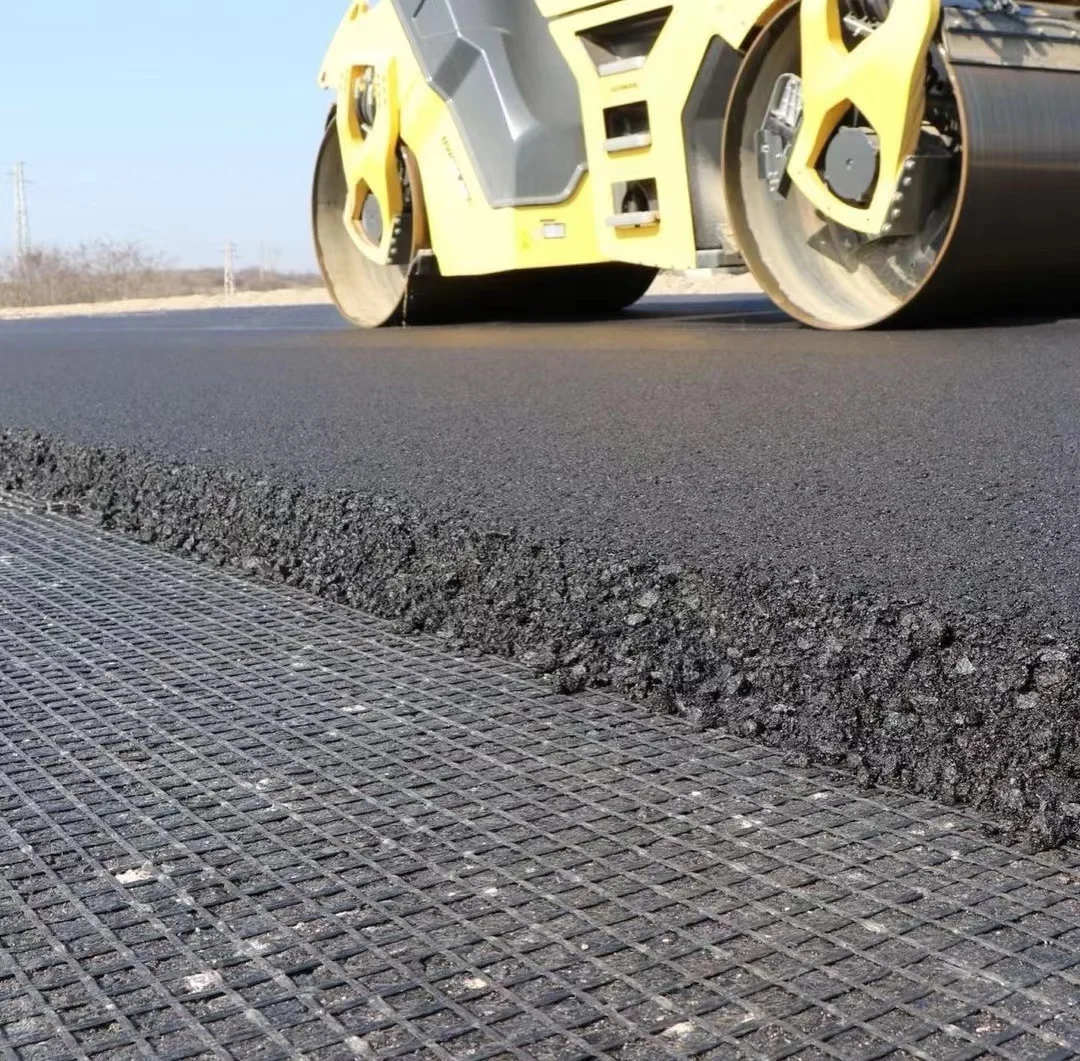

Fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide
a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life of
pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.
a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life of
pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.
Fiberglass Geogrid 50-50kN/m,
Mesh size 25.4x25.4mm
Mesh size 25.4x25.4mm
Fiberglass Geogrid 50-50kN/m,
Mesh size 12.5x12.5mm
Mesh size 12.5x12.5mm
Fiberglass Geogrid 100-100kN/m,
Mesh size 25.4x25.4mm
Mesh size 25.4x25.4mm
Fiberglass Geogrid 100-100kN/m,
Mesh size 12.5x12.5mm
Mesh size 12.5x12.5mm

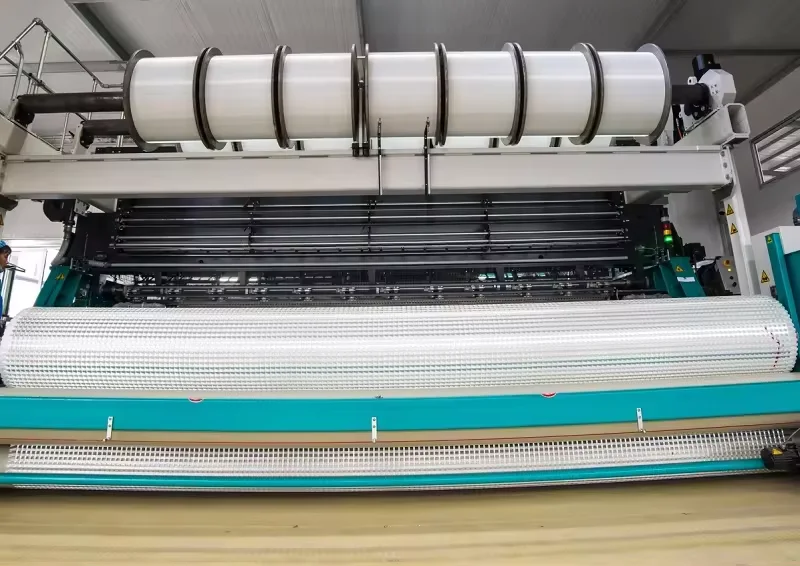

Production Display
Specification
Item | Test Method | Unit | 50-50 | 100-100 | ||
Polymer | Fiberglass with bitumen coating | |||||
Tensile Strength | ASTM D 6637 | kN/m | 50 | 100 | ||
Elongation | ASTM D 6637 | % | 3 | 3 | ||
Working temperature | ℃ | -100-280 | ||||
Mesh size | mm | 12.5x12.5 or 25.4x25.4 | ||||
Quality Test
Most Advanced Testing Equipment
We use the most advanced equipment for testing fiberglass geogrid to make sure the result is accurate
Test Report
Our lab issue the test report of fiberglass geogrid
Application
1. Reinforce the old asphalt concrete pavement to strengthen the asphalt surface to prevent and control diseases.
2. The cement concrete pavement is converted into a composite pavement to suppress reflection cracks caused by plate shrinkage.
3. Road extension and renovation project to prevent cracks caused by new and old junctions and uneven settlement.
4. Reinforcement treatment of soft soil foundation is conducive to water seepage and consolidation of soft soil, effectively inhibiting settlement, uniform stress distribution, and enhancing the overall strength of the roadbed.
5. Newly built road semi-rigid base layer produces shrinkage cracks, reinforced to prevent pavement cracks caused by reflection of foundation cracks.
2. The cement concrete pavement is converted into a composite pavement to suppress reflection cracks caused by plate shrinkage.
3. Road extension and renovation project to prevent cracks caused by new and old junctions and uneven settlement.
4. Reinforcement treatment of soft soil foundation is conducive to water seepage and consolidation of soft soil, effectively inhibiting settlement, uniform stress distribution, and enhancing the overall strength of the roadbed.
5. Newly built road semi-rigid base layer produces shrinkage cracks, reinforced to prevent pavement cracks caused by reflection of foundation cracks.

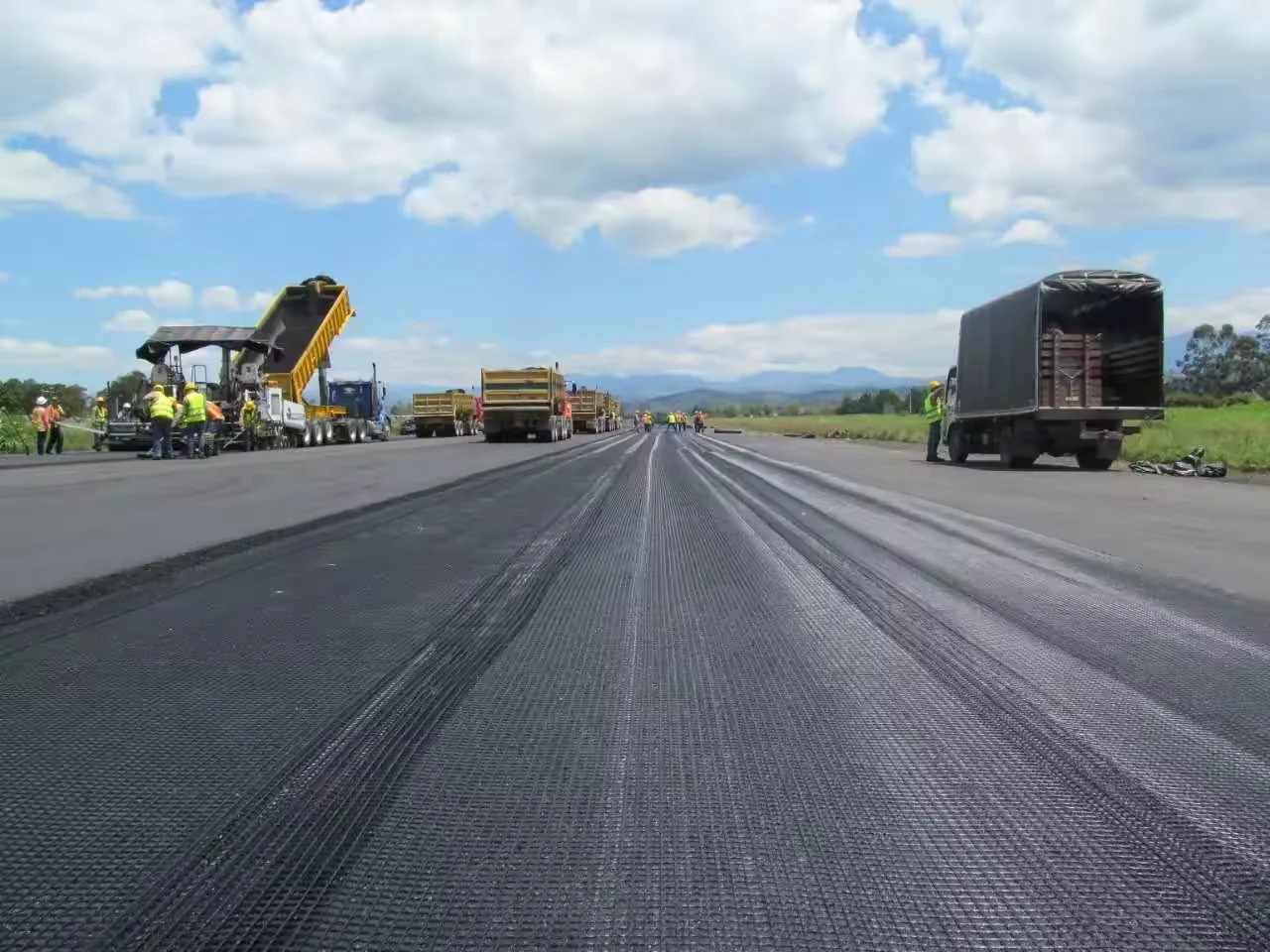

Project Name:
Road Construction Country:Mexico
Fiberglass Specification:
Tensile Strength:120kN/M
Roll Size:3.95x50M
Fiberglass Specification:
Tensile Strength:120kN/M
Roll Size:3.95x50M
Project Name:
Road Pavement Reinforcement
Country: Vietnam
Fiberglass Geogrid Specification:
Tensile Strength:50kN/M
Roll Size:5x100M
Road Pavement Reinforcement
Country: Vietnam
Fiberglass Geogrid Specification:
Tensile Strength:50kN/M
Roll Size:5x100M

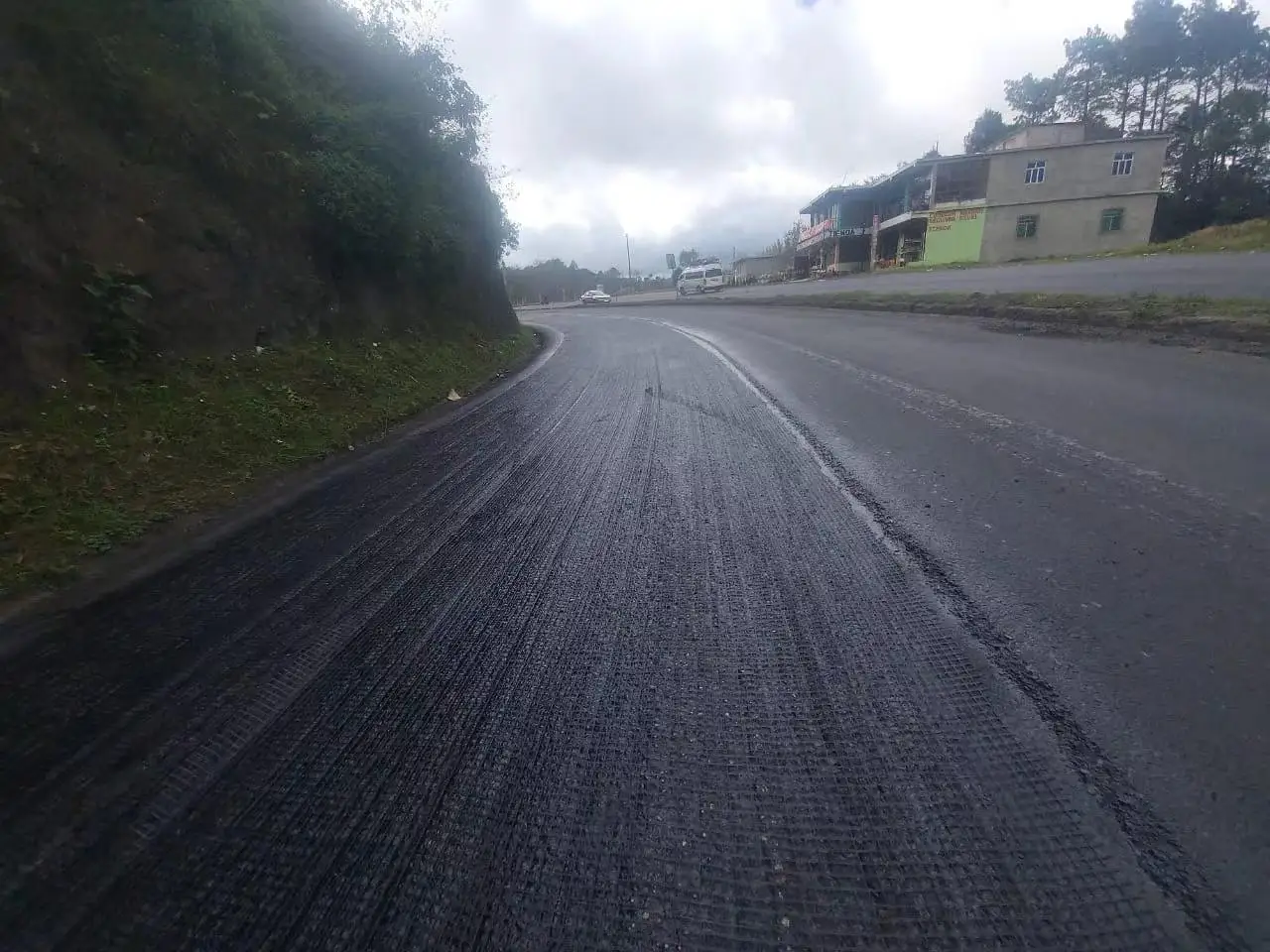

Project Name:
Road Surface Repair
Country: Guatemala
Fiberglass Geogrid Specification:
Tensile Strength:50kN/M
Roll Size:5x100M
Road Surface Repair
Country: Guatemala
Fiberglass Geogrid Specification:
Tensile Strength:50kN/M
Roll Size:5x100M

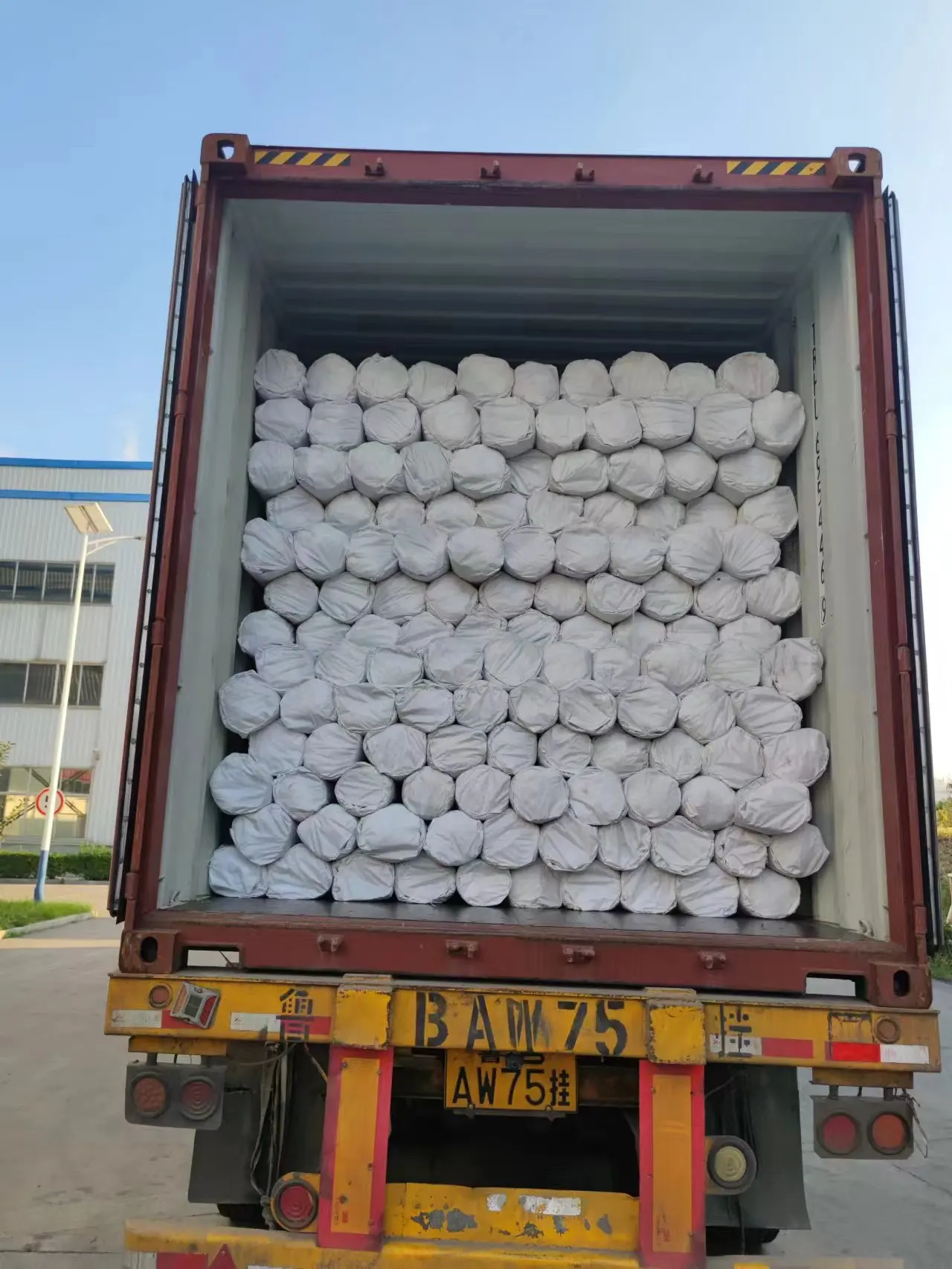

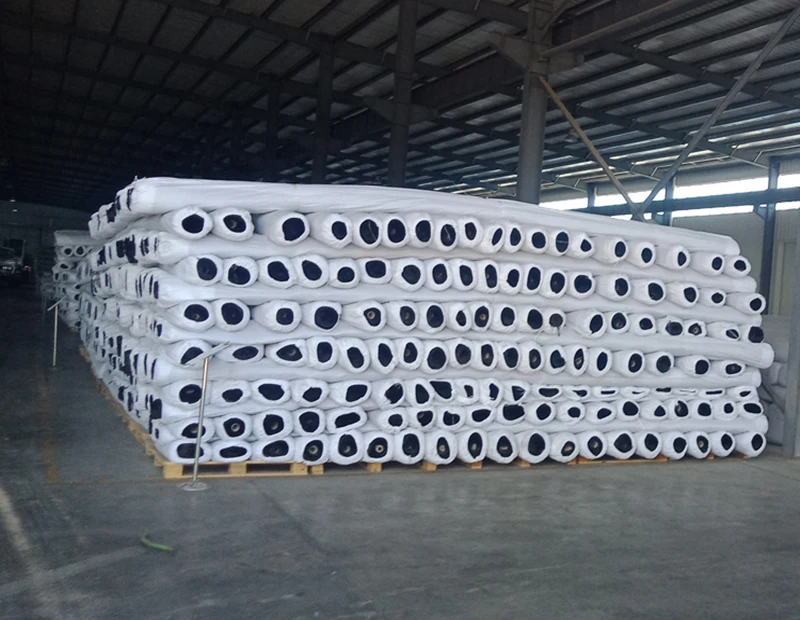

Packing & Delivery
Packaging: Woven bag with paper tube or customized
Company Profile
Our factory established in 2002, specialized in manufacturing plastic uniaxial geogrid, biaxial geogrid,fiberglass geogrid, polyester geogrid,3D geomat , geonet, geocell, geotextile, geomembrane, BOP stretched net, safety fence. Products are mainly used in the foundation construction such as roadways, railways, irrigation works,electric power, water and land protection, and environment greening,etc.
GEOROAD Geosynthetics, as leading manufacturer of geosynthetics materials, we have three plants, more than 40 production lines, with an annual production capacity of 300 million square meters, enables our company to provide customers excellent delivery time.
GEOROAD Geosynthetics, as famous brand, our products has been exported to more than seventy countries and areas, such as Russia,Unites Kingdom, Italy, Poland, United States, Canada, Chile, Brazil, South Africa, Japan, Korea, Singapore and so on.
GEOROAD Geosynthetics, as leading manufacturer of geosynthetics materials, we have three plants, more than 40 production lines, with an annual production capacity of 300 million square meters, enables our company to provide customers excellent delivery time.
GEOROAD Geosynthetics, as famous brand, our products has been exported to more than seventy countries and areas, such as Russia,Unites Kingdom, Italy, Poland, United States, Canada, Chile, Brazil, South Africa, Japan, Korea, Singapore and so on.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days . It is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days . It is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
