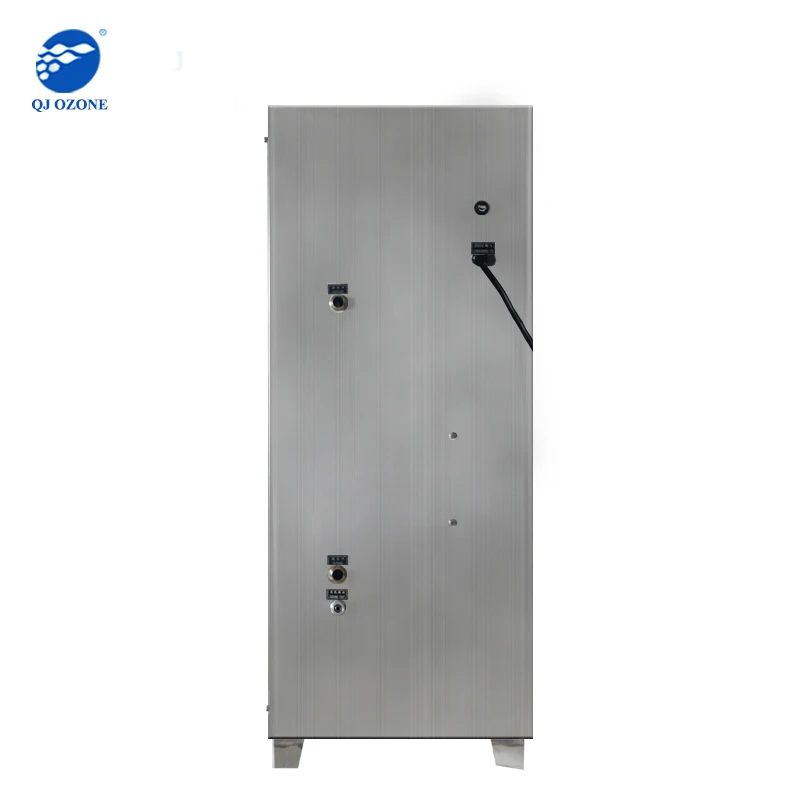

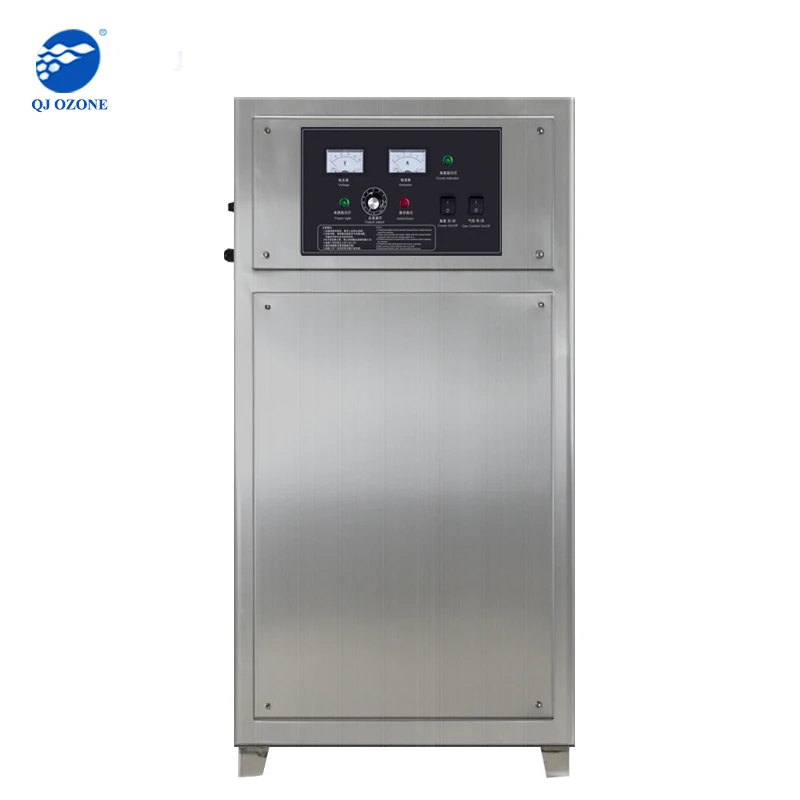

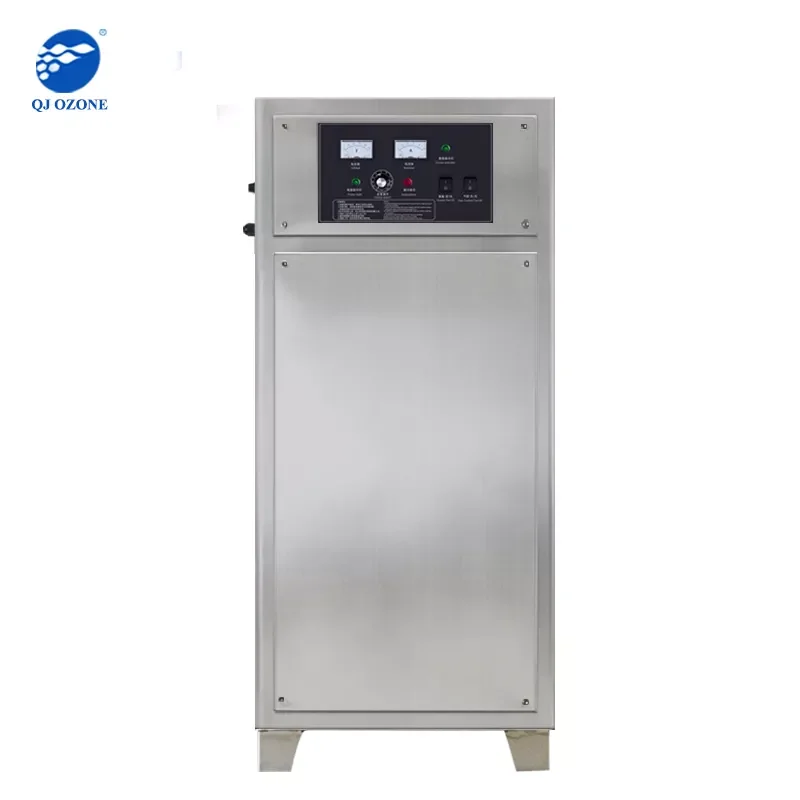

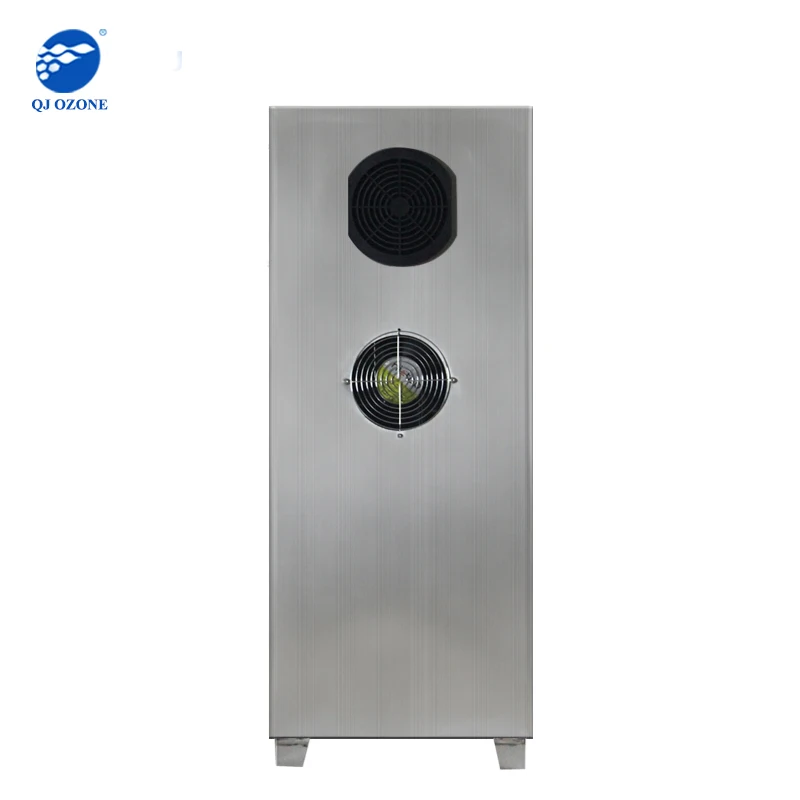

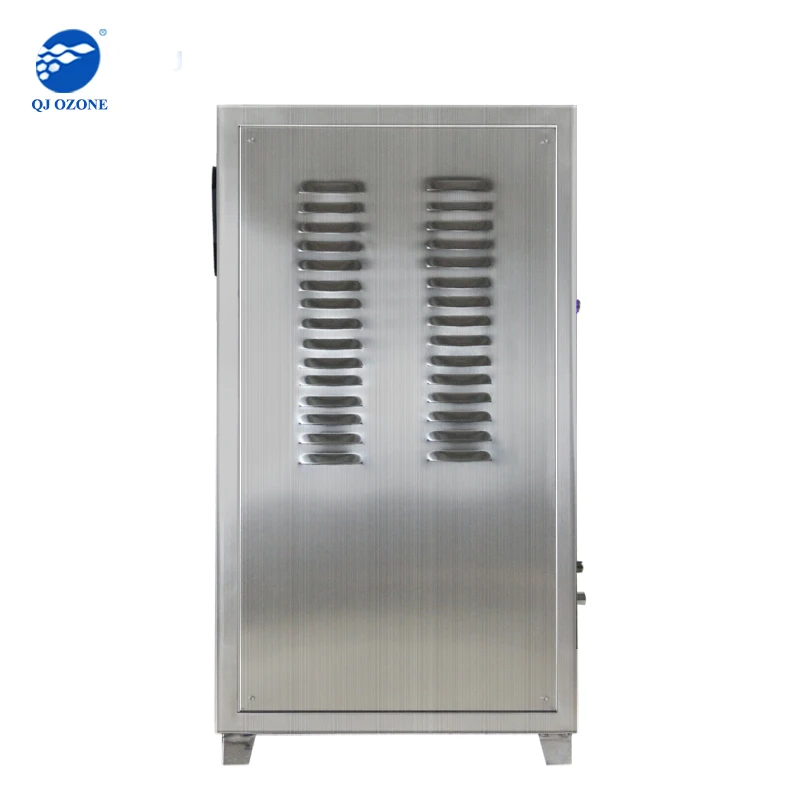

Professional Ozone Machine 60g For Odor Remove Water Purification
- Category: >>>
- Supplier: Guangzhou Quanju Ozone Technology Co. Ltd.
Share on (1601115247305):
Product Overview
Description
60G Ozone Generator With Air Feeding
Product Show
Features
1) Complete machine PSA oxygen source, with built in oxygen generator
2) High ozone concentration with stable ozone output
3) Low rate of ozone decay
4) Water cooled quartz ozone tube
5) Easy heat dissipation, low temperature rise and high efficiency.
6) Adjustable ozone output, adjustable oxygen flow rate for meeting different requirements
7) Inner air cooler and air dryer to make sure ozone quality
8) Ozone output: 60g/hr
2) High ozone concentration with stable ozone output
3) Low rate of ozone decay
4) Water cooled quartz ozone tube
5) Easy heat dissipation, low temperature rise and high efficiency.
6) Adjustable ozone output, adjustable oxygen flow rate for meeting different requirements
7) Inner air cooler and air dryer to make sure ozone quality
8) Ozone output: 60g/hr
Specifications
Ozone output: 60g/hr
Power: 680W
Voltage: AC220/110V-50/60Hz
Gas feeding: Air feeding
Dimension: 55*40*110cm
Unit weight: 38kg
External case: Stainless steel
Cooling method: Water cooling
Remarks
1) Specifications are subject to change after 15 days without further notice
2) Above ozone productions were tested strictly inspection before shipping.
3) Warranty: 1 year for main machine, lifetime technical support
4) Get more specifications, please contact Allon@ozonemade.com
2) Above ozone productions were tested strictly inspection before shipping.
3) Warranty: 1 year for main machine, lifetime technical support
4) Get more specifications, please contact Allon@ozonemade.com

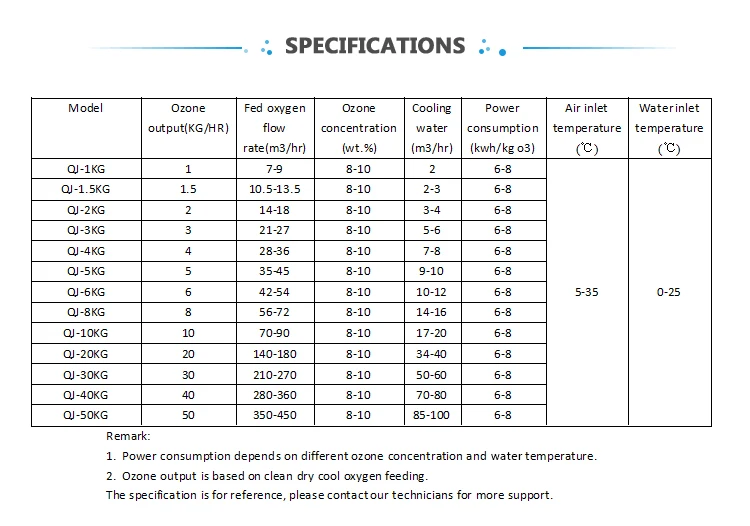

Model | Ozone output(kg/hr) | Fed oxygen flow rate(m3/hr) | Ozone concentration (wt.%) | Cooling water (m3/hr) | Power consumption (kwh/kg o3) | Air inlet temperature (℃) | Water inlet temperature (℃) |
QJ-1KG | 1 | 7-9 | 8-10 | 2 | 6-8 | 5-35 | 0-25 |
QJ-1.5KG | 1.5 | 10.5-13.5 | 8-10 | 2-3 | 6-8 | ||
QJ-2KG | 2 | 14-18 | 8-10 | 3-4 | 6-8 | ||
QJ-3KG | 3 | 21-27 | 8-10 | 5-6 | 6-8 | ||
QJ-4KG | 4 | 28-36 | 8-10 | 7-8 | 6-8 | ||
QJ-5KG | 5 | 35-45 | 8-10 | 9-10 | 6-8 | ||
QJ-6KG | 6 | 42-54 | 8-10 | 10-12 | 6-8 | ||
QJ-8KG | 8 | 56-72 | 8-10 | 14-16 | 6-8 | ||
QJ-10KG | 10 | 70-90 | 8-10 | 17-20 | 6-8 | ||
QJ-20KG | 20 | 140-180 | 8-10 | 34-40 | 6-8 | ||
QJ-30KG | 30 | 210-270 | 8-10 | 50-60 | 6-8 | ||
QJ-40KG | 40 | 280-360 | 8-10 | 70-80 | 6-8 | ||
QJ-50KG | 50 | 350-450 | 8-10 | 85-100 | 6-8 |
