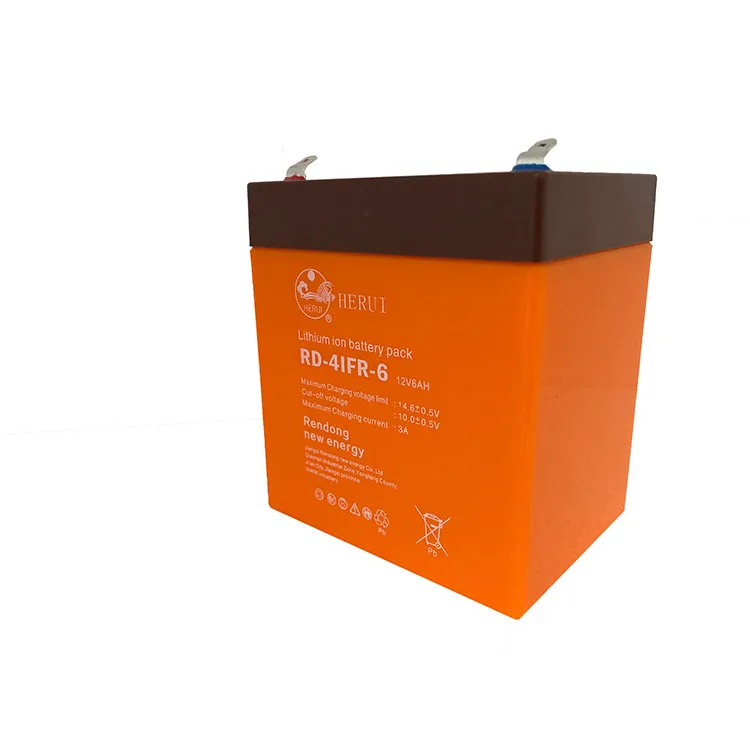

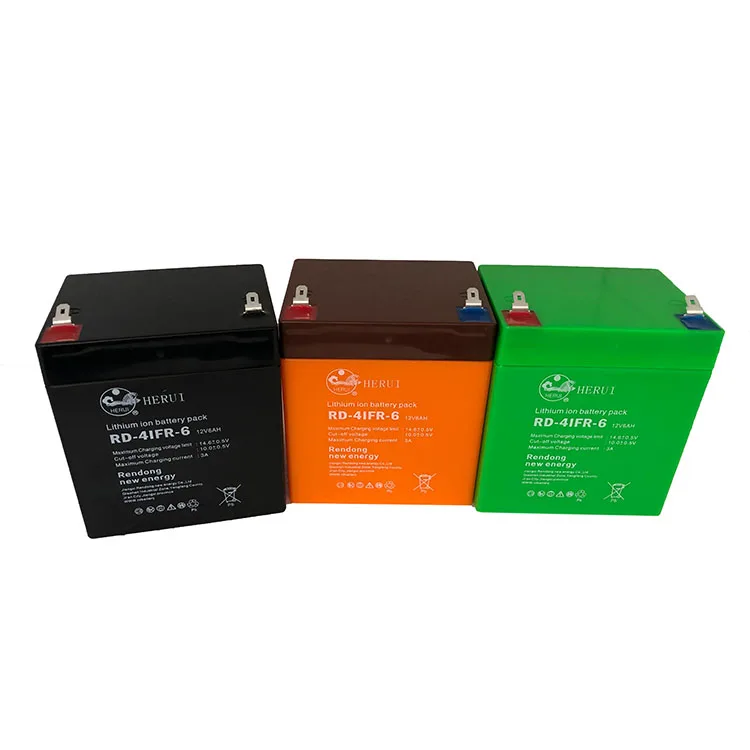

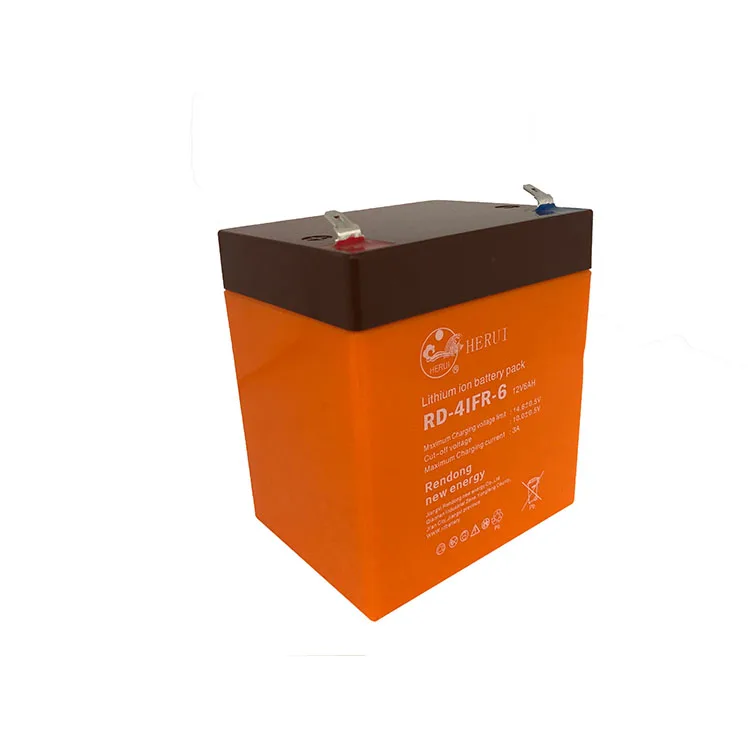

Factory price 12 volt lithium ion battery pack Rechargeable 12V 6ah UPS Battery
- Category: >>>
- Supplier: Jiangxi Rendong New Energy Co. Ltd.
Share on (1601115299988):
Product Overview
Description
Product Description
Item | General Parameter | ||||
Model | IFR18650-20FC-2000mAh-4S3P | ||||
Standard capacity(0.5C) | Typical:6Ah Min:6Ah | ||||
Rated voltage | 12V | ||||
Max.Charge voltage | ≤14.6V(standard:14.6V) | ||||
Discharge Cut-off voltage | 10V | ||||
Standard charge current | ≤ 1.5A | ||||
Rated Continuous discharge current | 6A | ||||
Max continuous discharge current | ≤6A | ||||
Over-Current Protection value | Continuous working current | ≤6.0A | |||
Time-delay discharge current | 6A≤ I ≤8A | ||||
Max Instantaneous discharge current | 8A≤ I ≤12A | ||||
Single cell charge protection voltage | 3.7V±0.05 | ||||
Single cell cut-off voltage | 2.5V±0.05V | ||||
Impedance(Max,at 1000Hz.) | ≤ 150mΩ | ||||
Battery dimension | MAX L90×W70×H101mm | ||||
Weight(approx) | 0.65kg | ||||
Mass Ratio of Energy | 148Wh/Kg | ||||
Interface | charge/discharge:F1 terminal | ||||
Working Condition (CC/CV) | Standard | 0℃~40℃ | |||
Humidity | 50%~80% | ||||
Storage | -20℃~60℃ | ||||
If you need a matching lithium charger, please directly contact us for more details. click here>>>
