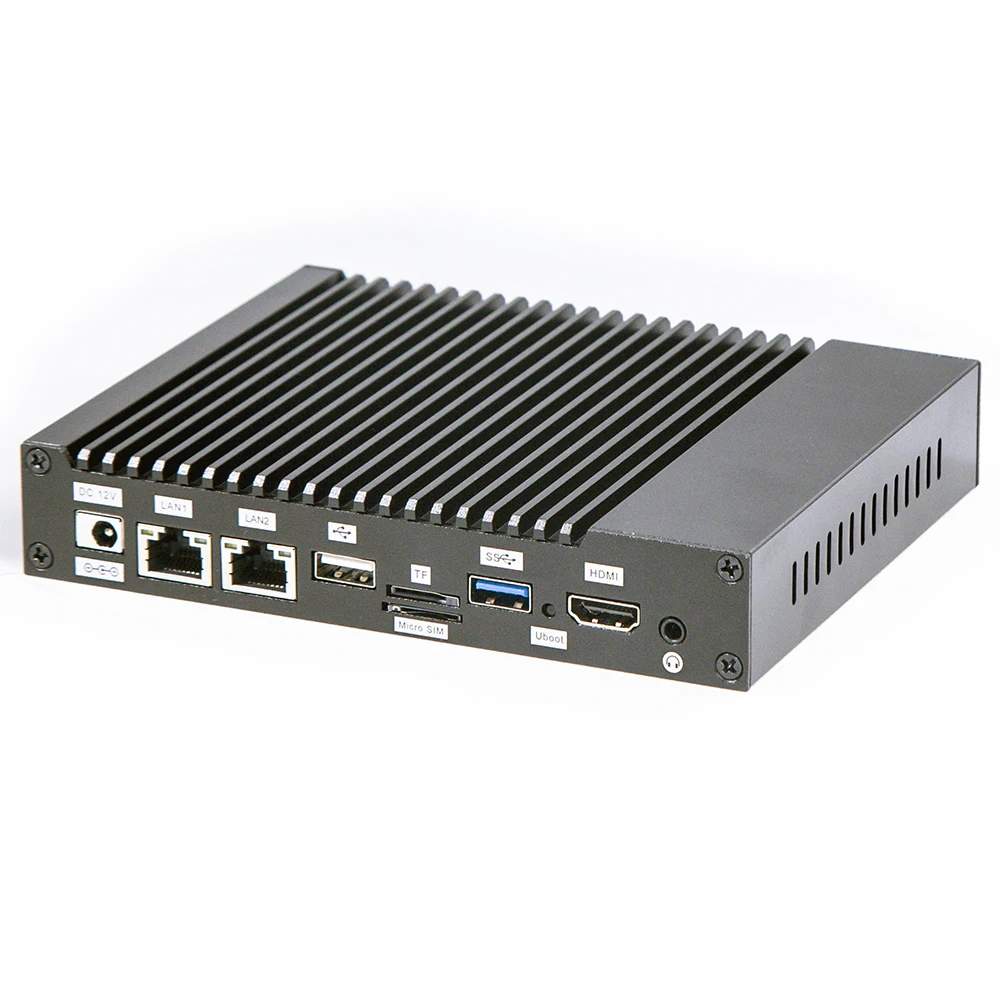

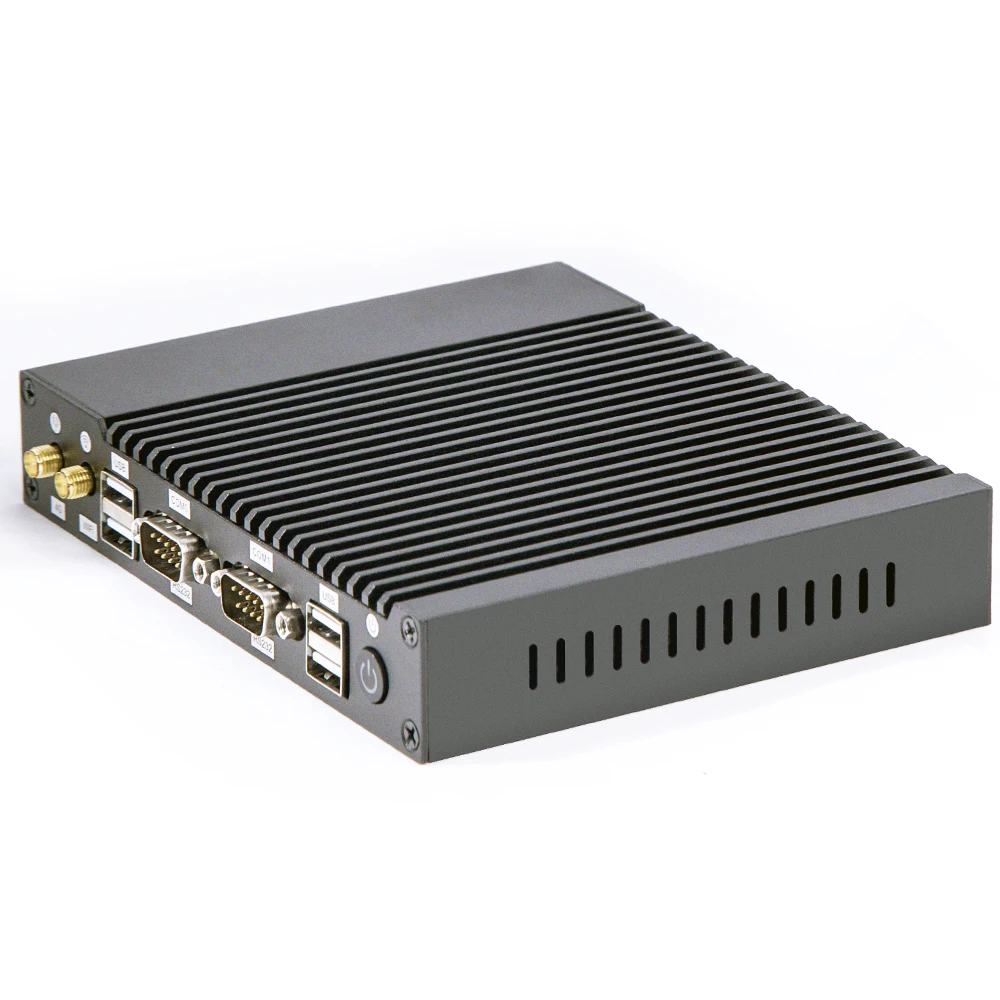

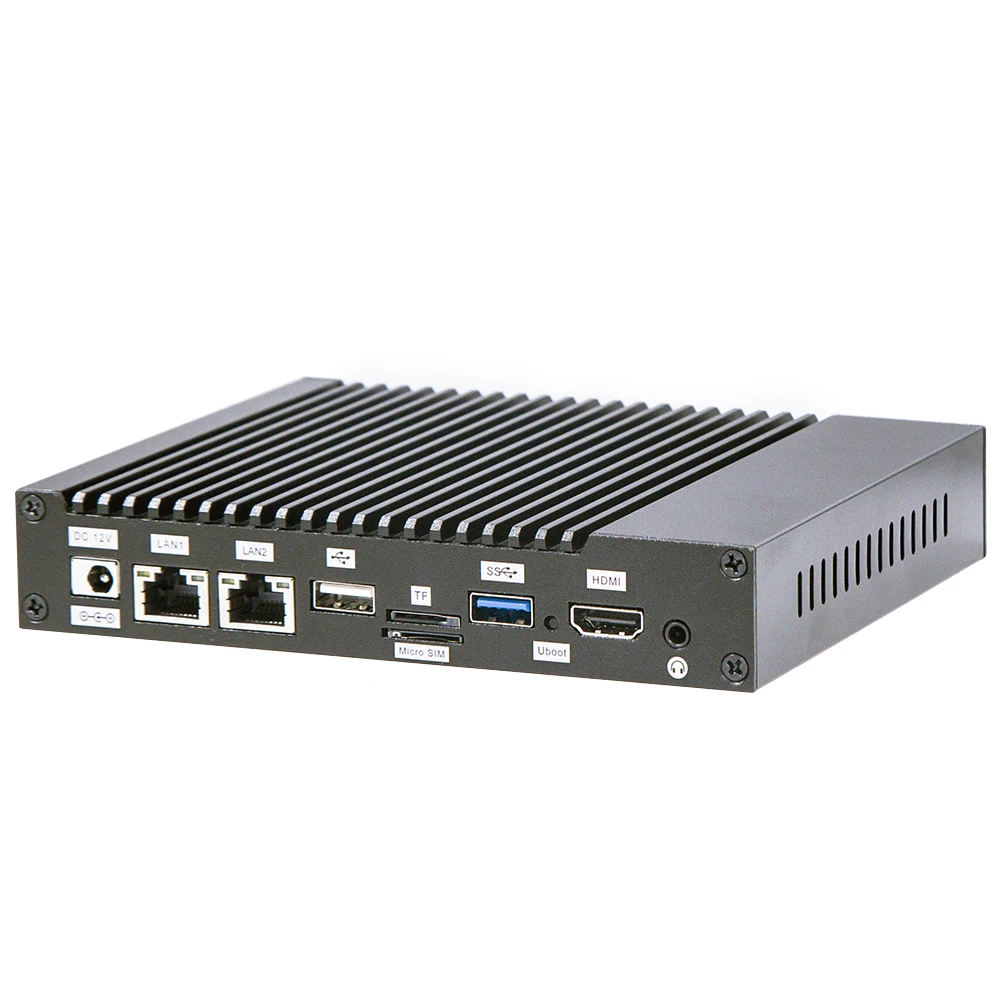

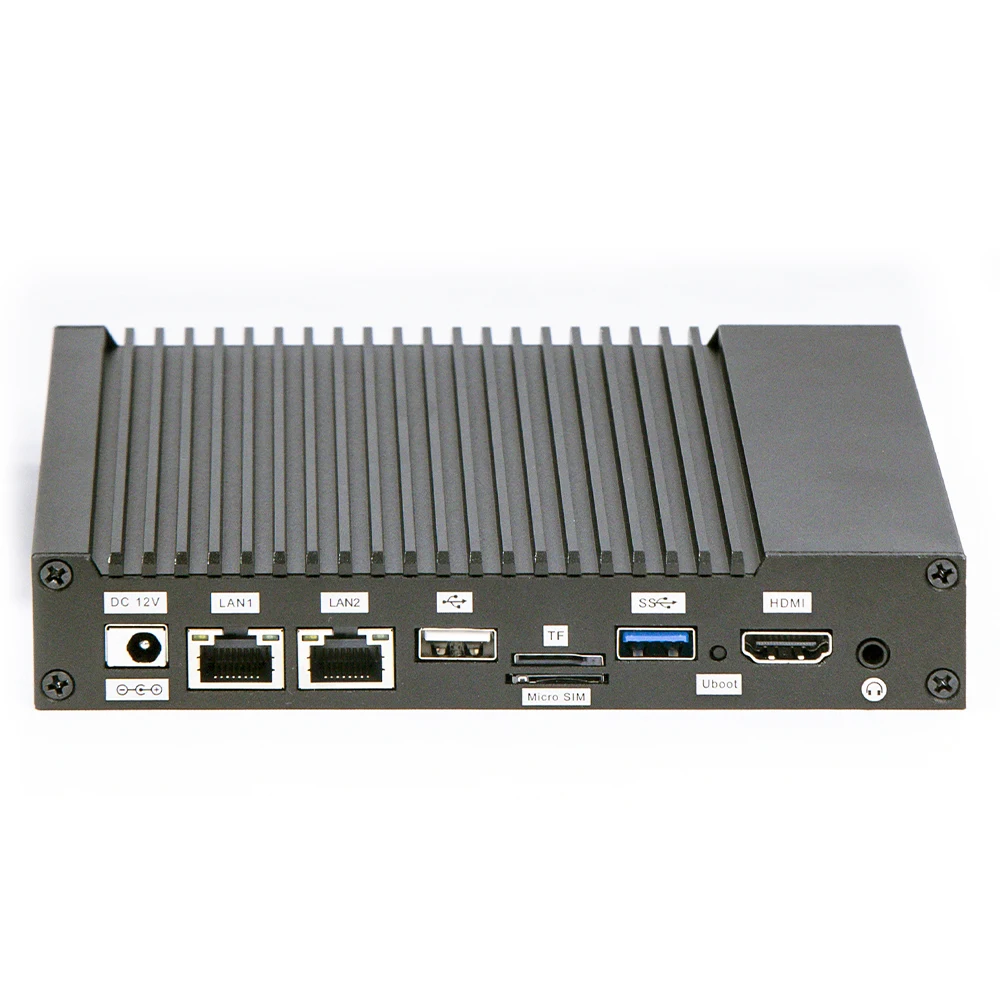

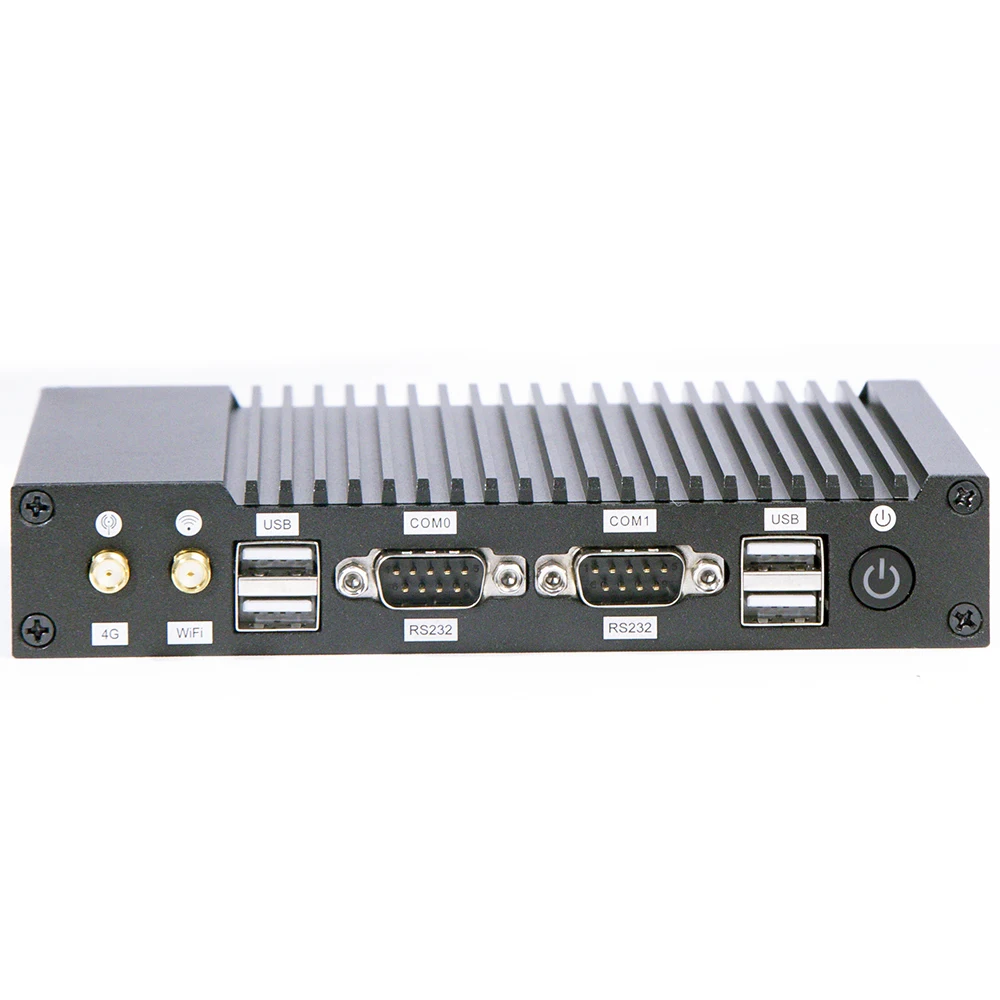

bestview fanless mini pc vehicle computercar pc with 4 rs232 com hmdi j1900 win10 linux

Share on (1601115686997):


Price:

Quantity:


Product Overview

Description






































































































































CPU Parameters


Processor:


J1900 J4125 J6412 I3 I5 I7processor


Memory:


1x DDR3 or DDR4( Max 16GB)


Hard Disk


64G128G/256G/512GB SSD


Graphics


CPU Integrated graphics HD Graphics and support 1080p HD photo quality


Network


1×Realtek RTL 8111E Gigabit Ethernet controller


Audio


Realtek ALC662, High Definition Audio (HD)


storage:


1xSATA2.0 ;1xMINI-SATA


Display output:


VGA HDMI LVDS


Expland interface:


1xMINI-PCIE(WIFI/4G);1xSIM(external)


I/O interface:


USB3.0&USB2.0;2xCOM;1XVGA, 1xLAN;DC Power WIFI 4G  2LAN6COM Optional


BIOS:


AMI BIOS


Cooling system


Integrated fanless aluminum alloy


Vibration


-100 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis


Shock


294m/S2 11ms, half sine wave, ±X, ±Y, ±Z direction, 3 times in each direction


Case/Bezel


Aluminum alloy panel, shockproof, anti-interference, metal shell (painted)


Power consumption


≤40W


Operating System


Window 7/8/10, Linux


Communication


3G/4G Full Netcom IoT module WIFI Optional


External Power Supply


AC 100 - 240V


Working voltage


DC 12V   9-36V Optional


Certification


CE, FCC Rohs


Warranty


1 year warranty


Operating Environment


Temperature range


operating: -10 to 60°C, storage :-20 to 70°C


Relative humidity


5%~95% @ 40° C, non-condensing


Vibration


5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis


Packing Details


Accessories


Power adapter, Wifi antenna, user manual


Other


Mounting (options)


1) provide wall brackets for wall-mounting, VESA 100×100mm


2) provide metal stander to support the monitor


Warranty


1 year warranty

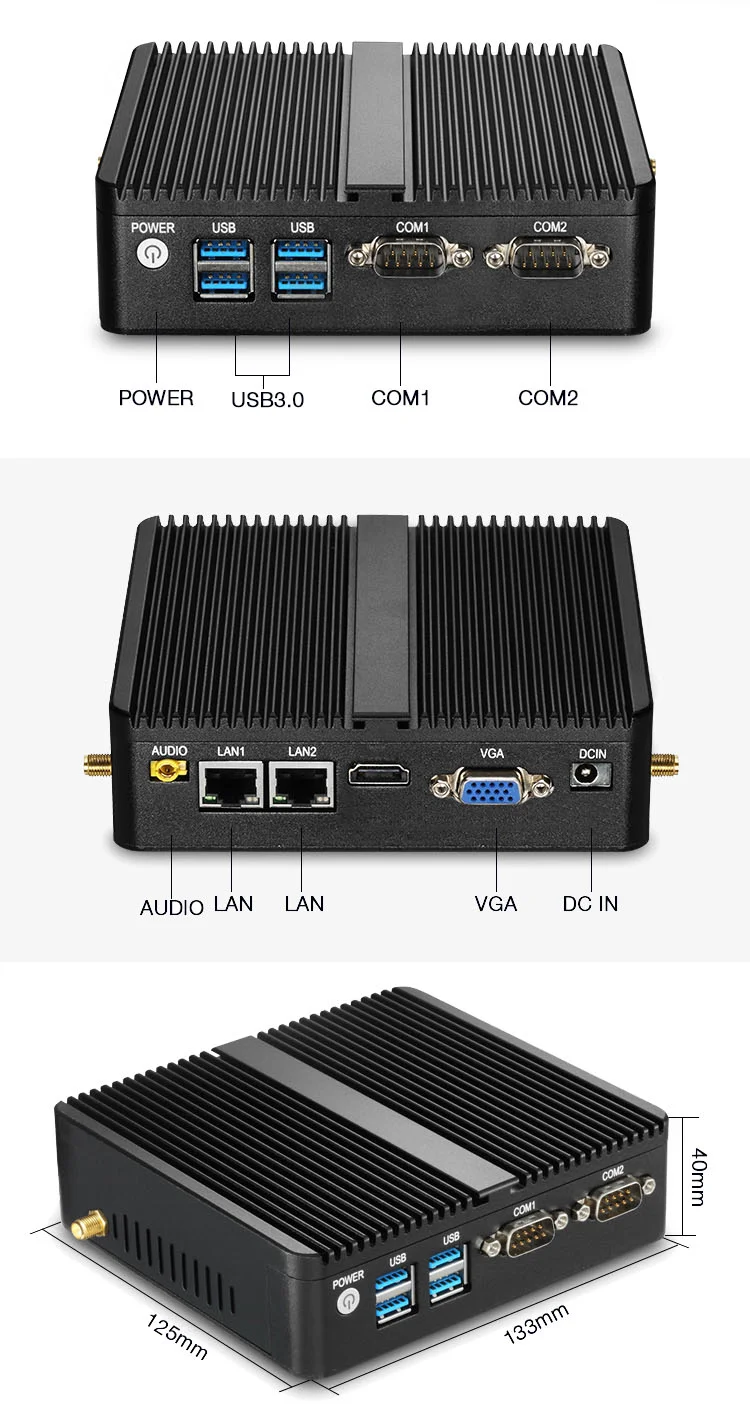

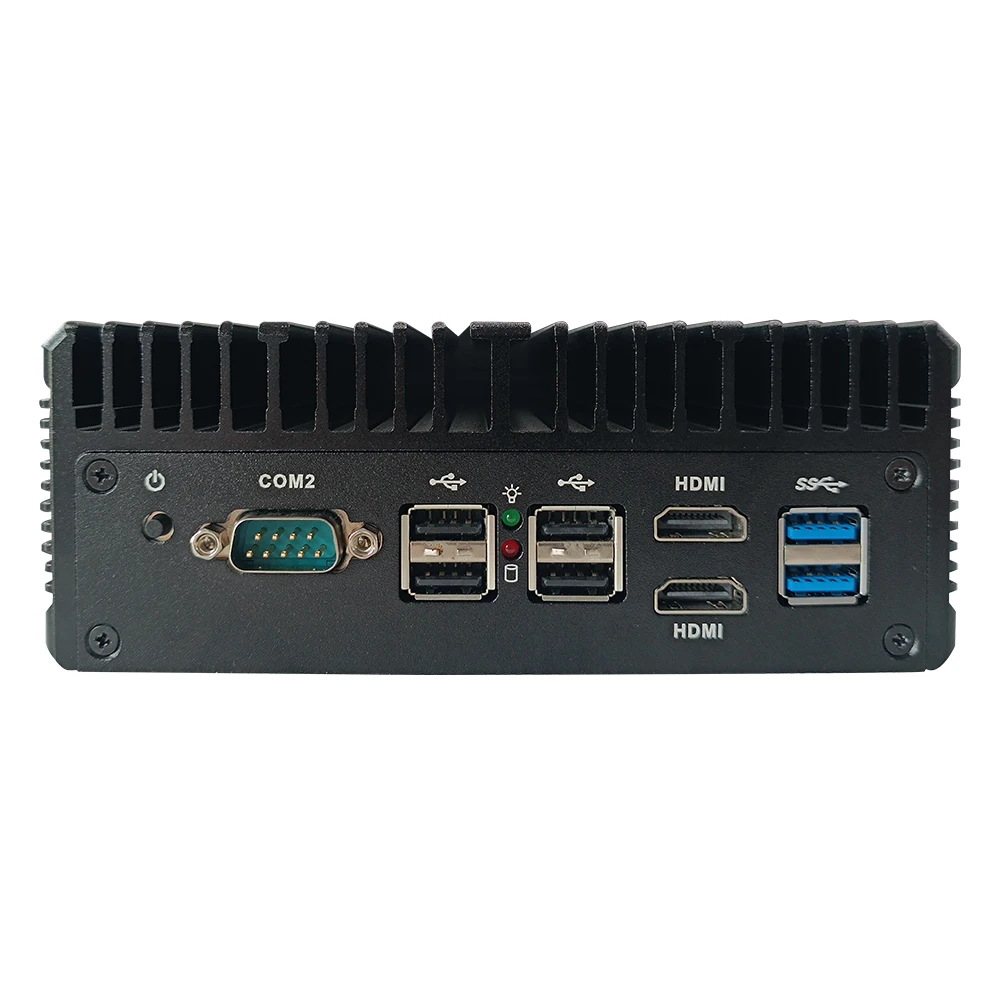

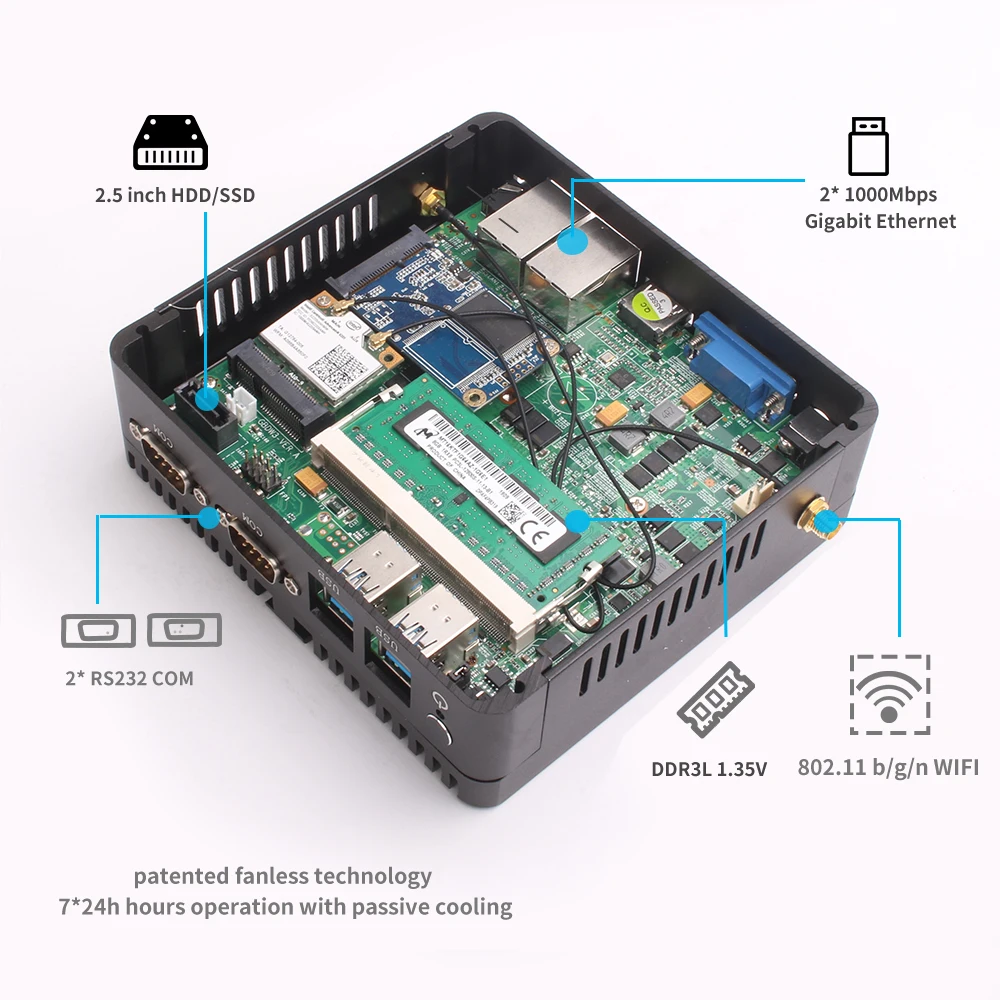

/H418616a22f8749289f3220446795b225i/H0238b623c0224576bbfa35d33ef3a571l2.jpg4.jpg


Bestview is a national high technology company, professional R&D, produce and sell broadcast field monitor, industrial touch monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got certifications of CE, KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.


Bestview main Partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian World Studios etc.
Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product has already applied every photography field in the world, industry generation four, rail way traffic, industry application etc.
The market has spread Europe, America, Southeast Asia and other more than 60 countries.
