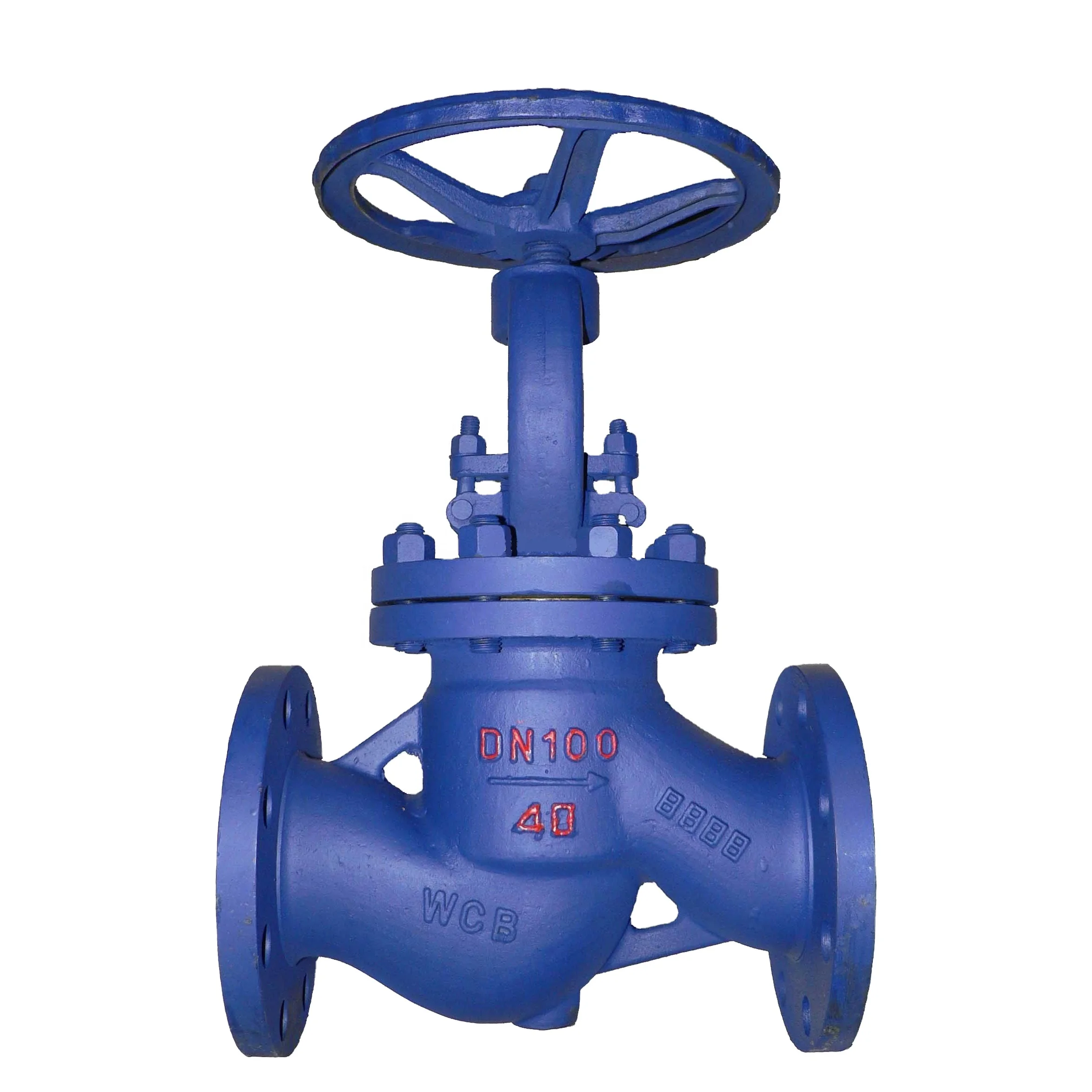

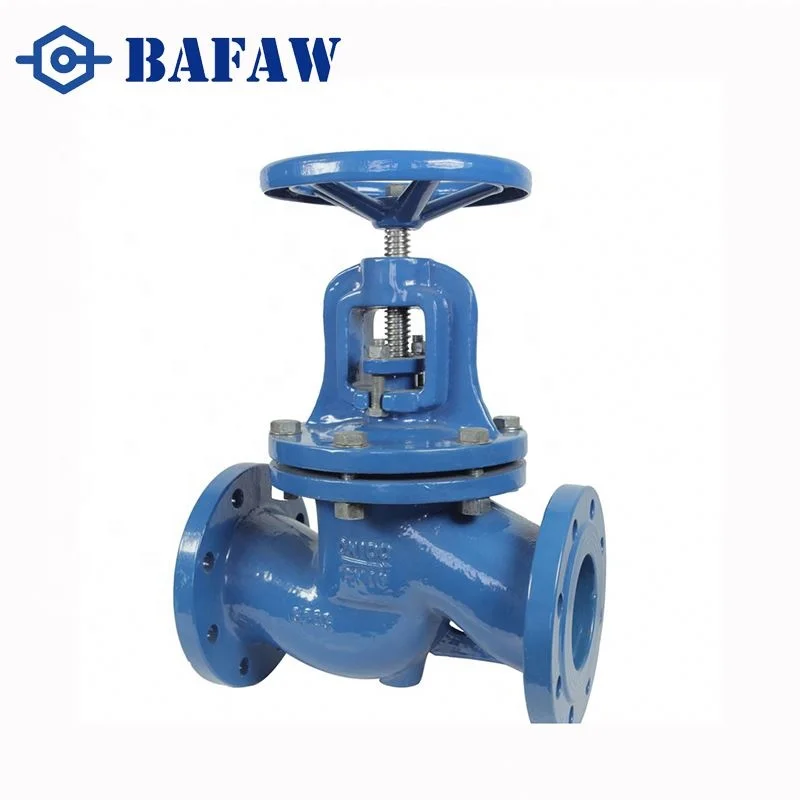

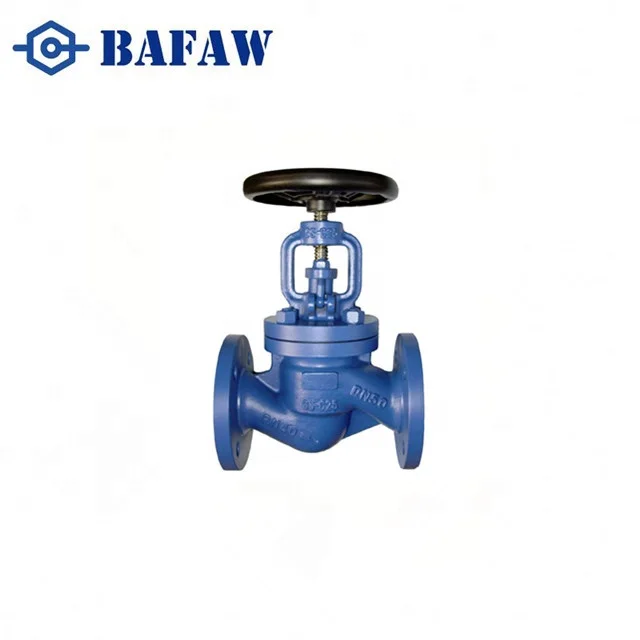

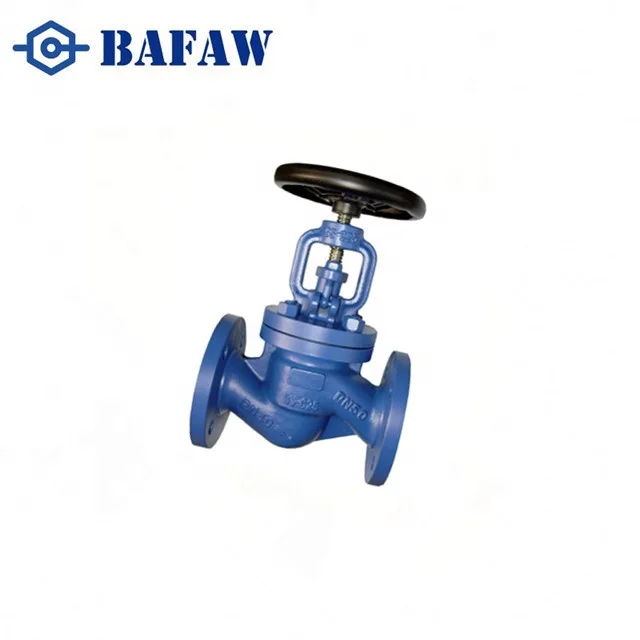

BS5152 Cast iron flange globe valve
- Category: >>>
- Supplier: Qingdao Bestflow Industrial Co. Ltd.
Share on (1601116206129):
Product Overview
Description
Product Description
| No. | Part Name | Material |  |
| 1 | Body | ASTM A126B | |
| 2 | Guide Spindle | 2Cr13 | |
| 3 | Seat | ZCuSn5Pb5Zn5 | |
| 4 | Disc Seal Ring | ZCuSn5Pb5Zn5 | |
| 5 | Disc | ASTM A126B | |
| 6 | Lock Ring | Red Copper | |
| 7 | Disc Cover | HPb59-1 | |
| 8 | Stem | HPb59-1 | |
| 9 | Bonnet Gasket | GRAPHITE+08F | |
| 10 | Bonnet | ASTM A126B | |
| 11 | Bolt | CARBON STEEL | |
| 12 | Packing | GRAPHITE | |
| 13 | Packing Gland | HPb59-1 | |
| 14 | Gland Follower | ASTM A536 65-45-12 | |
| 15 | Stem Nut | ZCuZn38Mn2Pb2 | |
| 16 | Handwheel | EN-GJS-500-7 | |
| 17 | Nut | CARBON STEEL | |
| 18 | Washer | 100HV |
Dimensions data(mm)
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 203 | 216 | 241 | 292 | 330 | 356 | 495 | 622 | 698 |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 |
| D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 |
| D2 | 99 | 118 | 132 | 156 | 184 | 211 | 266 | 319 | 370 |
| b | 20 | 20 | 22 | 24 | 26 | 26 | 30 | 32 | 32 |
| n-d | 4-19 | 4-19 | 8-19 | 8-19 | 8-19 | 8-23 | 12-23 | 12-28 | 12-28 |
| f | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 |
| H | 273 | 295 | 314.4 | 359 | 388 | 454 | 506 | 584 | 690 |
| W | 200 | 200 | 255 | 255 | 306 | 360 | 360 | 406 | 406 |
Company Information
Packaging & Shipping
Our Services
FAQ
Q1: Can I have my own customized product?
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
