Copper wire spot welding electrode tip for Spot welding

Product Overview

Description

Product  Performance

Material:99.95% W and Cu

Size and shape :can be based on your drawing  customize

Advantages: heat dissipation, high conductivity, Improve efficiency and ,The solder joints are small, up to 0.05 square millimeters, and have high consistency; no false soldering occurs.

Product Introduction

The electrode tip used for spot welding copper wire typically needs to be made of a material that can withstand high temperatures and provide good electrical conductivity. Copper itself is often used for this purpose due to its high conductivity and resistance to heat. However, the electrode tip may also be coated with materials like chromium or other alloys to enhance its durability and prevent sticking.

When spot welding copper wire, the electrode tip plays a critical role in ensuring a successful weld. Here are some key points about the electrode tip for spot welding copper wire:

Material: Copper is often the material of choice for the electrode tip when welding copper wire. This is because copper offers excellent electrical conductivity, which is essential for achieving a strong weld. It also has good resistance to heat, which helps maintain the integrity of the electrode tip during the welding process.
Coating: While copper itself is a suitable material for the electrode tip, it may be beneficial to coat it with materials like chromium or other alloys. These coatings can enhance the durability of the tip and prevent it from sticking to the copper wire during welding.
Maintenance: Keeping the electrode tip clean is crucial for maintaining good electrical contact and preventing contamination of the weld. Regular maintenance, such as cleaning the tip and removing any buildup or debris, is essential to ensure consistent and reliable welds.
Shape and Size: The shape and size of the electrode tip can impact the quality of the weld. The tip should be designed to apply adequate pressure to the wire during welding while also facilitating efficient heat transfer to create a strong bond.
Temperature Control: Controlling the temperature of the electrode tip is important for achieving consistent welds. The tip should be able to withstand the high temperatures generated during welding without degrading or overheating.
In summary, the electrode tip for spot welding copper wire needs to be carefully selected to balance factors such as conductivity, durability, and thermal properties. By choosing the right electrode tip and maintaining it properly, you can ensure high-quality welds and reliable performance.

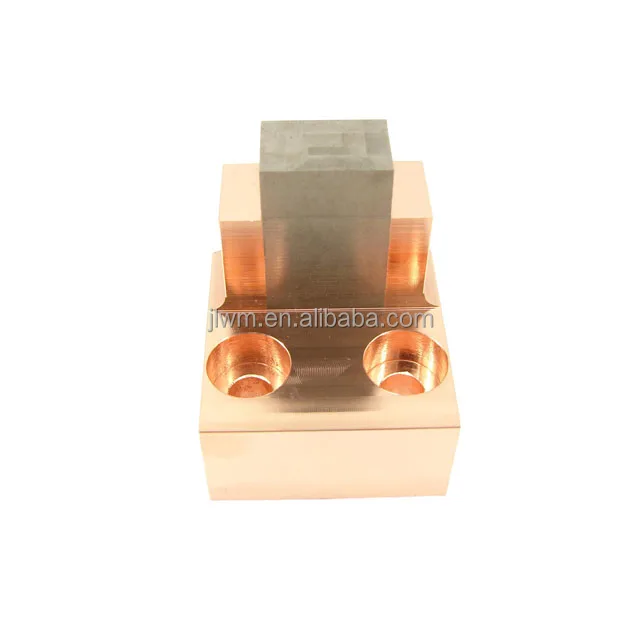

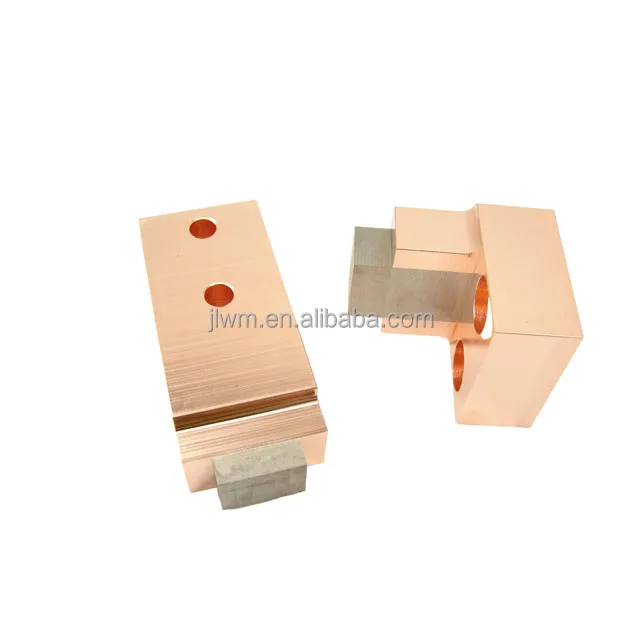

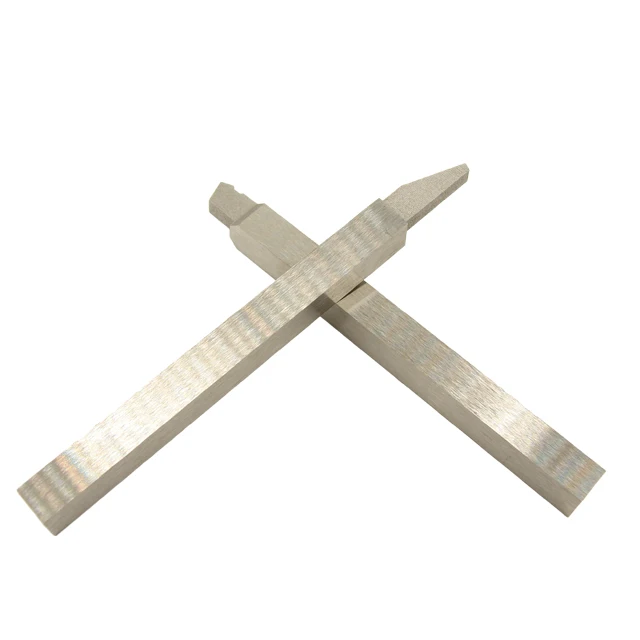

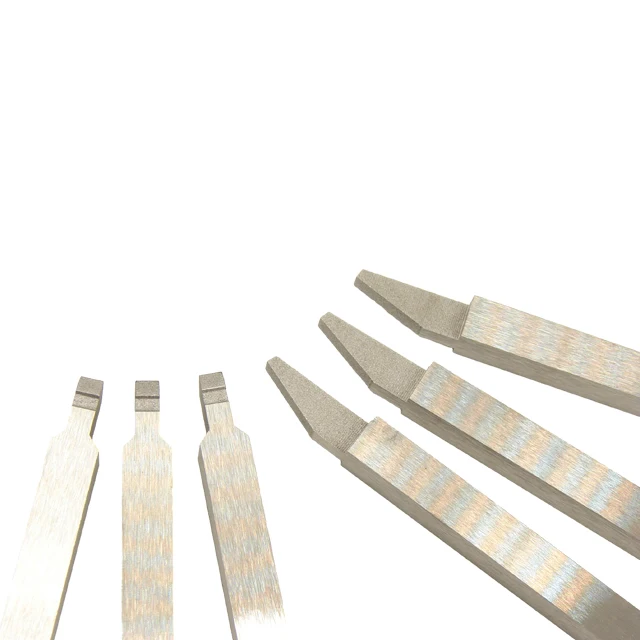

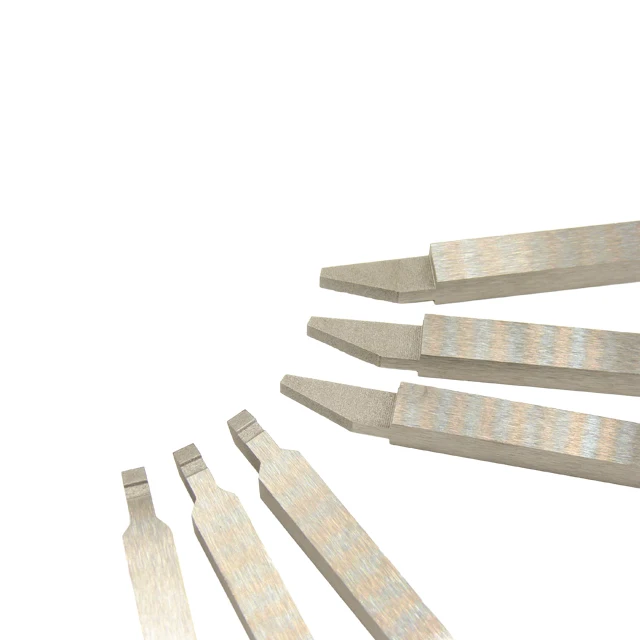

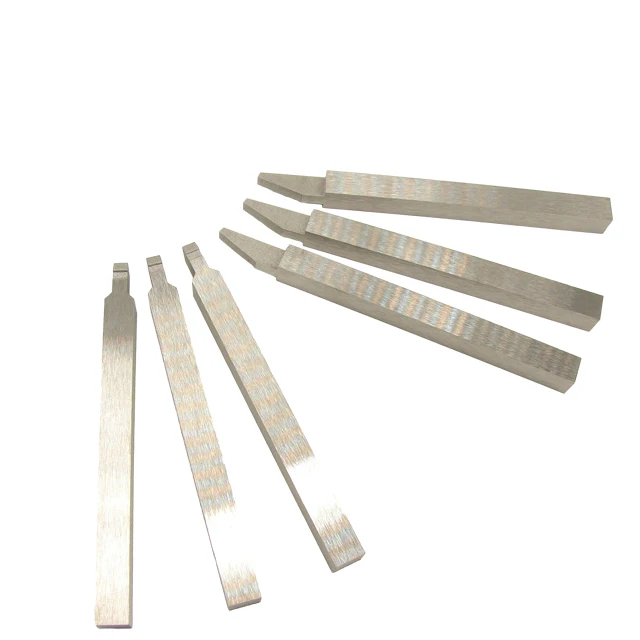

Copper wire spot welding electrode tip are shown as follow:



Copper wire spot welding electrode tip are widely used in mechanical manufacturing and welding technology. In the field of automobile parts, such as:Wire harness, Automobile motor,Switch contact, Ignition coil,Brake electronic system, Electromagnetic coil

Sensor lead wire,Welding copper strip,Copper braided wire contact and so on
