Good Quality SS/SUS304/SS316 Dynamic Pass Box/Transfer Hatch with CE Certificate
- Category: >>>
- Supplier: Suzhou Huajing Air-Condition Purification Engineering Installation Co. Ltd.
Share on (1601116391806):
Product Overview
Description
Product Overview

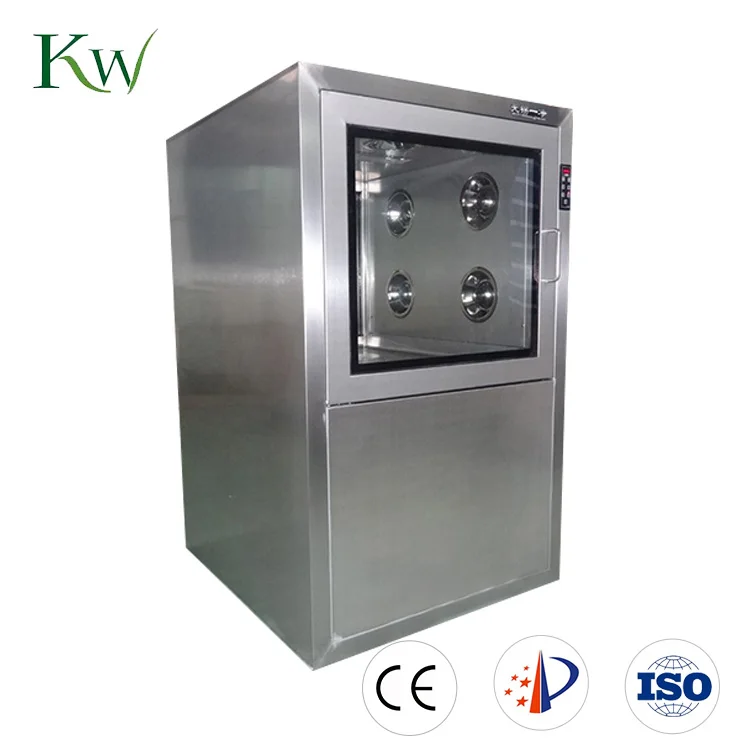

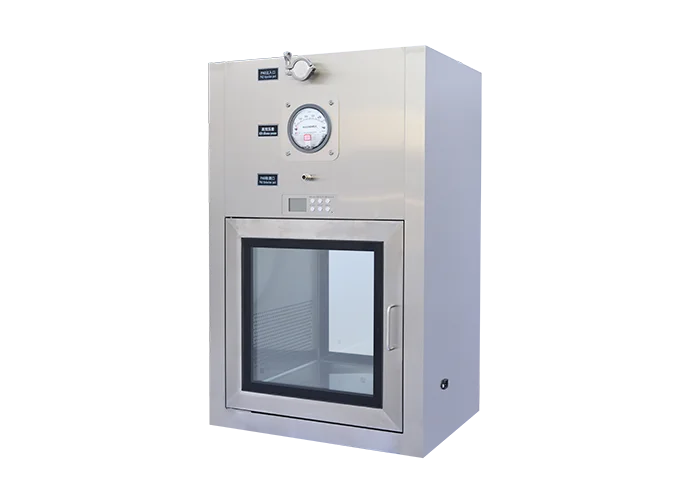

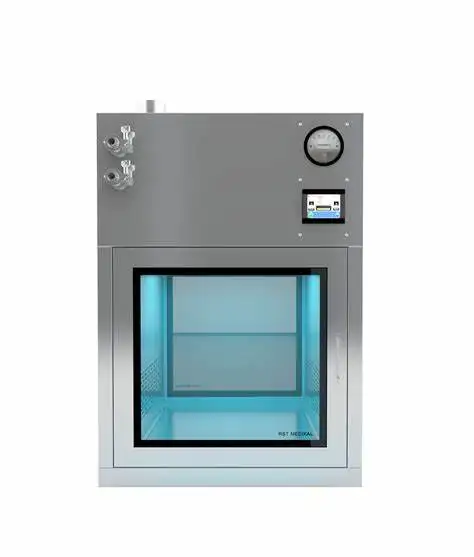

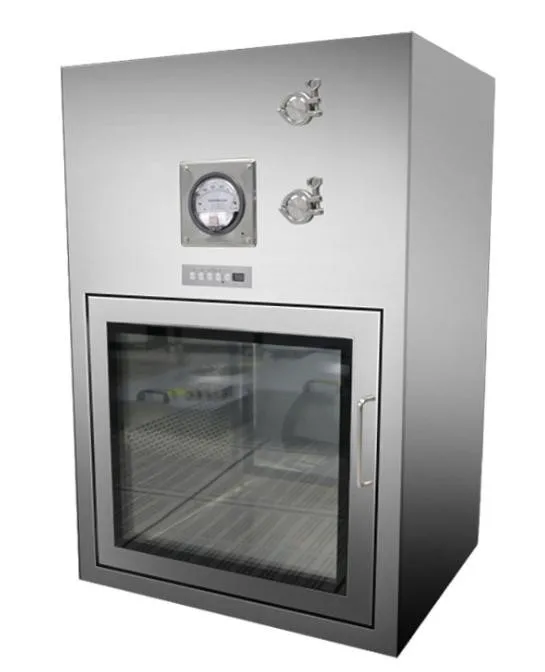

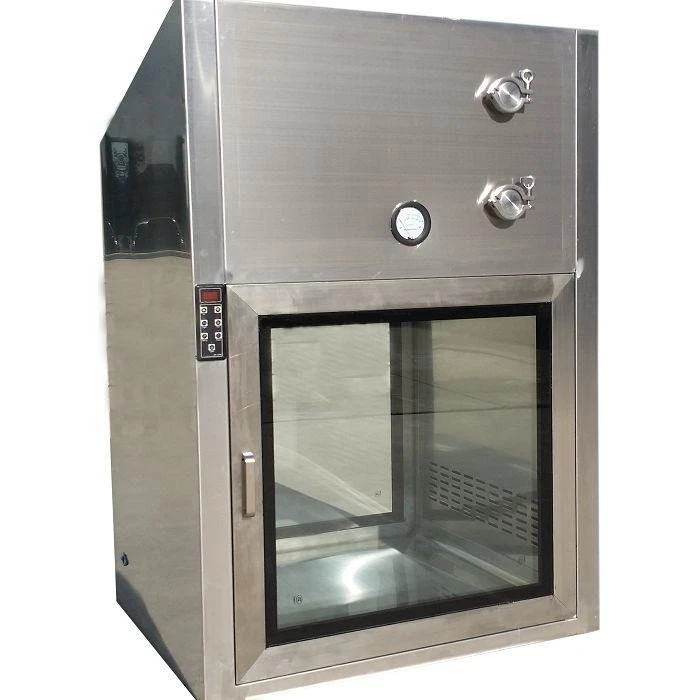

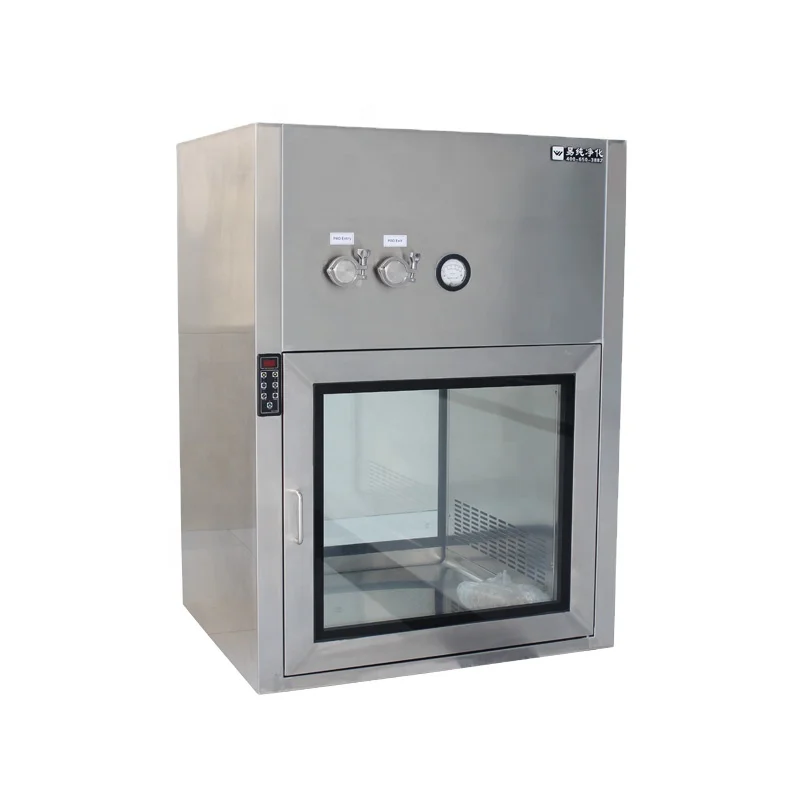

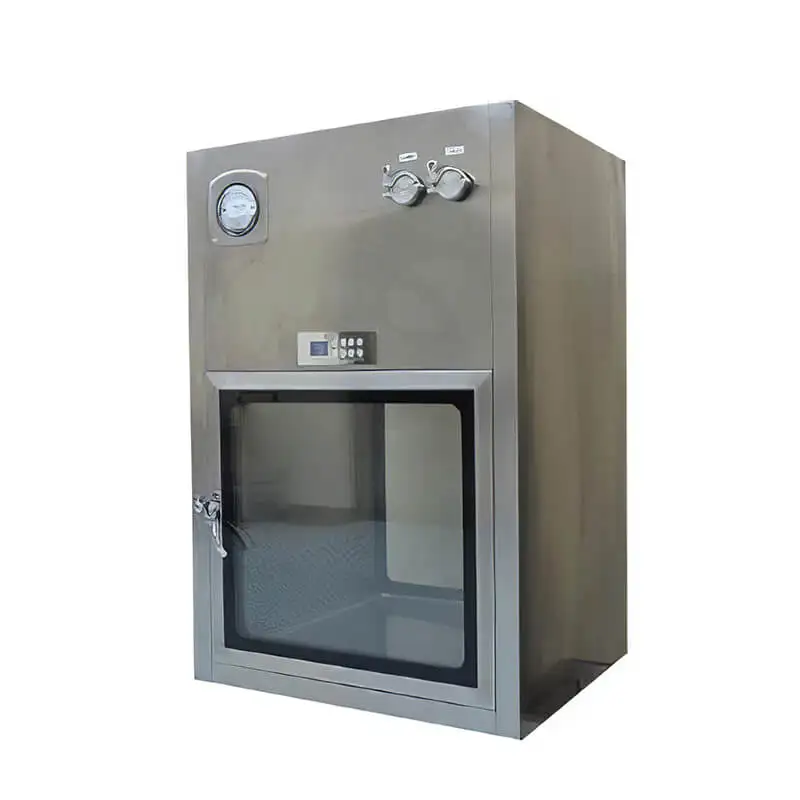

Good Quanlity Clean Room used SS/SUS304 Pass Box with CE Certificate
Pass box is a component of a clean room system that allows for transfer of items between two areas of differing cleanliness. These two areas can be two separate clean rooms or a non-clean area and a clean room. Utilizing pass boxes decreases the amount of traffic in and out of the clean room, which saves energy and lowers risk of contamination. Pass boxes are often seen in sterile laboratories, electronics manufacturing, hospitals, pharmaceutical manufacturing facilities, food and beverage production facilities, and many other clean manufacturing and research environments.
FEATURES AT A GLANCE
Outer Size(mm):600(W)*460(D)*900(H)
Inner Size(mm): 400(W)*400(D)*400(H)
Filters: Pre-Filter, HEPA Filter 99.99%@0.3um
High Efficiency Differential Pressure Gauge
Inner Size(mm): 400(W)*400(D)*400(H)
Filters: Pre-Filter, HEPA Filter 99.99%@0.3um
High Efficiency Differential Pressure Gauge
UV Light
Power supply: 220V,50Hz
Installation: It doesn't need installation.
Power supply: 220V,50Hz
Installation: It doesn't need installation.
PRODUCT CONFIGURATION
Manual Handle
Control Panel
Differential Pressure Gauge

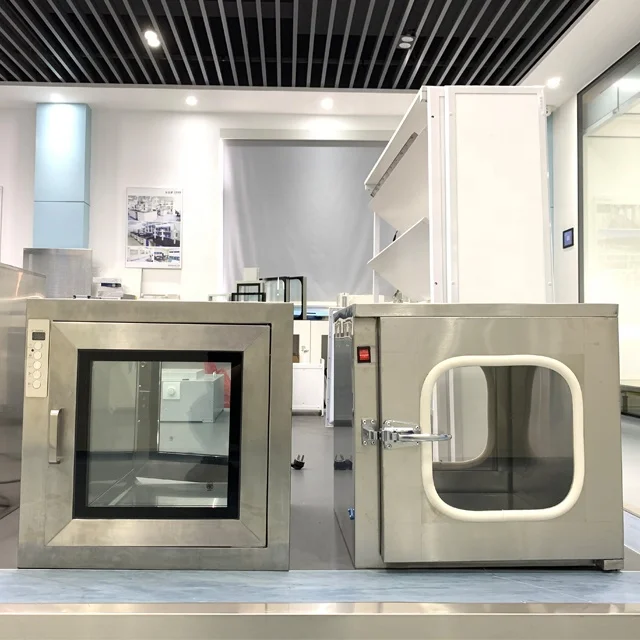

Specifications | Static Pass Box | Dynamic Pass Box | |
Working Dimensions | 400x400x400, 500x500x500, 600x600x600 or Customized | ||
Material | SS304, SUS304, SS Sheet, Thick.=1.0, 1.2mm | ||
Glass | Double Tempered Glass, Thick.=5mm | ||
Hinge | Mechanic/Electronic Interlocker System | ||
Power Supply | 220V, 50HZ | ||
UV Light | YES | YES | |
Air Velocity | N/A | 0.3m/s-0.6m/s | |
HEPA | N/A | EU 14 grade with an efficiency of 99.990% for 0.3 mic. (GEL TYPE) | |
Prefilter | N/A | EU 4 grade with an efficiency of 90% for 10 mic. | |
Accessories | N/A | PAO test port Of HEPA, High Efficiency Differential Pressure Gauge | |

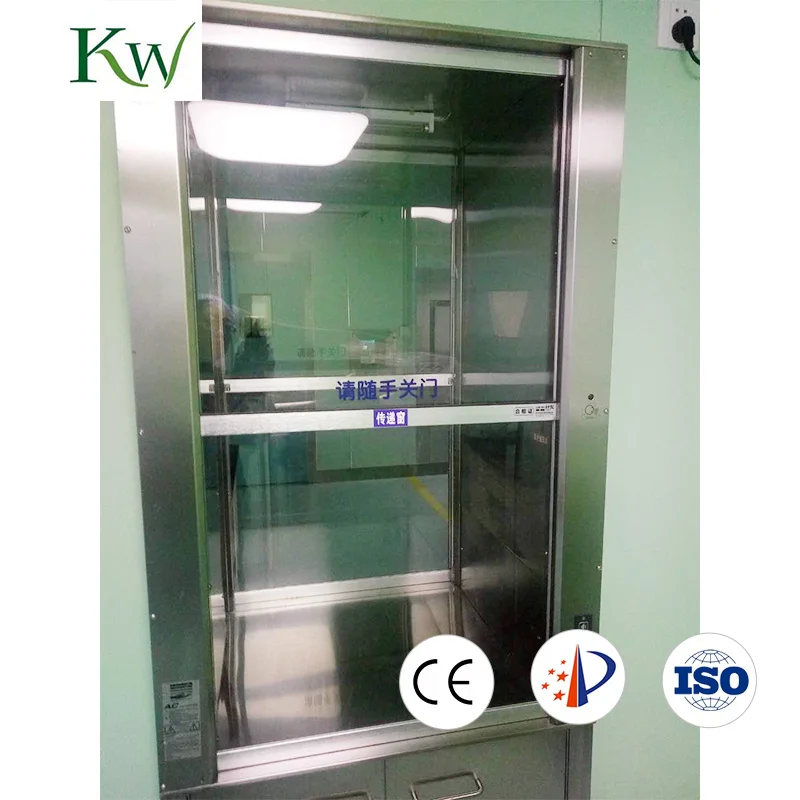

Successful Project
1
FAQ
Q1：What is the MOQ?
A1：The MOQ is 1 PC
Q2: Can you produce non-standard size ?
A2: Yes, custom size is available
Q3: Can you send samples?
A3: Yes, we can send you sample for evaluating, free or not depending on products.
Q4: What' s the payment terms that you can accept?
A4: T/T, L/C, D/P.
Q5: How about the shipment?
A5: By sea, by air or by railway, according to your demand.
Q6: Are you a factory or a trading company?
A6: We are a GMP factory, setting design, manufacturing &sale in one, you can get best factory quote from us.
Q2: Can you produce non-standard size ?
A2: Yes, custom size is available
Q3: Can you send samples?
A3: Yes, we can send you sample for evaluating, free or not depending on products.
Q4: What' s the payment terms that you can accept?
A4: T/T, L/C, D/P.
Q5: How about the shipment?
A5: By sea, by air or by railway, according to your demand.
Q6: Are you a factory or a trading company?
A6: We are a GMP factory, setting design, manufacturing &sale in one, you can get best factory quote from us.
