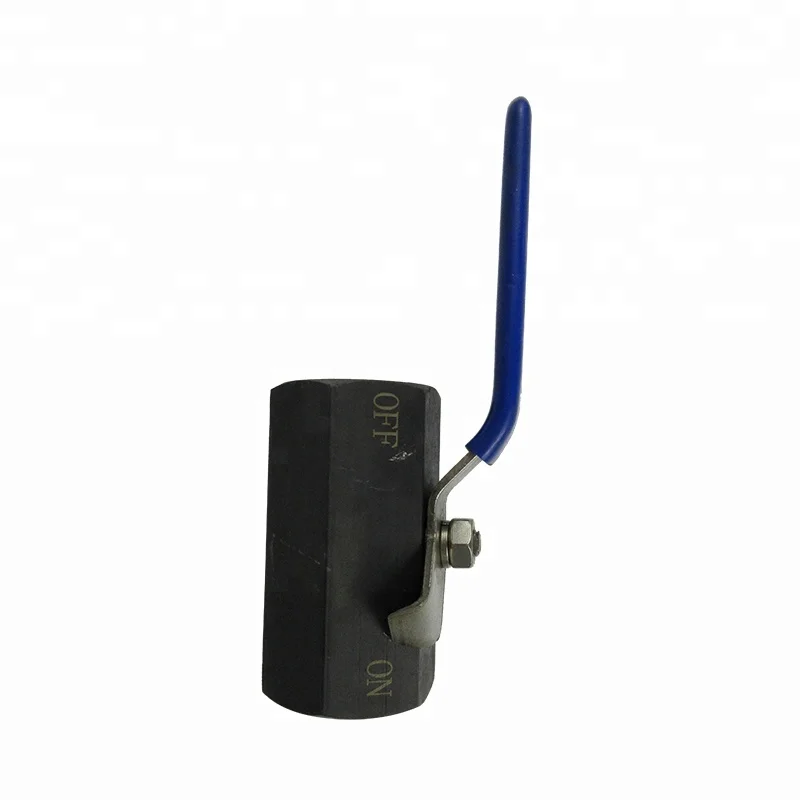

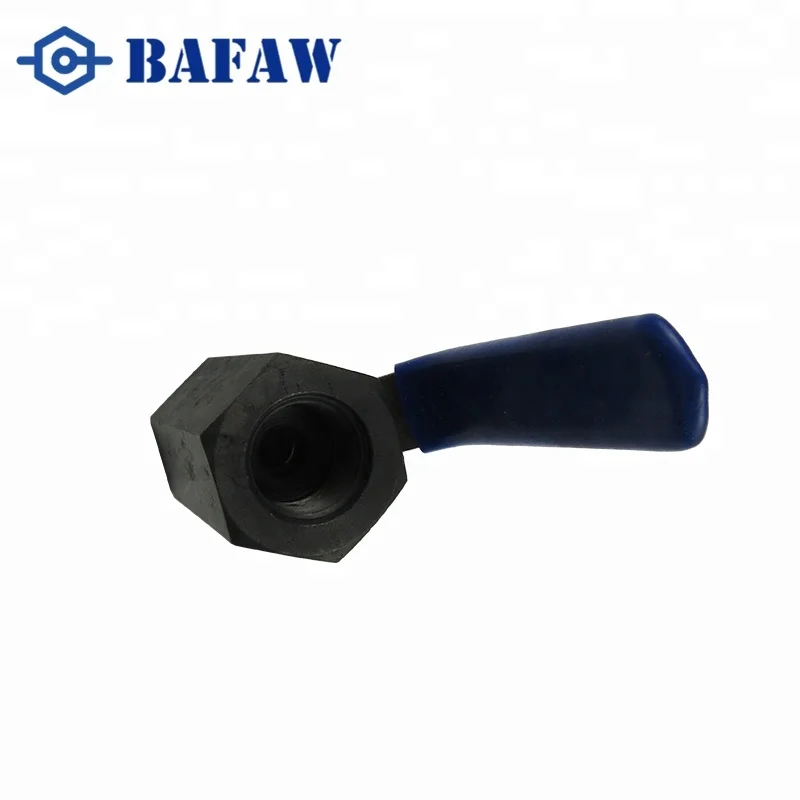

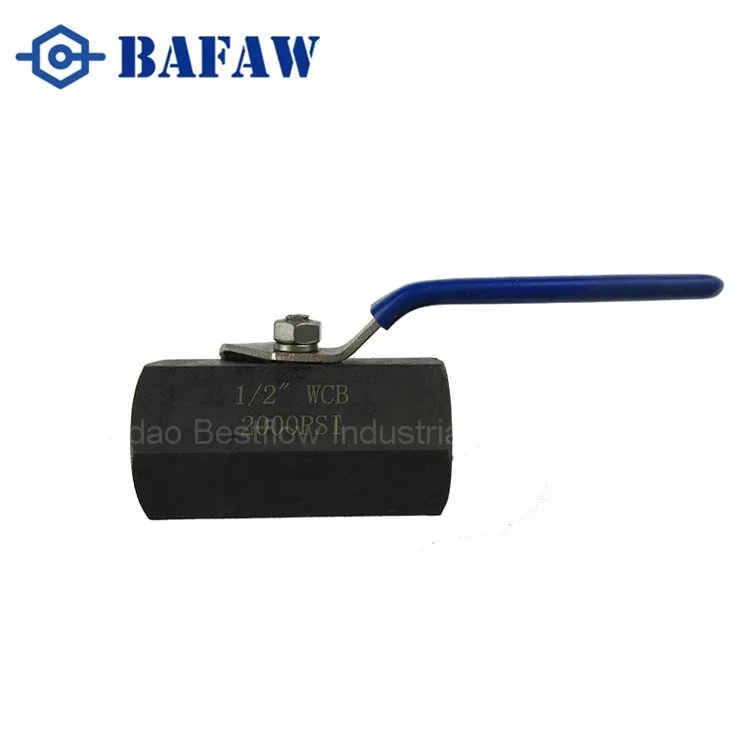

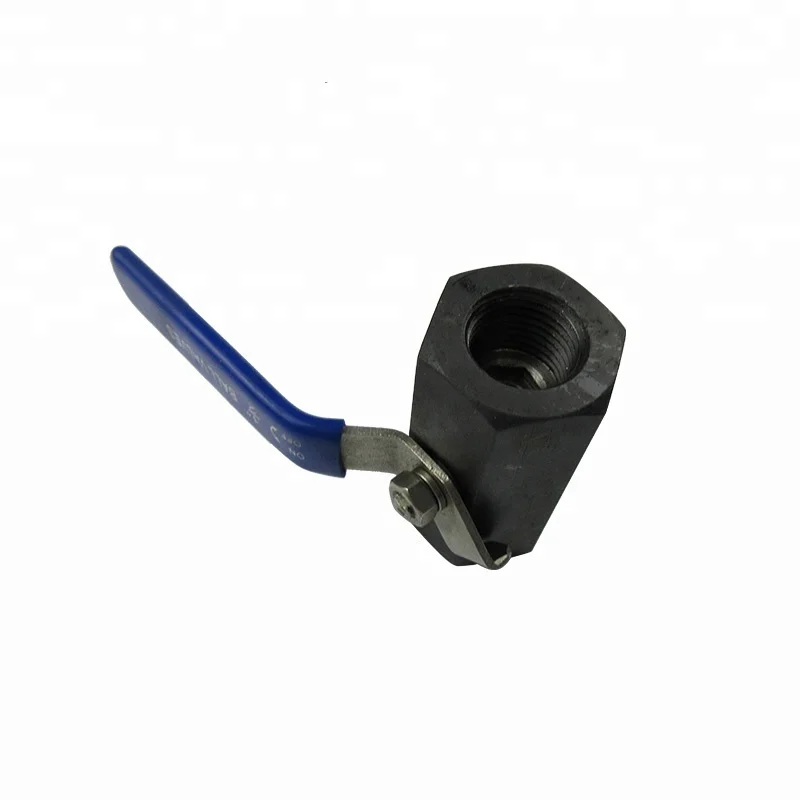

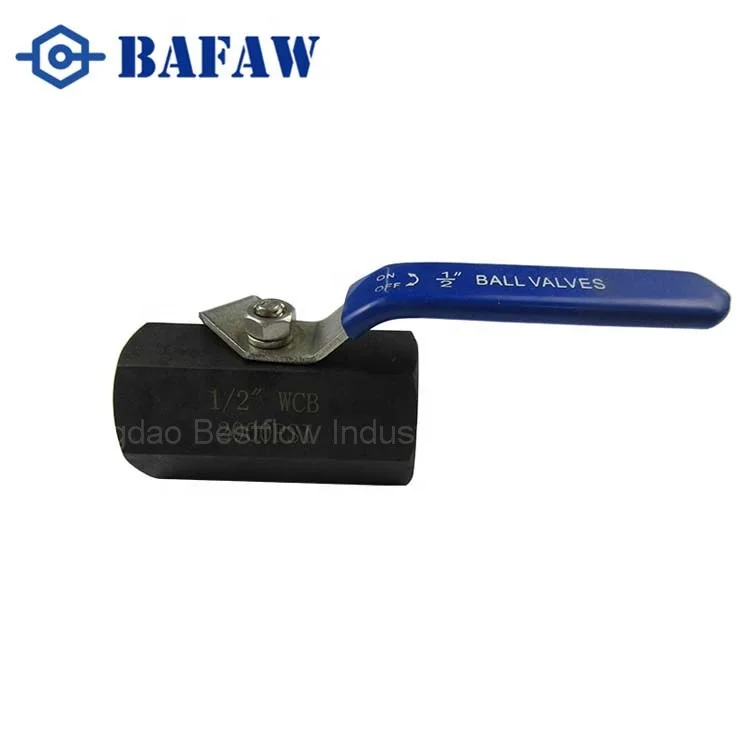

carbon steel 1pc hexagonal ball valve
- Category: >>>
- Supplier: Qingdao Bestflow Industrial Co. Ltd.
Share on (1601116507972):
Product Overview
Description
,
Product Description
DESCRIPTION

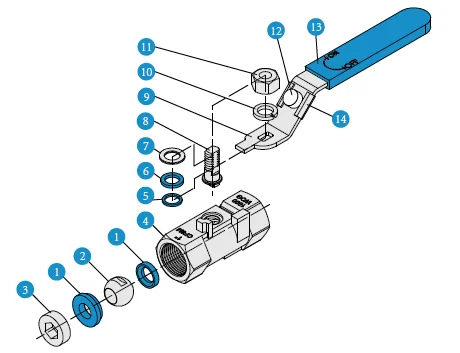

1. One Piece Body.
2. Reduce Bore.
3. Size: 1/4"-4"(DN6-DN100)
4. Working Pressure: 1000WOG, 2000WOG
5. Threaded End: OptionalBSP, BSPT, NPT, DIN2999

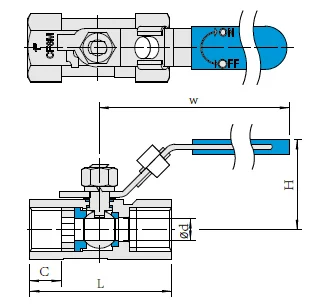

| SIZE | φd | L | H | W | C | TORQUE | END |
| N.M | |||||||
| 1/4" | 5 | 40 | 28 | 75 | 10 | 3 | BSP, BSPT,NPT, PT, DIN……. |
| 3/8" | 7 | 45 | 31 | 90 | 10.5 | 3 | |
| 1/2" | 9 | 57 | 34 | 95 | 13.5 | 3 | |
| 3/4" | 12 | 60 | 43 | 95 | 14 | 4.5 | |
| 1" | 15 | 72 | 52 | 111 | 16.5 | 5 | |
| 1-1/4" | 20 | 78 | 52 | 124 | 19 | 7 | |
| 1-1/2" | 25 | 83 | 65 | 139 | 19 | 8 | |
| 2" | 32 | 99 | 70 | 152 | 23.5 | 16 | |
| 2-1/2" | 38 | 130 | 95 | 200 | 31.5 | 21 | |
| 3" | 48 | 150 | 102 | 200 | 32 | 26 | |
| 4" | 65 | 192 | 133 | 250 | 44 | 40 |
Company Information
Our Services
Packaging & Shipping
FAQ
Q1: Can I have my own customized product?
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
